Specifications:

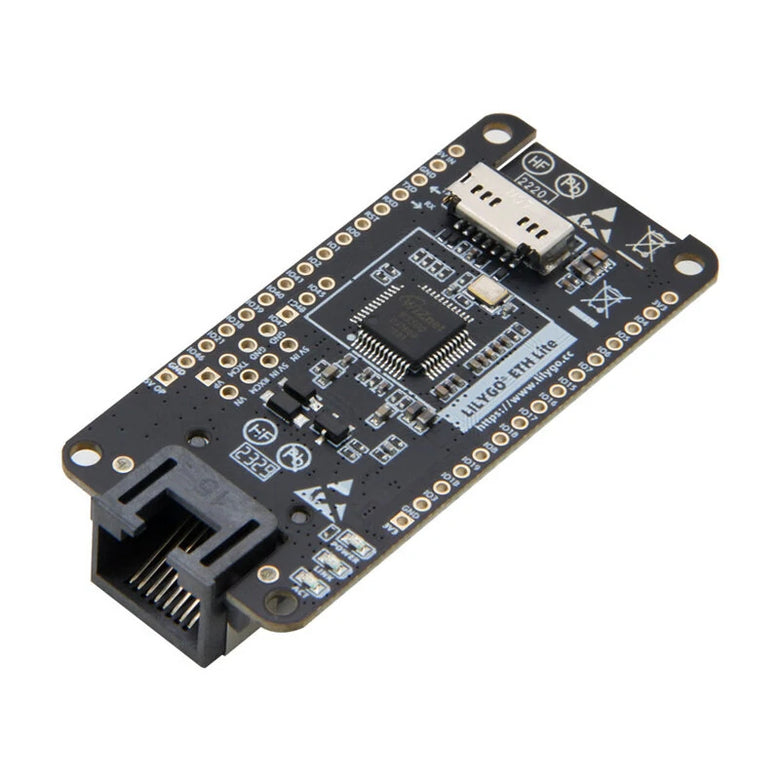

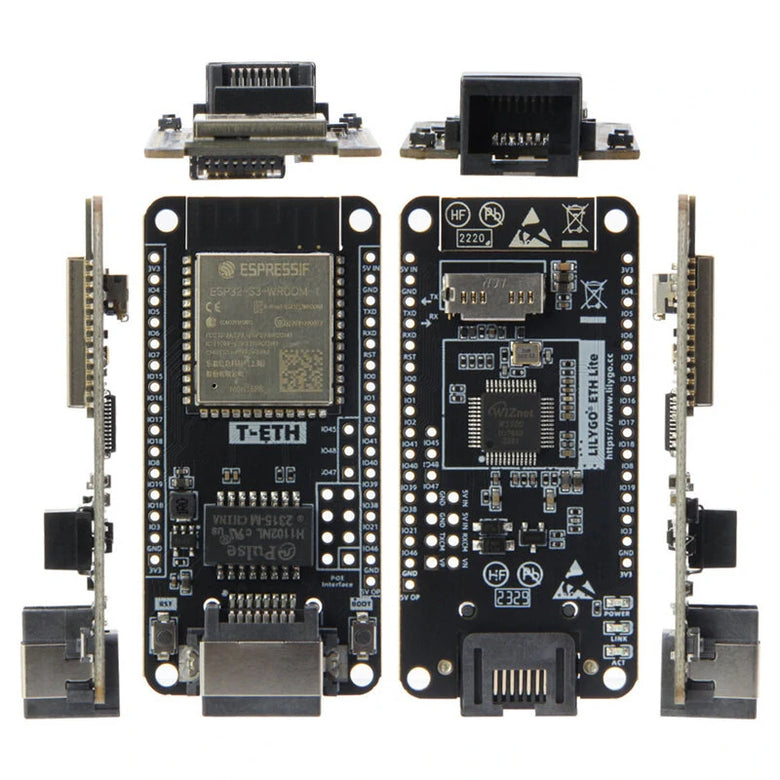

Name: T-ETH-LITE-ESP32-S3
Microcontroller (MCU): ESP32-S3-WROOM-1
Flash Memory: 16MB
PSRAM: 8MB
Ethernet: W5500
Wi-Fi: 802.11 b/g/n
bluetooth: BLE 5 + bluetooth Mesh
On-Board Features: Ethernet and TF Card support
Buttons: Restart and Boot
Copy to open: https://github.com/Xinyuan-LilyGO/LilyGO-T-ETH-Series?spm=a2g0o.detail.1000023.10.68acpJU5pJU5iu
Features:
Powerful MCU: The T-ETH-LITE-ESP32-S3 development board is equipped with the ESP32-S3-WROOM-1 microcontroller, offering high-performance processing capabilities for a wide range of applications.
Ample Memory: With 16MB of flash memory and 8MB of PSRAM, this board provides ample storage and memory for your projects, enabling the development of feature-rich applications.
Ethernet Connectivity: The board features a W5500 Ethernet module, allowing for fast and reliable wired network connectivity, making it suitable for IoT and networked applications.
Wireless Connectivity: In addition to Ethernet, the board supports 802.11 b/g/n Wi-Fi, providing wireless networking capabilities for your projects.
bluetooth and BLE: With bluetooth 5 and bluetooth Mesh support, the board enables seamless communication with other bluetooth devices, expanding its range of applications.
Package Include:

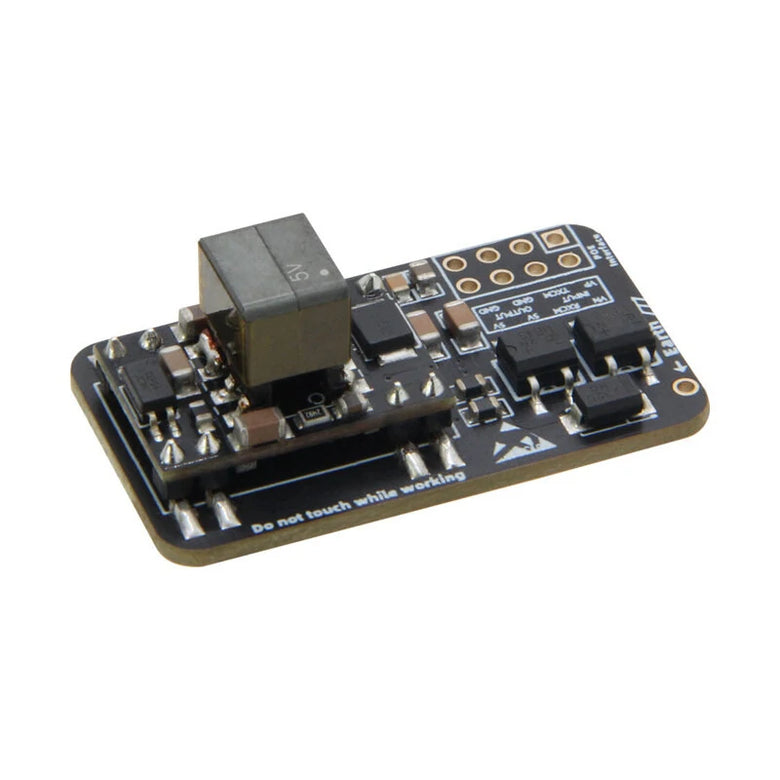

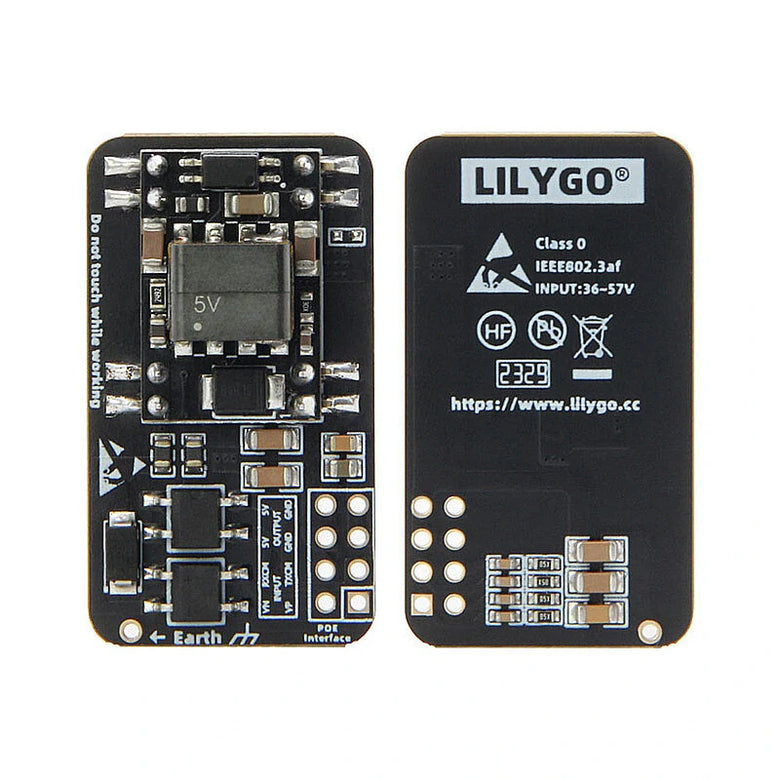

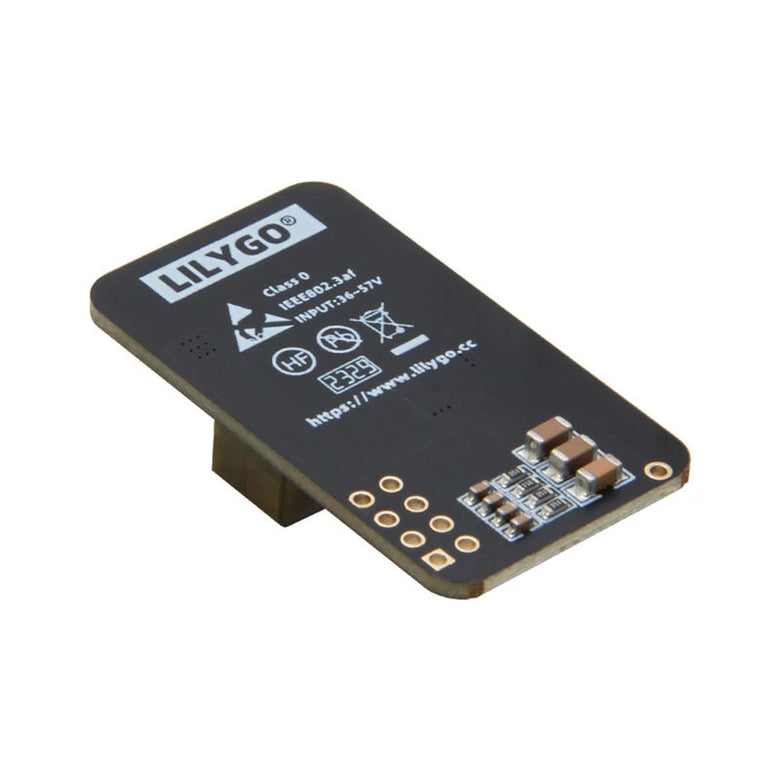

【Power PoE Module】:
1x 2.54mm Female PIN (2*4P)
【T-ETH-Lite ESP32-S3(H674)】:
1x T-ETH-Lite ESP32S3
1x Pin(16pin)
1x Pin(15pin)
1x 2*4Pin
1x Pin(3pin)
【T-ETH-Lite ESP32(H673)】:
1x T-ETH-Lite ESP32
2x Pin(15pin)
1x 2*4Pin
2x Pin(15pin)
1x 2*4Pin
