Sample Code For Reference [Github]
Specification:
Brand: LILYGO®
Model: T-Halow
MCU: ESP32-S3
Flash: 16MB
PSRAM: 8MB
Wireless Protocol: 2.4 GHz Wi-Fi and bluetooth 5 (LE)
Programming Platforms: Arduinno-IDE, VS Code, ESP-IDF
Onboard Functions: TF-Card, BOOT + Reset, 18650 Battery Support
Camera Support: OV2640/OV5640
Network Port: RJ45
Size: 113 x 33 mm
USB Charging: 5V 500mA
Features:
1. Wi-Fi CERTIFIED HaLow (802.11ah):
Frequencies: 902MHz~928MHz, 915M Saw
Frequencies: 859MHz~894MHz, 875M Saw
2. Multiple Connectivity Options:
2.4 GHz Wi-Fi and bluetooth 5 (LE)
RJ45 Ethernet Network Port for reliable wired connections
3. Extensive Programming Support:
Compatible with Arduinos-IDE, VS Code, and ESP-IDF for versatile development environments
4. Advanced Camera Support:
Integrated Camera Seat compatible with OV2640/OV5640 for high-quality imaging
5. Power Management:

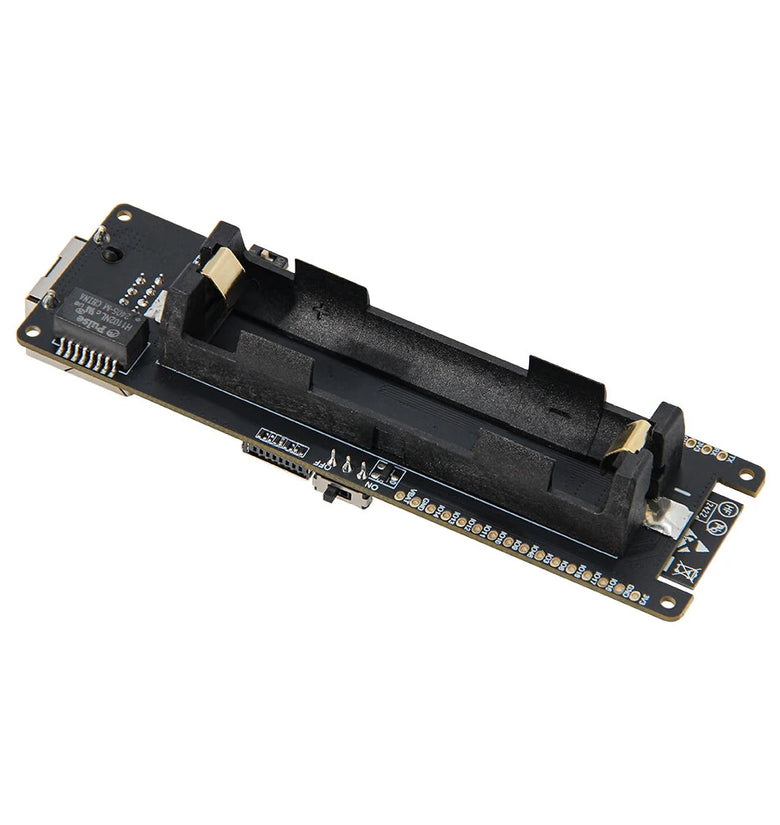

Support for 18650 battery with onboard Battery ADC (IO03), enabling mobile and uninterrupted operation
Package Include:

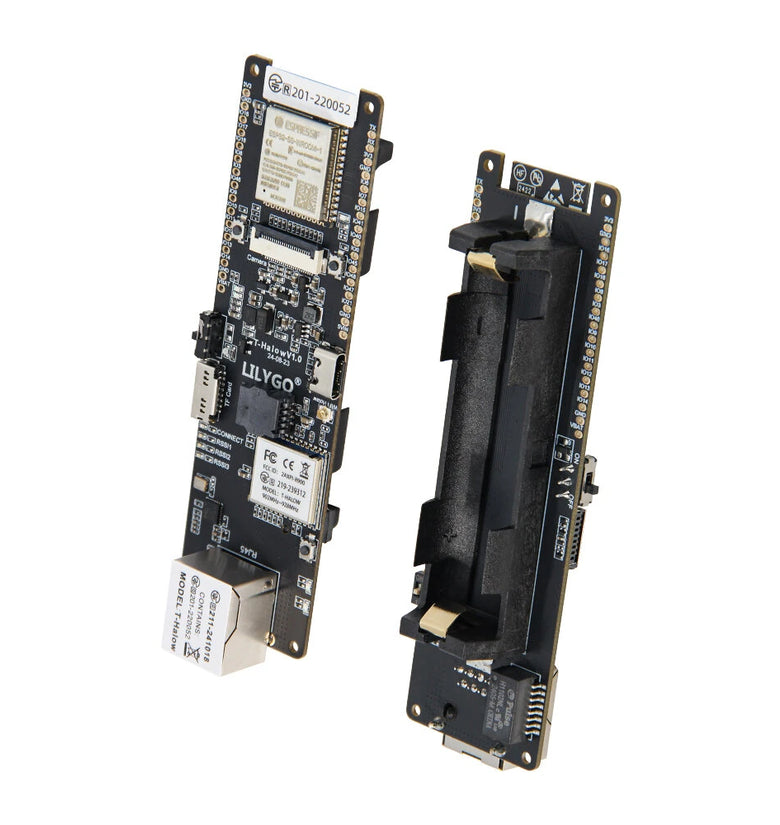

1x LILYGO® T-Halow ESP32-S3 Ethernet Development Board
1x Antenna[868M/915M/920M Optional]
2x Pin
