>>>github: Click here to open<<<
T-Panel Detailed Parameters:MCU1: ESP32-S3 Flash: 16MB PSRAM: 8MBWireless Communication Protocol: 2.4 GHz Wi-Fi + Bluetooth 5 (LE)

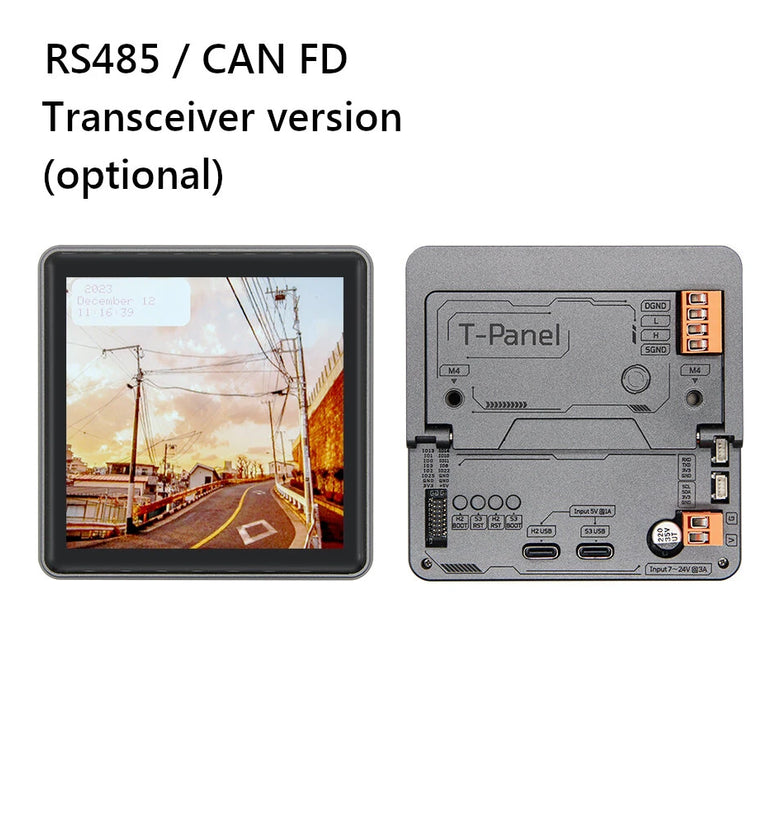

MCU2: ESP32-H2 Flash: 4MBWireless Communication Protocol: IEEE 802.15.4 + Bluetooth 5 (LE)Supported Development Platform: ARDUIN0, PLatformIO-IDE, Micropython4.00' 480*480 IPS ST7701S LCD:Visible Pixels: 480(W) 480(H)Interface: SPI+RGBCompatibility Library: ARDUIN0_GFX, LVGLOnboard Functions: QWiiC x 2 + TF Card + AntennaESP32 4 x Button = S3(Boot + RST) + H2(Boot + RST)XL9535 Input/Output (GPIO) Expansion Chip16-bit I2C Bus and SMBus I/O port expanderRS485 / CAN FD transceiver module (optional)Bus communication protocol used: UART
Package includes:
1 x T-Panel S31 x 1.27 2x8 female header
