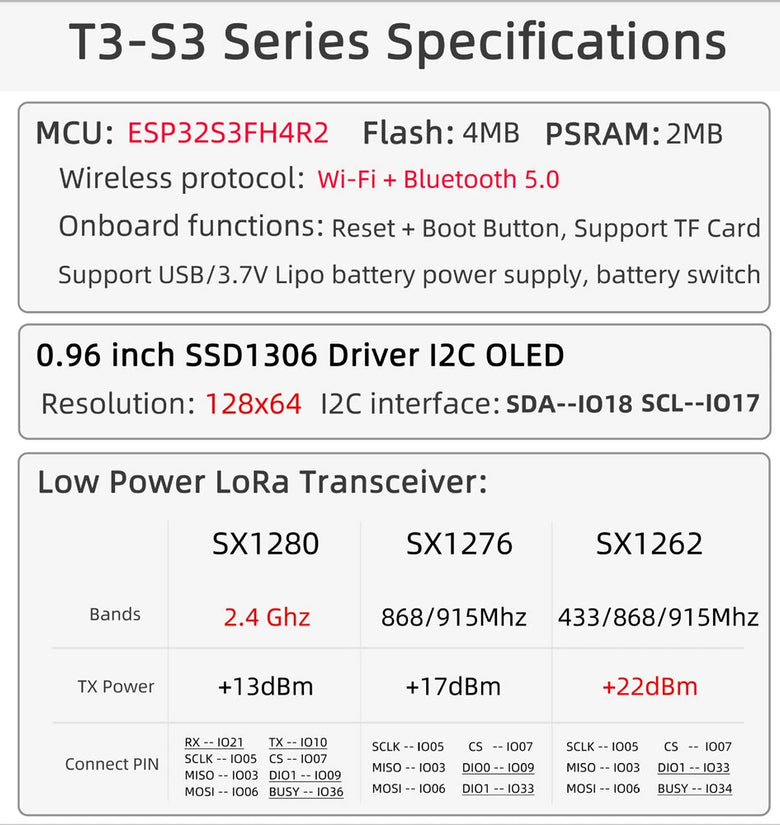

Specifications:
MCU: ESP32S3FH4R2
Flash: 4MB
PSRAM: 2MB
Wireless Protocol: Wi-Fi + Bluetooth 5.0
Onboard Functions: Reset + Boot Button, TF Card Support, USB/3.7V LiPo Battery Power Support, Battery Switch
Display: 0.96-inch SSD1306 Driver I2C OLED
Resolution: 128x64
I2C interface: SDA - IO18, SCL - IO17
Low Power LoRa Transceiver:
SX1280: 2.4GHz, TX Power +13dBm
SX1276: 868/915MHz, TX Power +17dBm
SX1262: 433/868/915MHz, TX Power +22dBm
Connect Pins: TX, RX, SCLK, MISO, MOSIs, CS, DIO.
Features:
1. Advanced ESP32-S3 Chip
Equipped with the ESP32S3FH4R2 chipset, offering high performance for IoT applications with built-in Wi-Fi and Bluetooth 5.0. It ensures seamless internet and device connectivity.
2. Integrated LoRa Transceiver
Supports SX1280, SX1276, and SX1262 modules for long-range communication in different frequency bands, allowing flexible applications in 433 MHz, 868 MHz, 915 MHz, and 2.4GHz transmission.

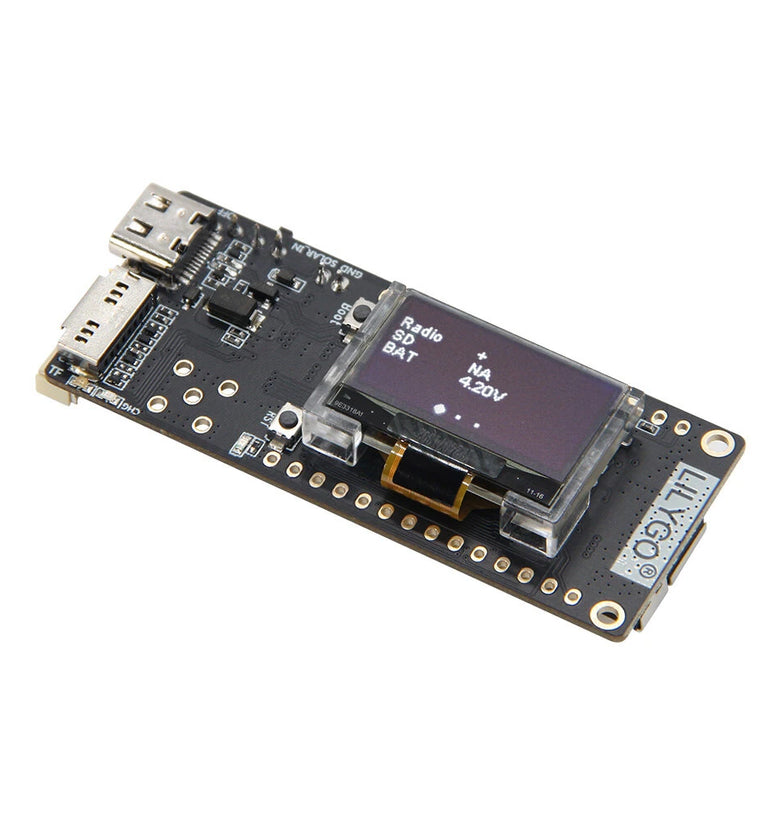

3. High-Resolution OLED Display
Features a 0.96-inch SSD1306 I2C OLED screen with 128x64 resolution, providing clear visuals for monitoring data, program outputs, or debugging.
4. Flexible Power Options
Designed with compatibility for USB or 3.7V LiPo battery power input, ensuring versatile powering choices suitable for various scenarios.
5. Compact and Functional Design
Includes reset/boot button and TF card slot for storage expansion, packed into a compact form factor ideal for prototyping, development, and portable IoT projects.

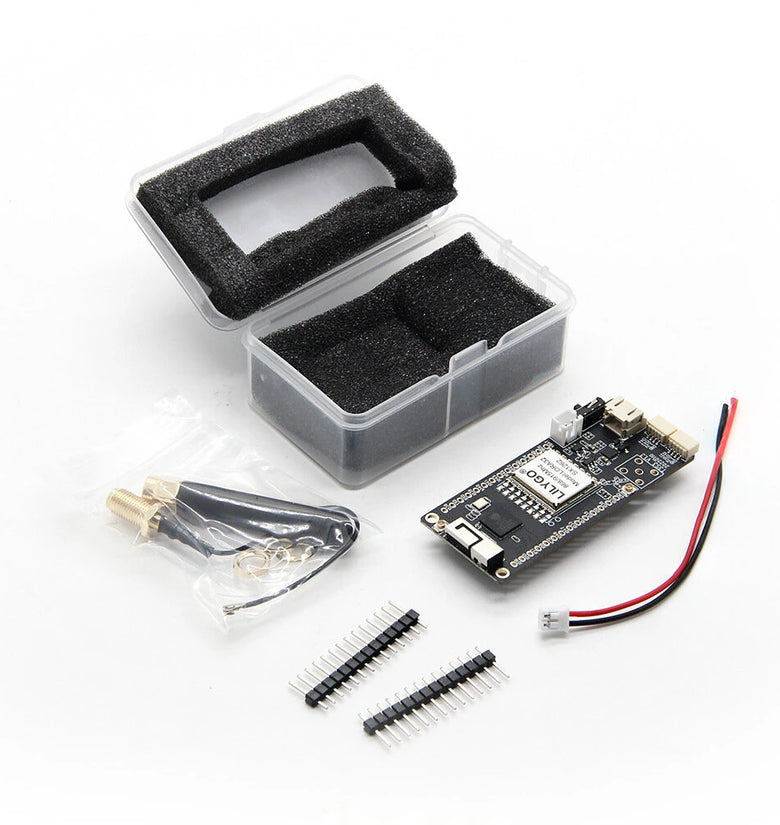

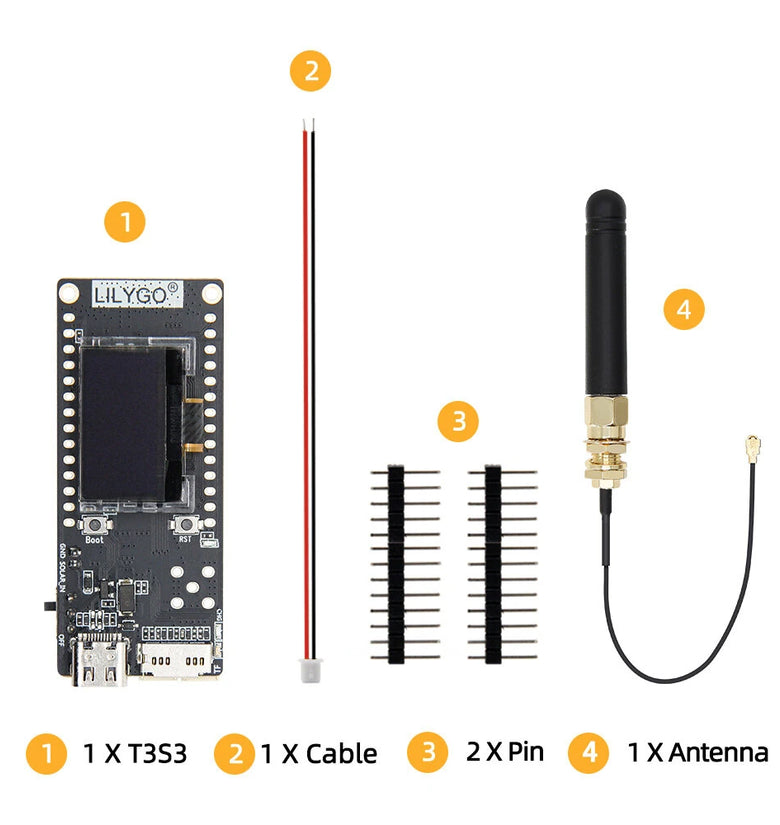

Package Included:
1 x T3-S3 Development Board
1 x Power Cable
2 x Pin Headers
1 x Antenna
