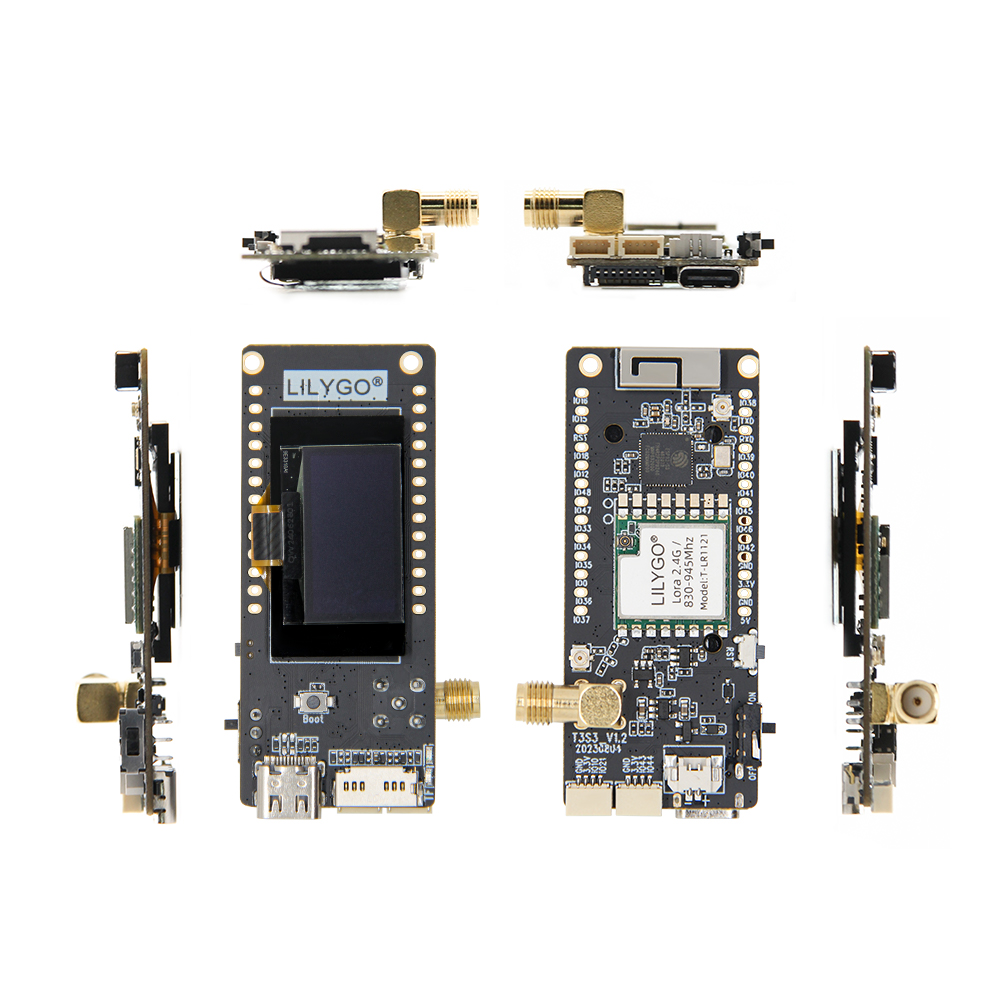

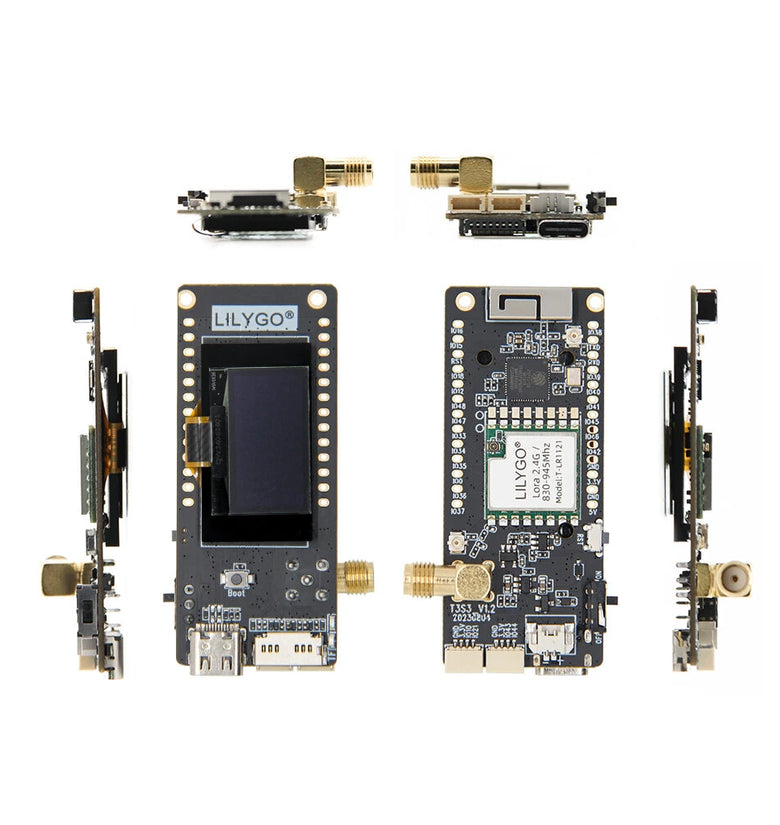

Specifications:
MCU: ESP32S3FH4R2
Flash: 4MB
PSRAM: 2MB

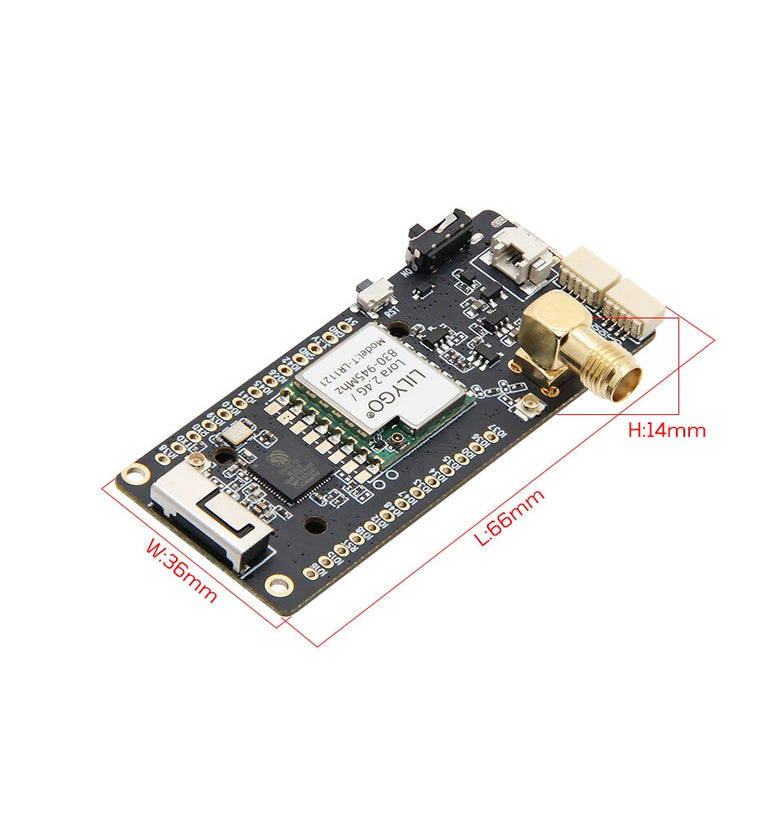

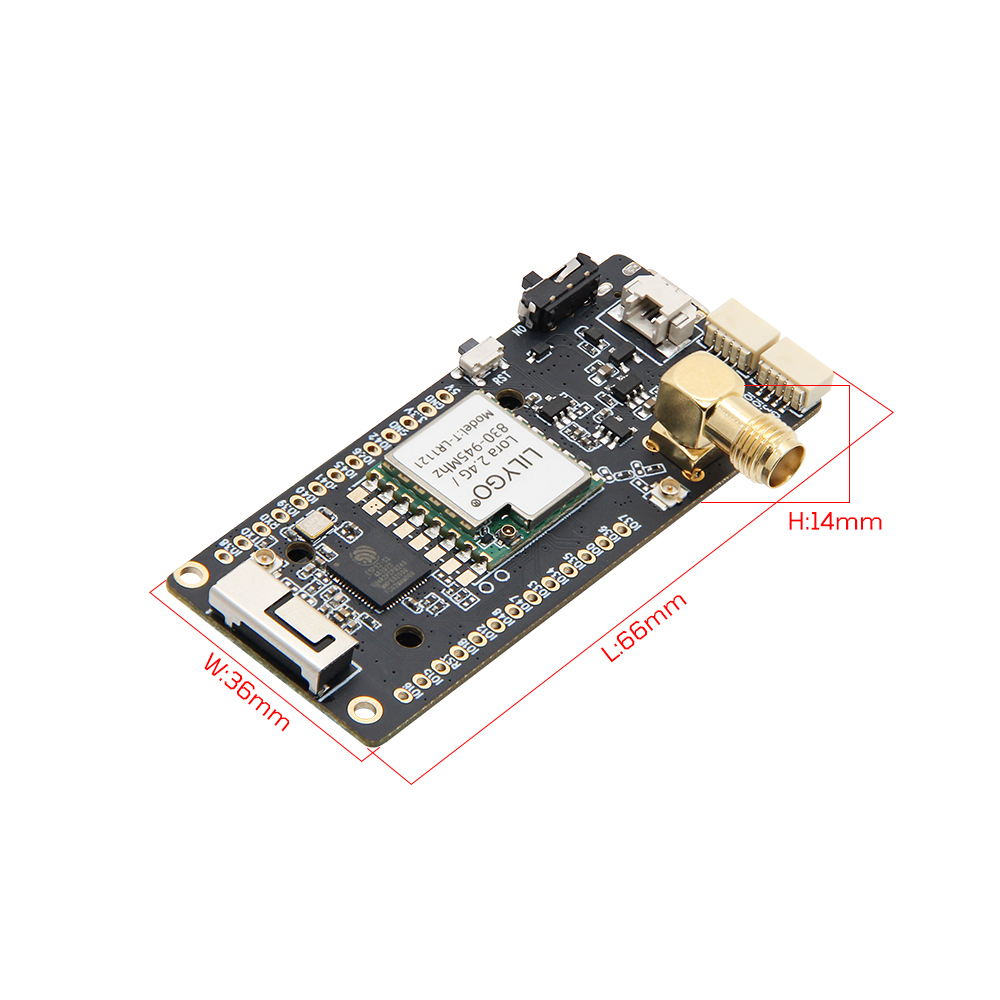

Size: 66 x 36mm
USB Charging: 500MA 5V
Wireless Protocol: Wi-Fi + Bluetooth 5.0
Onboard Functions: Reset + Boot Button, Support TF Card
0.96 inch SSD1306 Driver I2C OLED:
Resolution: 128x64
I2C Interface: SDA--IO18 SCL--IO17
Features:
1.Advanced MCU: Equipped with the ESP32S3FH4R2 microcontroller, this development board ensures high processing power and efficient performance for a wide range of applications, from IoT projects to complex computational tasks.
2.Versatile Wireless Connectivity: The inclusion of both Wi-Fi and Bluetooth 5.0 allows for versatile and flexible communication options. Facilitate seamless connections and high-speed data transfer in various smart devices and systems.

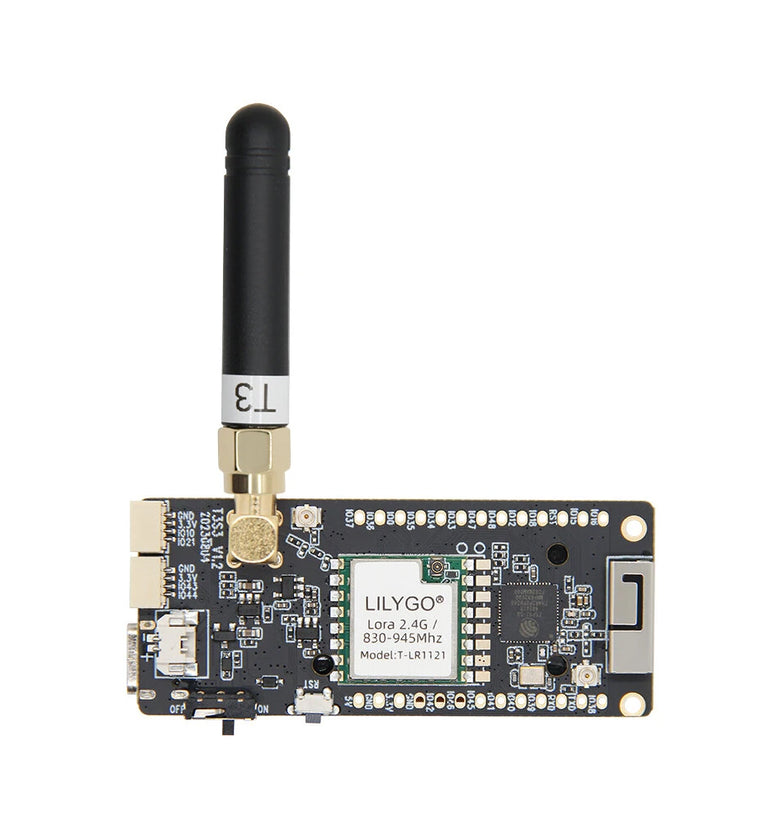

3.Low Power LoRa Transceiver: The T-LR1121 transceiver offers low power consumption while supporting broad frequency ranges from 830~945MHz and 2.4GHz. With substantial power gain of +22dBm for sub-GHz and +11.5dBm for 2.4GHz, it ensures excellent signal reception and transmission over long distances.
4.High-Resolution OLED Display: Integrated 0.96-inch SSD1306 driver I2C OLED display with 128x64 resolution provides clear and bright visuals, ideal for real-time data monitoring and user interface applications directly on the board.
5.Flexible Power and Storage Options: The board supports 500MA 5V USB charging, allowing for convenient and efficient power management. Additionally, with onboard TF card support, users can easily expand storage for data logging and other functionalities.

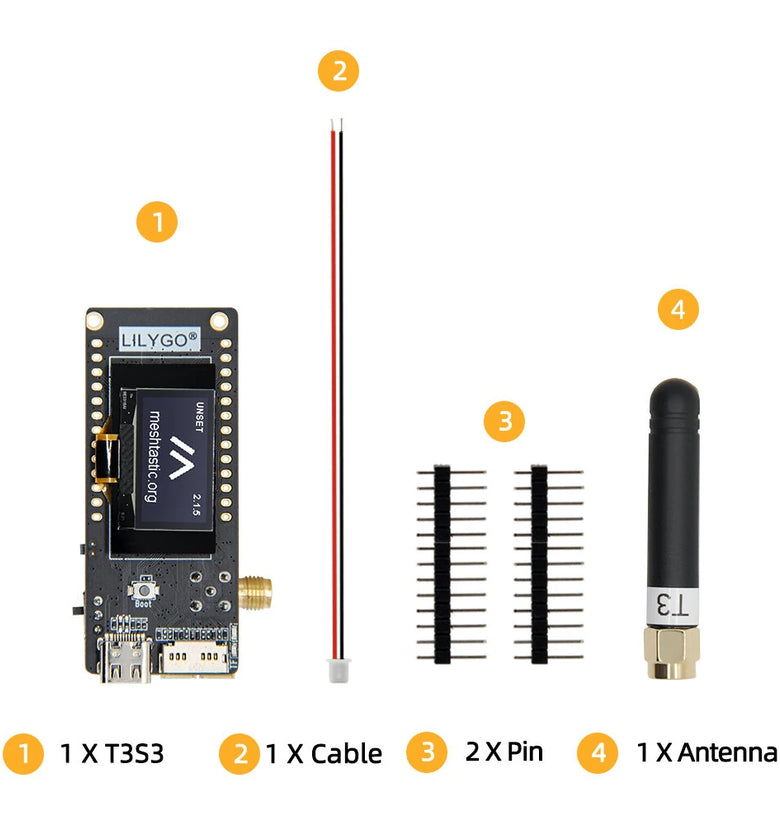

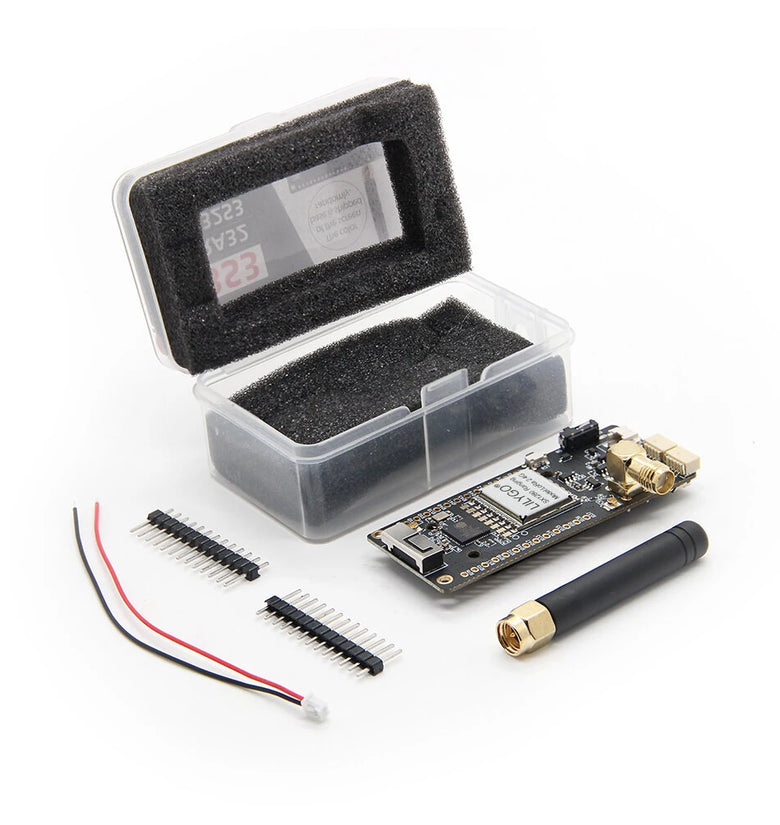

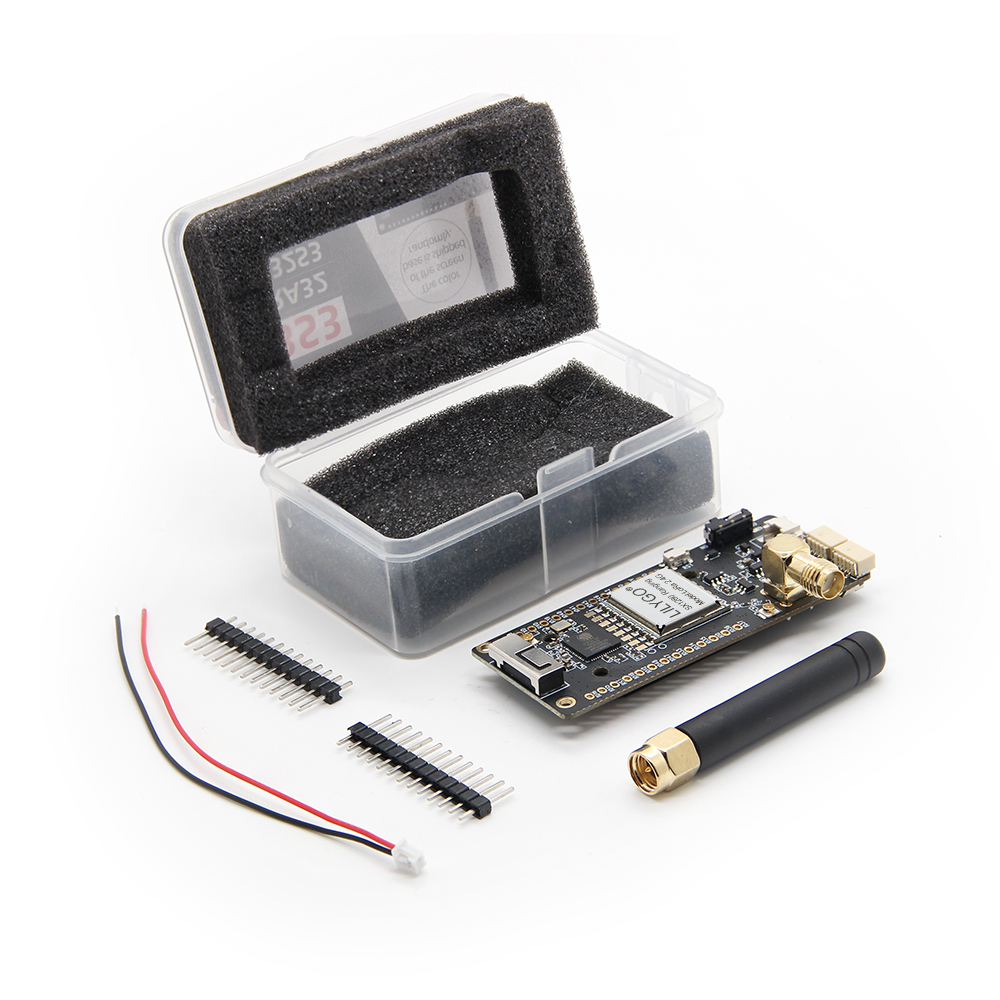

Package Included:

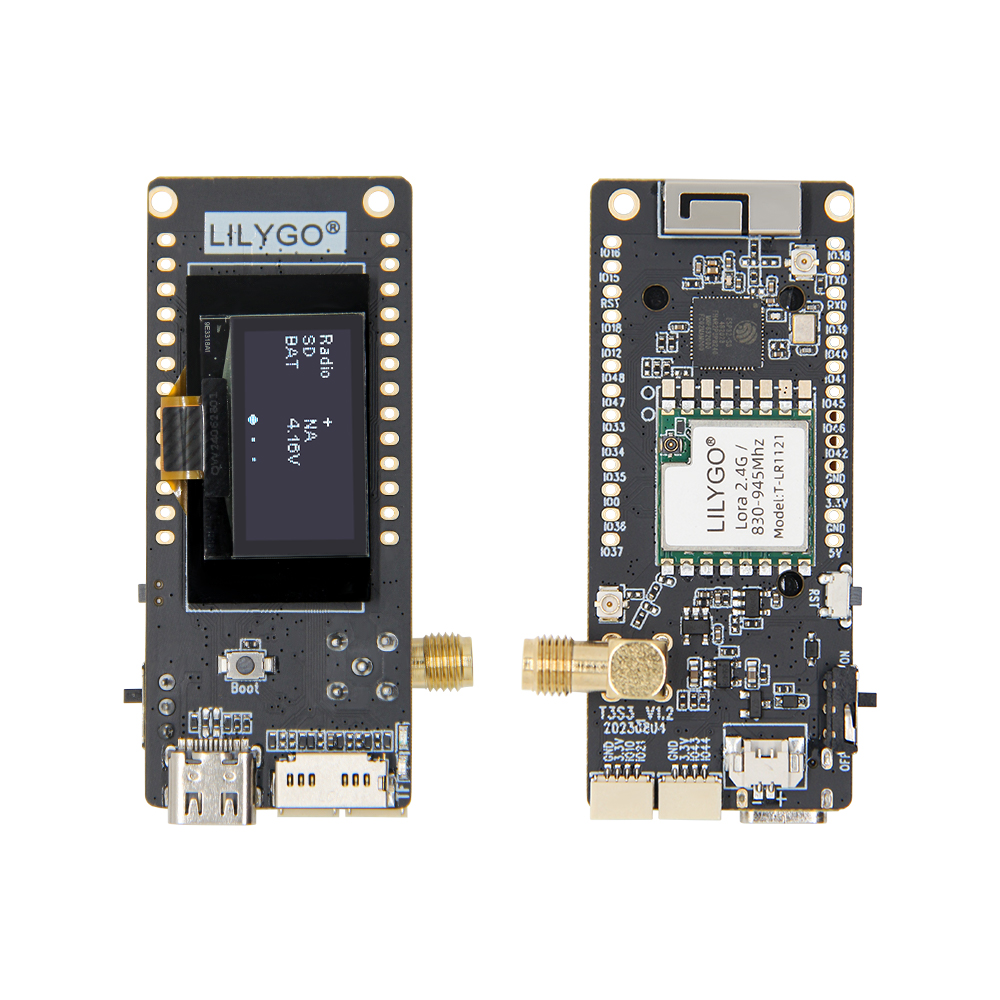

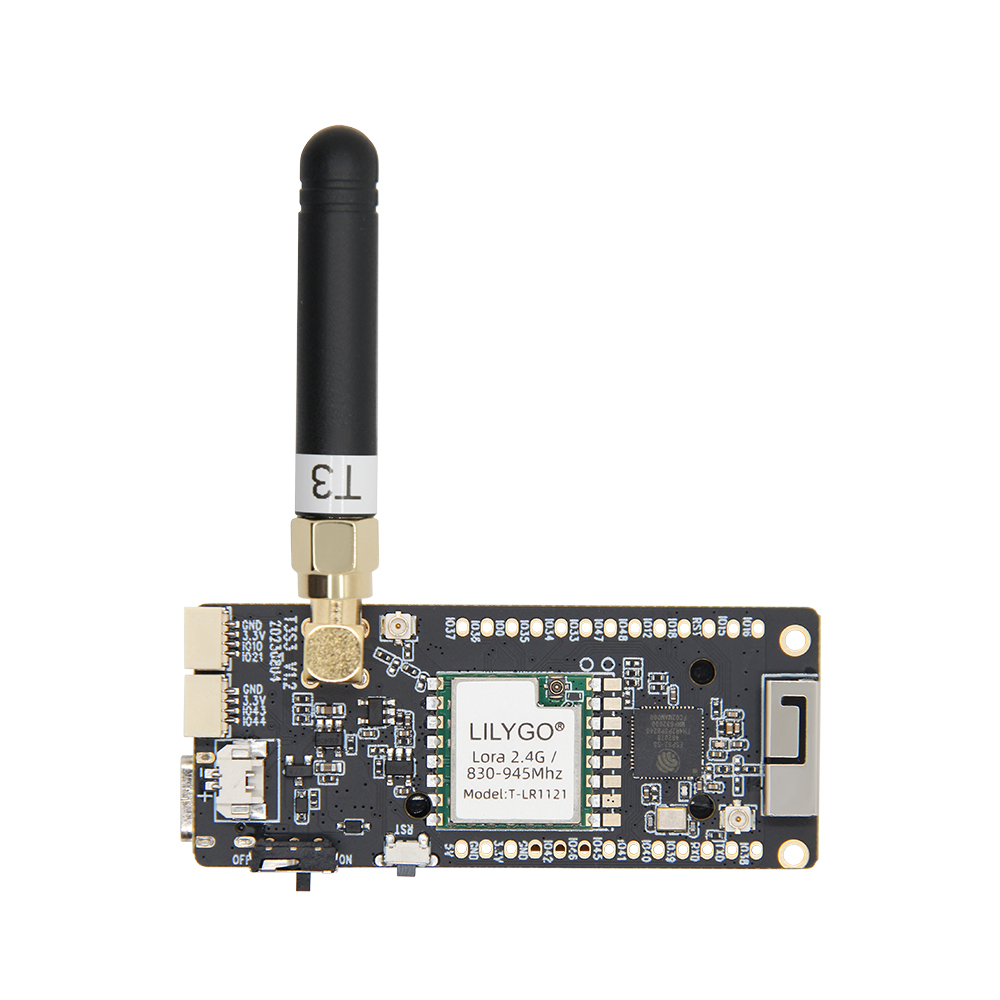

1 x T3 S3-LR1121 Development Board
