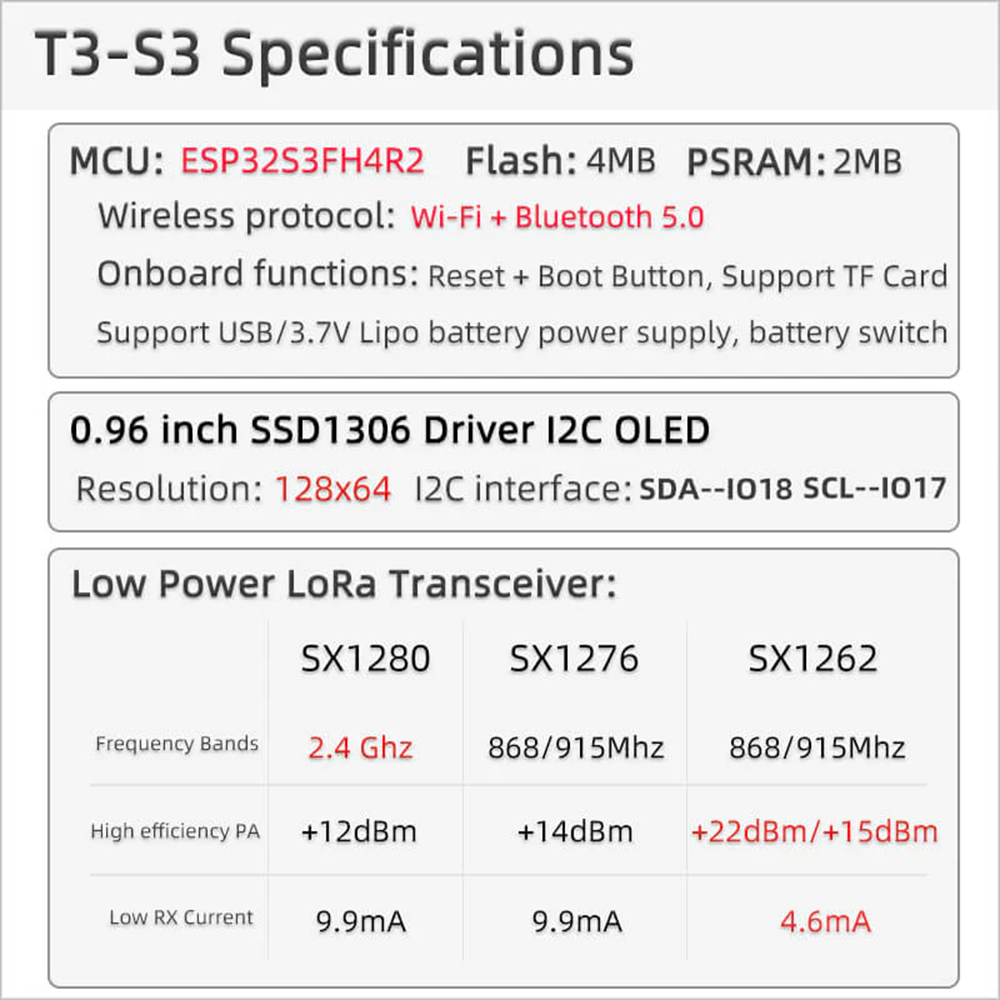

Specifications:
MCU: ESP32-S3FH4R2
Flash: 4MB
PSRAM: 2MB
Wireless Protocol: Wi-Fi + Bluetooth 5.0
Onboard Functions: Reset Button, Boot Button, TF Card Support
Power Supply: USB/3.7V LiPo battery compatible + battery switch

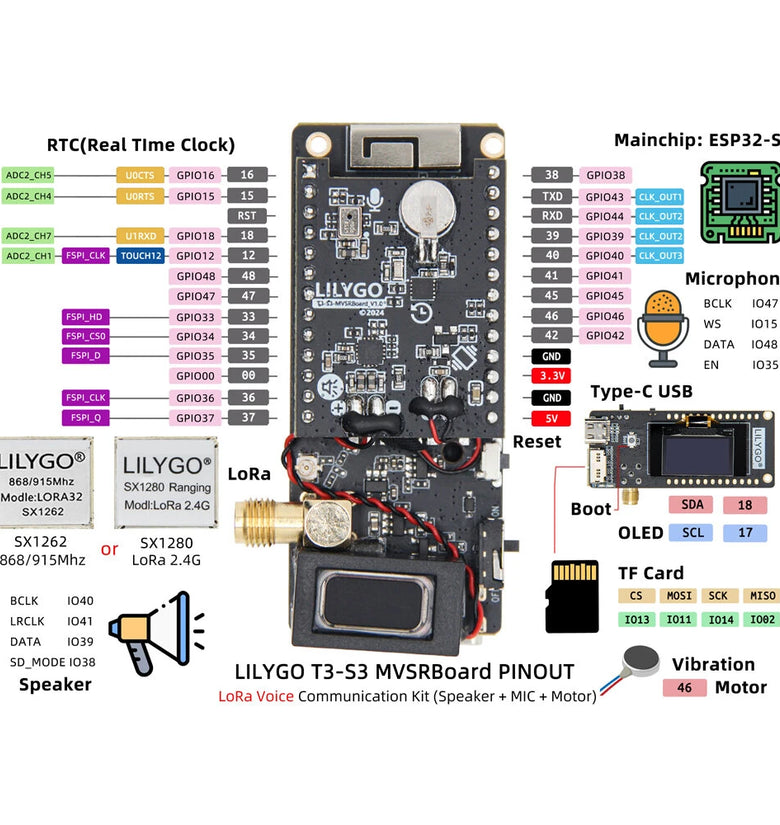

Display: 0.96-inch SSD1306 Driver I2C OLED, Resolution: 128 × 64, I2C interface: SDA-I018, SCL-I017

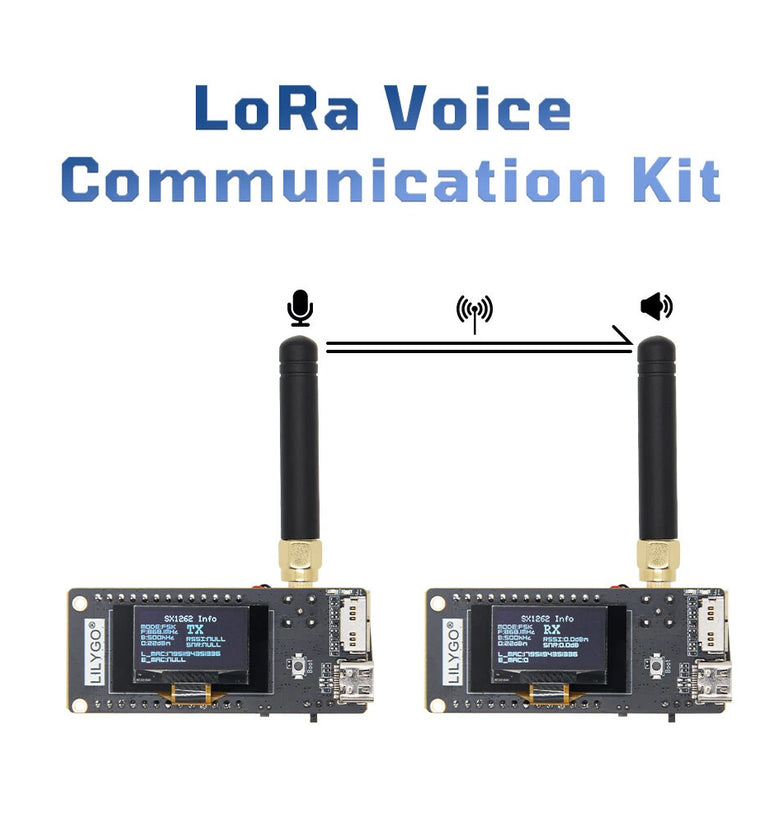

LoRa Transceiver Options:
SX1280 (2.4 GHz, +12 dBm, Low RX Current: 9.9mA)
SX1276 (868/915 MHz, +14 dBm, Low RX Current: 9.9mA)
SX1262 (868/915 MHz, +22 dBm/+15 dBm, Low RX Current: 4.6mA)

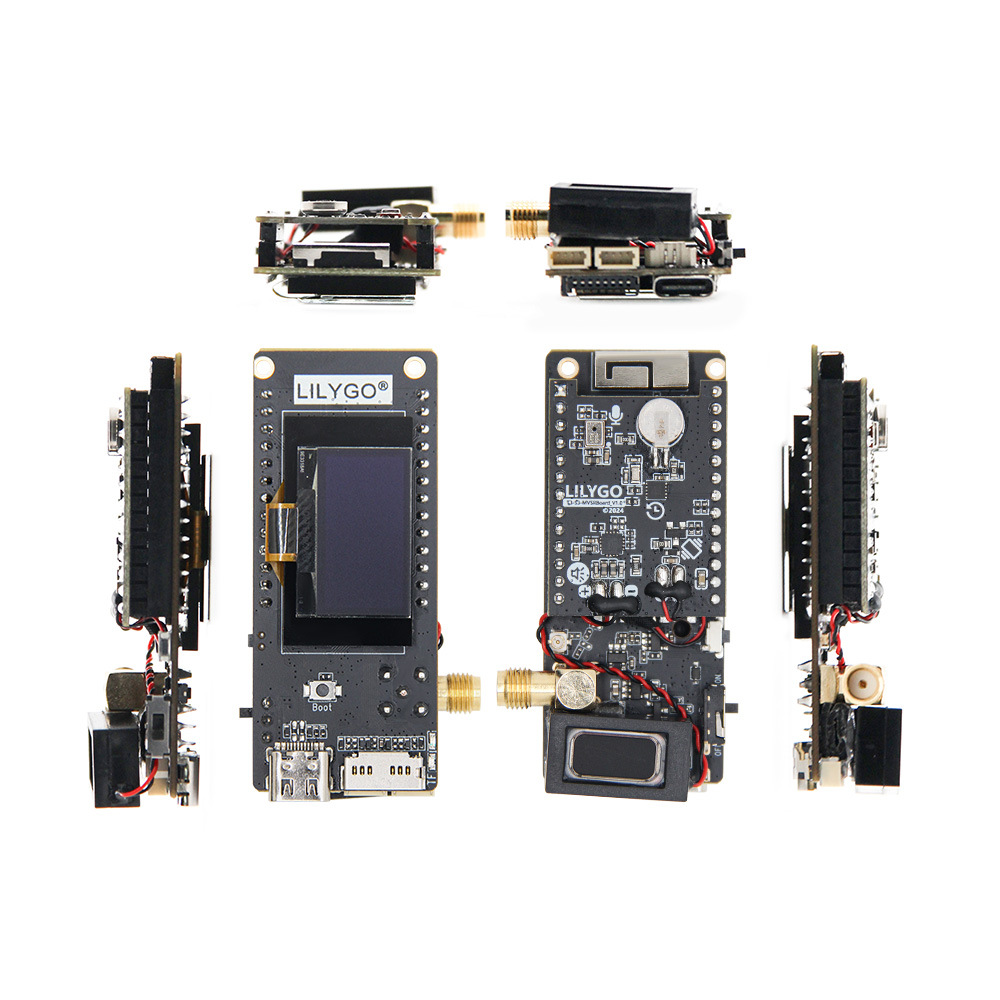

Dimensions: L: 66 mm x W: 27 mm x H: 15 mm
Features:
1. Enhanced Connectivity: Featuring Wi-Fi and Bluetooth 5.0 for low-latency wireless communications. Ideal for IoT solution.
2. Power Efficiency: Optimized for low RX current consumption, especially SX1262 transceiver (4.6mA), for extended battery life.
3. OLED Display Integration: Equipped with a 0.96-inch SSD1306 OLED delivering clear visuals with 128 × 64 resolution.
4. Flexible Power Options: Compatible with USB or 3.7V LiPo battery, enabling versatile applications. Includes a convenient hardware switch for battery control.
5. Compact & Lightweight Design: Measuring only 66 × 27 × 15 mm, the board is perfect for space-constrained environments without compromising functionality.

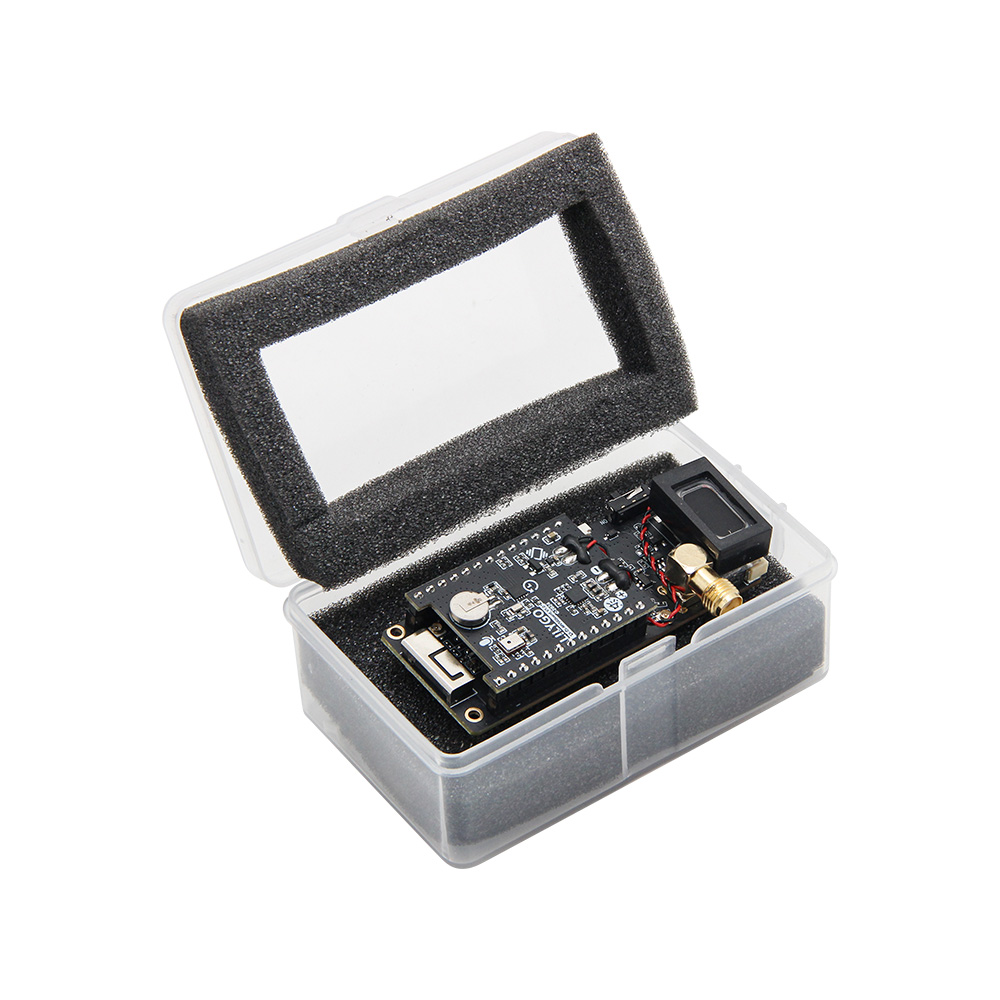

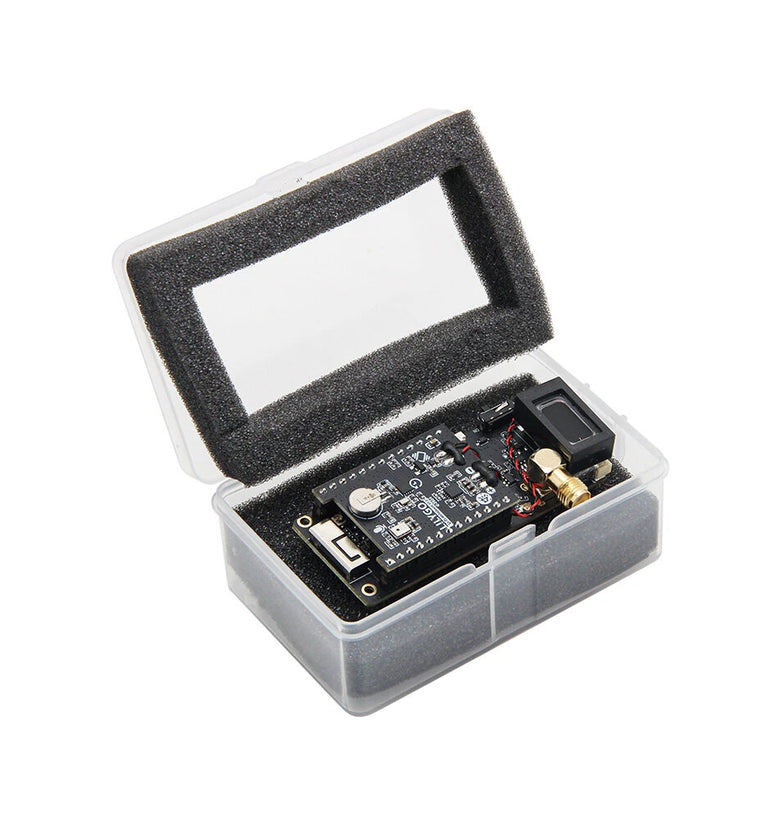

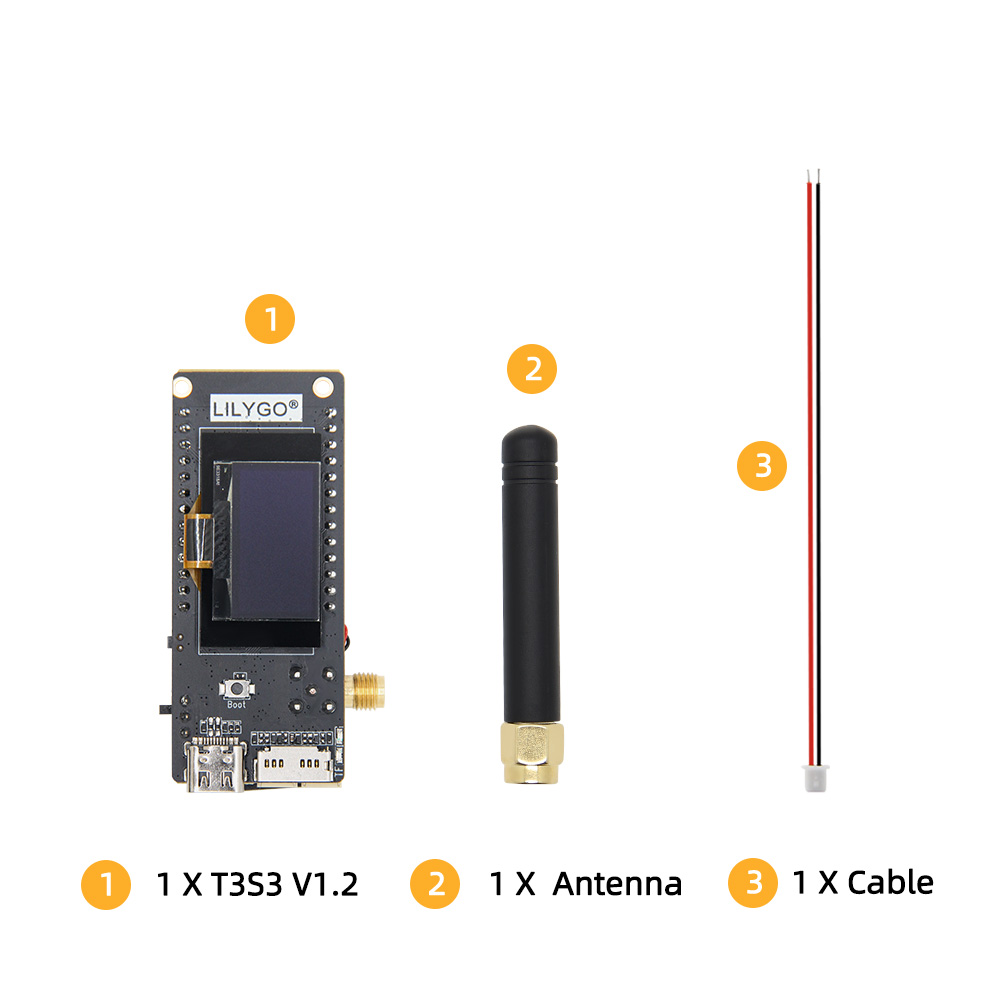

Package Included:

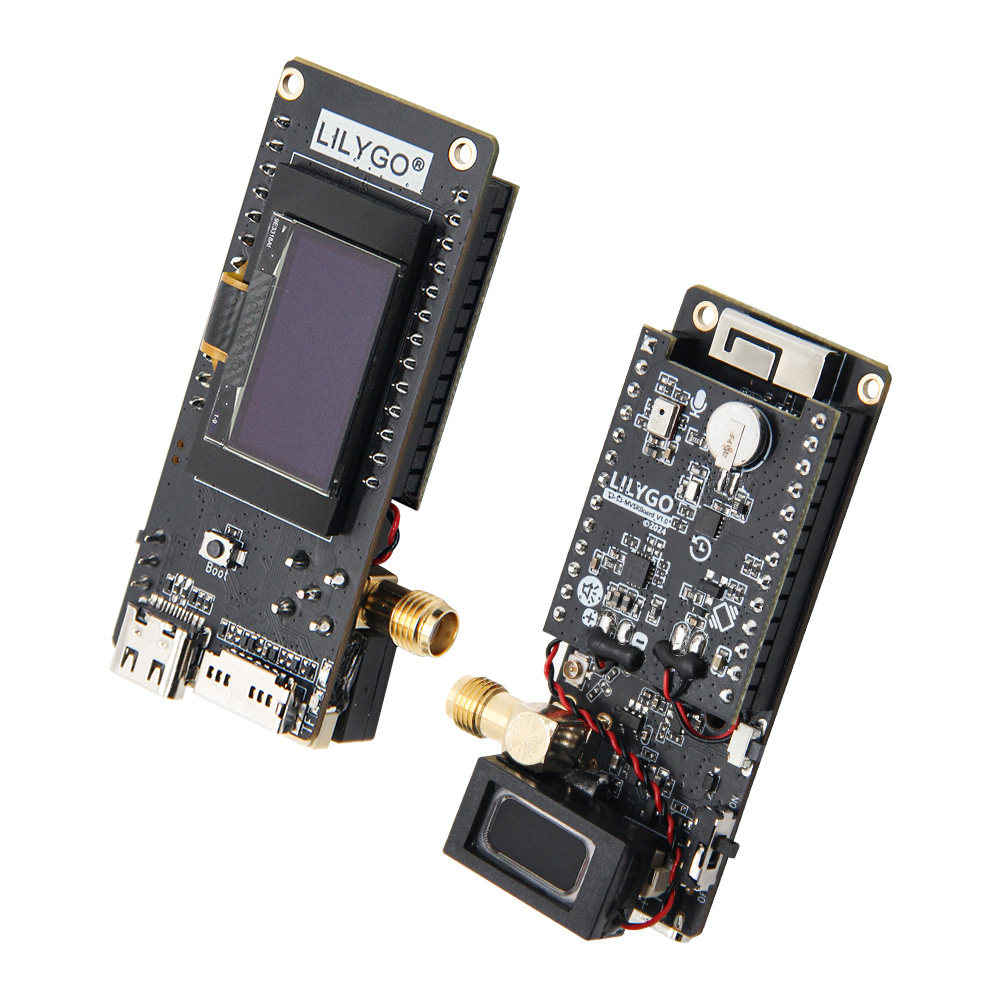

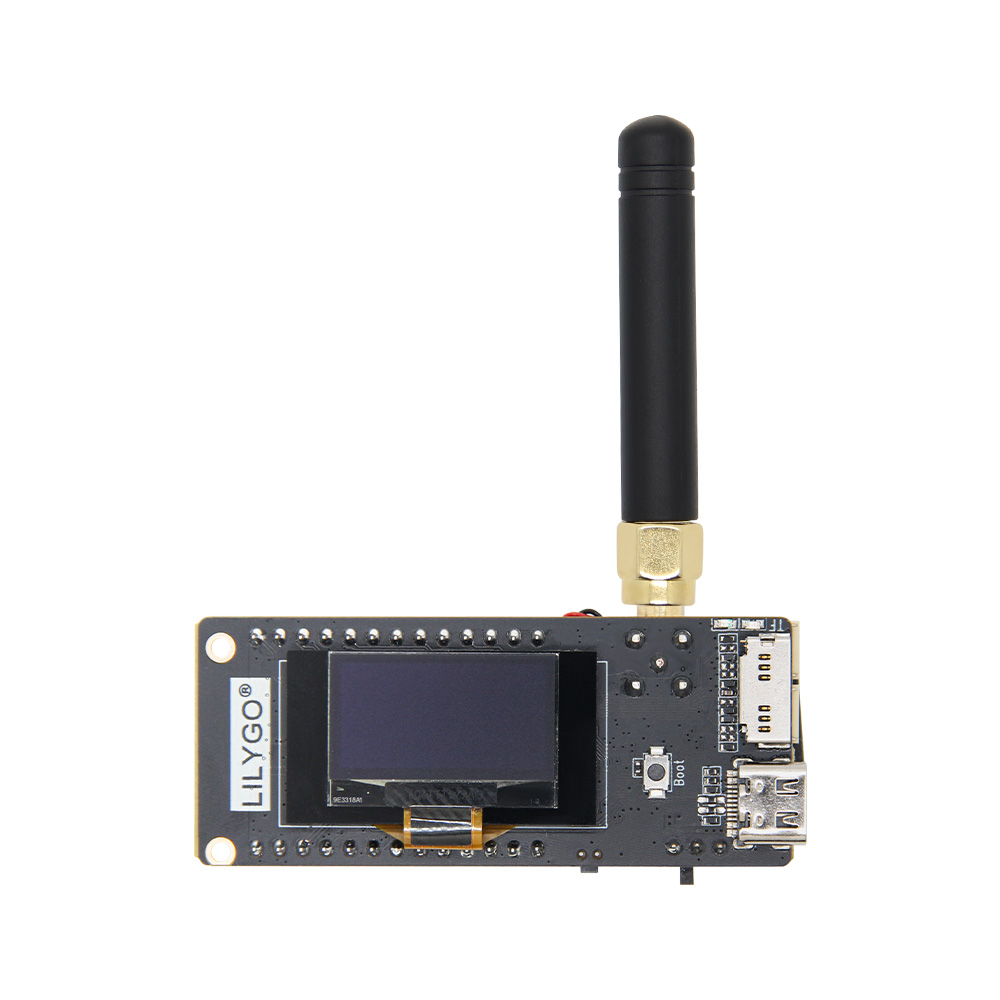

1 x LilyGO® T3S3 MVSR ESP32-S3 Development Board
1 x Antenna
1 x Connection Cable
