Feature:
Demo: https://github.com/Xinyuan-LilyGO/TTGO-T-Display
| Hardware Specifications | Description |
| Chipset | ESPRESSIF-ESP32 240MHz Xtensa® dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 16MB |
| SRAM | 520 kB SRAM |
| Button | Reset |
| USB to TTL |
CH9102F |
| Interface | UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifier |
| Display | IPS ST7789V 1.14 Inch 135*240 resolution |
| Working voltage | 2.7V-4.2V |
| Working current | About 60MA |
| Sleep current | About 120uA |
| Working temperature range | -40C~+85°C |
| Size & Weight | 51.52 x 25.04 x 8.54mm(7.81g) |
| Power Supply | Description |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery |
| JST Connector | 2Pin 1.25mm |
| USB | Type-C |
| Wi-Fi | Description |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC/JAPAN MIC |
| Protocol | 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU polymerization, support 0.4us Protection interval |
| Frequency range | 2.4GH2~2.5GHz(2400M-2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| Bluetooth | Description |
| Protocol | Support bluetooth V4.2BR/EDR and BLE standard |
| Radio frequency | With -97dBm sensitivity NZIF receiver Class-1, Cl ass-2 & Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software | Description |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART download/OTA (Through network/host to download and write firmware) |
| Software Development | Support cloud server development/SDK for user firmware development |
| Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |

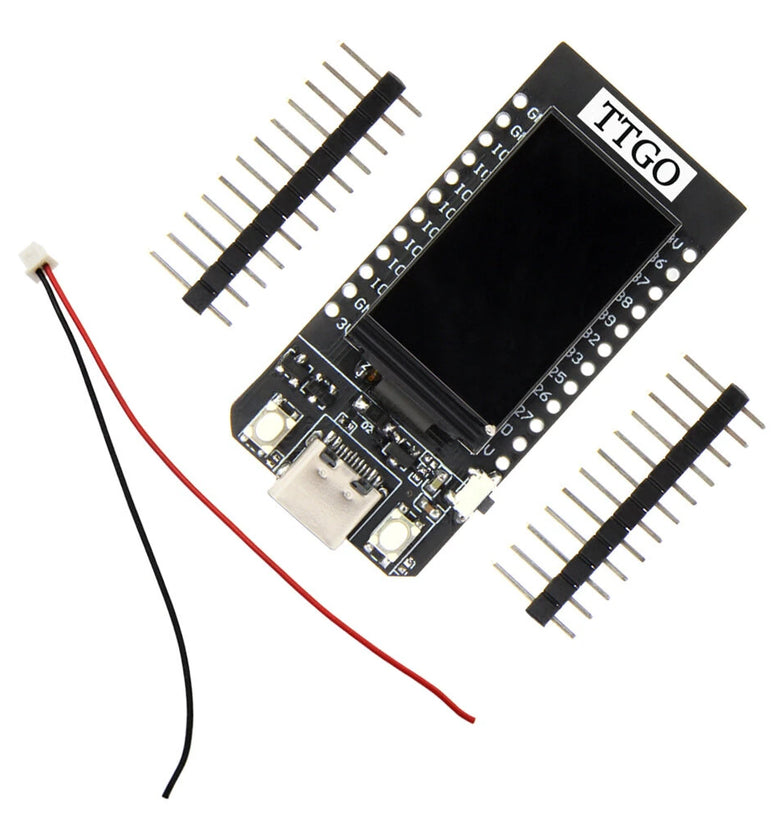

Package includes:
1 x Development board with pins
1 x Battery cable
Pin diagram:
