Specifications:
- Input Voltage: AC 0-24V or DC 0-35V
- Output Voltage: DC 1.5V to 30V (continuously adjustable)

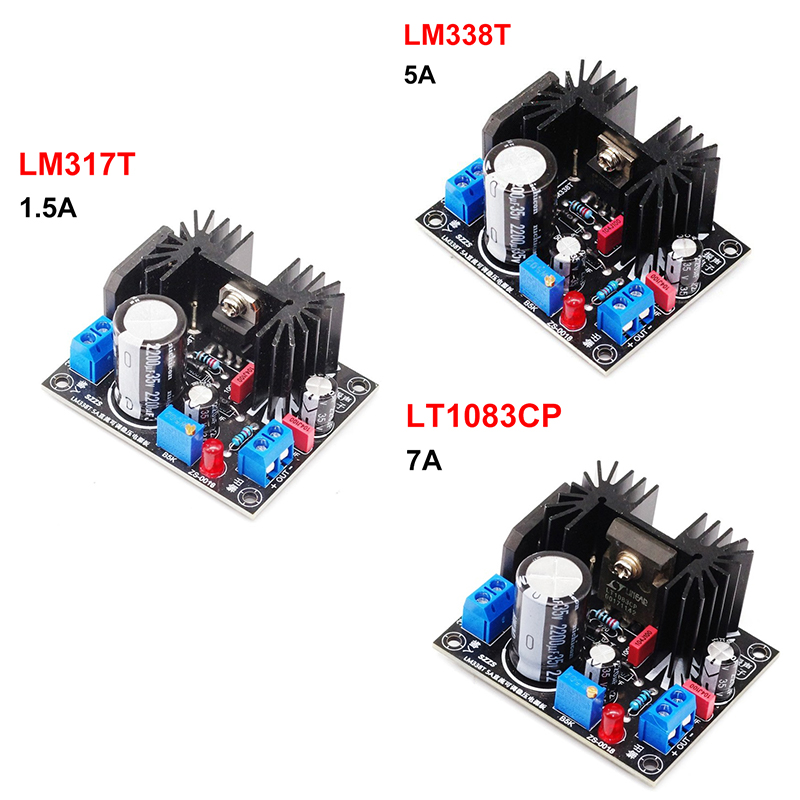

- Maximum Output Current:

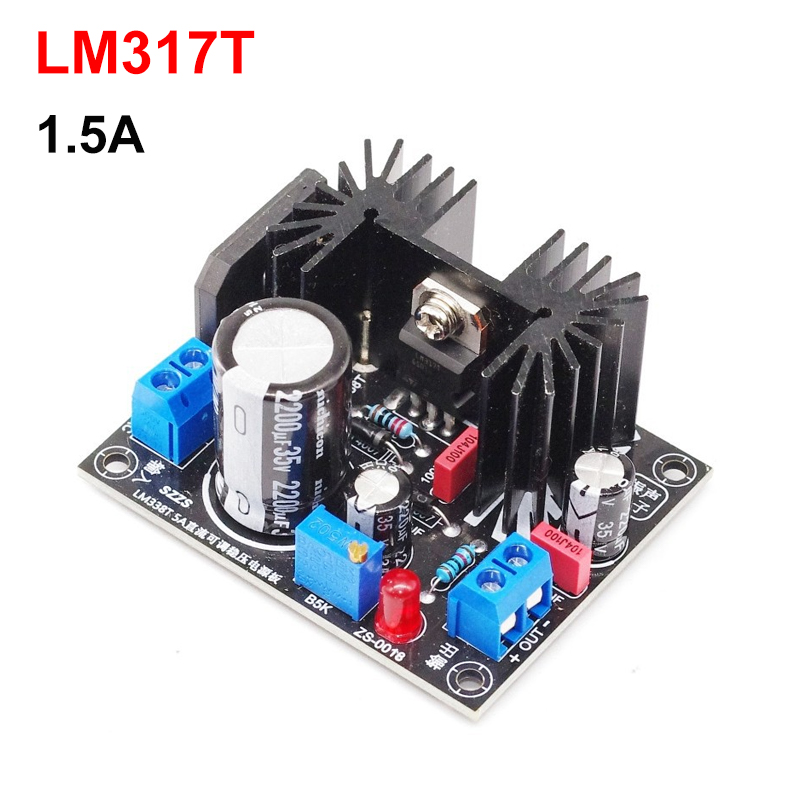

- LM317T: 1.5A

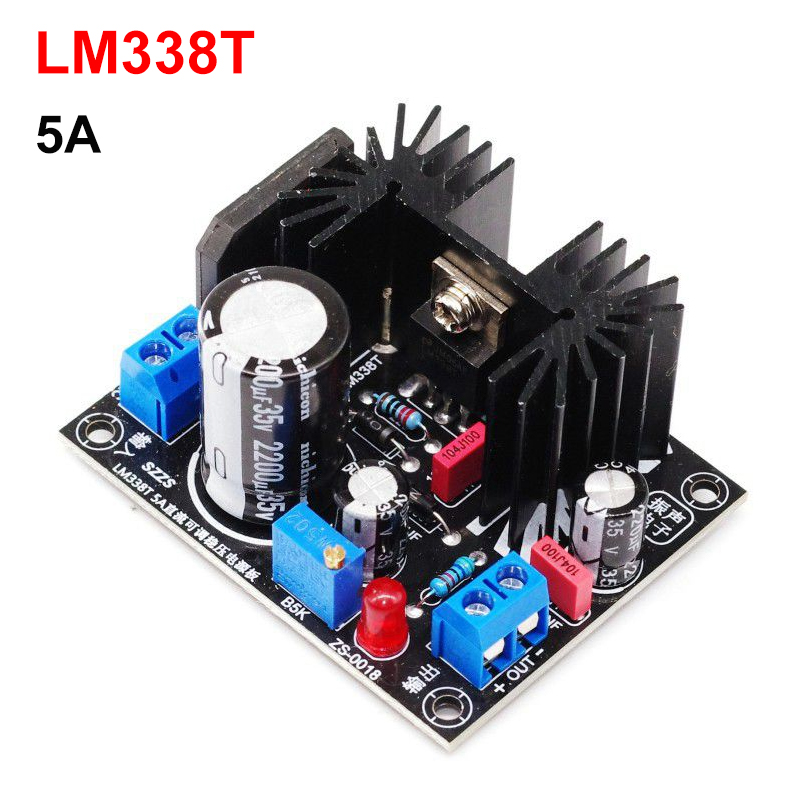

- LM338T: 5A

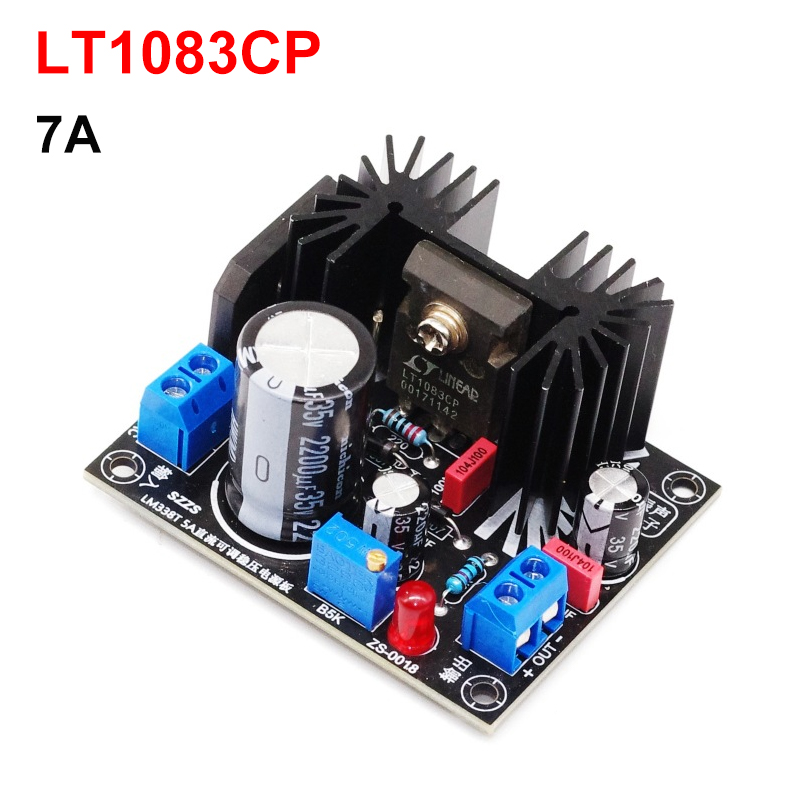

- LT1083CP: 7A

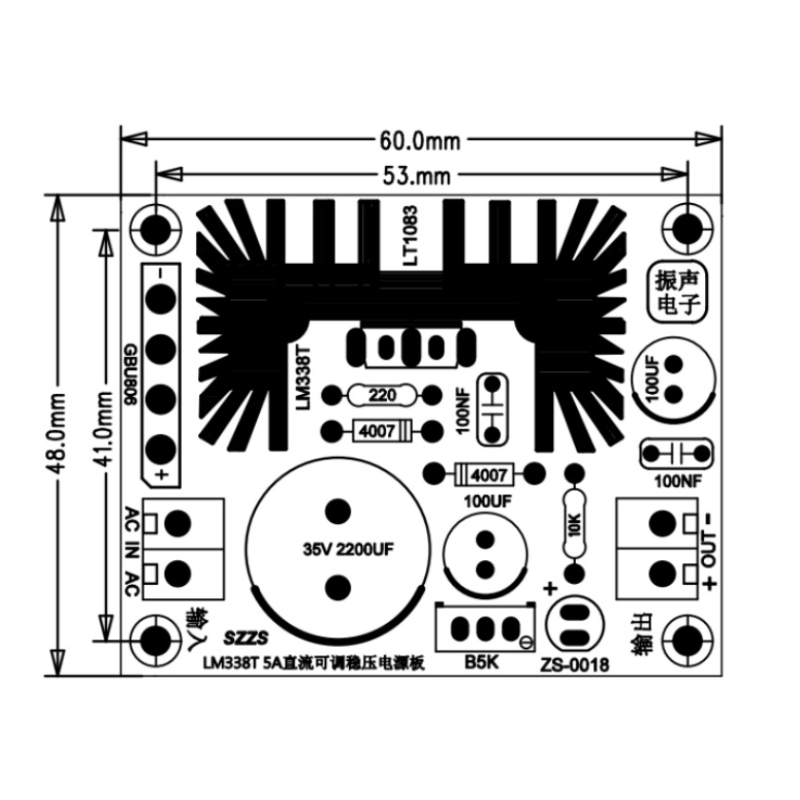

- PCB Dimensions: 60mm x 48mm x 30mm
- Weight:
- LM317T and LM338T: 50g
- LT1083CP: 55g
Features:
1. Versatile Input Compatibility: This adjustable power supply board can handle both AC (0-24V) and DC (0-35V) inputs, providing you with a wide range of power options to suit various applications.
2. Stable and Adjustable Output: Featuring a reliable design with LM317T, LM338T, or LT1083CP voltage regulators, the board offers a stable DC output voltage range from 1.5V to 30V, which can be continuously adjusted to meet your specific needs.
3. High Current Capacity: The board is capable of delivering high currents, with a maximum output of 1.5A (LM317T), 5A (LM338T), or 7A (LT1083CP), ensuring it can support power-demanding devices and applications.
4. Robust Construction: The PCB is made from double-sided FR4 material, known for its durability and reliability. Additionally, an enhanced heatsink is included to dissipate heat effectively, ensuring long-term performance.
5. Integrated LED Indicator: The built-in LED power indicator provides quick visual confirmation of the power status, enhancing usability and safety.
Package Included:
1 x Adjustable DC Power Supply Board
