Specifications：

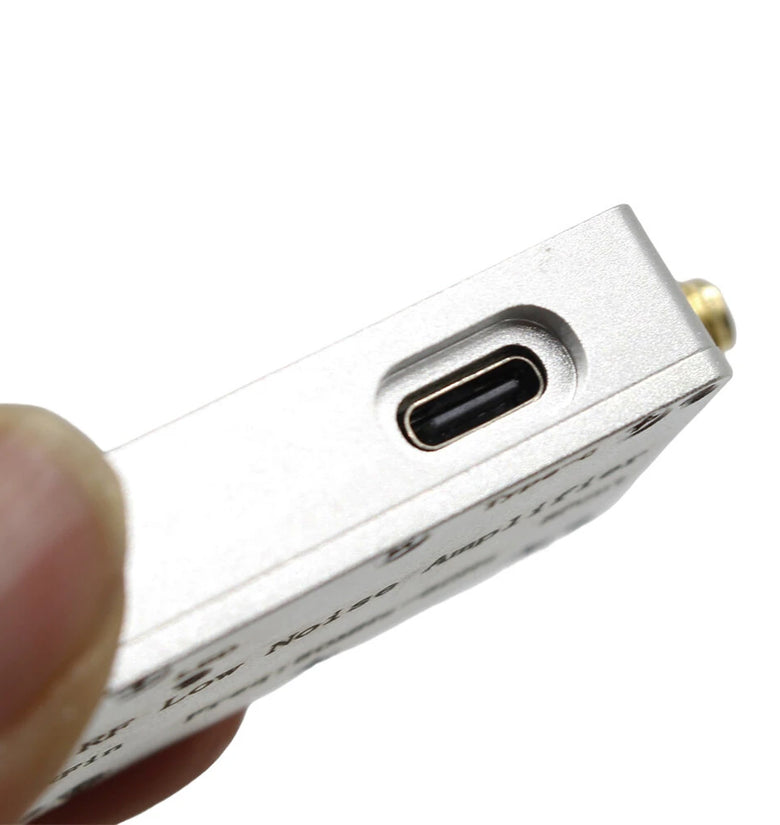

Power Supply: TYPE-C line
Frequency Range: 50MHz-6GHz
Noise Coefficient: NF=4-5dB (refer to measured curve for specific frequencies)
Gain: 20dB-30dB (refer to measured curve for different frequencies)
Dimensions: 4.5 x 3 x 1.4 cm (excluding protruding SMA)
Weight: 66g (including host and TYPE-C cable)
Current Consumption: <100mA
P1dB: 18dBm@2GHz

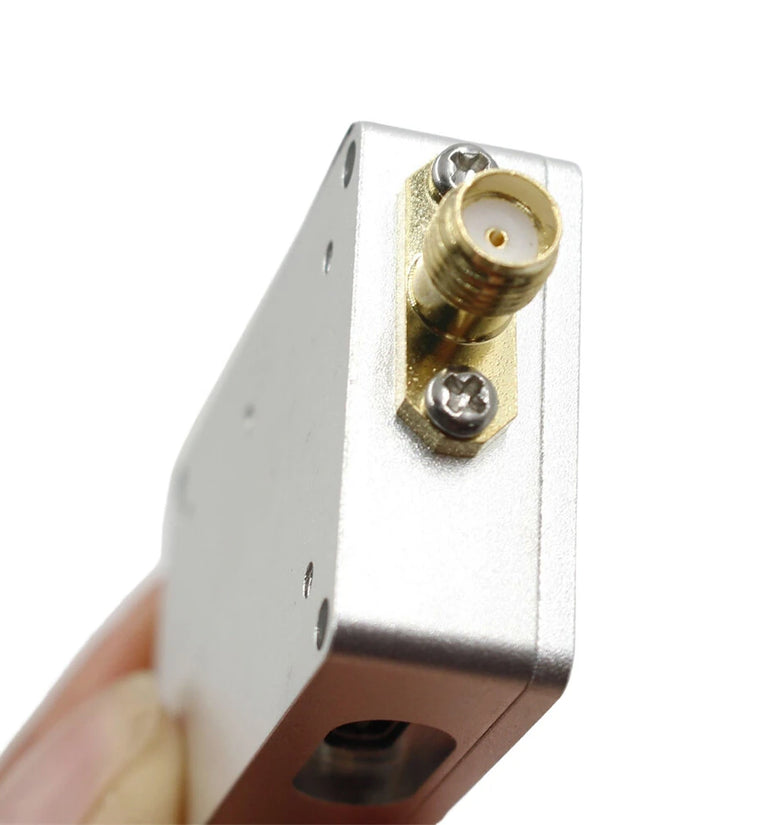

Output Interface: SMA female
Input-Output Impedance: 50 ohms
Features：
1. Wide Frequency Range: Operating within a 50MHz to 6GHz range, this receiver amplifier is ideal for various applications, including Beidou/Global Positioning System, FM radio reception, radar reception, and electromagnetic compatibility systems. It provides robust coverage suitable for multiple uses.
2. High Gain Levels: With selectable gain levels of 20dB and 30dB, this amplifier allows fine-tuning to achieve the desired signal strength. Adjust the gain according to specific needs to ensure superior performance in diverse applications like software radio receivers and intermediate frequency signal amplification.
3. Enhanced Signal Clarity: A low noise figure of 4-5dB guarantees excellent signal amplification with minimal interference. This feature is essential for maintaining high-quality signal reception, making it perfect for sensitive applications requiring precise signal clarity.
4. Compact
