Specifications:
Input voltage: DC3~35V (Note: input voltage less than 4V, the on-board voltmeter fails)
Input current: 9A(Max)
Output voltage: DC3.5~35V (this board is booster board, the output voltage should be more than input voltage)
Output current: Max 6A
Output power: 75W(when the input and output voltage are greater than 20V can reach 128W)
Conversion efficiency: Max96.7%
On-board voltmeter range: 4~40V, error ±0.1V
Short circuit protections: Yes (limit current 14A). Warm tip: When accessing high-power load, due to the high-inrush current just after power on will limit the current self-locking protections, it is recommended to power on first, then access the load.
Input reversal-protection: no (if-necessary, please series into the input high current diode)
Features:
1. Display part of the more advanced voltmeter microprocessor, boost part of original imported boost controller, by using the power MOSFET on resistance and eliminating the current detection resistance, maximizing efficiency, efficiency of up to 96.4%.
2. Imported high-power low resistance MOS tube, large package, high current, high efficiency Schottky, ultra-wide thickened printed circuit board alignment, high-power high efficiency low temperature rise assurance.Ultra-wide voltage work, when the input and output voltage are above 20V can reach 128W output power.
3. 100W High power and high efficiency, with power indicator! Long life type switching power supply special high frequency high capacity low resistance (low-ESR) aluminum electrolytic capacitors, so that the output corrugation is lower.
Package Include:

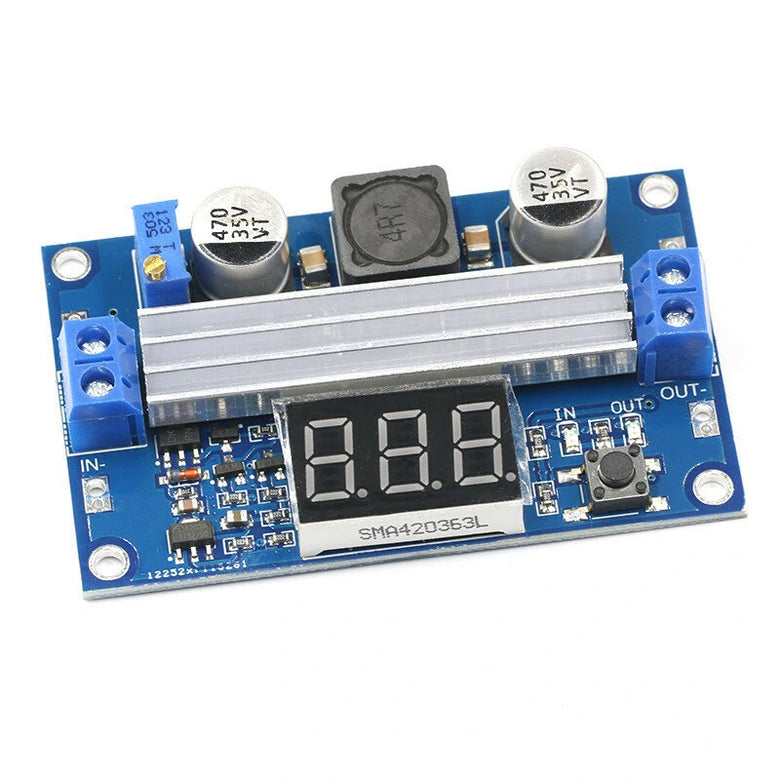

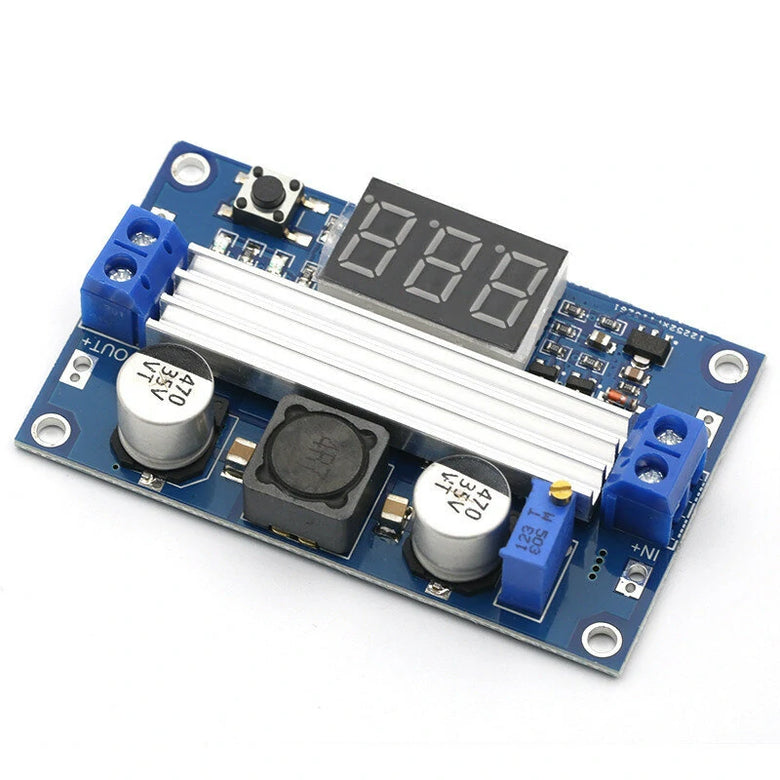

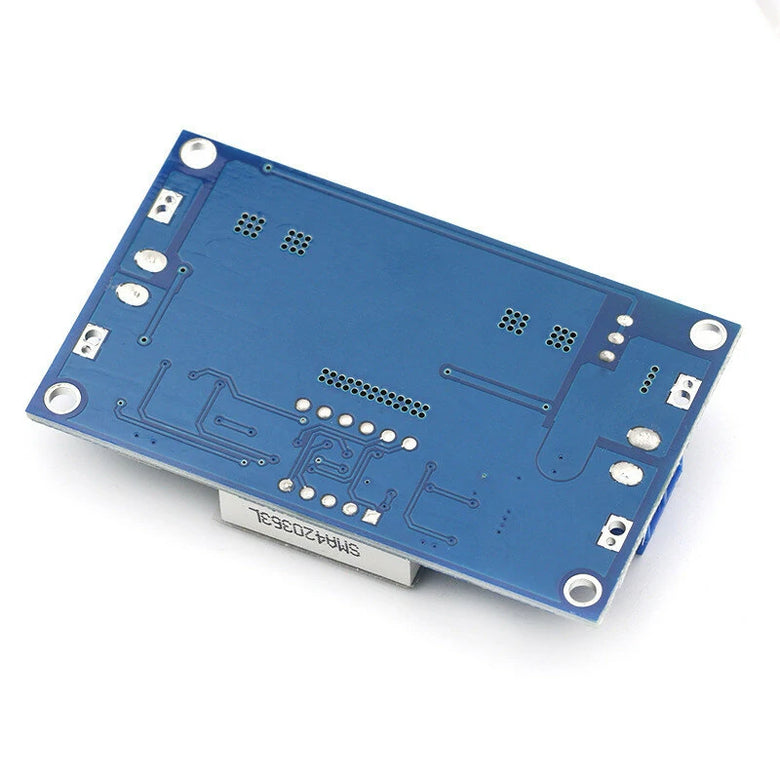

1×100W Booster Module
