Specifications:
LoRa Module: SX1262
Frequency Range: 868–923 MHz
Maximum Data Rate: 300 kbps
LoRa Interface: SPI
LoRa Antenna Dimensions: 108 × 9.3 mm, SMA connector (internal hole), 3 dBi gain
Output Power: +22 dBm
Receiving Sensitivity: -147 dBm (low-rate LoRa mode)
Operating Voltage: DC 5V @ 163.4 mA
Communication Modes: FSK/GFSK/MSK/LoRa/OOK
GPS Module: ATGM336H-6N & AT6668
GPS Interface: UART, default 115200bps@8N1
Satellites Systems Supported: GPS/QZSS/BD2/BD3/GAL/GLO
BDS: B1I + B1C
Frequency Bands: GPS/QZSS/SBAS: L1, GALILEO: E1, GLONASS: R1
Channels: 50 channels
Positioning Accuracy: <1.5 m (CEP50)
Position Update Frequency: Max 10 Hz
Protocol: NMEA 0183 4.1
GPS Sensitivity:
Tracking: -162 dBm
Acquisition: -160 dBm
Cold Start: -148 dBm
Startup Times:
Cold Start: 23 s
Hot Start: 1 s
Power Consumption: 33.1 mA
Product Dimensions: 84.0 × 24.0 × 15.2 mm
Product Weight: 48.6 g
Features:
1.Wide Frequency Compatibility: Operates between 868–923 MHz, suitable for diverse IoT applications in various regions.
2.Enhanced GPS Precision: Provides sub-meter accuracy (<1.5 m) for reliable positioning across multiple satellites systems.
3.High-Power Output: +22 dBm LoRa transmission power ensures extended communication range for tough environments.
4.Modular Antenna Design: SMA connector with 3 dBi gain supports straightforward installation and secure signal transmission.
5.Multi-Satellites System Support: Compatible with GPS/QZSS/BD2/BD3/GAL/GLO systems, ensuring global coverage for tracking and positioning.
Package Included:

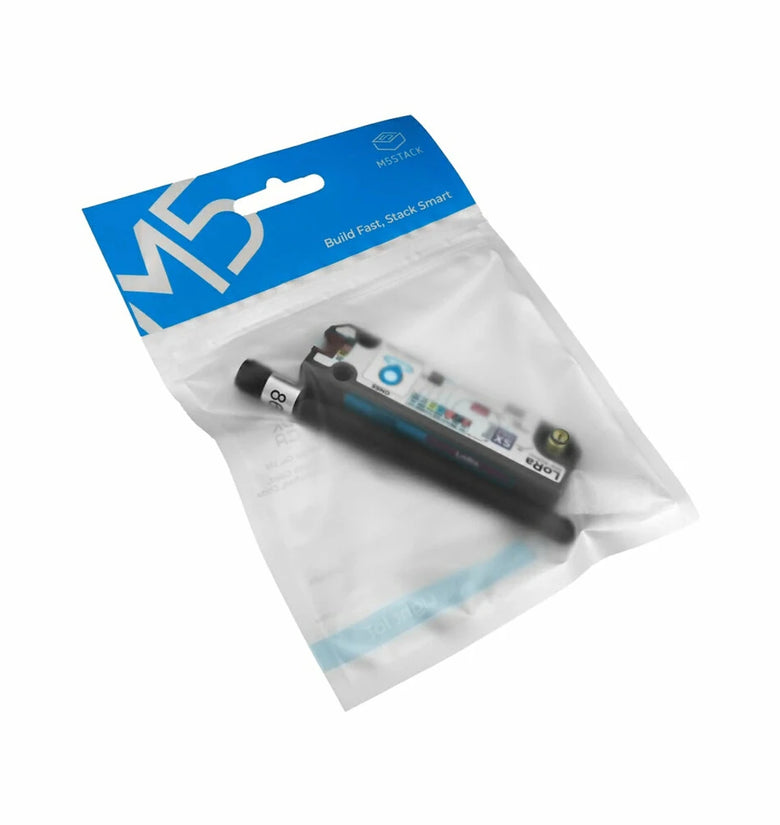

1 × Cap LoRa-1262
1 × LoRa Antenna
