Specifications:
SoC: ESP32-S3, Dual-core Xtensa LX7 processor, 240MHz main frequency
Flash: 16MB
PSRAM: 8MB
Wi-Fi: 2.4GHz Wi-Fi
Touch IPS LCD: 2.0' @ 320 × 240 ILI9342C
Camera: GC0308 0.3MP
Proximity Sensor: LTR-553ALS-WA
Power Management: AXP2101
6-axis IMU: BMI270
3-axis Magnetometer: BMM150
RTC: BM8563
Speaker: 16-bit I2S amplifier AW88298 @1W
Audio Codec: ES7210, dual-microphone input
Product Size (Whole set): 69.0 × 54.0 × 31.5mm

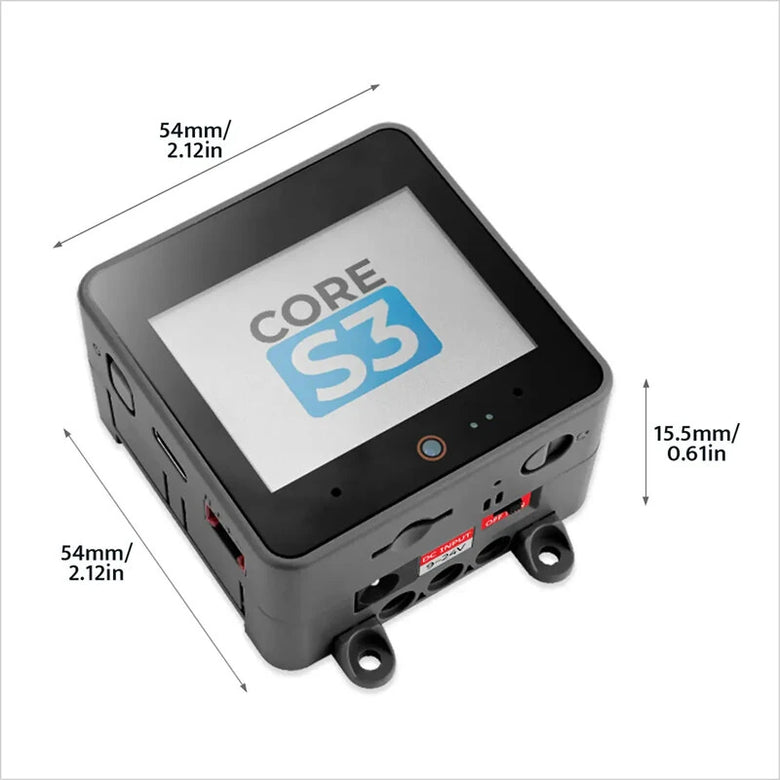

Product Size (Main unit): 54.0 × 54.0 × 15.5mm
Product Weight: 72.7g

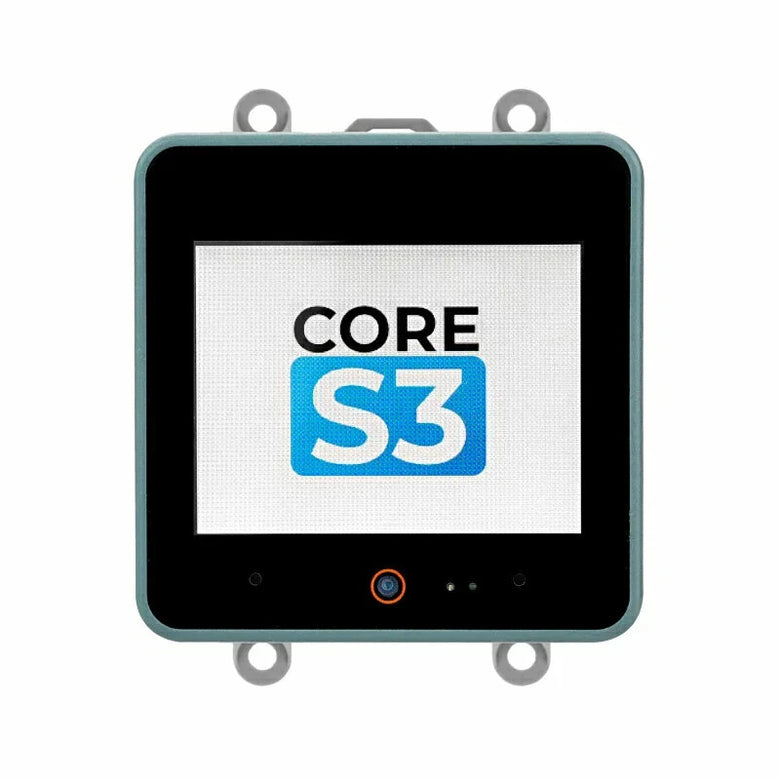

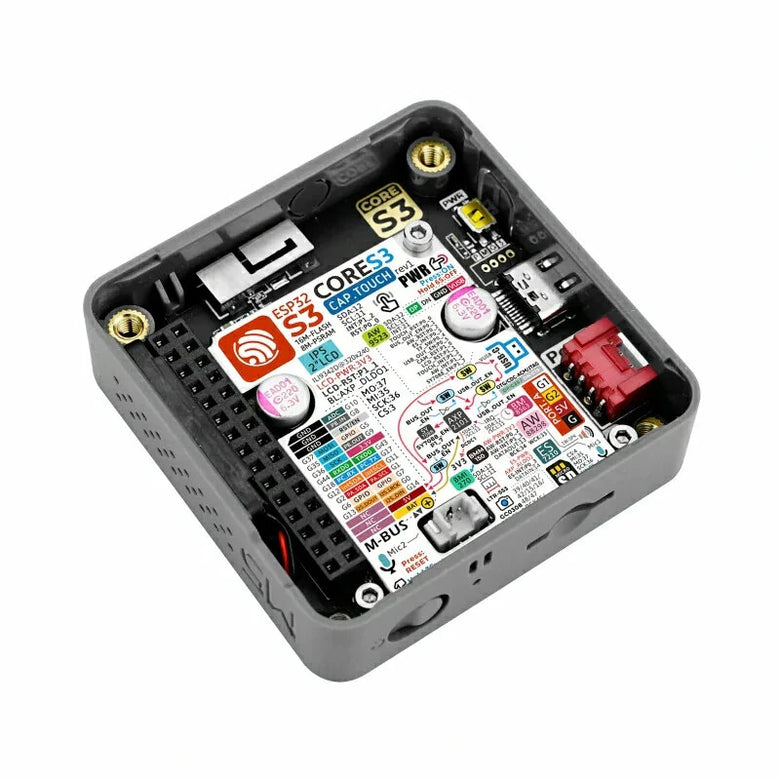

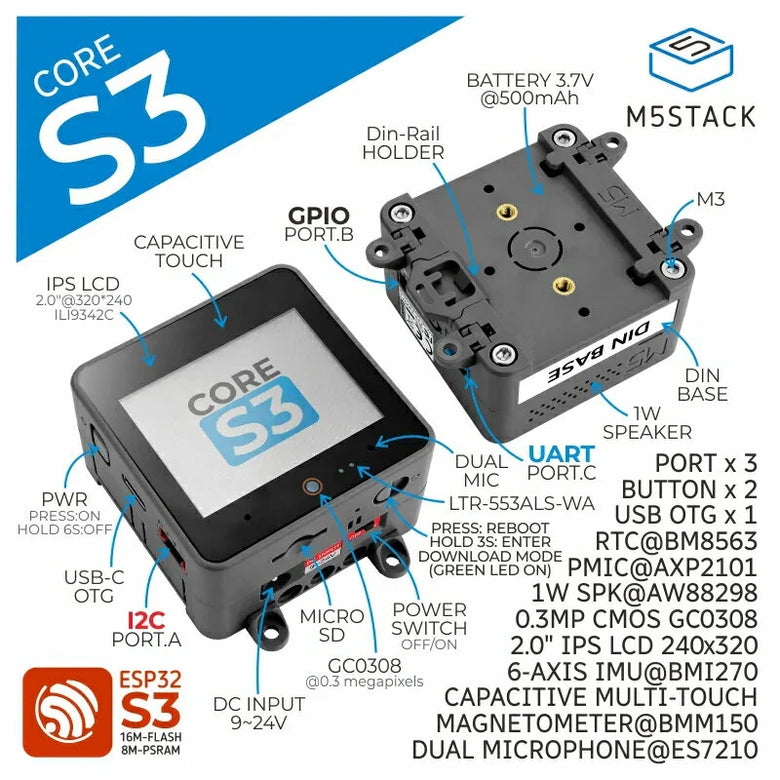

Instruction:CoreS3 is the third-generation main controller of the M5Stack development kit series, based on the ESP32-S3 solution featuring a dual-core Xtensa LX7 processor running at 240 MHz with built-in Wi-Fi. It integrates 16MB Flash and 8MB PSRAM. Programs can be downloaded through the USB Type-C port, and OTG & CDC functions are supported for connecting USB devices and flashing firmware.The front houses a 2.0-inch capacitive-touch IPS panel protected by high-strength glass. Below the screen is a 0.3MP GC0308 camera paired with an LTR-553ALS-WA proximity sensor. Power is managed by an AXP2101 PMU and four power-path control circuits, delivering a low-power design. Onboard sensors include a six-axis IMU BMI270 and a magnetometer BMM150. Additional peripherals comprise a microSD slot and a BM8563 RTC, enabling precise time-keeping plus sleep/timed-wake-up functions.For audio, a 16-bit I2S amplifier AW88298 drives the built-in 1W speaker, while an ES7210 audio codec provides dual-microphone input. Independent POWER and RESET (RST) buttons are located on the side; long-pressing the RESET button enters download mode via a self-built delay circuit.The kit ships with a DinBase for DIN-rail, wall-mount or screw mounting. It can be powered by an external DC 12V (9 ~ 24V) supply or an internal 500mAh Li-ion battery. Multiple prototype areas on the DinBase easy DIY expansion.Ideal for IoT development, DIY projects, smart-home control systems and industrial automation control systems.
Features:
1. Powerful Processing Performance
Powered by ESP32-S3 dual-core processor running at 240MHz with 16MB Flash and 8MB PSRAM, delivering exceptional capability for advanced IoT projects.
2. Intelligent Interaction Display
Features a 2.0-inch capacitive-touch IPS screen protected by high-strength glass for effortless control and clear visuals.
3. Comprehensive Sensor Integration
Equipped with a 6-axis IMU, magnetometer, proximity sensor, and GC0308 camera for versatile sensing capability.
4. Advanced Audio System
Integrated 16-bit I2S amplifier, 1W speaker, and ES7210 dual-microphone audio codec for efficient sound input and output.
5. Flexible Mounting and Power Options
Includes DinBase suitable for DIN-rail, wall-mount, or screw installation, and supports both internal 500mAh Li-ion battery and external 12V power supply.
Package Included:
1 x CoreS3
1 x DinBase
1 x Hex Key L-Shape 2.5mm
4 x Screw Buckle
