Description:

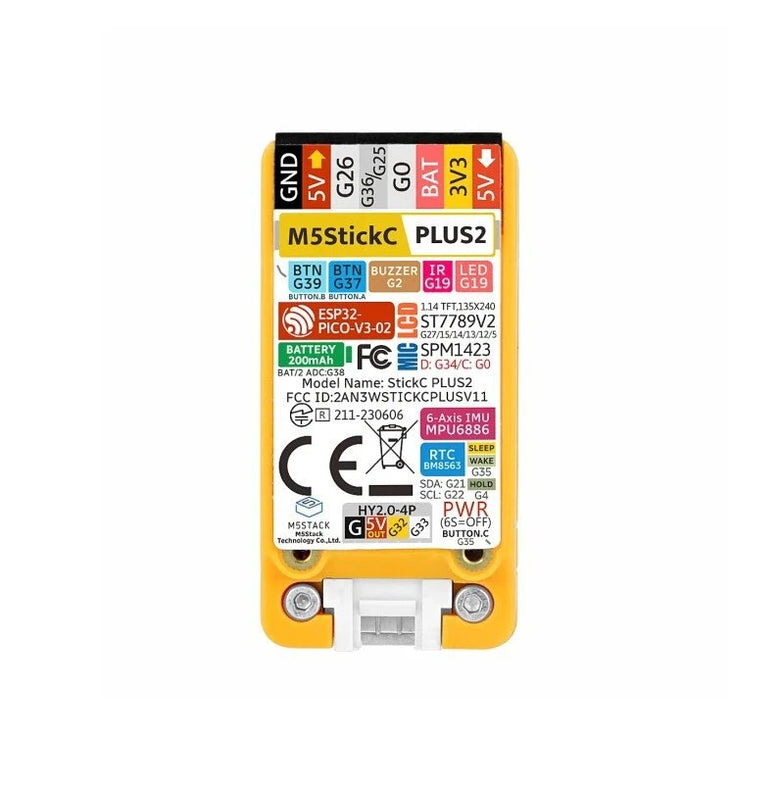

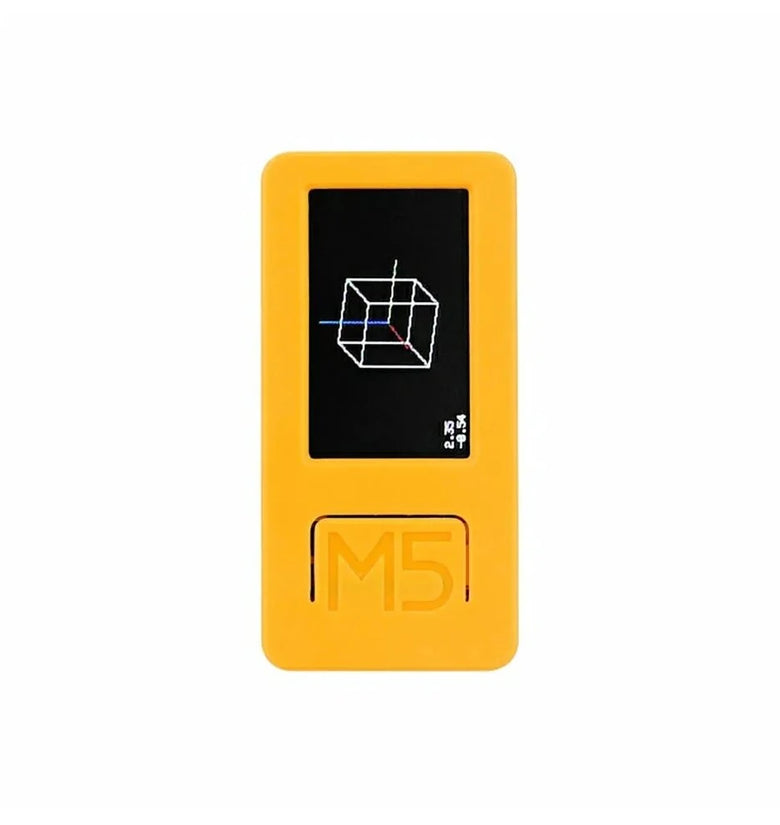

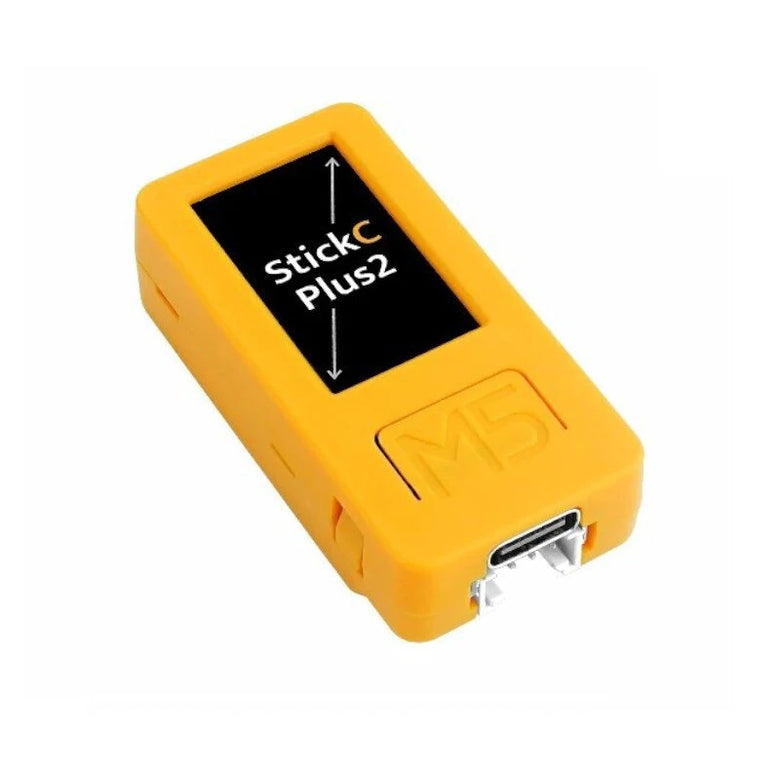

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.
M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.

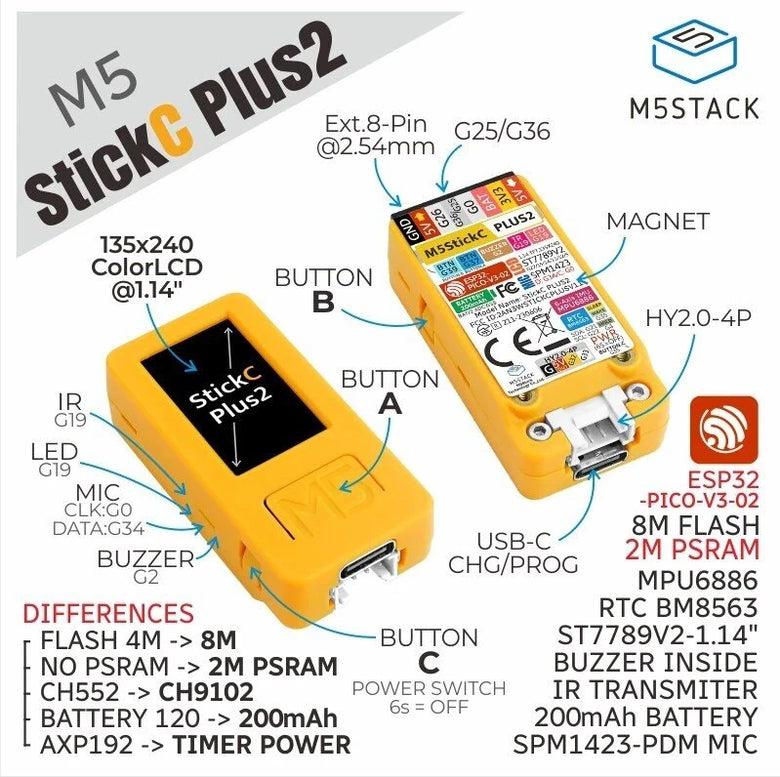

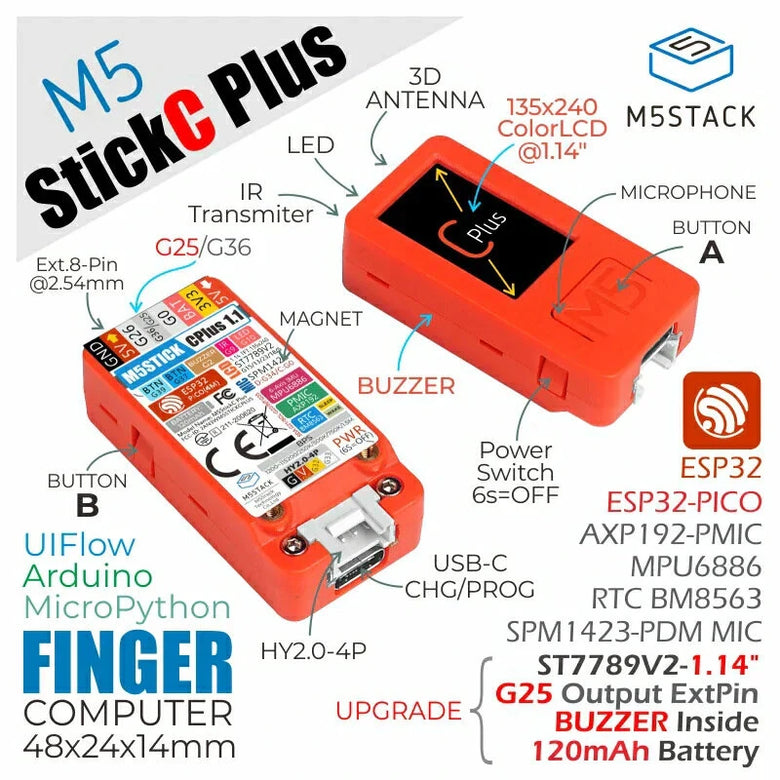

| Product Name | M5STICKC PLUS | M5STICKC PLUS2 |
| Soc | ESP32-PICO-D4 | ESP32-PICO-V3-02 |
| Power management | AXP192 | Timer power |
| Battery Capacity | 120mAh | 200mAh |
| Memory | 520KB SRAM and 4MB Flash | 2MB PSRAM and 8 MB flash CH9102 |
| UART Chip | SRAM and 4MB Flash CH552 | CH9102 |
| Body Color | Orange red | Yellow |
| IR | G9 | G19 |
| LED | G1O | G19 |
| TFT | MOSI(G15) CLK(G13) DC(G23) RST(G18) CS(G5) | MOSI(G15) CLK(G13) DC(G14) RST(G12) CS(G5) |
| Button A | G37 | G37 |
| Button B | G39 | G39 |
| Button C (WAKE) | Normal buttons,non-programmable | G35 |
| HOLD | / | G4 |
| Battery voltage detection | Read via AXP192 configuration | G38 |
| Power ON | Press the reset BUTTON (BUTTON C) for at least 2 seconds | Press the reset BUTTON (BUTTON C) for at least 6 seconds |
| Power OFF | It can be started by pressing 'BUTTON C' for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, it is necessary to set the hold(G4) pin to high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again. | When no USB external power supply is available, press BUTTON C for more than 6 seconds. Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off. When the USB is connected, press the 'BUTTON C' button for more than 6 seconds to turn off the screen and enter the hibernation state, but not power off. |
Package includes:
Type M5StickC PLUS2 only:
1 x M5StickC PLUS2
or
Type M5StickC PLUS only:

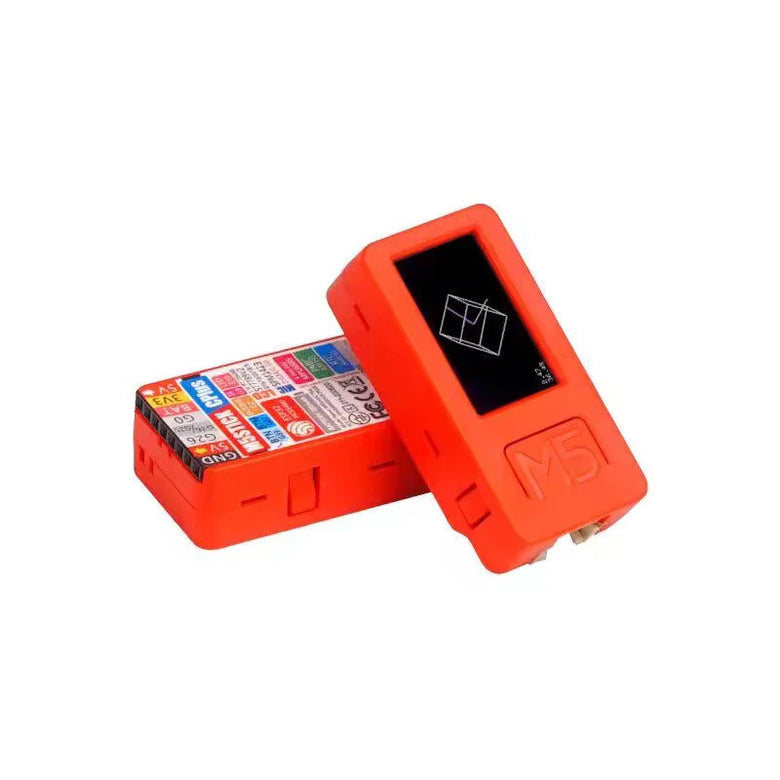

1 x M5StickC PLUS
or

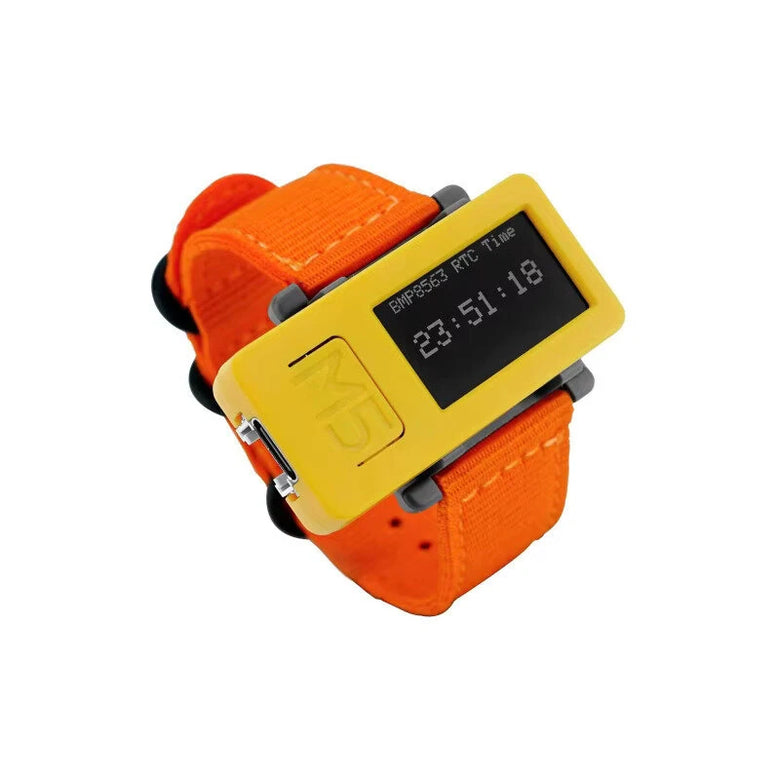

Type M5StickC PLUS2 with watch kit:
1x M5StickC PLUS2
1x Adapter
1x Wall/1515
1x Watch band
1x Type-C USB(50cm)
