Parameters:

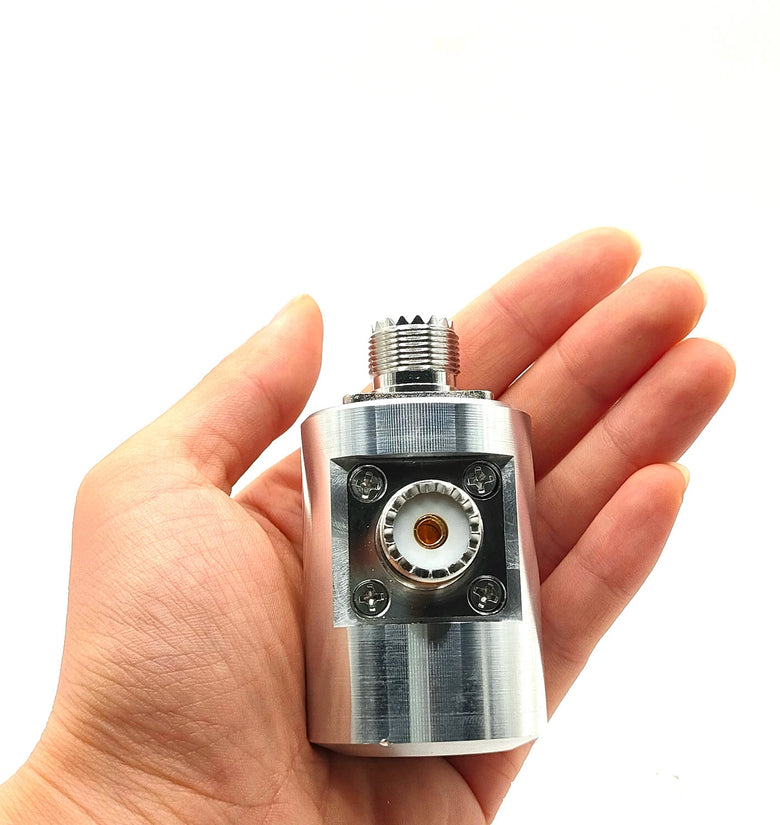

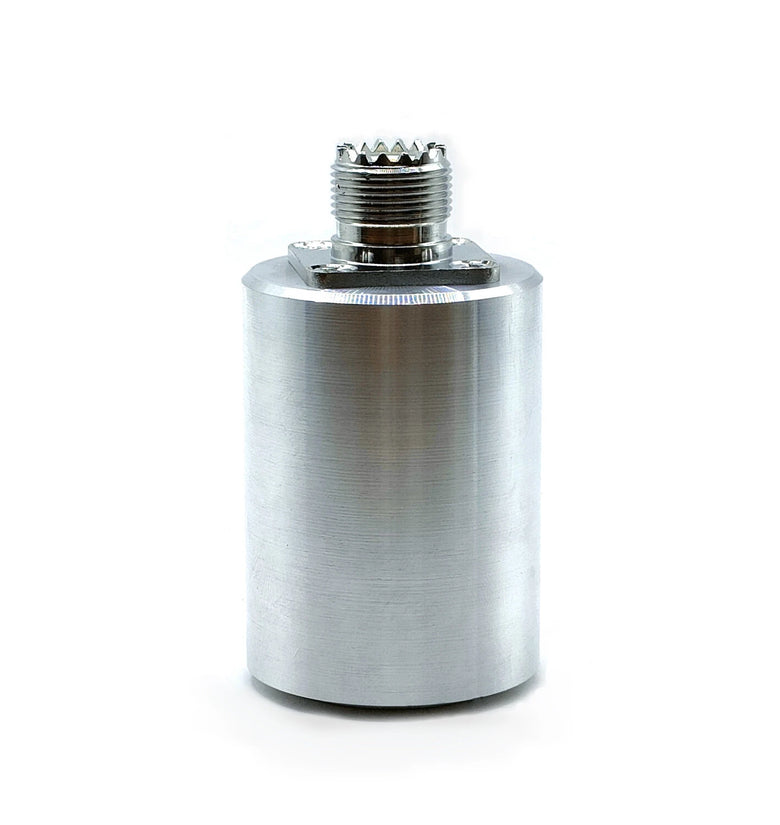

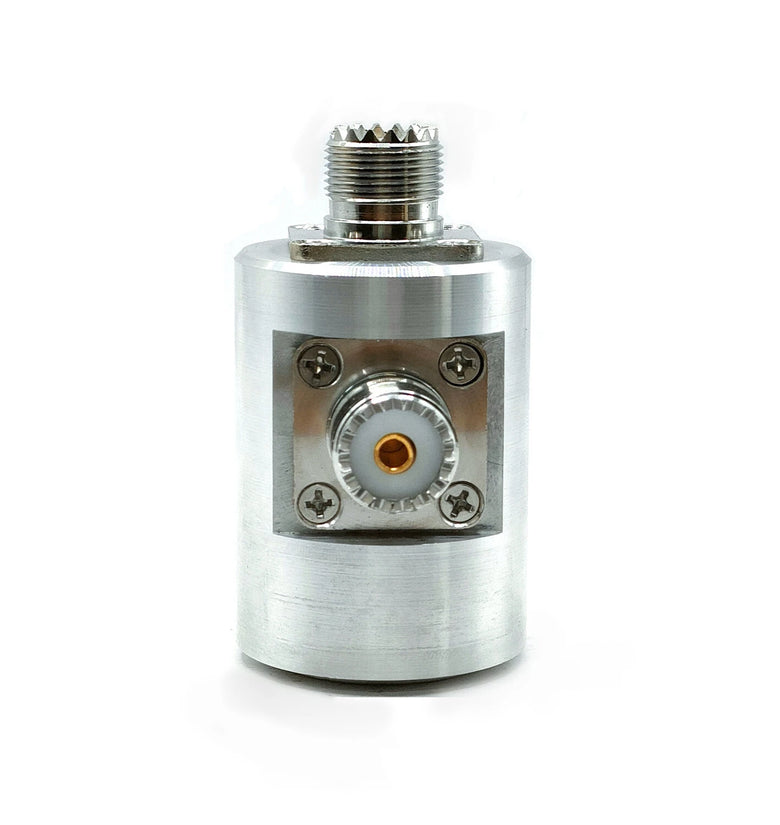

Model: MSK-04

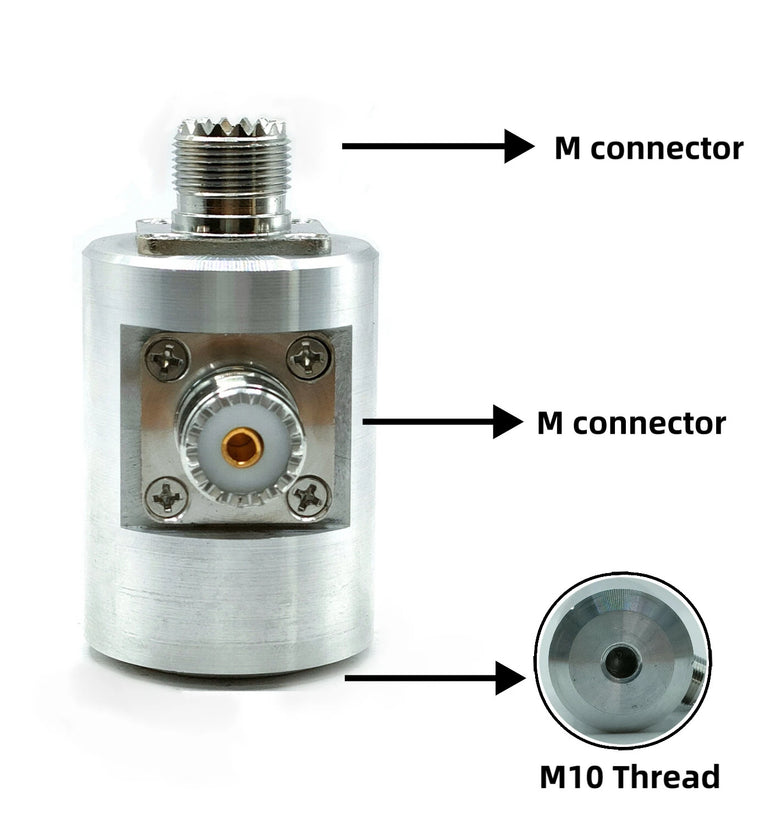

Antenna interface: M female socket
Feeder interface: M female socket

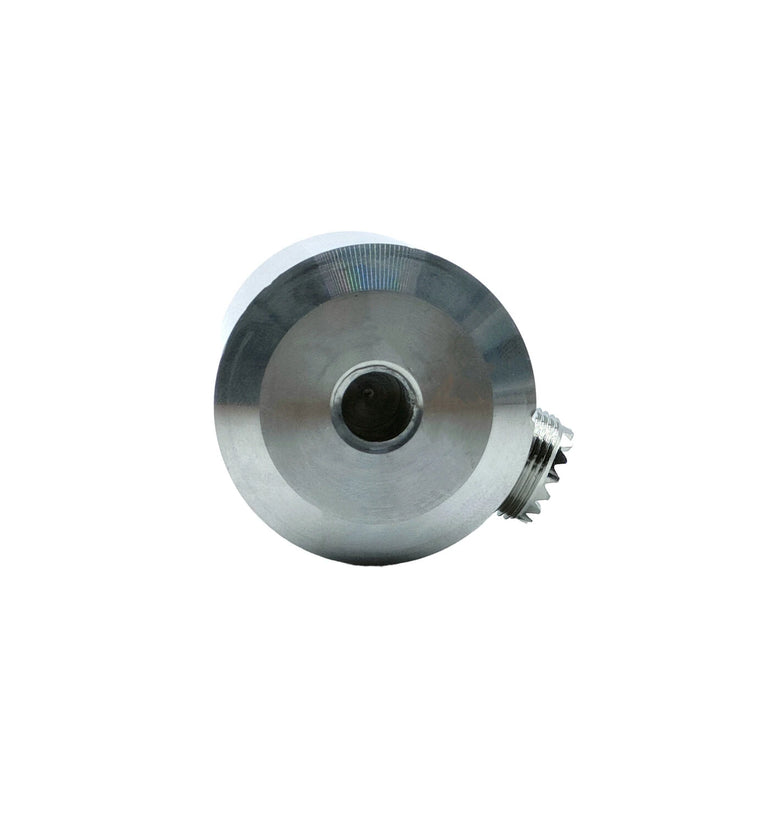

Ground plug interface: M10 thread
Material: Aluminum alloy
Standing wave: <1.5 (ground installation matches the ground grid)
Power tolerance: 200 watts (FT8 100 watts)
Weight: base about 165g,
Height: about 73mm (including M seat height)
Diameter: about 39mm (excluding M female seat)
Precautions for use:
1: The base is used to set up the vehicle antenna outdoors
2: The standard ground network recommends the use of 4 3.5-meter 0.5-2.5 square soft wires, and the enhanced ground network can be matched according to the 1/4 wavelength of the used band (not included in the delivery list)
Connection method:
ANT end connects to the vehicle antenna, GND end is covered with ground network and then screwed on the ground plug, after plugging into the ground, the ground network is laid flat in 4 directions, and the M male feeder is used to connect the base. Please pay attention to the radio station standing wave meter when using it (standing wave is as much as possible <1.8)
Package includes:
1 x MSK-04 antenna base (only includes antenna base, other accessories are not included)
