Parameters:
Model: MSK-12

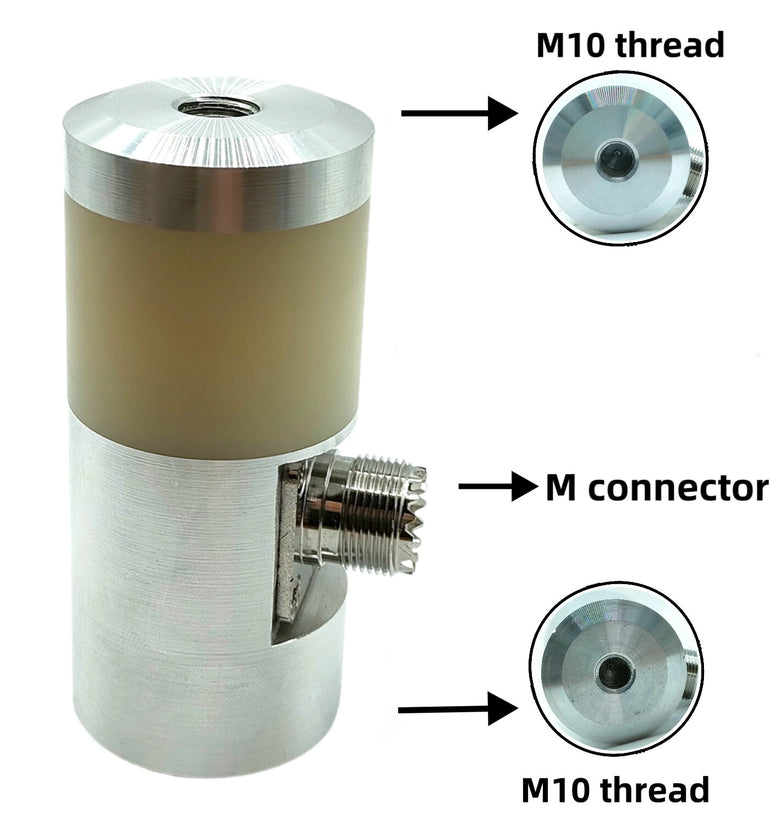

Pull rod interface: M10 thread
Feeder interface: M socket
Ground plug interface: M10 thread
Material: Aluminum alloy
Standing wave: <1.5 (ground installation matches the ground grid)
Power tolerance: 200 watts (FT8 100 watts)
Weight: base about 220g,
Height: about 90mm
Diameter: about 39mm (excluding M female socket)
How to use:
1: The base can be used with a 5.6-meter pull rod antenna (not included in the delivery list), and can be switched between 14MHz-50MHz by adjusting the length of the pull rod.
2: The standard ground grid (not included in the delivery list) recommends using 4 3.5-meter 0.5-2.5 square soft wires, and the enhanced ground grid can be matched according to the 1/4 wavelength of the used band.
Connection method:
ANT end connects to M10 5.6m telescopic antenna, put the ground net on the GND end and screw on the ground plug, after inserting it into the ground, lay the ground net in 4 directions, use the M male feeder to connect the base, adjust the length of the telescopic antenna according to the band used, and pay attention to the radio station standing wave meter when using it (standing wave should be <1.8 as much as possible)
Package includes:
1 x M10 antenna base
