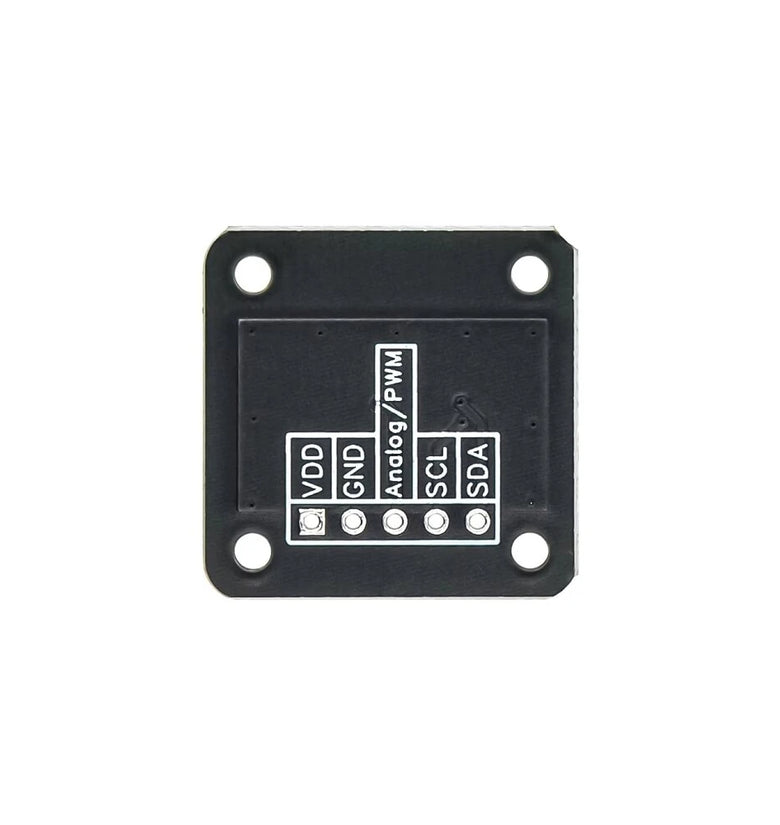

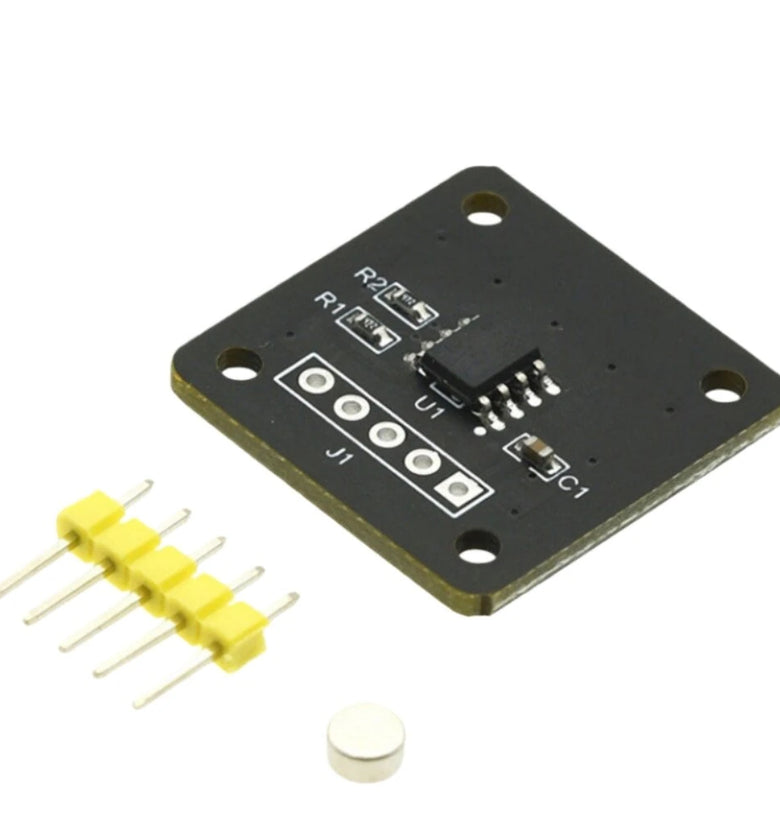

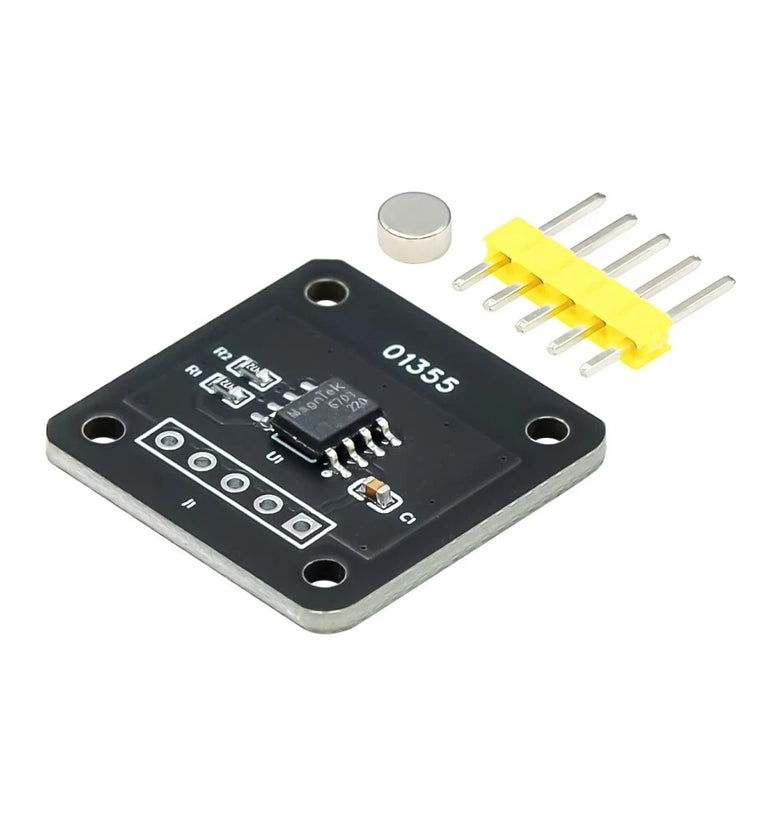

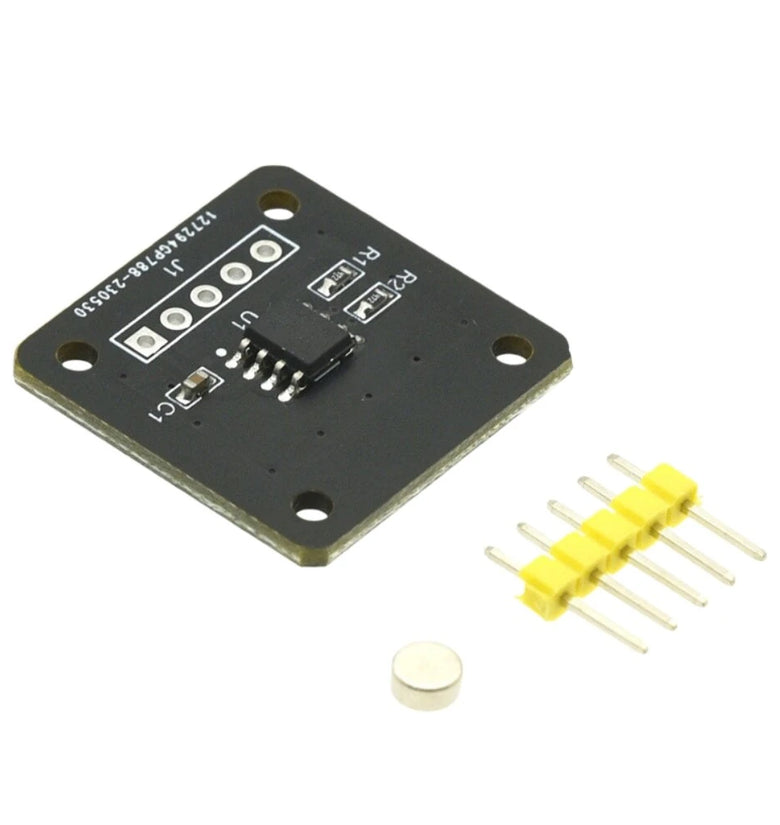

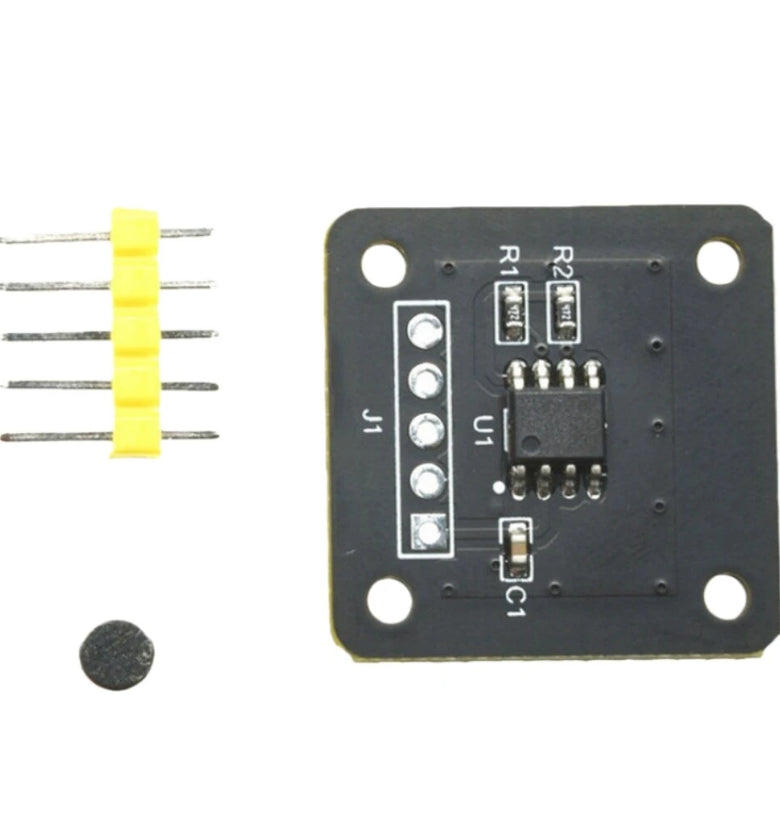

MT6701 Magnetic Inductive Encoder 14-Bit Resolution Angle Measurement Sensor Module Instead of AS5600 for Arduino Magnetic Induction

R 249.70



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Specifications:
    Model: MT6701
    Type: Magnetic Encoder Module
    Measurement Range: Magnetic Induction Angle (0°–360°)
    Resolution: 14-bit digital high precision
    Operating Voltage: 3.3V–5.0V
    Dimensions: 23mm x 23mm

    Features:
    1. Supports 14-bit angle output via I2C/SSI communication interface.
    2. Equipped with incremental ABZ output for position tracking applications.
    3. Provides 12-bit PWM analog output for flexible integration.
    4. Built-in EEPROM with over 1000 program cycles.
    5. Low system latency of 5 microseconds, supporting speeds up to 55,000 RPM.
    6. Compact design with mounting holes for easy installation.

    Package Includes:
    1 x MT6701 Magnetic Encoder Module
