Description:
It is a Simple i/o platform based on open source code and has a development environment similar to Java and C language. Allows you to quickly use language and software such as Flash or Processing to make interactive works. You can use developed electronic components such as Switch or Sensors or other controllers, LEDs, stepper motors or other output devices. It can also operate independently and become a platform that can communicate with software, for example: flash processing Max/MSP VVVV or other interactive software..., the IDE interface is developed based on the principle of open source code, which allows you to download and use for free to develop more amazing Interactive works.
Features:
1. It can seamlessly connect with mainstream controllers such as 2009 LENARDO 2560 on the market
2. 4 LED indicator lights (to know the importance of the LED indicator, in the actual project, with this indicator, you can directly use the indicator to indicate the working status of the program, which is convenient for program debugging.
3. DS18B20 temperature sensor interface, temperature measurement experiment can be done, this price does not include DS18B20, if necessary, another shot.
4. LM35 temperature sensor interface, temperature measurement experiment can be done, this price does not include LM35, if necessary, another shot.

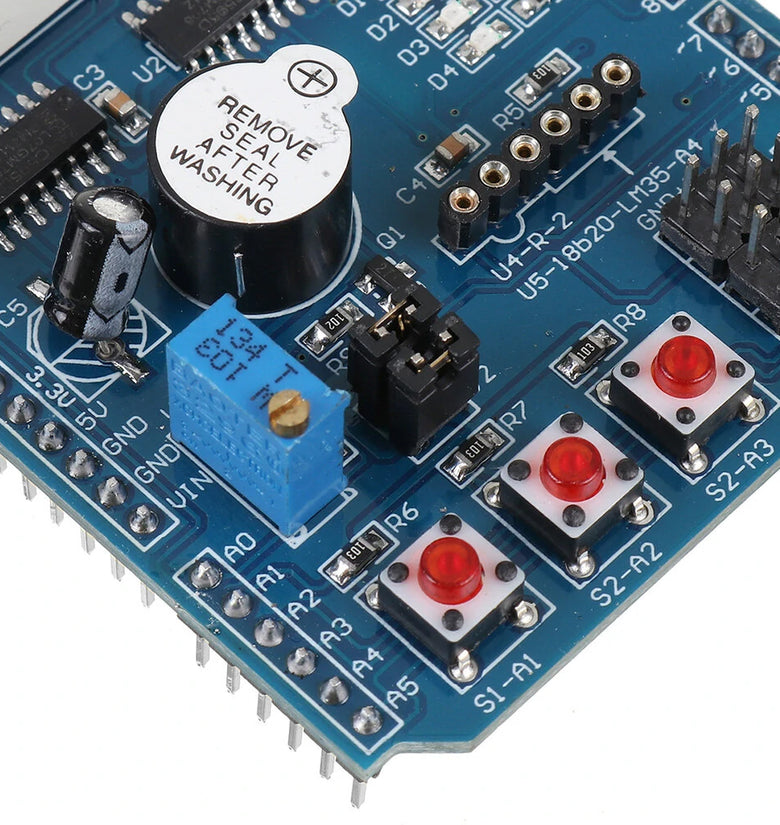

5. 3296 precision adjustable potentiometer, provide analog port input (can be used to control LED brightness, rotate the angle of the steering gear, digital voltage, etc.)
6. The integrated infrared receiver is suitable for experiments with any infrared remote control. The price does not include the integrated receiver. If necessary, take another photo.

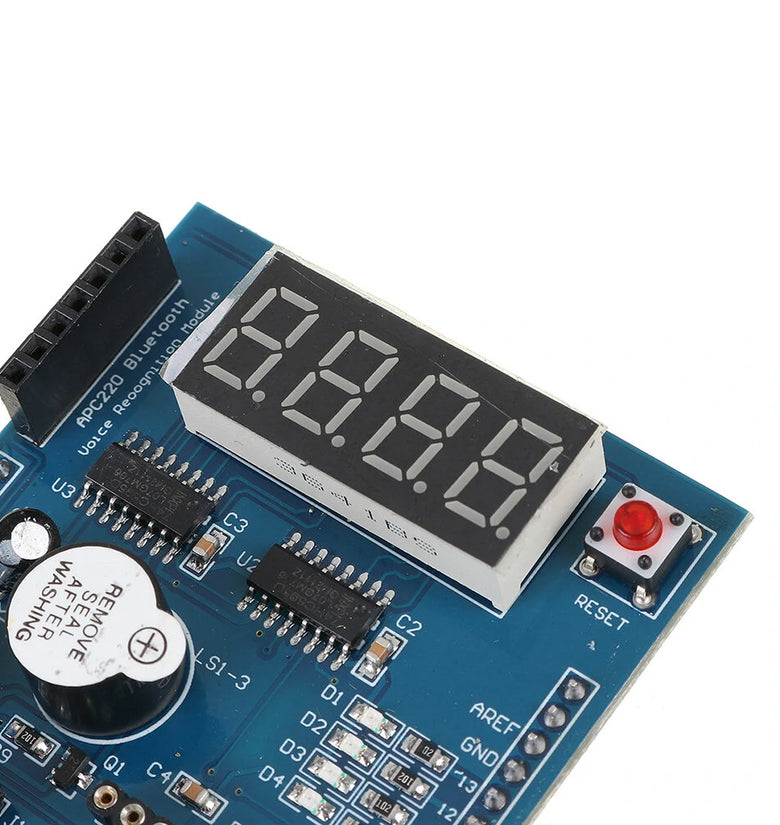

7. Four-digit digital tube (using 74HC595 to drive IO to learn SPI), can do digital tube display experiment (can display temperature, voltage, count value, etc.).
8. Three independent buttons, one reset button, can do button experiment (man-machine interface).
9. The buzzer can be used for sounding experiments. (Can call the police, pronounce, etc.)
10. Bluetooth, wireless interface, voice module, voice recognition module, can be used for wireless communication experiments
11. The steering gear interface is convenient to drive the steering gear
12. Infrared detection interface, convenient for connecting with infrared, realizing human flow statistics, etc.
Package Included:

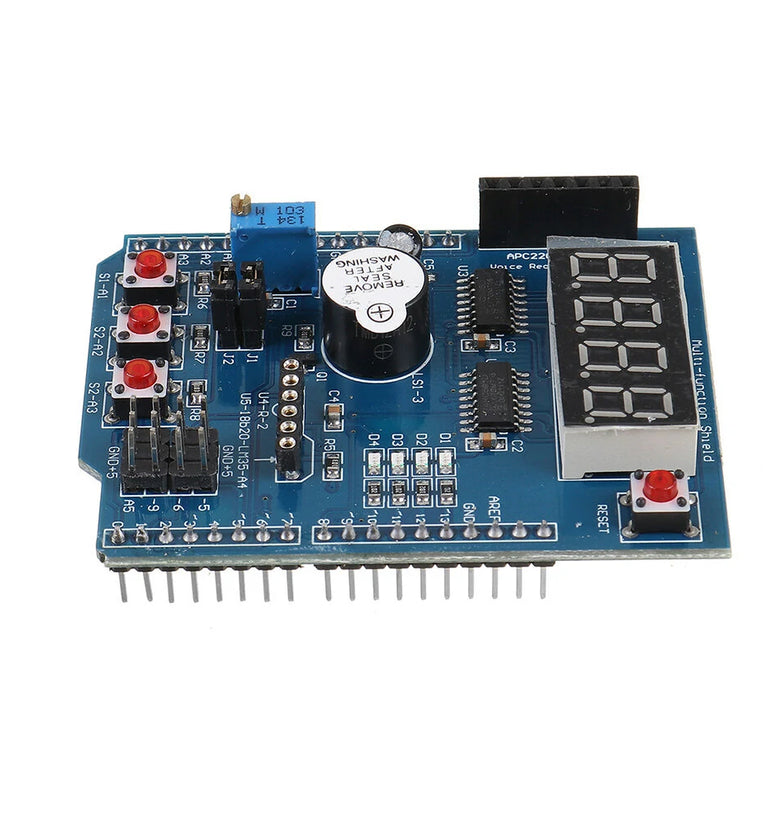

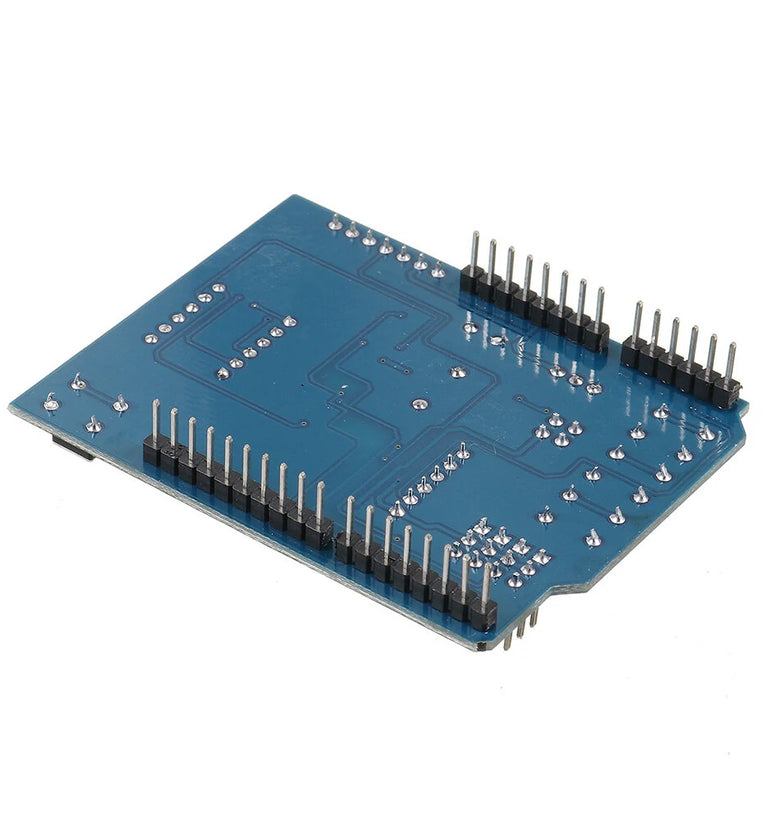

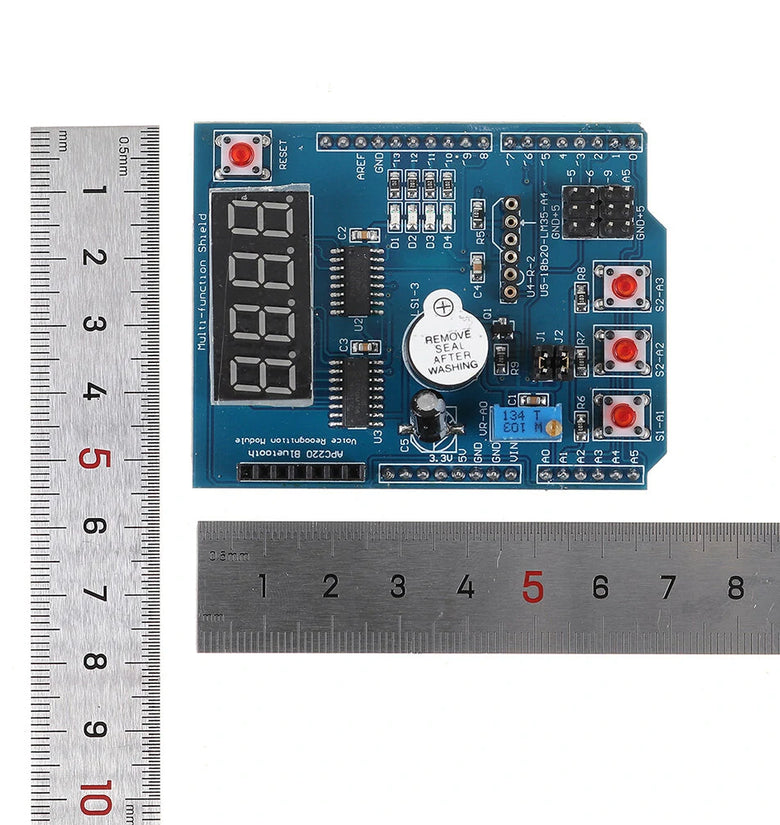

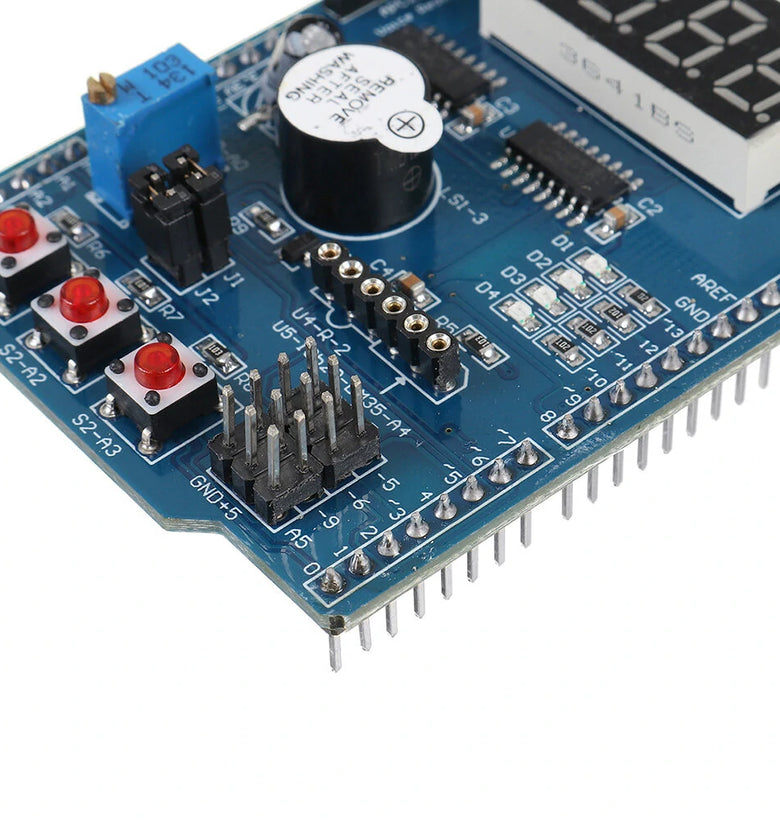

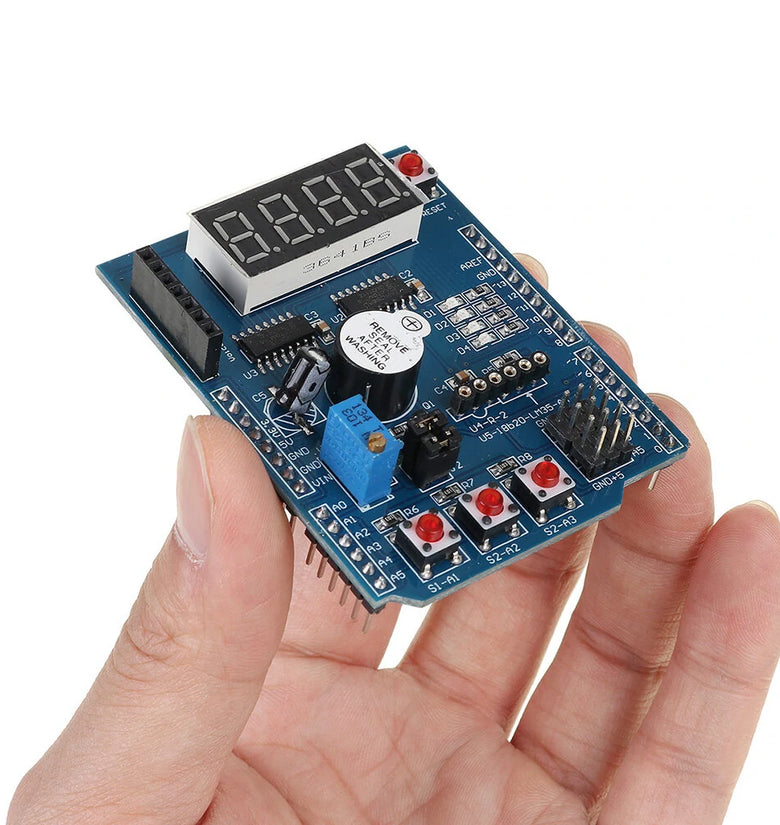

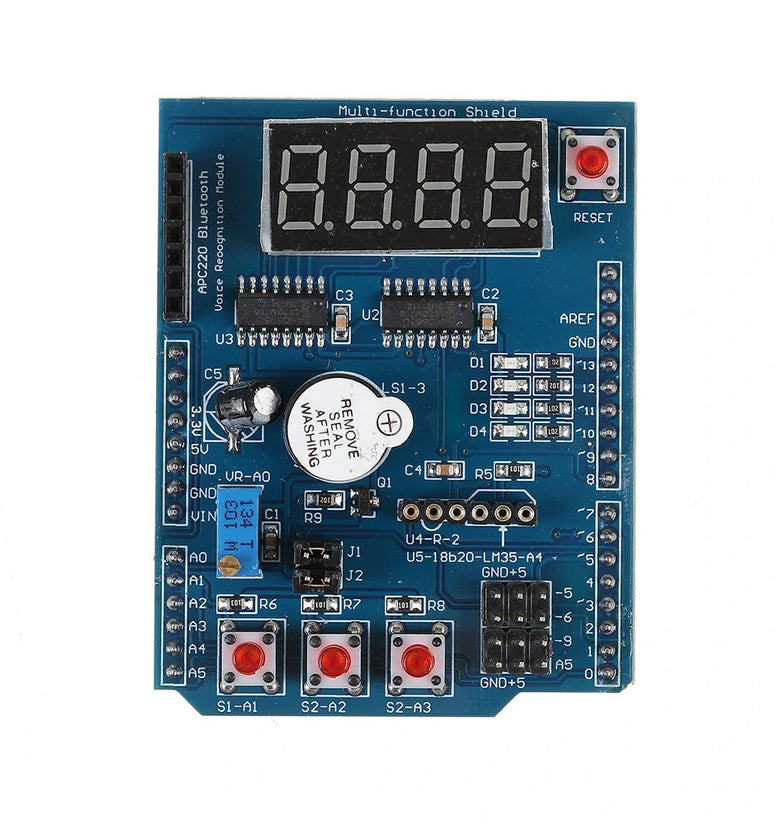

1 x Multifunctional Expansion Board
The expansion board is directly connected to the LD3320 non-specific voice recognition module, which can realize voice control of the light. It is necessary for smart home.
The expansion board is directly connected to the Bluetooth wireless serial port module, which can realize the mobile phone to control the light and control the movement of the smart car.
The expansion board is directly connected to the APC220 wireless serial port module to realize long-distance data transmission!
The expansion board is directly connected to the infrared photoelectric sensor, which can realize the functions of human flow statistics, intelligent car obstacle avoidance, etc.
The expansion board is directly connected to the SYN6288 recording-free voice module to realize the voice broadcast function.
The expansion board is directly connected with SG90, MG945, MG995 and other steering gears to realize complex actions such as robotic hands.
Expansion board is directly connected with ordinary infrared remote control to realize decoding, realize car control, light control, and relay control.Common temperature sensor interface is reserved! Convenient to measure temperature.
The following are a few commonly used experiments! (Provide source code).The digital tube displays the temperature of the LM35 sensor.
Digital tube display voltage
