Description:
Nextion 2.4 inch Discovery Series HMI Resistive Touch Display Module Free Simulator Debug Support Assignment Operator
The Nextion Discovery Series MCU clock speed is 64 MHz which is more powerful than the Basic Series.
Comparing with Basic Series, the Discovery Series has a better MCU performance, with the new image compression technique, the Discovery Series allows more pictures in the same amount of flash compared to Basic and Enhanced models.
You can develop the HMI GUI project via the free Nextion Editor software, the easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads.
Nextion Editor Overview
Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way.
Features:
Hardware Feature of NX3224F024
2.4 inch LCD-TFT Resistive HMI touch display module
320 x 240 screen resolution
RGB 65K true-to-life colours
Onboard ARM® Cortex®-M0+ 64MHz MCU
3584 Byte SRAM
4 MB Flash memory
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface

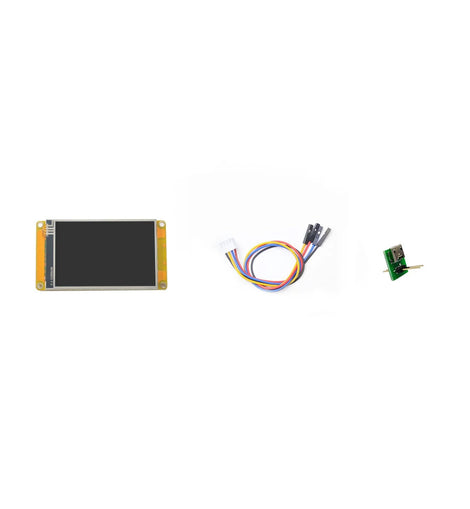

Package Included:
1 x NX3224F024 HDMI Display
1 x XH2.54 4P Wire
1 x Power Supply Test Board
