Specification:

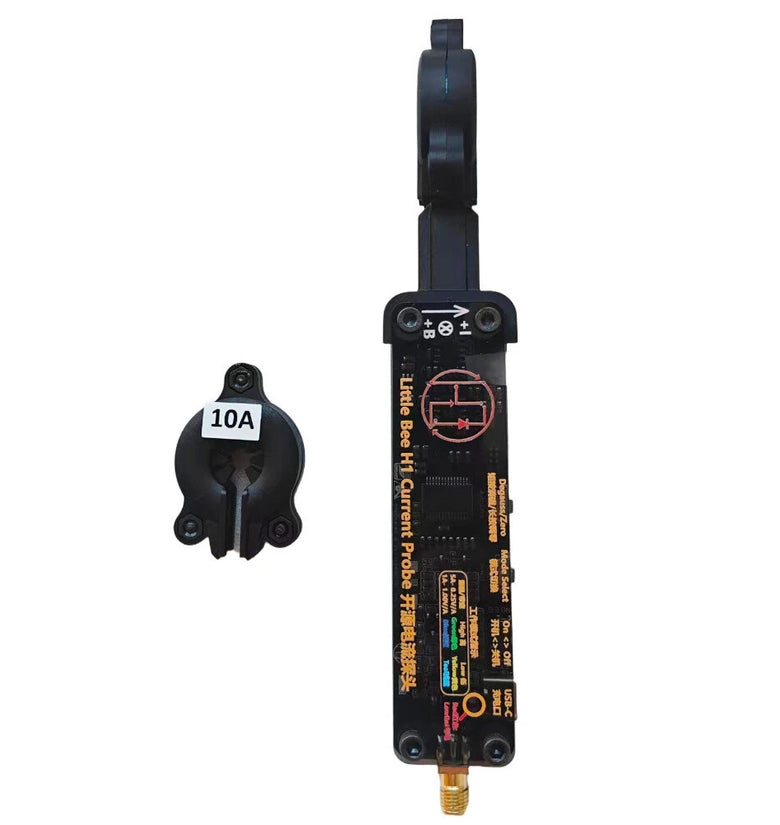

Product Name: Little Bee B1 High Performance Current Probe
Bandwidth: 30MHz (5A range) / 10MHz (10A range)

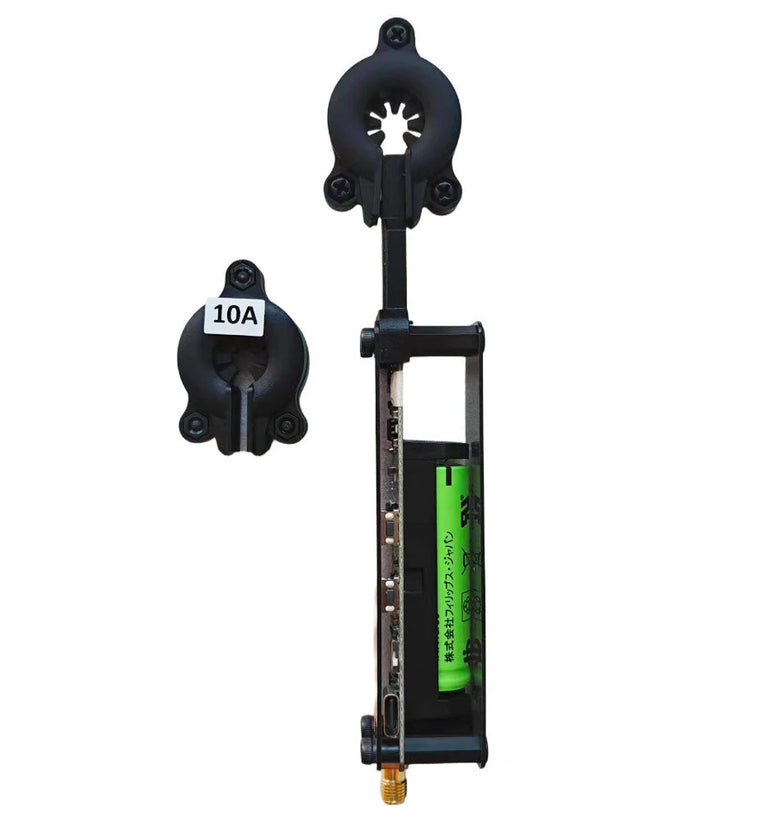

Magnetic Heads: Dual-head design (pre-calibrated 5A head + optional 10A extension head)
Interfaces: SMA-to-BNC direct connection, plug-and-play
Compatibility: Supports oscilloscopes for applications like power switching, PCB analysis, and motor testing
Features:
Dual-Bandwidth Precision: 30MHz ultra-high bandwidth for small-signal measurements (5A range) and 10MHz for high-current scenarios (10A range), ensuring accurate data capture across diverse test needs.
Dual Magnetic Heads & Multifunctionality: Pre-calibrated 5A head (0.25V/A) for zero-error measurements + expandable 10A head (0.125V/A). Detachable heads double as standalone magnetometers.
Precision Zero Adjustment: Anti-interference design with long-press zeroing to eliminate DC offsets (<0.2A) and patented cable-centering technology for reduced positional errors.
Open-Source Upgradability: Enhanced from the original Little-Bee-B1 framework with optimized layout and components. Includes professional tools for DIY calibration.

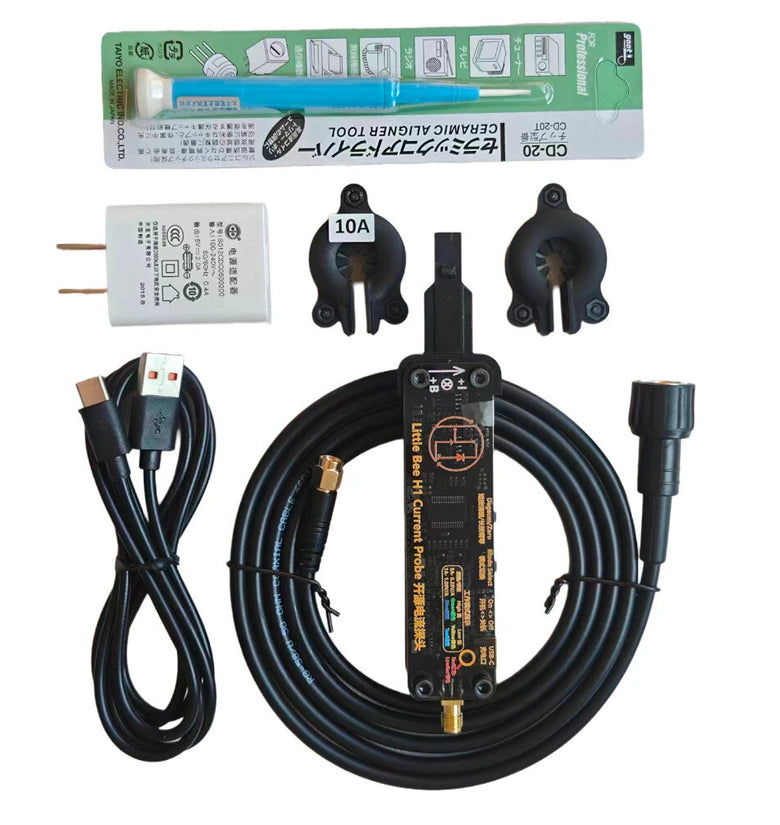

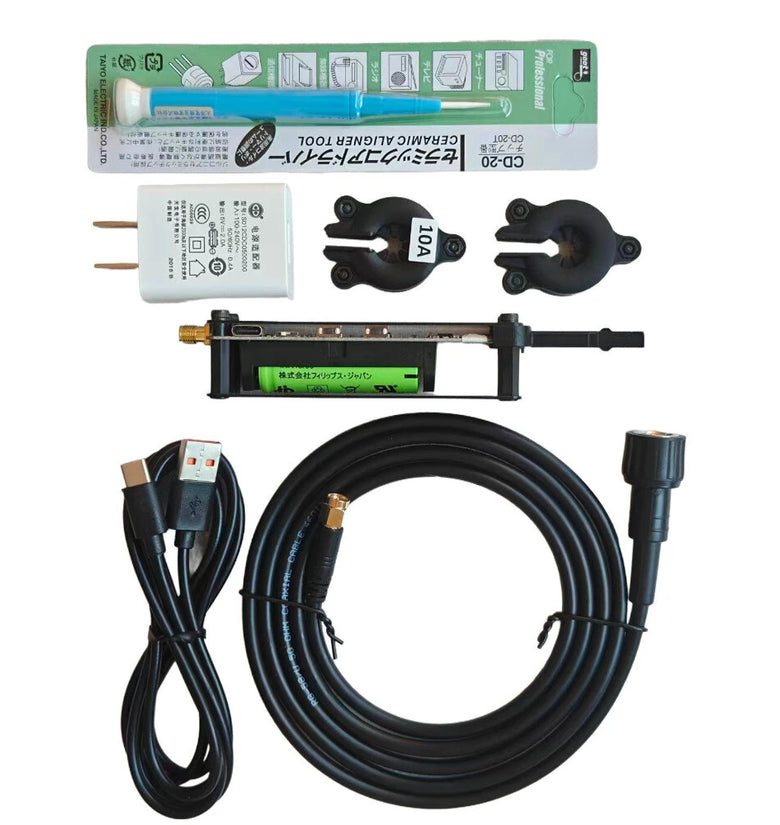

Package Includes:
1 x Little Bee B1 Current Probe (with 14500 lithium-ion battery)
1 x Pre-Calibrated 5A Magnetic Head
1 x 10A Extension Magnetic Head
1 x 5V USB Adapter (US Plug)
1 x Type-C Charging Cable
1 x SMA-to-BNC Coaxial Cable
