Hardware Parameters:
| SoC | Rockchip RK3566 |
| CPU | Quad-core 64-bit Cortex-A55 processor, 22nm advanced process, up to 1.8GHz |
| GPU | • ARM Mali G52 2EE graphics processor • Support OpenGL ES 1.1/2.0/3.2, OpenCL2.0, Vulkan 1.1 • Embedded high performance 2D acceleration hardware |
| NPU |
• Integrated RKNN NPU Al accelerator with 0.8Tops@INT8 performance • Support one-click conversion of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/ Darknet architecture models |
| VPU | • 4K@60fps H.265/H.264/VP9 video decoding • 1080P@100fps H.265 video encoding • 1080P@60fps H.264 video encoding |
| PMU | RockChip RK809-5 |
| RAM | 4GB (LPDDR4/4X) (optional) |
| Memory | • Support eMMC module:16GB/32GB/64GB/128GB • SPI Flash: 16MB/32MB • M.2 M-KEY slot: SATA3 or PCIe2.0 NVME SSDs • TFcard slot |
| Wi-Fi+ BT | Wi-Fi 5+BT 5.0, BLE (20U5622) |
| Ethernet | 10/100/1000Mbps Ethernet (On-board PHY chip: YT8531C) |
| Video Output | • 1xHDMI TX 2.0 , up to 4K@60fps • 1xMIPI DSI 2 lane • eDP1.3 |
| Camera | 1*MIPI CSI 2 lane camera interface |
| USB | • 1*USB 2.0 support Device or HOST mode • 1*USB 3.0 HOST • 2*USB 2.0 HOST |
| Audio | 3.5mm headphone jack audio in/out |
| Button | 1* MaskROM key, 1* RESET key, 1 *POWER key |
| FAN | 2Pin 1.25mm size 5V fan connector |
| RTC | 2Pin 1.25mm size battery backup connector |
| 40Pin | 40Pin function expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM |
| Power Source | Type-C 5V3A |
| Supported OS | Android 11, Ubuntu 22.04/20.04, Debian 11/12, OpenHarmony 4.0 Betal, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems. |
| PCB Dimension | 85mm*56mm*17mm |
| Weight | 49g |
Features:
1. Versatile Performance: Powered by a quad-core Cortex-A55 processor and a powerful GPU, this mini PC offers versatile performance for various applications and operating systems.
2. High-Quality Video: Supports 4K video decoding and encoding, making it suitable for media center applications and video streaming.
3. Expandable Storage: Offers multiple storage options, including eMMC modules, SPI Flash, and M.2 SSD support, ensuring ample space for your data.
4. Connectivity Options: Features Wi-Fi 5, bluetooth 5.0, Gigabit Ethernet, and various USB ports for versatile connectivity.
5. Compact Design: With a compact PCB design and lightweight construction, it is suitable for a wide range of projects, from DIY electronics to embedded systems.

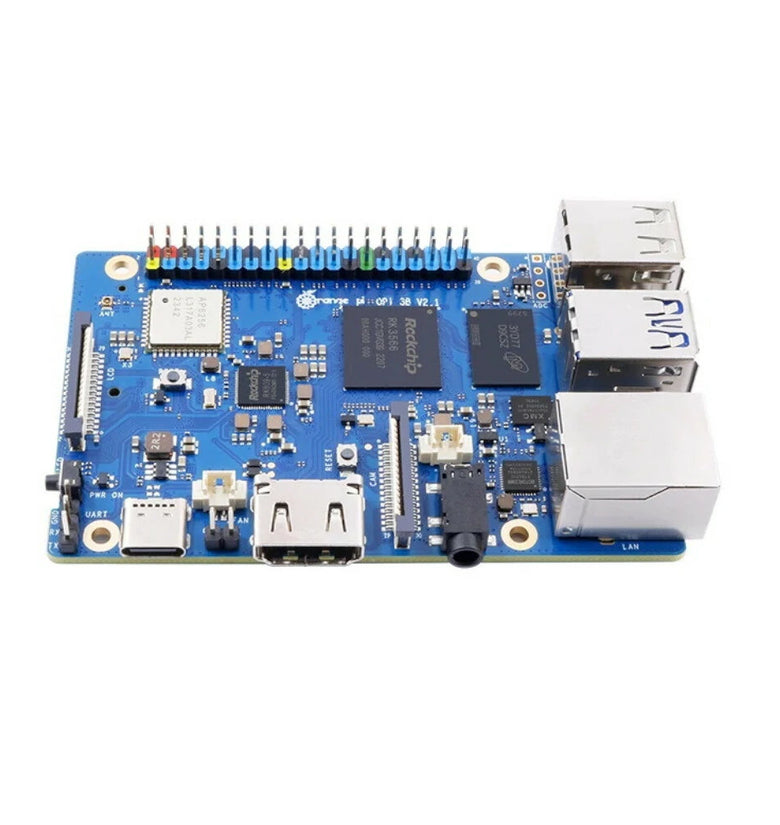

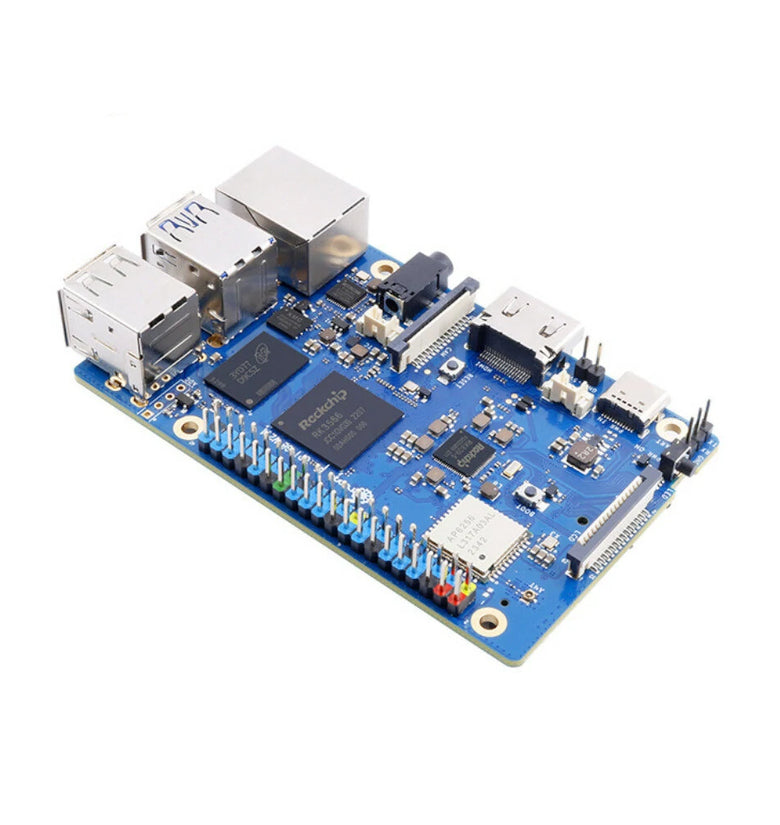

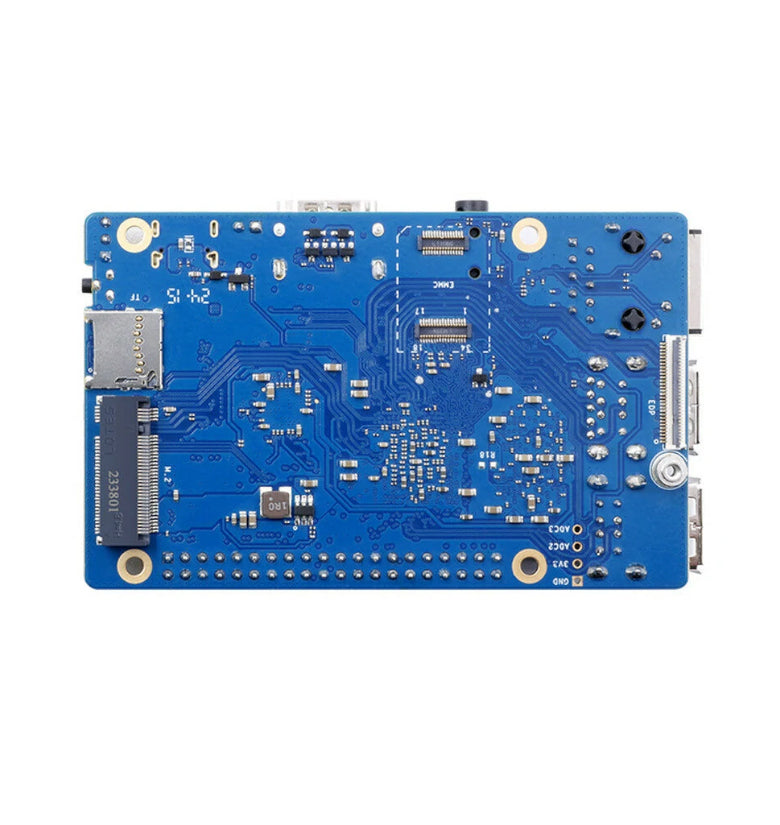

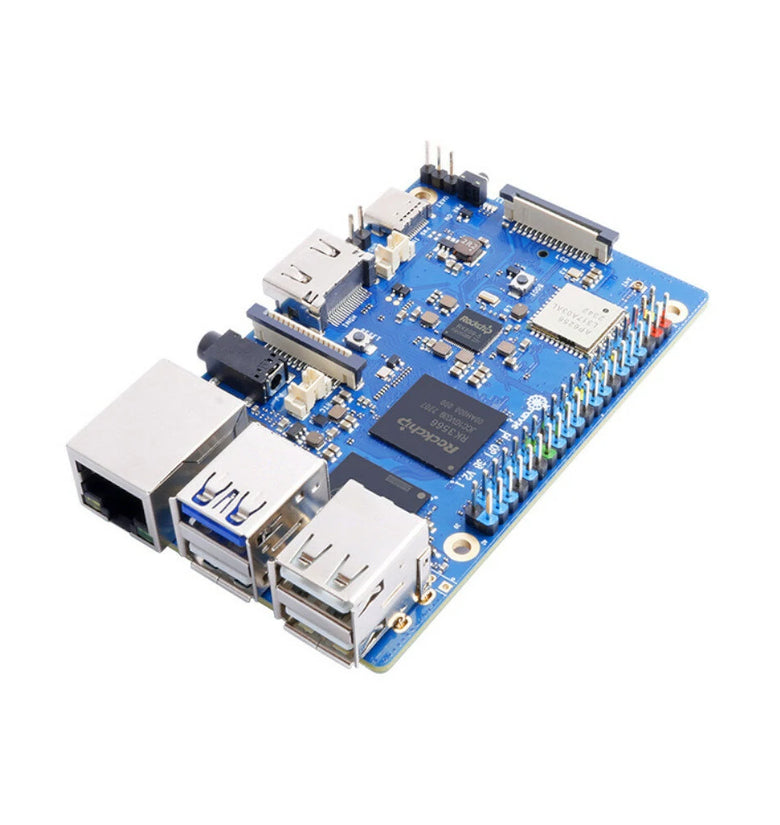

Orange Pi 3B is powered by Rockchip RK3566 quad-core 64-bit processor with 22nm advanced process, up to 1.8GHz main frequency, integrated ARM Mali G52 2EE graphics processor with OpenGL ES 1.1/2.0/3.2, OpenCL2.0, Vulkan 1.1 support, embedded high-performance 2D acceleration module; built-in Al accelerator NPU with 0.8Tops computing power; VPU can achieve 4K@60fps H.265/H.264/VP9 video decoding and 1080P@100fps H.265 video encoding, 1080P@60fps H.264 video encoding, support 8M ISP and HDR; with 4GB (LPDDR4/4X) RAM, supports 16GB/32GB/64GB/128GB/256GB eMMC module, 16MB/32MB SPI Flash, has Wi-Fi5, BT5.0, with BLE support.Orange Pi 3B references a wealth of interfaces, including HDMI output, M.2 M-KEY (optional), TF card slot, Gigabit LAN port, USB2.0, USB3.0, 3.5mm headphone jack, MIPI DSI port, eDP port, MIPI CSI camera port, multifunctional 40 Pin expansion port, etc., which can be widely applied to TV boxes, high-end tablet, edge computing, face recognition, smart security, smart home and other fields, empowering rich Al applications and loT scenarios.Orange Pi 3B supports Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Betal, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
Package Include:
1x Module Board
