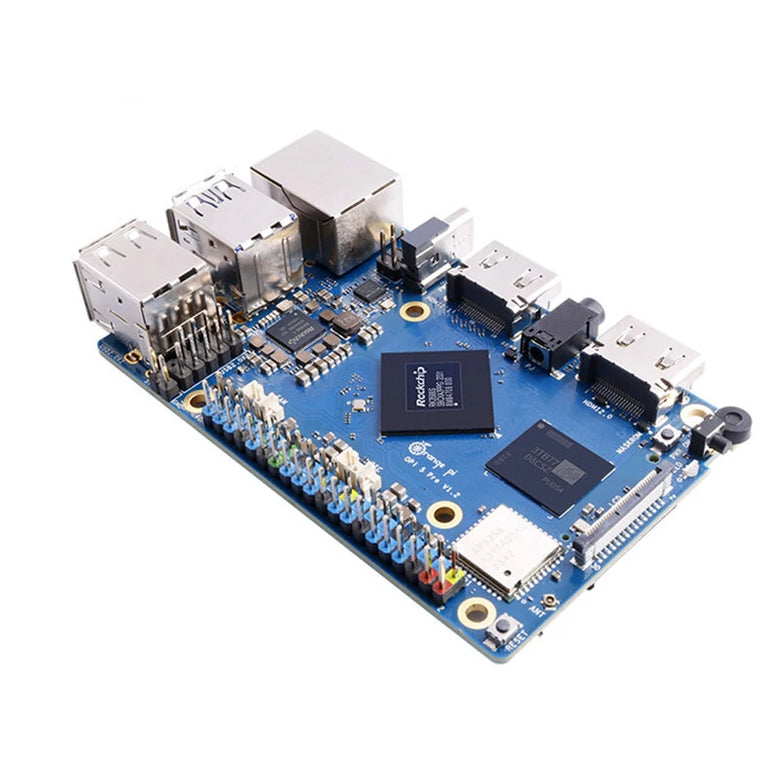

Specifications:
| Master Chip | Rockchip RK3588S(8nm LP process) |
| CPU | ●8-core 64-bit processor ●big.LITTLE Architecture: 4-core Cortex-A76 and 4-core Cortex-A55, big core cluster is 2.4GHz, and lttle core cluster is 1.8GHz frequency. |
| GPU | ●Arm Mali-G610 ●Built-in 3D GPU ●Compatible with OpenGL ES1.1/2.0/3.2, OpenCL2.2 and Vulkan 1.2 |

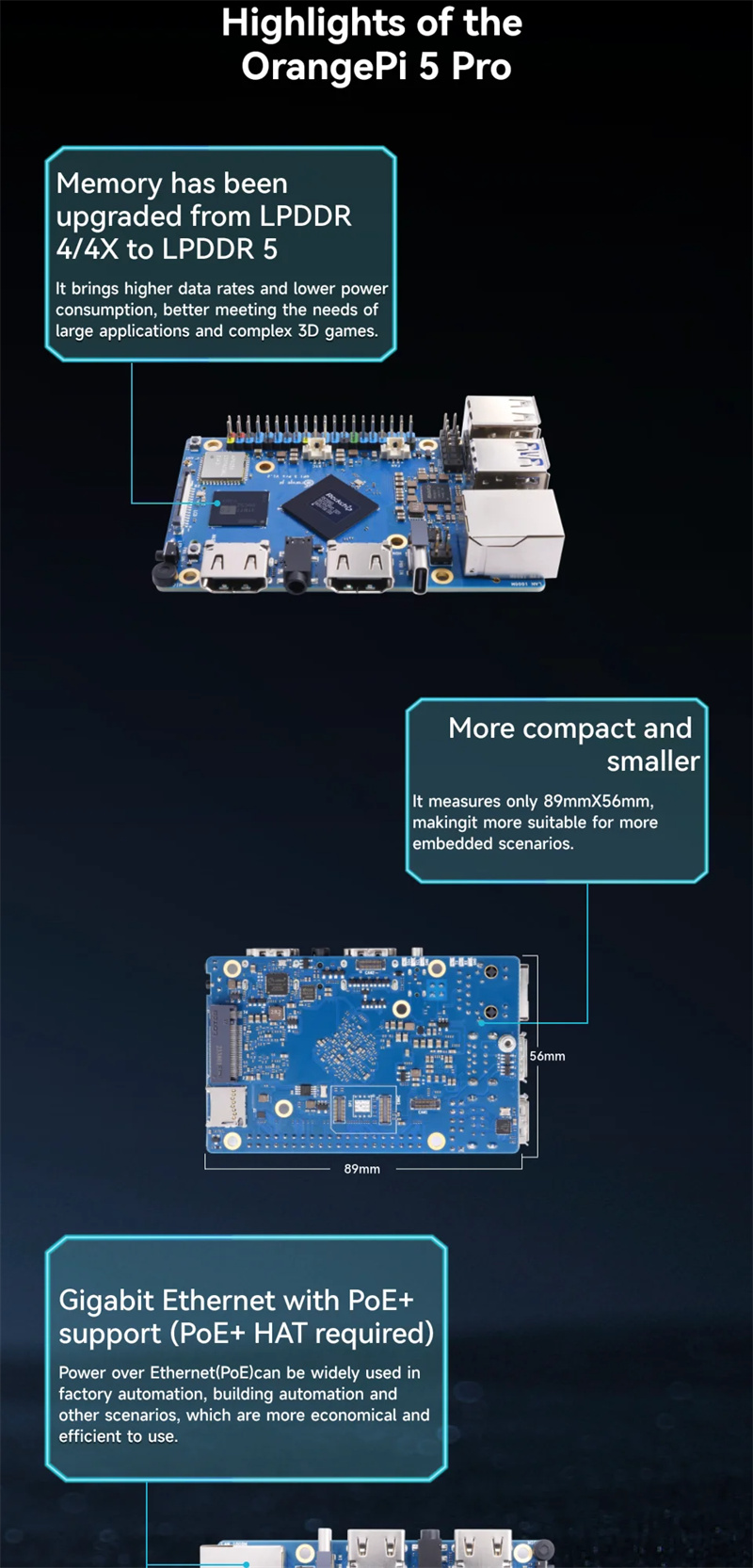

| NPU | Embedded NPU supports INT4/INT8/INT16 mixed operation, with up to 6TOPS computing power PMU: RK806-1 RAM: LPDDR5 496PIN: 16GB |
| Memory | ●eMMC socket: supports eMMC module (optional) ●SPI Flash (default empty) ●MicroSD (TF) slot ●M.2 M-KEY slot: NVMe SSD or SATA SSD Note:either eMMC socket or on-board SPI Flash is preferred. |
| USB | USB3.1 Gen1*1; USB2.0*1; USB HUB: USB2.0*2 (Type A) + USB2.0*2 row of pins expansion interface |

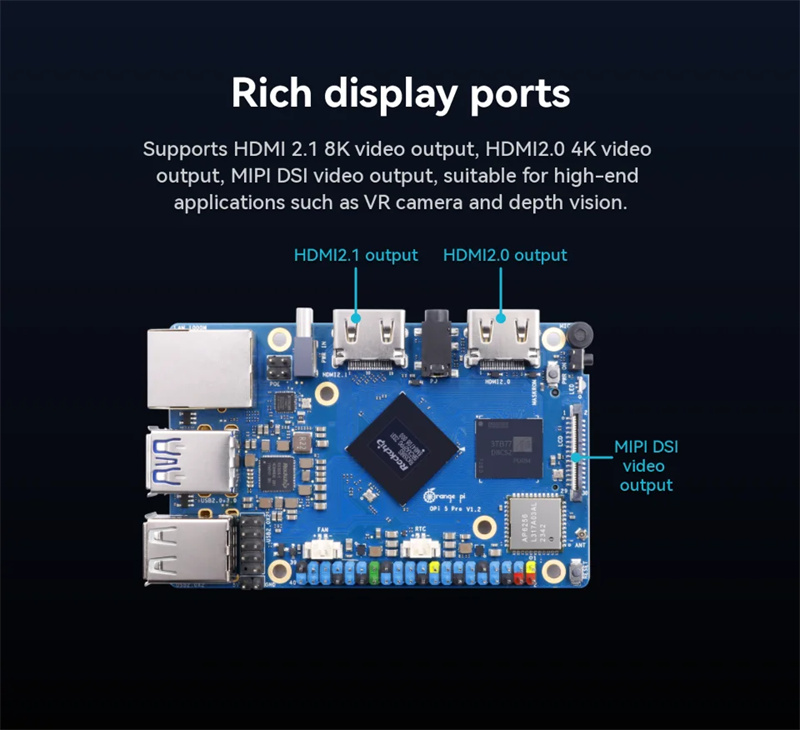

| Video Output | ●HDMI2.1 up to 8K @60Hz ●HDMI2.0, up to 4K @60Hz ●MIPI DSI 4 Lane, up to 4K @60Hz |
| Camera | ●2*MIPI CSI 4 Lane |
| Audio | CODEC:ES8388 ●3.5mm headphone jack audio input/output ●Input: onboard MIC ●HDMI 2.1 eARC |
| Ethernet | 10/100/1000Mbps Ethernet with PoE+ support (PoE+ HAT required) |
| Wi-Fi+BT Module | Onboard Wi-Fi5+BT 5.0/BLE module: AP6256 |
| PCle M.2 M-KEY Socket | M.2 M-Key slot supports access to NVMe SSD or SATA SSD |

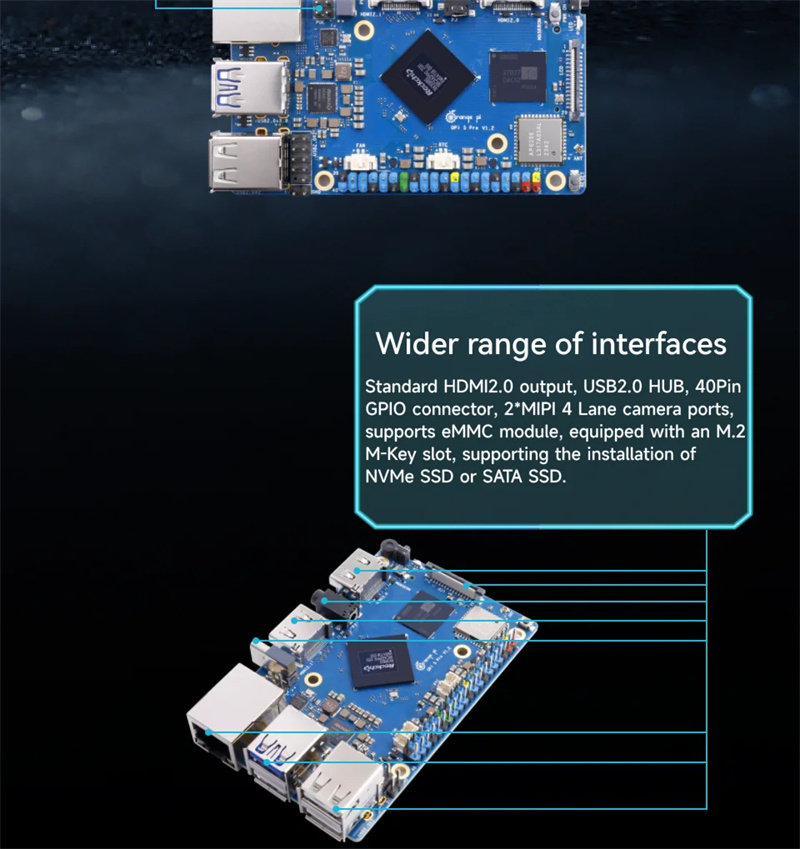

| Expansion Port | ●Dual-row pin: 2.54mm 40Pin ●Supports DC 5V and 3.3V power outputs ●Can configure functional interfaces such as UART, PWM, I2C, SPI, CAN, GPIO, etc |
| Button | 1* MaskROM, 1*RESET, 1 * POWER |
| Power Source | Supports Type-C power supply, 5V @ 5A |
| LED | RGB LED tri-color indicator |
| FAN | 5V 2PIN 1.25mm socket |
| RTC | 3V 2PIN 1.25mm socket |
| Debugging | Debug serial port UART included in 40PIN expansion port |

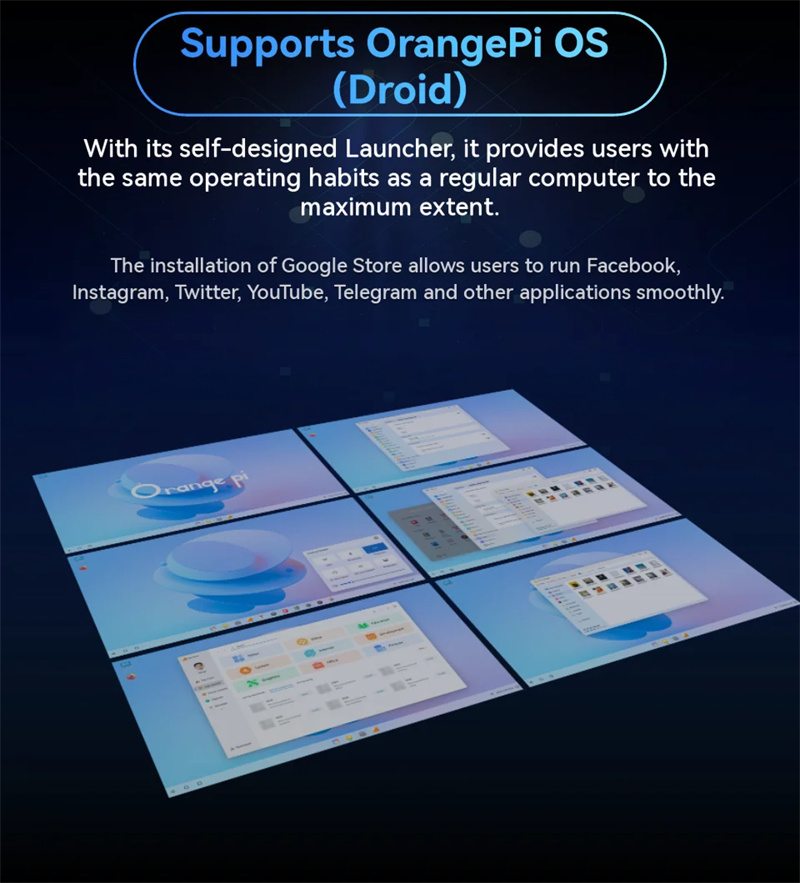

| Supported OS | Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu, Debian, Android12 |
Features:
1. Equipped with an 8-core 64-bit processor for powerful performance.2. Comes with 16GB LPDDR5 RAM for smooth and efficient operation.
3. Integrated with Wi-Fi 5+BT5.0 with BLE support for seamless wireless connectivity.
4. Features M.2 M-KEY slot for NVMe SSD or SATA SSD ensuring enhanced storage options.
5. Offers an extensive range of video outputs: HDMI2.1 up to 8K @60Hz and HDMI2.0, up to 4K @60Hz.
Package Include:
1x Module Board
