Introduction:

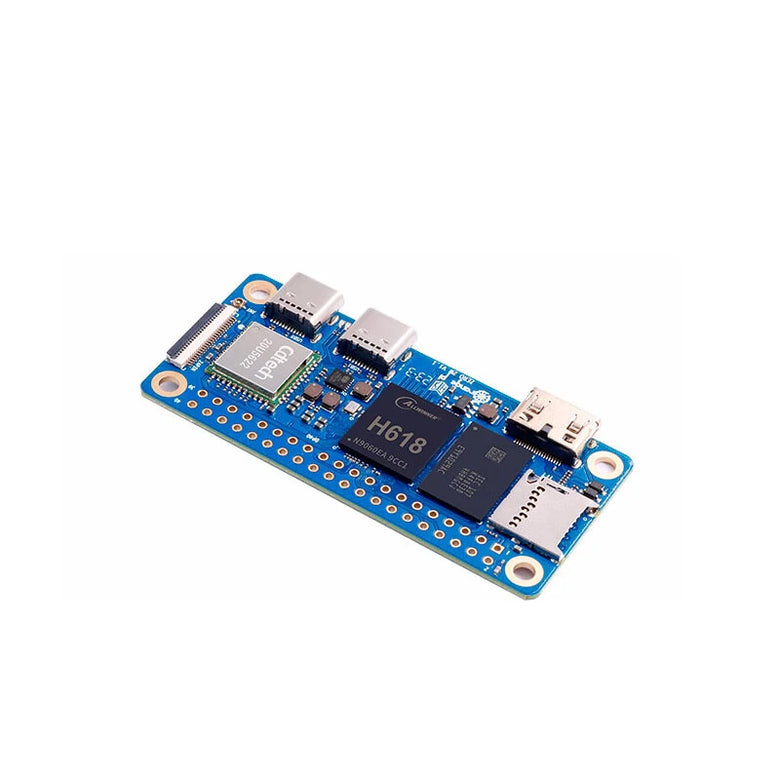

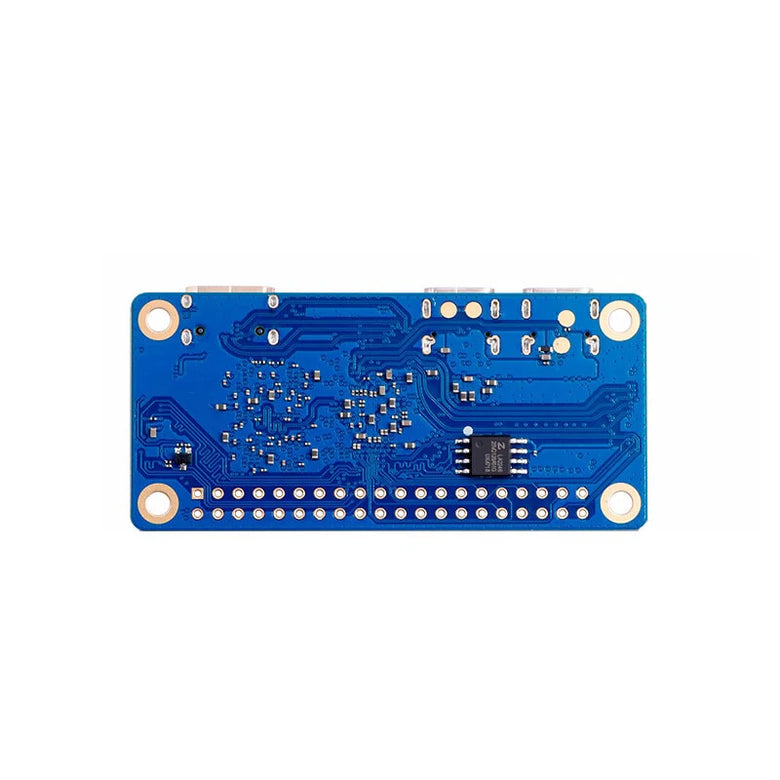

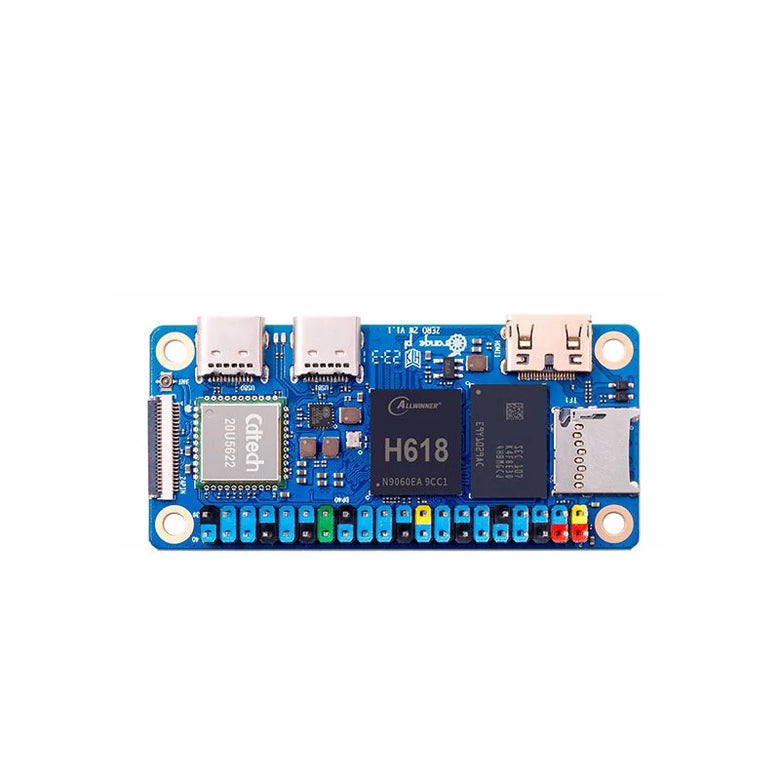

Orange Pi Zero 2W is powered by Allwinner H618 high-performance quad-core Cortex-A53 processor with up to 1.5GHz, integrated Mali G31 MP2 graphics processor, supporting OpenGL ES 1.0/2.0/3.2, OpenCL2.0, Vulkan 1.1. It has 4GB LPDDR4 memory specification options, supports 16MB SPI Flash, has Wi-Fi5, BT5.0, with BLE support.Orange Pi Zero 2W can be extended with USB2.0,100M Ethernet, IR receiver, audio output, TV-out, power button, etc. via 24Pin connector with adapter board. In addition, the 40Pin expansion port on the board further enriches the motherboard's functional interfaces and enhances the development potential.Orange Pi Zero 2W adheres to the compact and exquisite design concept of the Zero series, with a PCB size of 30mm*65mm*1.2mm, and can be widely used in TV boxes, smart screen casting devices, smart home, smart gateway, IoT and other fields.Orange Pi Zero 2W supports Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04 , Orange Pi OS (Arch) and other operating systems.
Hardware Parameters:
| CPU | Allwinner H618 Quad-Core Cortex-A53 Processor 1.5GHz |
| GPU | Mali G31 Mp2 -Support OpenGL ES 1.0/2.0/3.2, OpenCL2.0, Vulkan 1.1 |
| RAM | LPDDR4: 4GB |
| Memory | SPI Flash: 16MB |
| Wi-Fi+ BT | Wi-Fi5.0+BT5.0, BLE |
| Video output | 1* Mini HDMI TX 2.0 port supporting 4K@60FPS |
| USB | Type-C USB2.0*2 |
| SD card interface | 1*Micro SD card interface |
| Expansion interface | 24Pin expansion interface: USB2.0*2,100M Ethernet interface, IR receiver interface, audio output, TV-out, power button, user-defined buttons*2 |
| 40Pin | 40Pin function expansion interface, supporting the following interface types: GPIO, UART, I2C, SPI, PWM |
| Power Source | Type-C 5V2A |
| Supported OS | Android 12 TV, Debianll, Debianl2, Ubuntu22.04, Ubuntu20.04, Orange Pi OS (Arch) |
| PCB Dimension | 30mm*65mm*1.2mm |
| Weight | 12.5g |
Features:
1. The board features an Allwinner H618 processor, providing high-speed and seamless operations.
2. A Mali G31 MP2 Graphics Processor Unit (GPU) which supports OpenGL ES 3.2, Vulkan 1.1, and for OpenCL2.0.
3. Contains a flexible combination of memory options from 1GB/1.5GB/2GB/4GB LPDDR4 to cater to different user needs.
4. Equipped with an advanced WI-FI5.0+BT 5.0 BLE, for strong signal strength and optimal Wi-Fi and bluetooth connectivity.
5. Diverse range of expansion port options including USB2.0, a 100M Ethernet interface, infrared receiving interface, etc.
Package Include:
1x Orange Pi Zero 2W Development Board
1x Expansion Board
1x 40Pin Color Pin
1x Antenna
