Specifications:

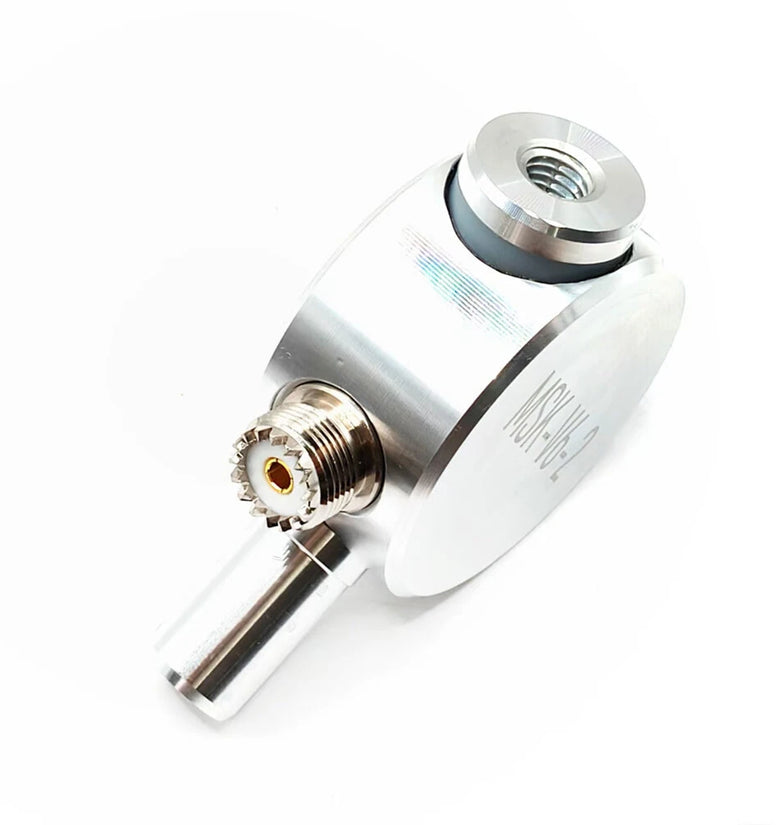

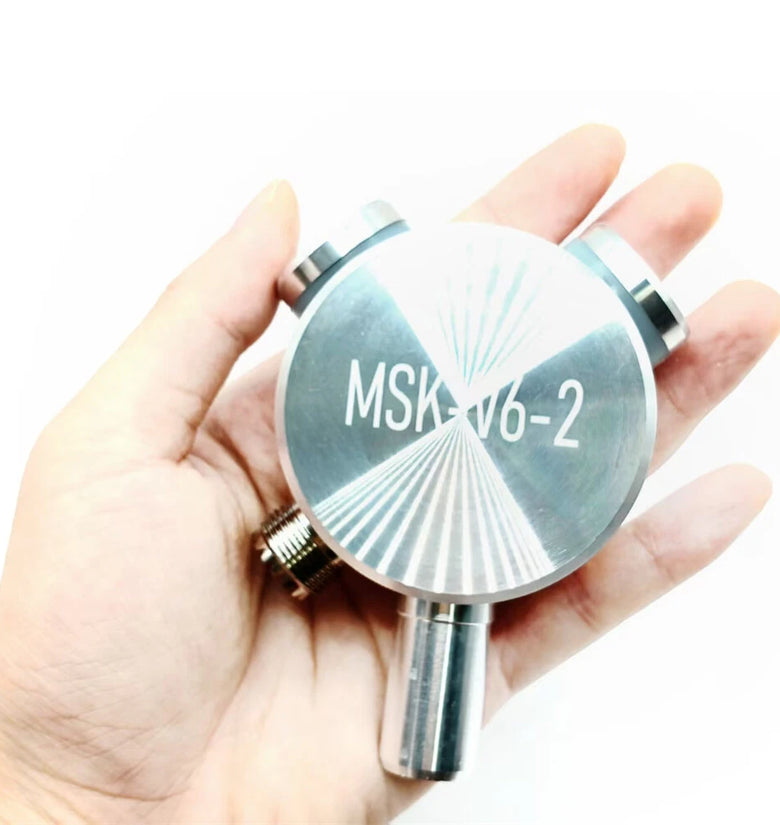

Model: MSK-V6-2
Frequency Range: 14-30MHz (Applicable for frequencies below 14 MHz using an inverted V configuration; 7MHz band requires additional inductance kits)
SWR: ≤1.5
Weight: Approximately 220g

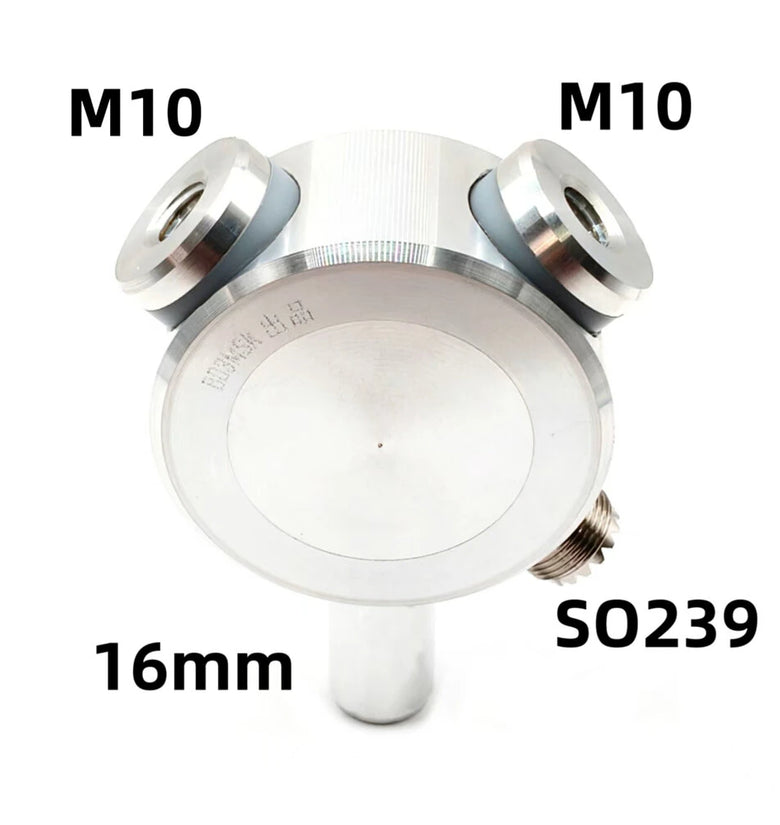

Rod Interface: M10
Feed Line Interface: SO239 (Female Type)
Balun Base Interface Diameter: 16mm
Power Handling: USB Mode: 100W, CW Mode: 50W
Features:
1. Wideband Coverage: Continuous operation from 7-30MHz, easily handling multi-band communication needs.
2. Superior Performance: VSWR ≤1.5 ensures efficient signal transmission and lower energy loss.
3. Lightweight and Portable: Compact structure and lightweight design, convenient for outdoor carrying and quick setup.
4. Flexible Configuration: Can be used with a 5.6-meter extension pole (not included in the packing list) to achieve natural resonance above 14MHz. For the 7MHz band, an inductor kit (not included in the packing list) or an inverted V-array (not included in the packing list) is required, offering diverse configuration options.
5. Rugged Interface: The extension pole uses a universal M10 interface, and the feeder cable uses an SO239 interface, ensuring a stable and reliable connection.
6. Plug and Play: The 16mm diameter balun base perfectly matches standard lamp post sockets, making setup simple and quick.
7. Built-in High-Quality 1:1 Magnetic Ring Balun: 100W in USB mode, 50W in CW mode.
Package Included:
1 x MSK-V6-2 Portable Vertical Antenna Balun Base
