Frequency Range: 7-54MHz
Maximum Power: 200W SSB/CW/FM
Standing Wave Ratio (SWR): ≤ 1.5 (per section)
Polarization: Vertical
Collapsed Storage Length: 53cm (20.9 inches)
Net Weight: 1.3Kg (2.9 lbs)
Features:
1. Wide Frequency Coverage: Operates effectively across a broad range of amateur radio bands from 7MHz to 54MHz, enabling versatile usage for different communication needs.
2. Compact & Portable Design: The antenna collapses into a compact 53cm (20.9 inches) storage length, making it easy to transport and store in limited spaces.
3. High Power Handling Capability: Supports up to 200W SSB, CW, and FM, ensuring compatibility with high-performance radio equipment.
4. Optimized Performance: With an SWR of less than 1.5 per section, the antenna provides excellent signal efficiency for clear, reliable communication.
5. Complete Ground Plane Setup: Comes with four counterpoise FFC cables and two stabilizers for improved signal stability and antenna installation.
Package Included:

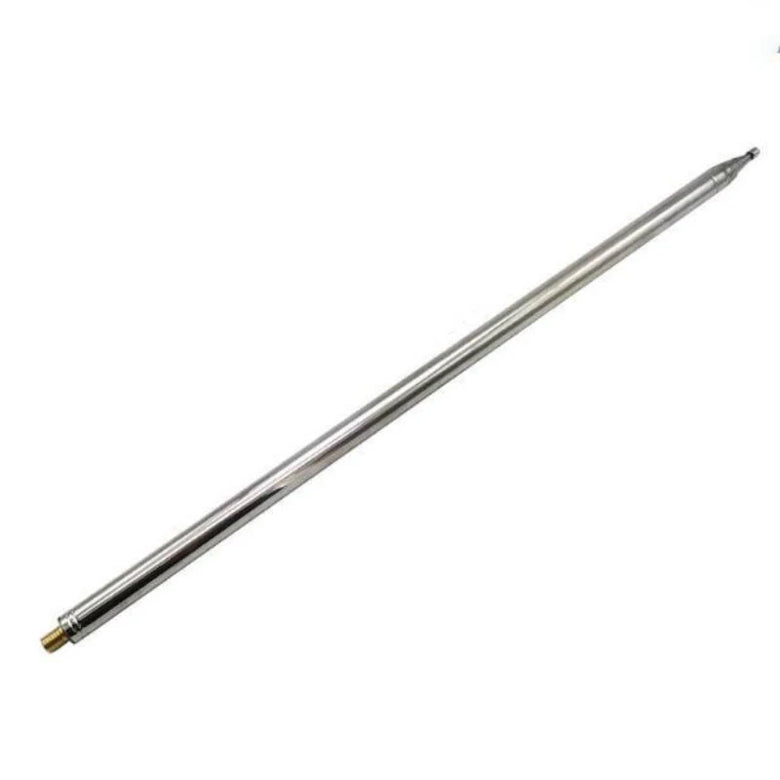

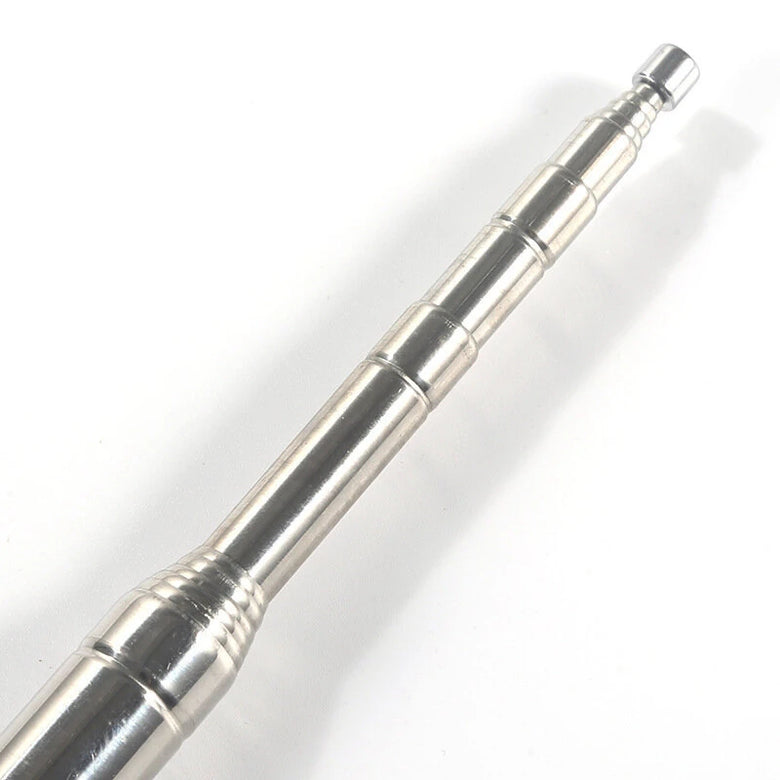

1 x 5.6M (18.4FT) Telescopic Antenna

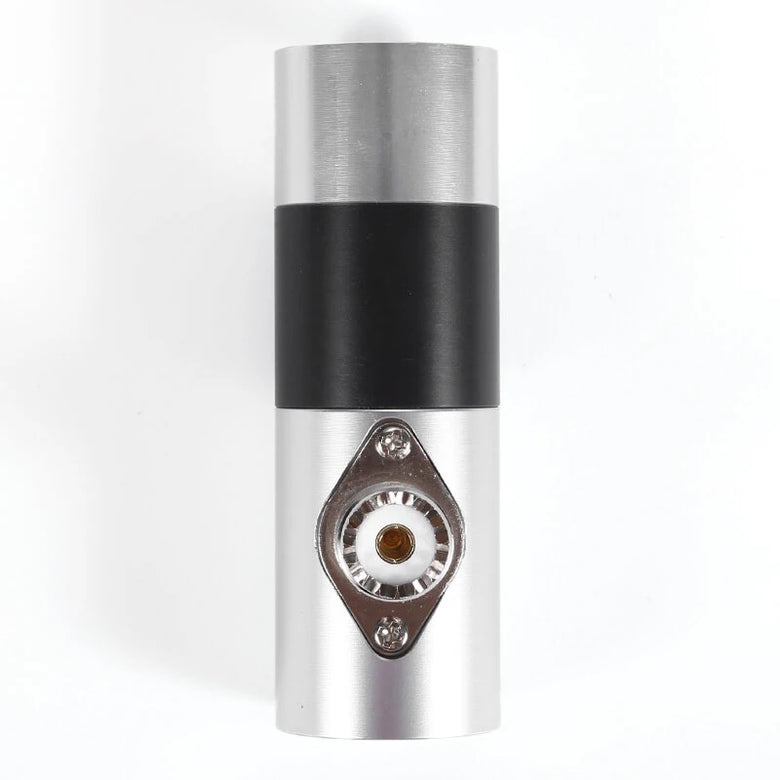

1 x Load Coil
1 x Extension Pole
1 x GP Antenna Socket

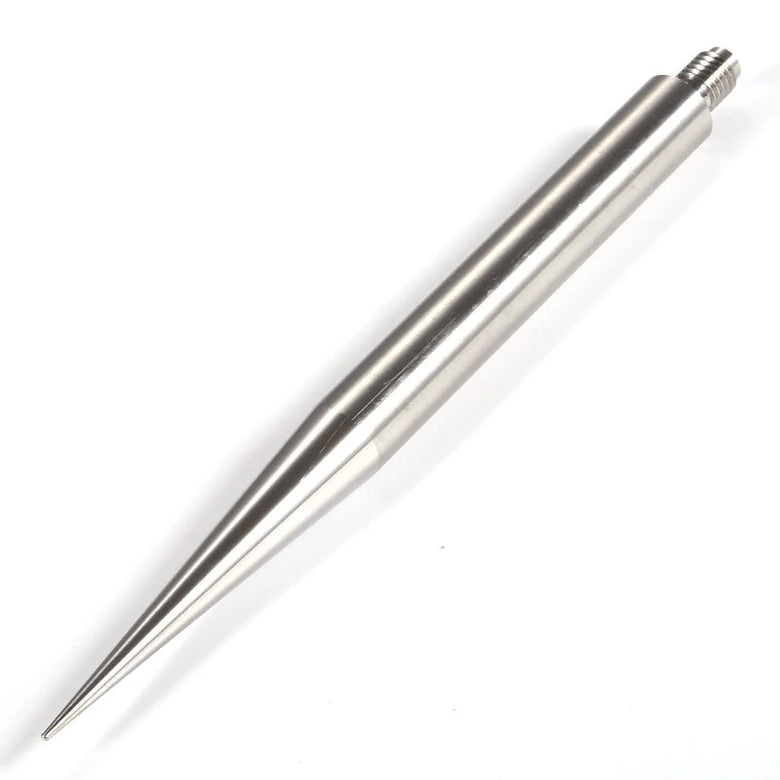

1 x Ground Pin
2 x Counterpoise Stabilizer
4 x Counterpoise FFC Cable
4 x Counterpoise Terminal
