Introduction:The machine has the dual display function of LCD and Remote header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street lamp, courtyard lamp systems, etc.
Feature:- Advanced MPPT maximum power tracking technology, the tracking efficiency is no less than 99.5%.- High quality components are used to improve the system performance, and the maximum conversion efficiency can reach 97%.
- Super fast maximum power tracking speed while ensuring tracking efficiency.
- Accurate identification and tracking of the maximum power of multi-wave peak.
- Reliable maximum input power of pv array to ensure the safety of equipment.
- Wide pv array maximum power operating voltage range. 12/24v automatic voltage identification
- The LCD is designed to dynamically display the operation data and working status of the equipment.
- Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.
- Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.
- The function of battery temperature compensation.
- Power statistics recording function.
- External display unit and other peripherals, realize real-time data view and parameter setting function.Kind tips: The controller will start PWM function at high voltage disconnection (HVD) voltage point, which limits voltage rising to protect battery.
| Model | POW-Keeper1220 | POW-Keeper1230 | POW-Keeper1240 |
| Rated charge current | 20A | 30A | 40A |
| System rated voltage | 12V/24V Auto work | ||
| Voltage range of battery | 8-32V | ||
| Max open voltage of PV module | 55V | 75V | 100V |
| Battery type | User default, Sealed, Flooded, GEL, LiFePO4 | ||
| Equalized charging voltage | Maintenance-fee lead acid battery 14.6V, GEL: No: Lead acid flooded battery: 14.8V | ||
| Absorption charging voltage | Maintenance-fee lead acid battery 14.4V,GEL: 14.2; Lead acid flooded battery: 14.6V | ||
| Floating charging voltage | Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 13.8V | ||
| Low voltage re-connection (LVR) | Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 12.6V | ||
| Low voltage disconnection (LVD) | Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 10.8V | ||
| Static loss | <9.2mA 12V; <11.7mA 24V | ||
| High voltage disconnection (HVD) | 16V (24V x 2) | ||
| Duration of absorption charging | 2 Hours | ||
| Light control voltage | 5V | ||
| Charge loop voltage drop | <0.29V | ||
| LCD Temperature | -20°C~+70°C | ||
| Operating Temperature | -20°C-+55°C (To run at full rated current continuously) | ||
| Operating Temperature | -20°C-+55°C (To run at full rated current continuously) | ||
| Working humidity | <95% No condensation | ||
| Protection class | IP30 | ||
| Dimension (LxWxH) mm | 123x178x48 | 135x202x55 | 150x220x67 |
Package includes:

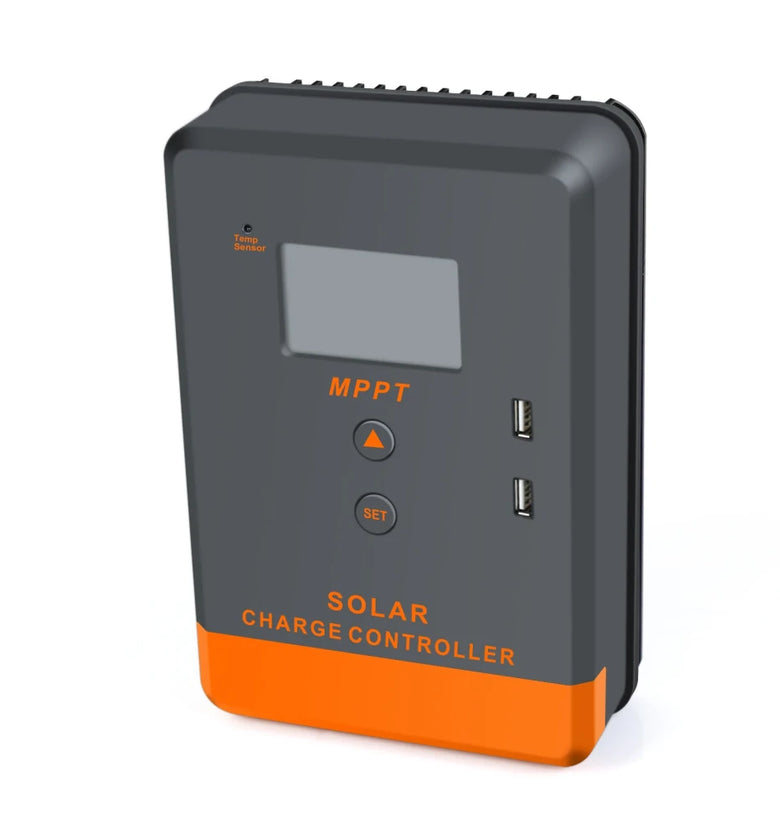

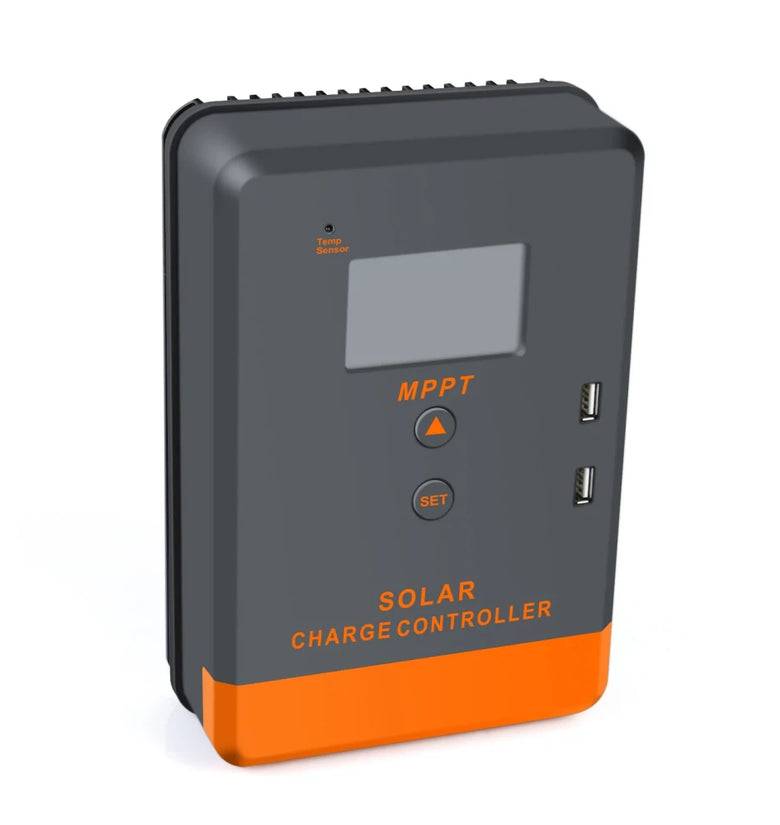

1 x PowMr MPPT Solar Charge Controller
| ① | LCD | ⑤ | Load terminal |
| ② | Temperature sensor interface (Selection) | ⑥ | Menu button |
| ③ | Photovoltaic array terminals | ⑦ | Set button |
| ④ | Battery terminal | ⑧ | USB output |
Notice: In the case of the remote temperature sensor not connected, the controller will compensate the charging parameters by 25°C for the battery temperature.
