Features:
1. Wide voltage 7-70V, high current 30A design, wide application range, on-board switch with run/stop/brake function, adjustable potentiometer soft cable can be separated, the line length is 15CM.
2. Optimized circuit design. Wide adjustment range of duty cycle, smooth adjustment of the motor without bath noise, no vibration, with power indicator, stable circuit design suitable for long-term work.
3. Imported high-voltage MOS tube, three 100V high-frequency low-resistance capacitors, automotive fuses, parameters are not easy to heat and easy to replace, standard aluminum housing, protect internal circuits and components for long-term durability.
Specifications:
Applicable voltage range: DC 7-80V (80V is the highest working voltage application, please leave a margin)
Drive current: maximum 30A (working voltage and high current should be relatively reduced, please use with power)
Control power: (suggest)12V within300W /24V within 400W /48V within 450W/ 60V within 500W
Adjustable range of duty cycle: about 1%-100%
PWM frequency: 12KHz
Shell size: 85*59*34mm
Adjust potentiometer opening: 8MM
Button protrusion height: 16MM
Weight: 145g
Note :
1. This product is a DC brushed motor speed controller, which needs to be equipped with a DC power supply to power the governor. It cannot be connected to AC power and cannot drive the brushless motor.

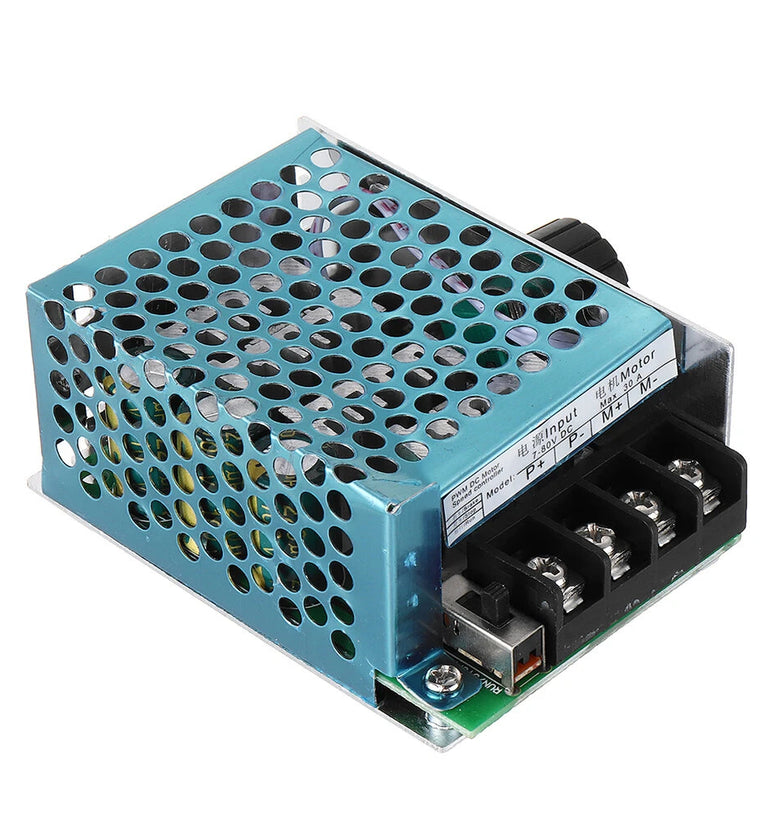

2. Before powering on the wiring, please read the wiring label, the input is direct current, and the positive and negative poles must not be mistaken! ! ! The output connection to the motor (motor) does not need to be divided into positive and negative. If the direction of rotation is wrong, please change the two wires of the motor.
Package Included:
1 x PWM DC Motor Speed Controller DC7-80V
