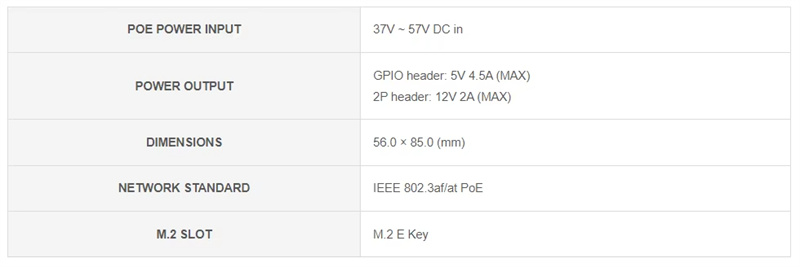

Specification:

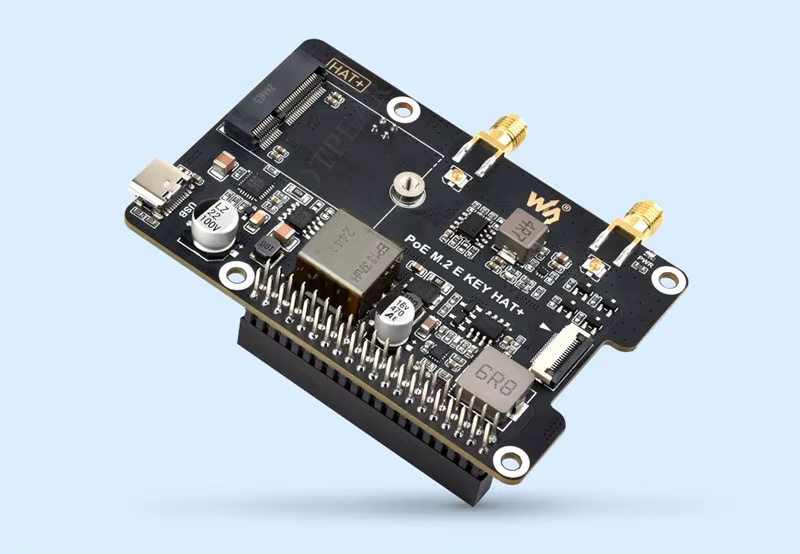

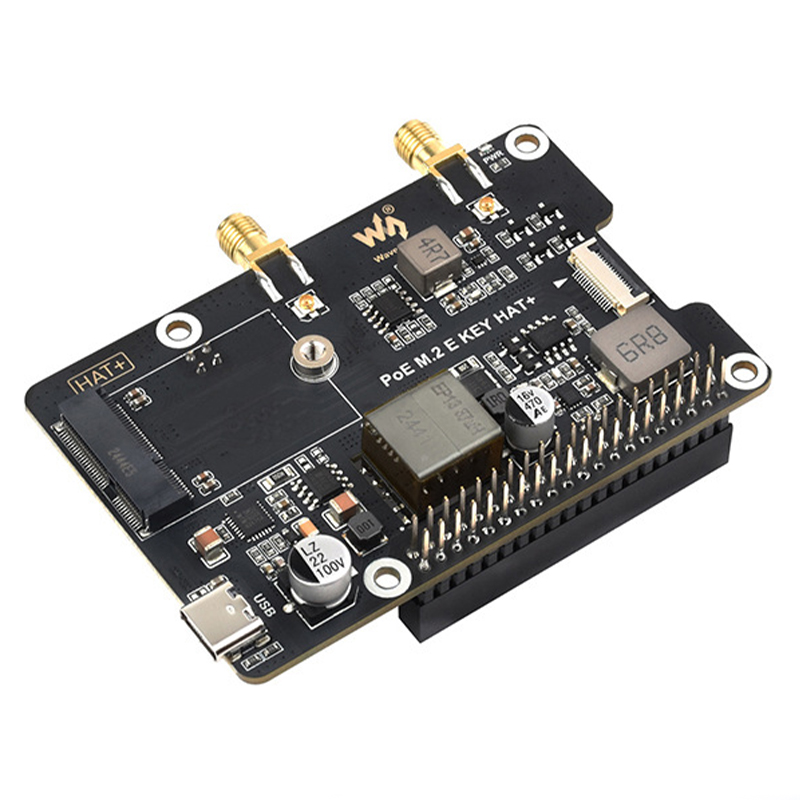

Product Name: PCIe to M.2 E Key Expansion Board
PoE power input: 37V -57V DC input
Power output:
GPIO pin header: 5V 4.5A (MAX)
2P pin header: 12V 2A (MAX)

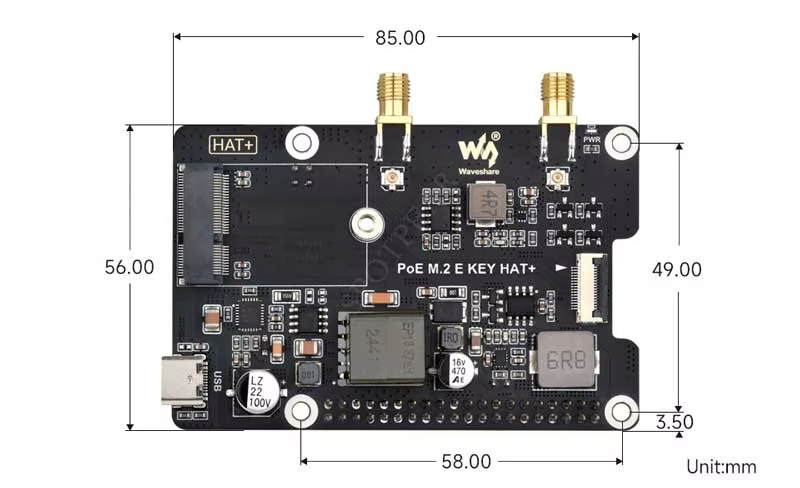

Product size: 56.0 x85.0 (mm)
Network standard: Support IEEE 802.3af/at PoE
PCle interface type: M.2 E Key
Features:

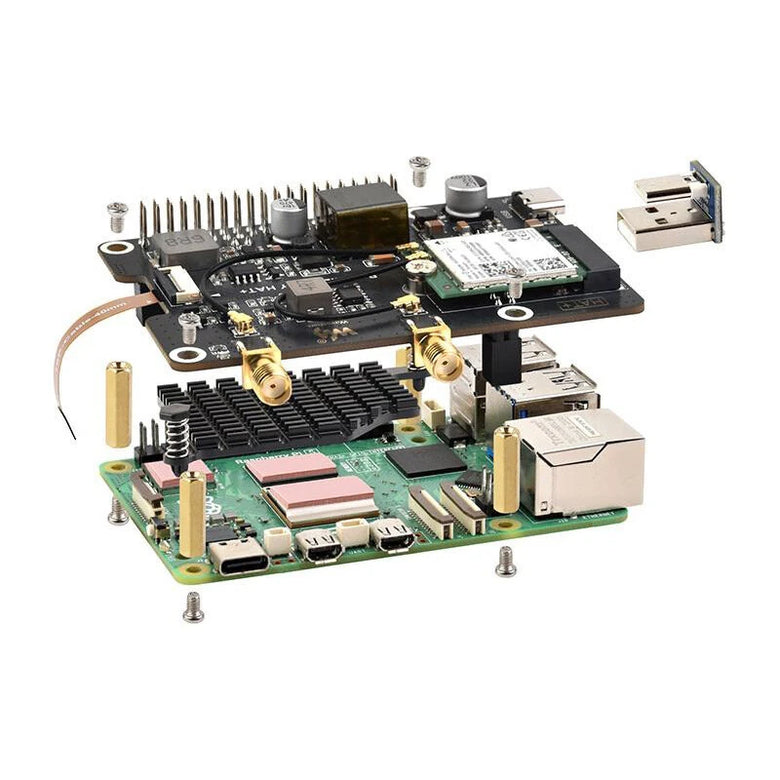

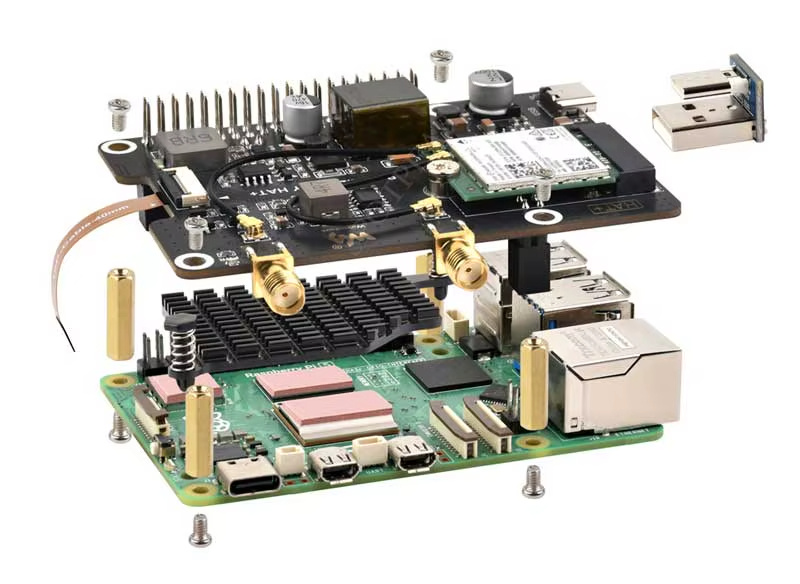

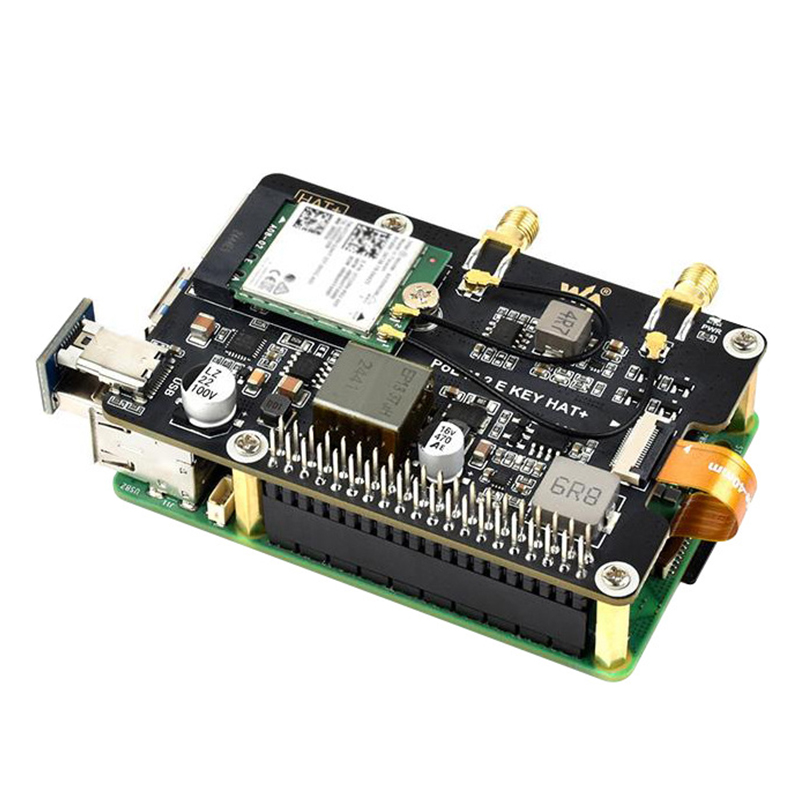

1. It can be connected to PI5 via a 16PIN cable. It is based on the Raspberry Pi 40PIN GPIO interface design, and the pin header is led out on the top, which is convenient for connecting to other Raspberry Pi expansion boards.

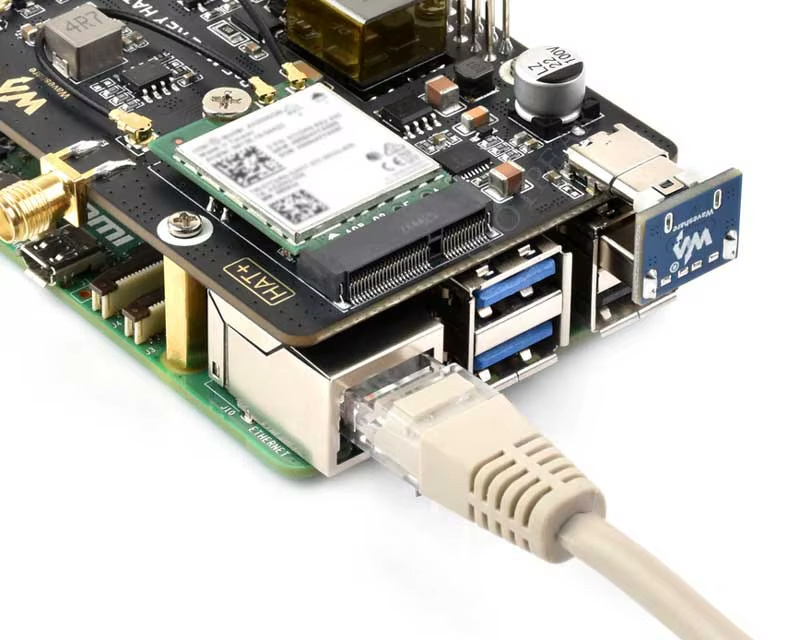

2. Supports PoE Ethernet power supply. Only one network cable is needed to connect to the PoE device to enable the Raspberry Pi to connect to the Internet and power it.

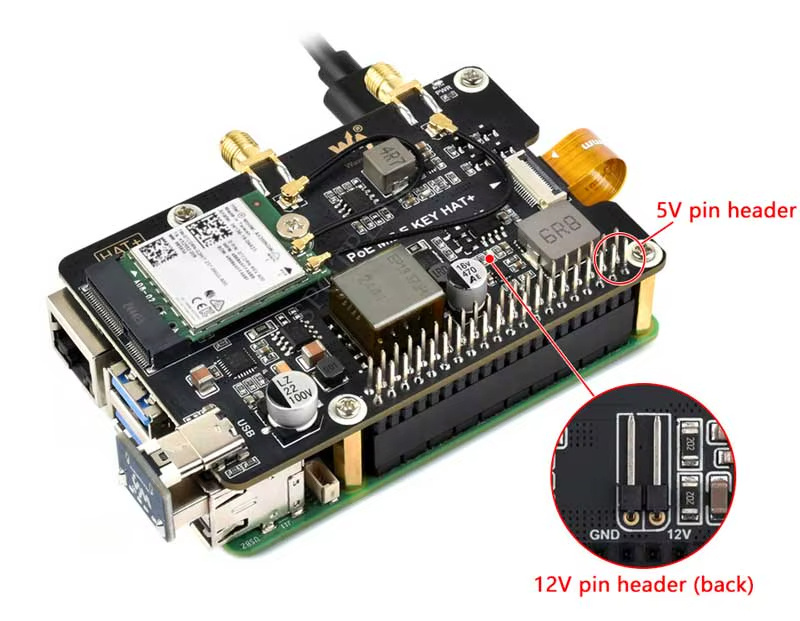

3. Onboard multiple power supply interfaces, onboard 5V and 12V pin header power supply interfaces, and the total output power of the 5V interface is up to 4.5A (the total output of 12V and 5V does not exceed 25W), which can meet the power supply of the Raspberry Pi and other devices.

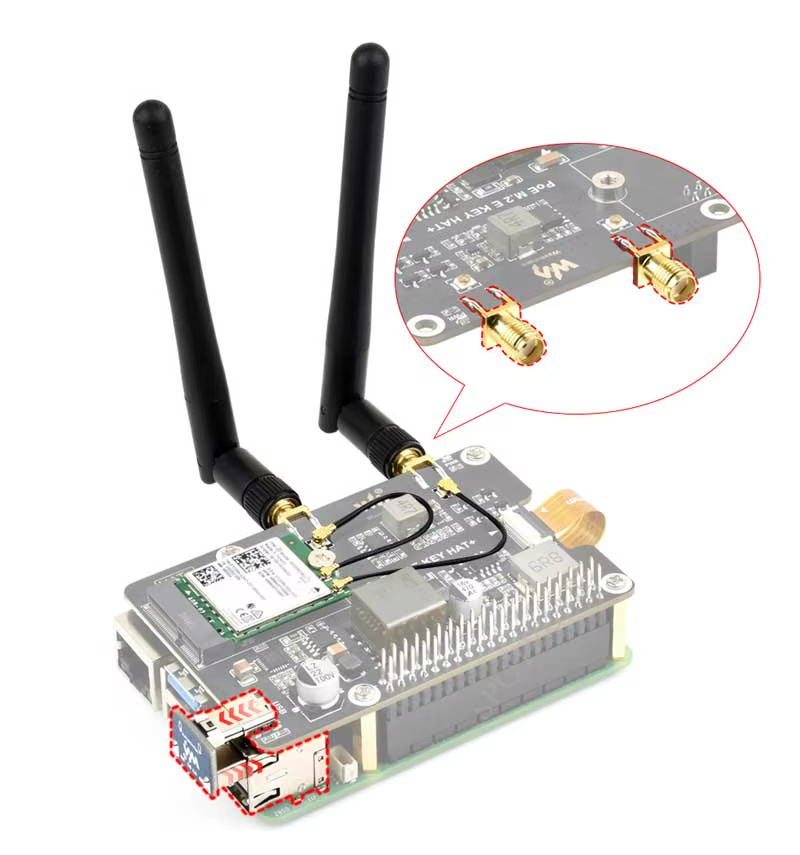

4. Onboard SMA internal antenna interface, supports USB bluetooth connection, and the bluetooth signal can be input to the Raspberry Pi through the USB adapter board.

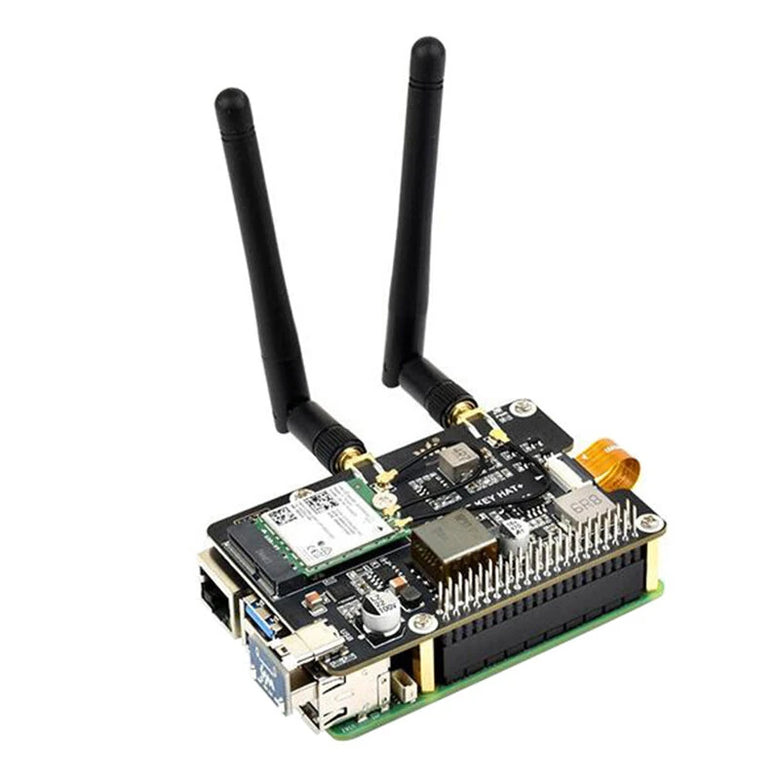

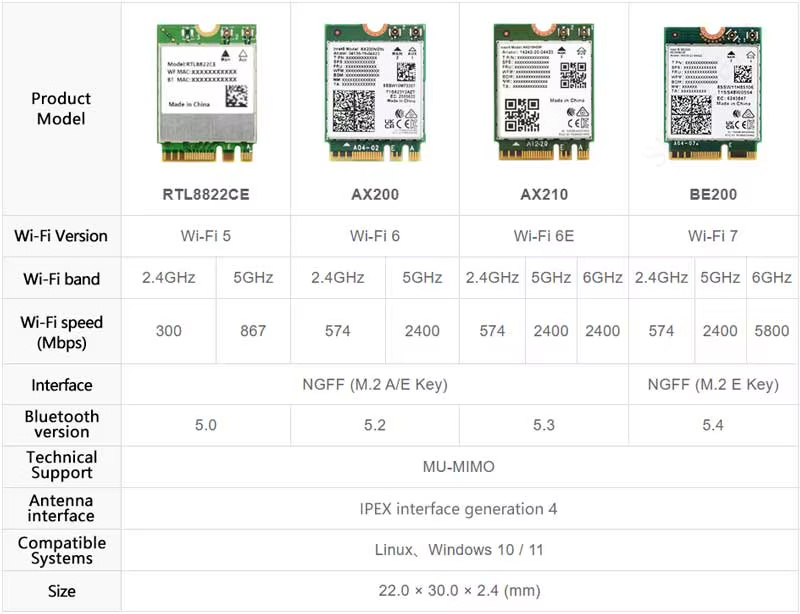

5. Applicable to Raspberry Pi 5, support NGFF (M.2 E Key) wireless network card.

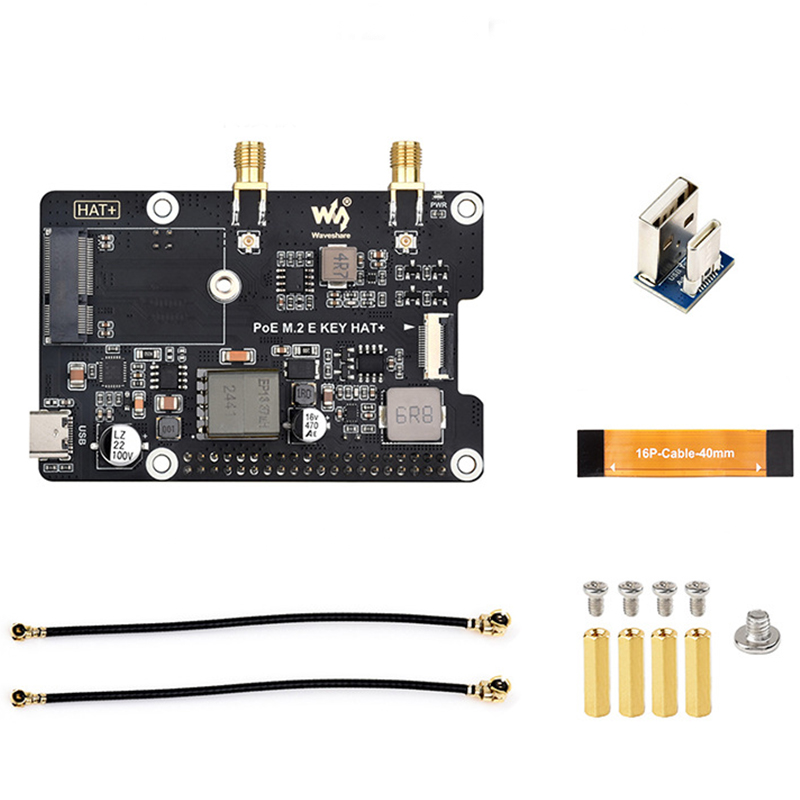

Package Includes:
1x PoE M.2 E KEY HAT+ Board
1x USB Type-C Adapter(EU)
2x IPEX 1 Gen to IPEX 4 Gen(6cm)
1x 16P-Cable-40mm
1x Screws Pack
Note: The other items are not includes, for reference only.
