Specification:
Compatibility: Compatible with all versions of Compute Module 5 (CM5 Lite/eMMC)
Networking: Gigabit Ethernet RJ45 port, integrated 802.3af/at PoE (Power over Ethernet) standard (5V/5A)
Connectors:
Raspberry Pi 40-pin GPIO interface
USB 3.2 Gen 1: 2 ports
USB 2.0: 2 ports
4-lane MIPI: 2 connectors (22-pin 0.5mm FPC)
HD: 2 ports supporting 4K output
NVMe: PCIe Gen 2/3 x1
Storage: Micro SD card slot (for non-eMMC versions)
Battery: CR/ML2032 RTC
Fan Connector: 5V, 4-pin JST-SH PWM fan connector
Power Input: 5V 5A
Dimensions: Bare board: 160.0 x 90.0 mm
Features:
1. Versatile Connectivity: Offers comprehensive connectivity options including dual HD, dual USB 3.2 Gen 1, dual USB 2.0, dual MIPI, and gigabit Ethernet, making it ideal for various applications.
2. PoE Support: Integrated 802.3af/at PoE standard providing 5V/5A power through Ethernet, simplifying power management and reducing cable clutter.
3. M.2 NVMe Slot: Supports M.2 NVMe SSDs (2280, 2260, 2242, 2230 sizes, M Key or B&M Key), significantly boosting system or file read/write speeds up to 8Gbps.
4. Comprehensive GPIO Access: Raspberry Pi 40-pin GPIO connector for extensive hardware extension and customization.
5. Advanced Power Options: Provides multiple power input options, including type-C power input and support for 5V PWM fan with a 4-pin JST-SH connector for optimal thermal management.
Package Includes:

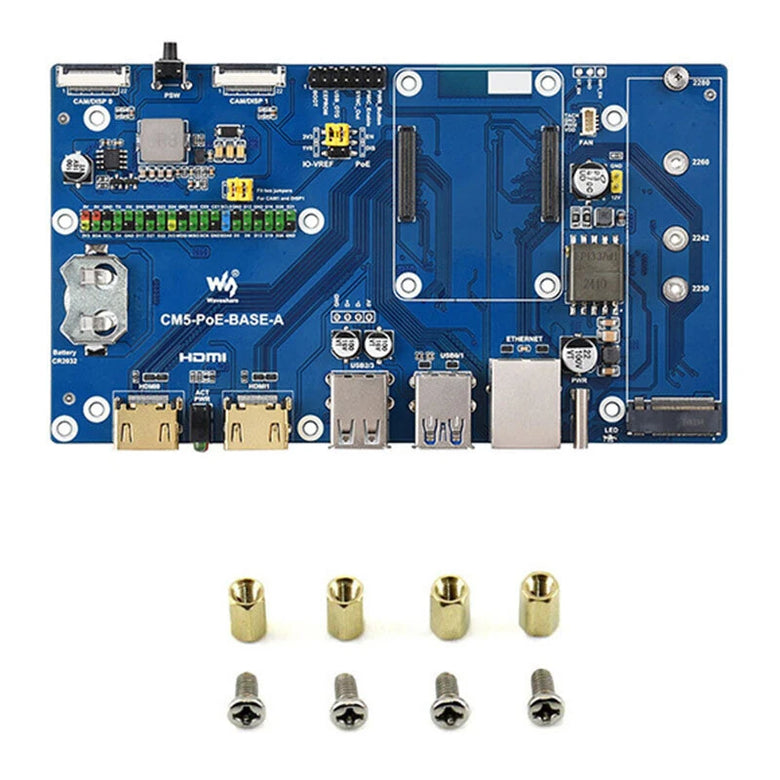

1 x Raspberry Pi CM5 PoE Expansion Board
1 x Set of Mounting Screws
