Specifications:

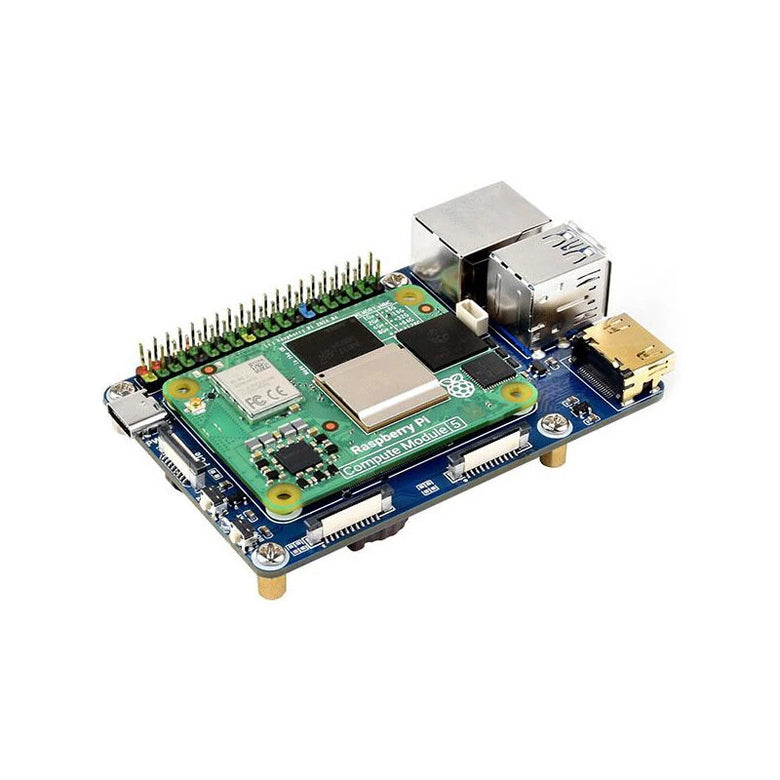

- CM5 Socket: Suitable for all variants of Compute Module 5
- Networking: Gigabit Ethernet RJ45 connector
- Connector: 16PIN PCIe (PCIe Gen2/3 x1)
- Connector: Raspberry Pi 40PIN GPIO header
- USB: USB 3.2 Gen1 Type A x 2, USB 2.0 via 6PIN 1mm FFC connector x 2
- MIPI: 4-lane MIPI interface x 2 (22pin 0.5mm FFC connector)
- Video: High Definition Multimedia Interface port x 2 (including one port via FFC connector), supports dual 4K outputs

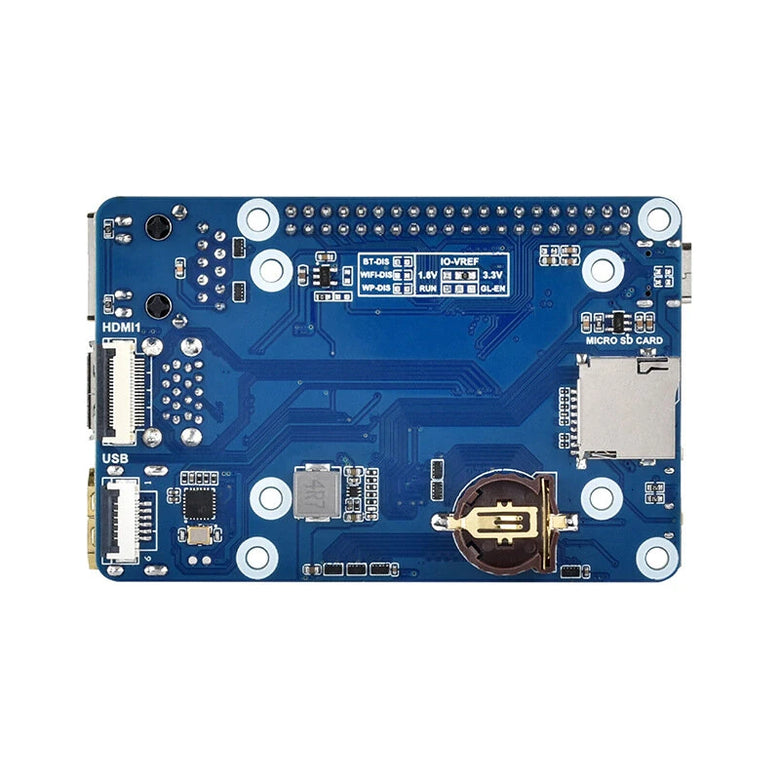

- Storage: TF card slot for Compute Module 5 Lite (without eMMC) variants
- Fan Header: 5V, 4PIN JST-SH PWM connector
- Power Input: DC 5V 5A
- Dimensions: 85 x 56mm
Features:
1. High-Speed Connectivity:

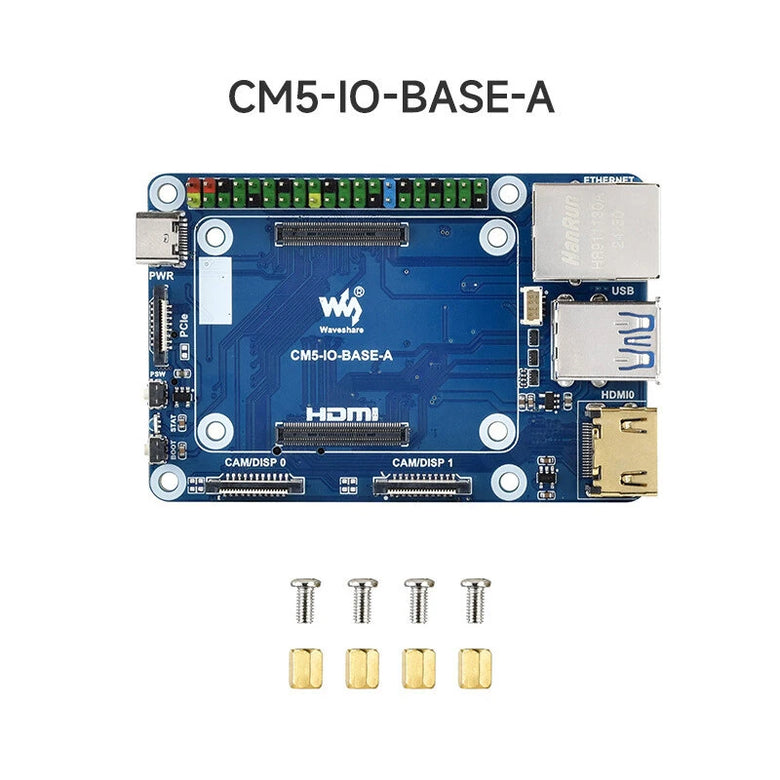

The CM5-IO-BASE-A offers advanced networking capabilities with its Gigabit Ethernet RJ45 connector, ensuring your setups maintain fast and efficient data communication.
2. Versatile USB Ports:
Featuring two USB 3.2 Gen1 Type A ports and two USB 2.0 ports via 6PIN 1mm FFC connectors, this module ensures compatibility with a wide range of peripheral devices.
3. Dual 4K Video Output:
Equipped with dual High Definition Multimedia Interface ports, the module supports impressive dual 4K video outputs, making it ideal for high-resolution display projects and multi
