Specification:

Product Name: Raspberry Pi Pico RP2040-GEEK Development Board
Controller Chip: RP2040
LCD Screen: 1.14-inch 65K color IPS LCD screen
Screen Resolution: 240x135 pixels
On-board Peripherals: USB-A port, TF card slot, 3PIN SWD interface, 3PIN UART interface, 4PIN I2C interface
Microcontroller: Raspberry Pi's RP2040 microcontroller
Debugging Support: SWD interface for target debugging, compatible with CMSIS-DAP, OpenOCD, and other CMSIS-DAP-supported debugging tools
Additional Features: USB-to-Serial conversion using the on-board UART interface
Open Source Firmware: Supports open-source firmware for easy firmware updates


Features:

1. RP2040 Microcontroller: Powered by the Raspberry Pi-designed RP2040 microcontroller chip, this development board offers high-performance processing capabilities for various projects and applications.
2. Versatile Interfaces: The board includes multiple interfaces such as a 3PIN SWD interface for target debugging, a 3PIN UART interface for USB-to-Serial conversion, and a 4PIN I2C interface for testing target boards, providing flexibility for different development needs.

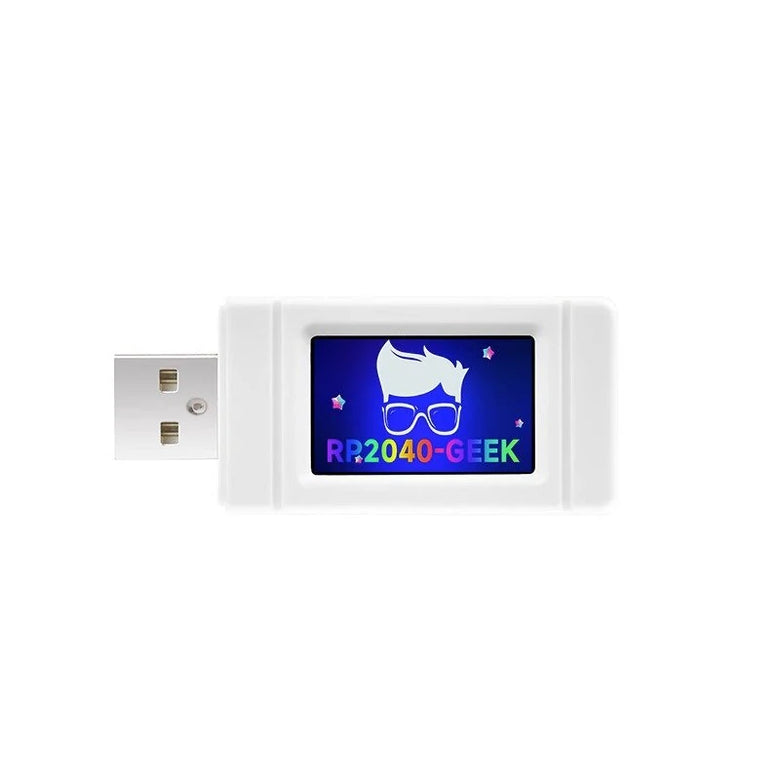

3. 1.14-inch IPS LCD Screen: Featuring a 1.14-inch 65K color IPS LCD screen with a resolution of 240x135 pixels, this board provides a vibrant and clear display for your projects, making it suitable for various applications.

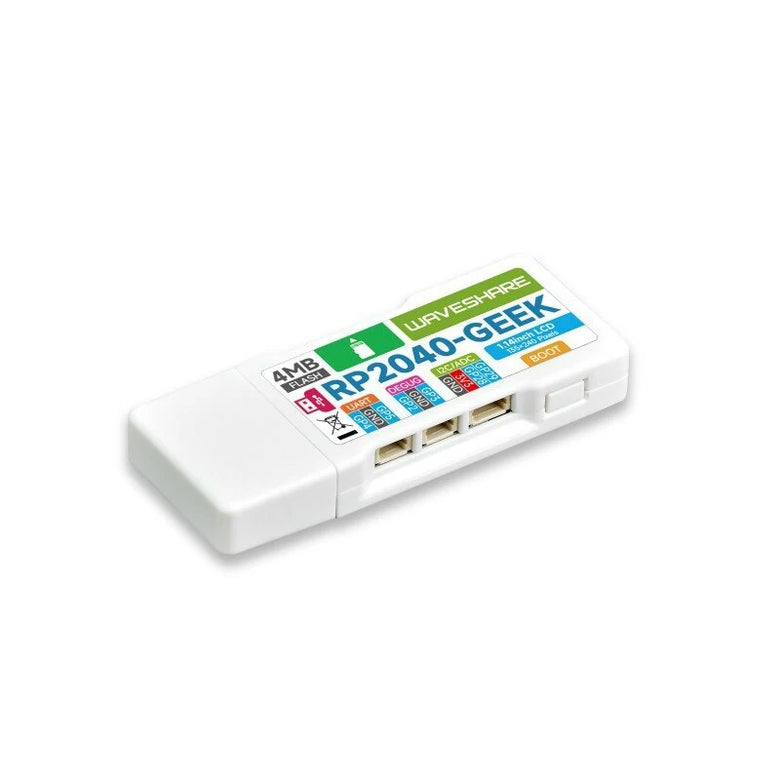

4. Sturdy Enclosure: The package includes a plastic enclosure to protect the development board and LCD screen, ensuring durability and longevity, even in various working environments.
5. Open-Source Firmware: The board supports open-source firmware, making it easy to update and customize for specific project requirements, ensuring flexibility and adaptability.

Package Include:

1x Development Board

4x Dupont Lines

(the other items are not includes)

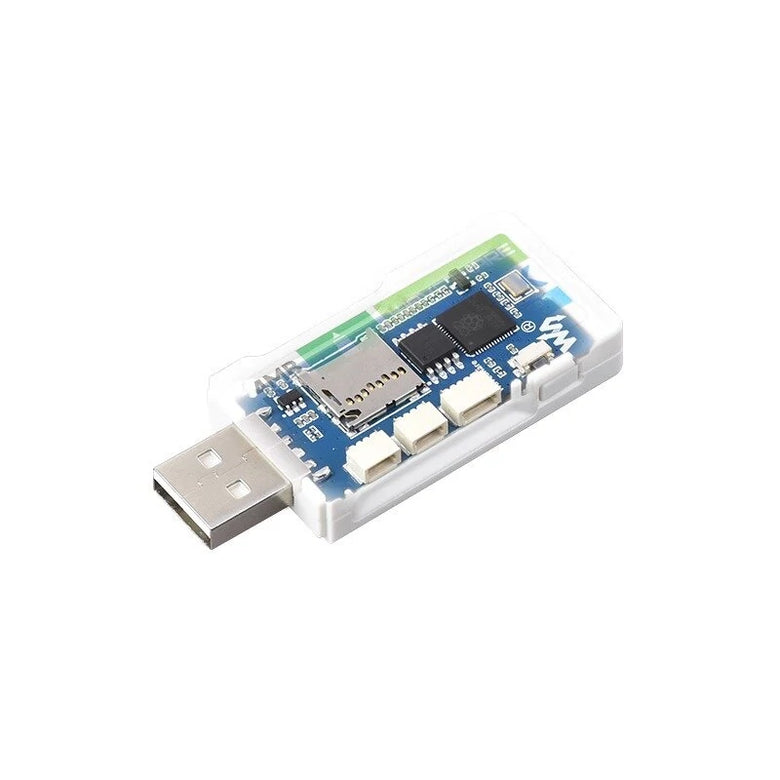

Function:

1. USB-A interface2. UART port3. SWD port4. I2C port5. TF card slot: Supports SDIO interface and SPI interface communication6. W25Q32JVSSIQ: 4MB NOR-Flash7. RP20408. BOOT button
