Introduction:

This dual-mode RF development board is specially designed for the M5Stack StickC Plus, integrating both A01-S2G4A00S2A (2.4GHz NRF24) and A07-S433A10S2A (433MHz CC1101) modules. Fully compatible with Bruce firmware, it features a plug-and-play design and supports both short-range and long-range wireless communication, making it ideal for IoT, wireless control, and RF development projects.

Key Features:Dual-module design: Supports both NRF24 (2.4GHz) and CC1101 (433MHz) communicationTailored for M5Stack StickC Plus, plug-and-playBruce firmware compatible, no complex setup requiredHigh-performance RF communication for reliable data transmissionPhysical switch for easy module selection

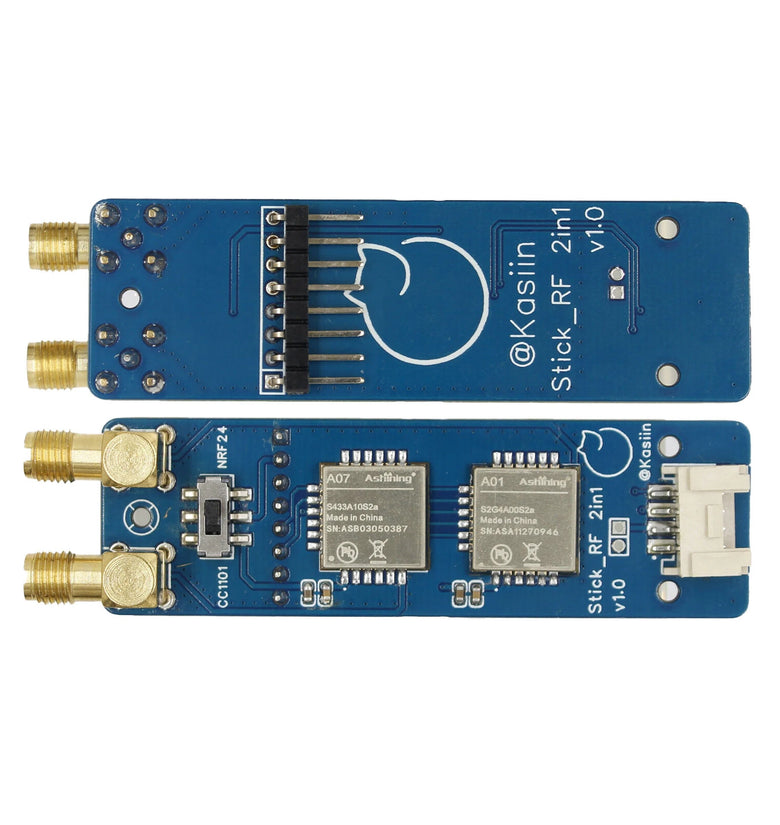

Module Details:2.4GHz NRF24 Module (A01-S2G4A00S2A): Stable, high-speed short-range wireless communication.433MHz CC1101 Module (A07-S433A10S2A): Low-power, long-range RF transmission.Reliable performance with optimized signal layout and power design.

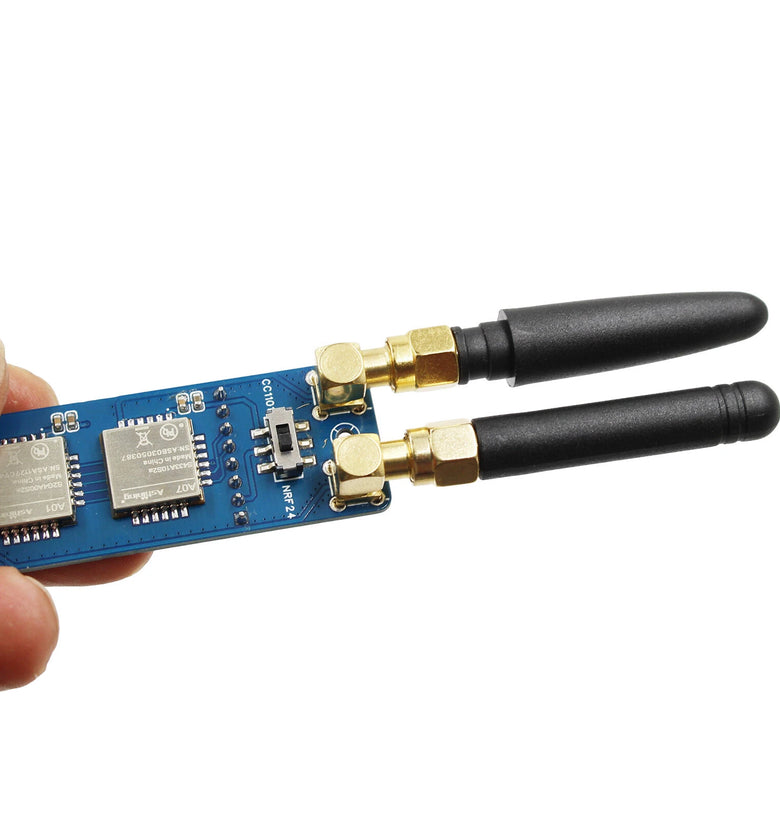

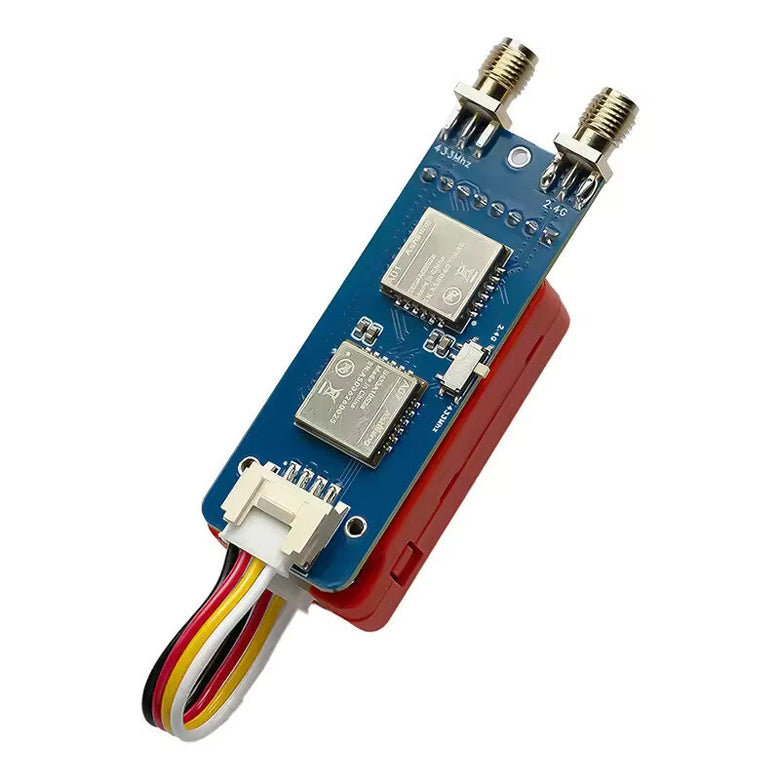

Usage Instructions:1. Flash Bruce Firmware (First-Time Setup)To use this board with StickC Plus, first flash the Bruce firmware:Go to the official flasher: https://bruce.computer/flasherFollow the instructions to select the correct device (StickC Plus v1.1/v2) and complete the flashing process2. Hardware ConnectionConnect the RF board to the M5Stack StickC Plus using the Grove cable or GPIO jumper wiresThe GPIO pinout is pre-configured and compatible with Bruce firmware3. Switching Between ModulesThis board includes a physical switch to toggle between the two RF modules:

To use the CC1101 (433MHz) module:1. Toggle the switch to the 433MHz (CC1101) position2. Navigate in the firmware: RF → CONFIG → RF MODULE3. Select: CC1101 (legacy)To use the NRF24 (2.4GHz) module:1. Toggle the switch to the 2.4GHz (NRF24) position2. Navigate in the firmware: NRF24 → CONFIG → Pins3. Select: NRF24 (legacy)4. Additional DocumentationFor more advanced configuration and documentation, please refer to the official Bruce firmware Wiki.

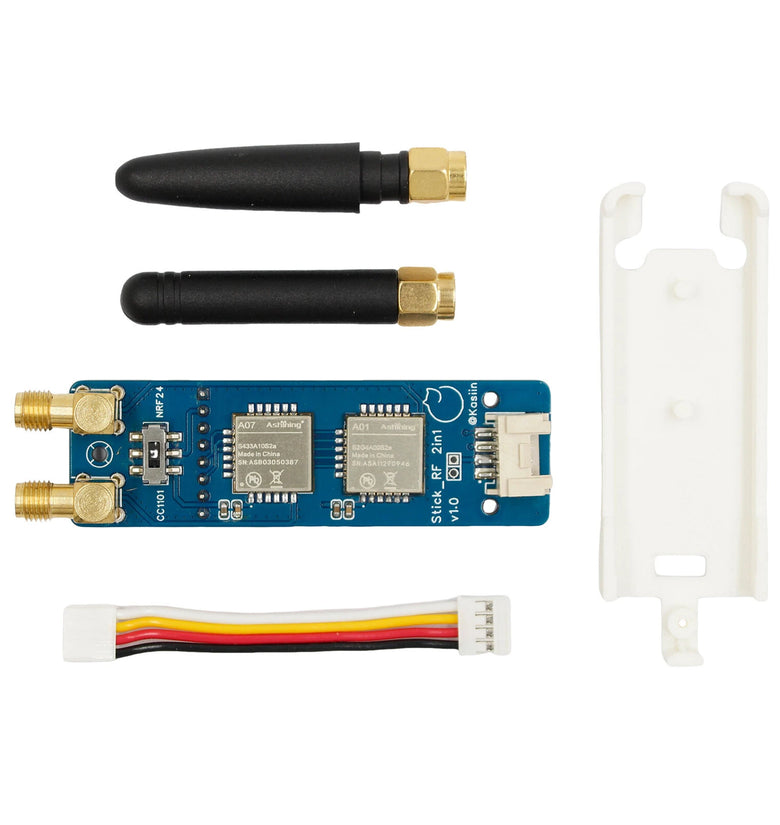

Package includes:

1x Module2x Antennas1x Cable1x Shell (optional)

(Note: The M5Stack StickCPlus is not includes, for reference only)
