Specifications:
- Power supply: 5V 70ma
- Frequency range: 100K-6GHz
- Noise figure: 0.4 dB NF at 1.95 GHz
- Gain: 20 dB at 1.95 GHz
- Output IP3: +35 dBm
- Input power robustness: +22 dBm continuous wave
- Input/Output impedance: 50 ohm
- Connector: SMA female

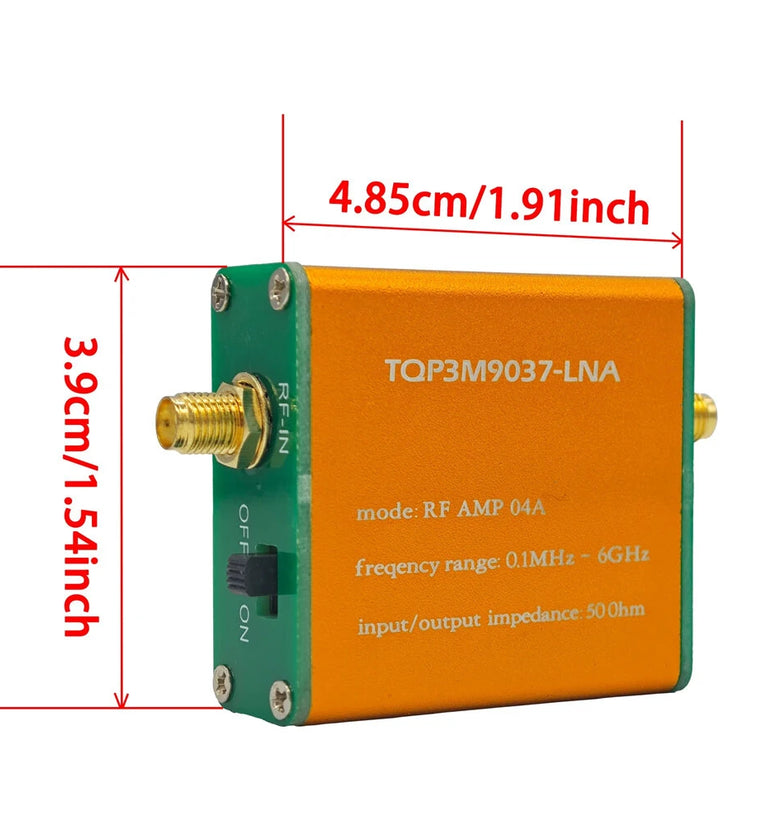

- Dimensions: 45 * 45 * 18.5mm (excluding joints)
- Weight: 46 grams
Features:
1. Ultra Low Noise Performance: The amplifier boasts a superior noise figure of 0.4 dB at 1.95 GHz, ensuring minimal signal degradation and optimal clarity.
2. High Gain: Delivering a substantial 20 dB gain at 1.95 GHz, this module significantly boosts signal strength, making it ideal for extensive frequency coverage.

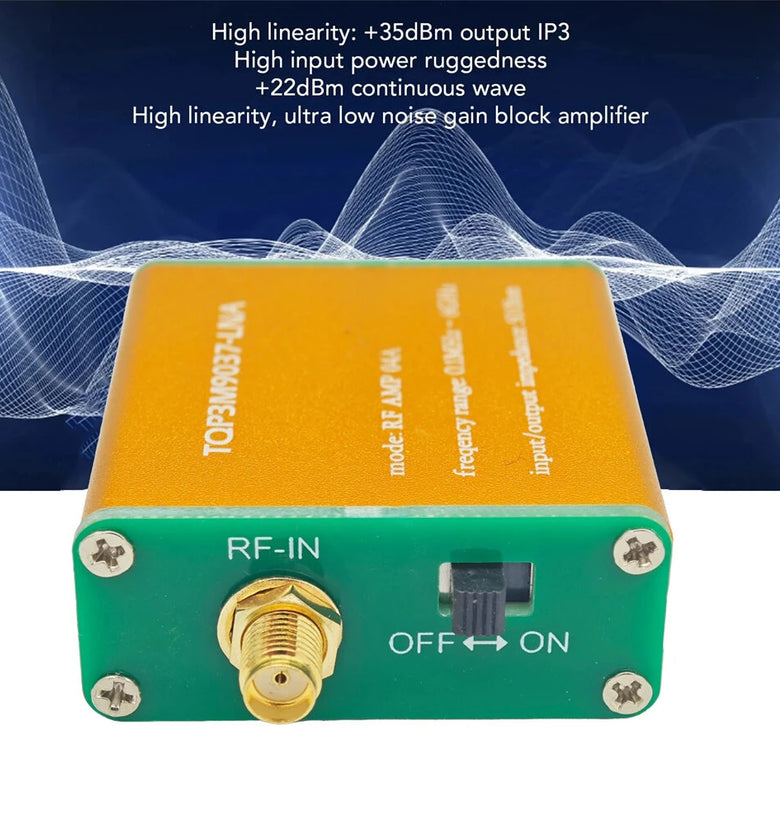

3. Superior Linearity: The amplifier achieves high linearity with an output IP3 of +35 dBm, making it highly effective in demanding RF applications.
4. Robust Input Power Handling: It can handle a continuous wave input power of +22 dBm, ensuring stability and reliability even under high-power conditions.
5. Stable Performance: Designed for consistent operation, the module maintains performance across various environments and conditions, ensuring reliable amplification for your needs.
Package Included:
1 x Amplifier(No Battery)
1 x Cable
