Tips: Due to appearance and weight issues, we have tried our best to protect the product, but collisions and other problems may occur during transportation, and the appearance of the product may be slightly curved. You can try to use tools for some repairs. If it affects the normal use of the product, please contact us, thank you for your understanding.
| Project | Technical Parameters |
| DC Output Voltage | 65V Actually can reach 85V (designed for Product ID: RD6012P) |
| Rated Output Current | 11.4A |
| Rated Output Power | 800W |
| Ripple and Noise | ＜240mV |
| Output Voltage Accuracy | ±1% |
| Output Voltage Adjustable Range | ±10% |
| load Regulation | ＜±0.5% |
| Line Regulation | ＜±1% |
| Output Overload Protection | 105%-135% Type: constant current output +VO Drop to undervoltage point cut off the output Reset: Reconnect the input |
| Output Over-Voltage Protection | 115%-145% |
| Output undervoltage protection | 40%-45%V OUT |
| Efficiency (typical) | ＞85% |
| Over temperature protection | RTH3: ≥70℃ the fan runs fast ≥90℃ shut down the output (18V-48V) |
| Input voltage range | 90-132VAC/180-264VAC, 47Hz~63Hz; 254VDC~370VDC |
| Input inrush current | 110VAC 25A, 220VAC: 50A |
| Maximum input working current | <13A 115VAC,<7.5A 230VAC |
| Set-Up/Rise/Hold-Up Time | 200ms, 50ms, 20ms: 230VAC |
| Dielectric Hipot | Input-output: 1.5KV AC, input-shell: 1.5kV AC Output-shell: 0.5KV AC for 1 min |
| Leakage Current | Input-output at 1.5KV AC; Leakage Current＜6mA |
| Leakage Current | Input-output at 220V AC; Leakage Current＜1.5mA |
| Isolation Resistance | Input-output, input-shell, output-shell: 500VDC/100MΩ |
| Working temperature and humidity | -10℃~+50℃, 20%~90RH |
| Storage temperature and humidity | -20℃~+85℃, 10%~95RH |

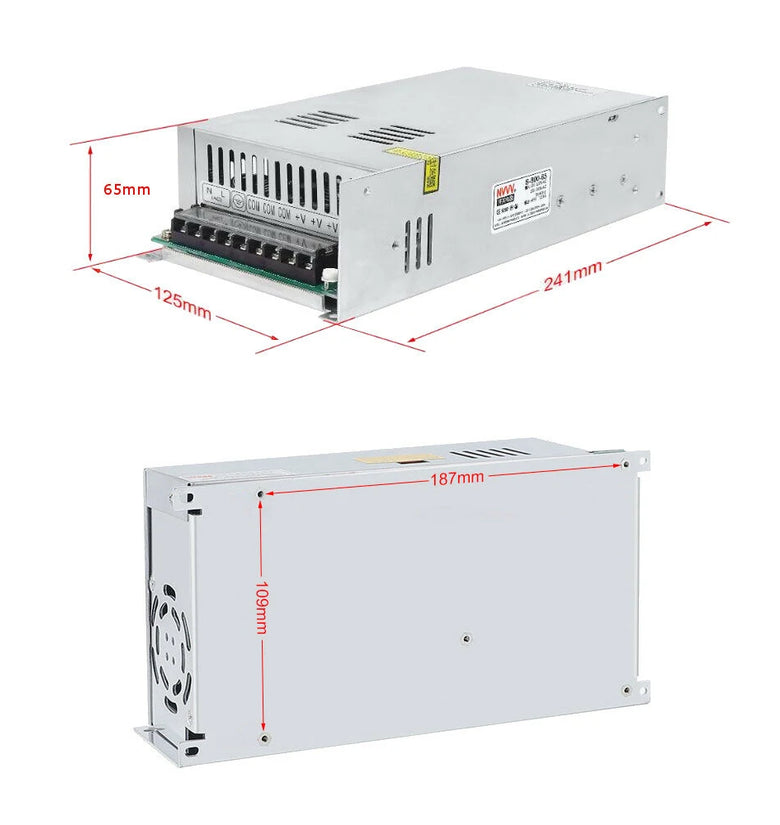

| Size | 241*125*65mm |
| Net weight / gross weight | 1268/1358g |
Package includes:
1 x Power supply
