File Download:

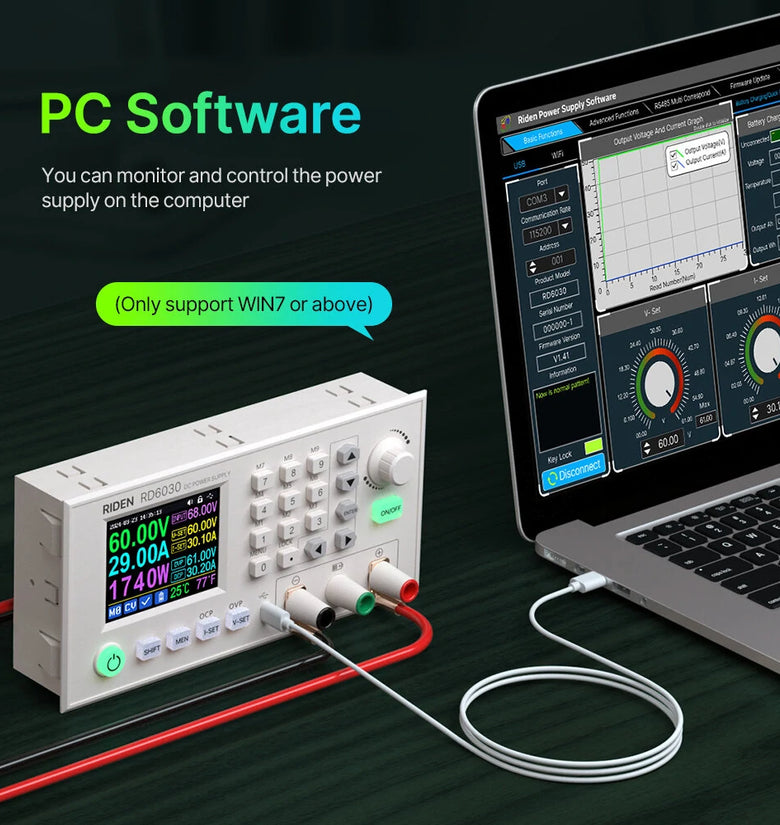

1. Instruction:RD6030(W) operation instructon, PC software instruction , APP instruction ,APP and PC software download link: https://drive.google.com/drive/folders/1-AmpwEJDyvrYQgRLXdWias0caqHx9jJR?usp=sharing2. APP Download:Android APP: download at file link:https://drive.google.com/drive/folders/1jwAnxKiQZKkxMWpQnv4rrPw2KQk9uY-z?usp=sharing, Support android 8.0 -android 10.0;
Android APP Google Playdownload:Search 'Ruideng tech' to download , support Android 8.0 and above phone
IOS APP download: Search 'Ruideng tech' to download , support IOS10.0-IOS13.4 Systemold phone still use 'RDPower' APP3. Case Assembly:RD6030 and S800 case assemble instruction: https://drive.google.com/drive/folders/1-AmpwEJDyvrYQgRLXdWias0caqHx9jJR?usp=sharing
| Model | RD6006/W | RD6012/W | RD6018/W | RD6024/W | RD6030/W(this item) | RD6006P/W | RD6012P/W |
| Suitable Shell | ID: 1995241 | ID: 1995241 | ID: 1995241 | ID: 1995241 | ID: 1995241 | ||
| Suitable power supply | ID: 1594324 | ID: 1995201 | ID: 1995201 | ID: 1995203 | ID: 1995203 | ID: 1594324 | ID: 1995201 |
| (Problems caused by using other power supplies will void your warranty.) | |||||||
| Input voltage range | 6-70V | 6-70V | 6-70V | 7-70V | 7-70V | 7-70V | 7-70V |
| Voltage/Current display digit | 4-digit | 4-digit | 4-digit | 4-digit | 4-digit | 5-digit | 5-digit |
| Output voltage range | 0-60V | 0-60V | 0-60V | 0-60V | 0-60V | 0-60V | 0-60V |
| Output current range | 0-6A | 0-12A | 0-18A | 0-24A | 0-30A | 0-6A | 0-12A |
| Output power range | 0-360W | 0-720W | 0-1080W | 0-1440W | 0-1800W | 0-360W | 0-720W |

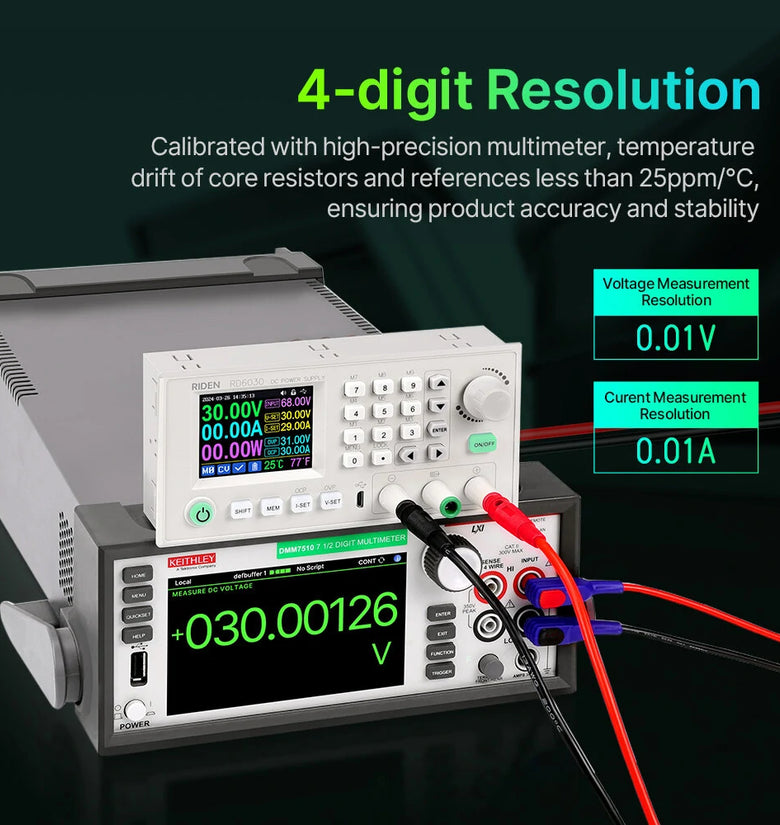

| Output voltage setting resolution | 0.01V | 0.01V | 0.01V | 0.01V | 0.01V | 0.001V | 0.001V |
| Output voltage accuracy | ±(0.3%+3digits) | ±(0.3%+3digits) | ±(0.3%+3digits) | ±(0.3%+3digits) | ±(0.3%+3digits) | ±(0.5%+4digits) | ±(0.5%+4digits) |
| Output current resolution | 0.001A | 0.01A | 0.01A | 0.01A | 0.01A | 0.0001A | 0.0001A/0.001A |
| Output current accuracy | ±(0.5%+5digits) | ±(0.5%+5digits) | ±(0.5%+5digits) | ±(0.5%+5digits) | ±(0.5%+5digits) | ±(1%+6digits) | ±(1%+6digits) |
| Default cutoff current value when charging | 10mA | 100mA | 100mA | 100mA | 100mA | 10mA | 10mA |

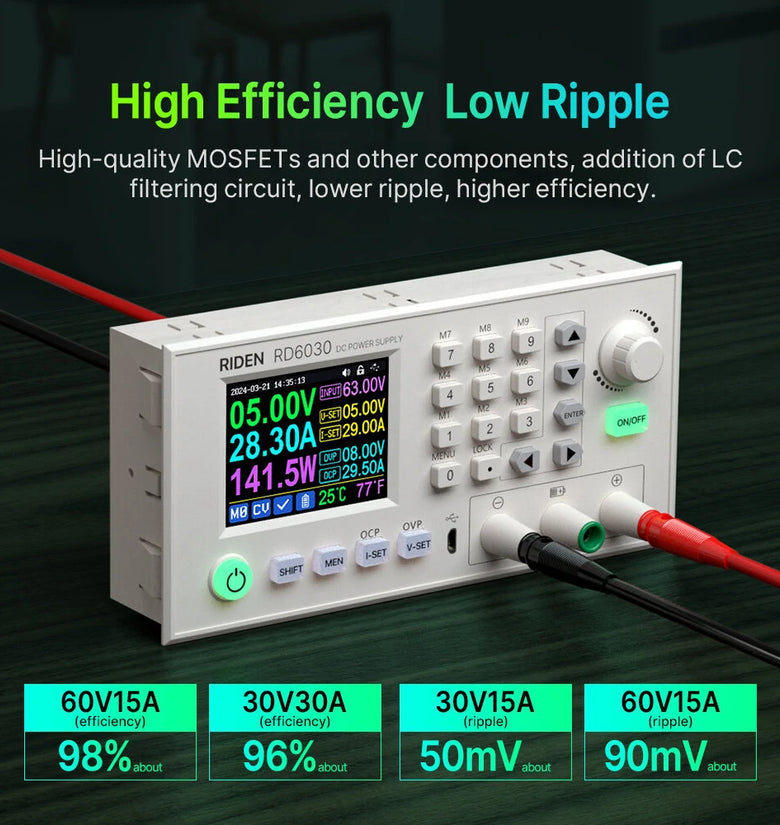

| Output ripple typical(VPP) | 100mV | 250mV@6A | 250mV@6A | 100mV@12A 150mV@24A | 50mV@15A 90mV@30A | 20mV② | 20mV② |
| Cooling fan start condition | Output vol. >40V or current >4A or System tem. >45℃ | Output current>8A or System temperature>45℃ |
Output current>4A or System tem. >45℃ |
Output current>4A or System tem. >50℃ | |||
| Cooling fan shut down condition | Output vol. <40V & current <3.9A and System tem. <40℃ | Output current <7.9A and System temperature <40℃ | Output current <3.9A and System tem. <40℃ | Output current <3.9A and System tem. <45℃ | |||
| Over temperature protection | System temperature >80℃ | System temperature >80℃ | System temperature >80℃ | System temperature >80℃ | System temperature >80℃ | System temperature >80℃ | System temperature >80℃ |
| Input Q: output fuse | 1808fast blow fuse | 1808fast blow fuse | 1808fast blow fuse | 1808fast blow fuse | 1032fast blow fuse | 1808fast blow fuse | 1808fast blow fuse |
| Fuse current | 10A | 20A | 25A | 30A | 40A | 10A | 20A |
| Input terminal | HT508K-2P | HT508K-4P | HT508K-4P | K14 Terminal | K14 Terminal | HT508K-2P | HT508K-4P |
| Product weight(about) | 0.58kg | 0.61kg | 0.68 kg | 0.72kg | 0.74kg | 0.62kg | 0.66kg |
| Product size(about) | 167*81*69mm | 167*81*69mm | 167*81*69mm | 167*81*69mm | 167*81*69mm | 167*81*69mm | 167*81*69mm |
| Support USB communication | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Support WiFicommunication | Only W version support WiFi communication | ||||||
Package includes:
1 x Power supply (WiFi OPTIONAL)
