Specification:
Microcontroller: RP2040, an official Raspberry Pi-designed microcontroller chip
Processor: Dual-core ARM Cortex M0+ with a flexible clock speed of up to 133MHz
Memory: 264KB SRAM and 2MB onboard Flash
Built-in FPC 8-pin interface for USB Type-C connectivity via an adapter board
Stamp hole design for direct soldering onto user-designed baseboards
USB 1.1 host and device support
Low-power sleep and deep sleep modes
USB recognition as a high-capacity storage device for drag-and-drop program downloads
20 versatile GPIO pins available for various functions
2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, and 16 controllable PWM channels
Precise on-chip clock and timers
Temperature sensor
On-chip accelerated floating-point library
8 programmable I/O (PIO) state machines for custom peripheral support
Features:
1. Powerful Processing: The dual-core ARM Cortex M0+ processor running at up to 133MHz provides high-performance capabilities for a wide range of applications.
2. Ample Memory: With 264KB of SRAM and 2MB of onboard Flash, there is sufficient memory space for data storage and program execution.
3. Flexible Connectivity: The FPC 8-pin interface, with the option of using a USB Type-C adapter, allows for versatile connectivity and ease of integration.
4. Rich Peripheral Support: The board offers multiple communication interfaces, including SPI, I2C, and UART, as well as ADC and PWM channels, enabling seamless interaction with external devices.
5. Customizable Functionality: The 8 programmable PIO state machines provide flexibility for users to define and implement custom peripheral support according to their specific requirements.
Package Include:
[Only Module Board]:
1× Module Board

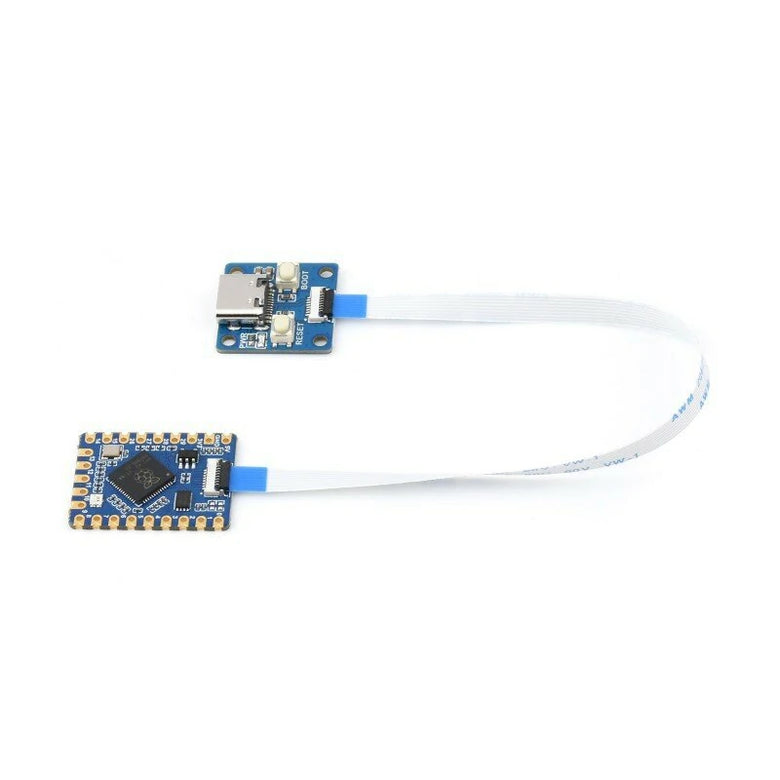

[Full Kit]:
1× Module Board
1× Adapter Board
1× FPC Line
