Specifications:
Frequency Range: 500 kHz – 1766 MHz
Sampling Rate: Up to 3.2 Msps (Stable at 2.56 Msps)
ADC Resolution: 8-bit
Temperature Compensated Crystal Oscillator (TCXO): 1 PPM accuracy
Antenna Interface: SMA F connector
Direct Sampling Mode: Supports high-frequency direct sampling (500 kHz - 24 MHz)
Bias-Tee: Software-activatable for powering LNA's and active antennas
Power Supply: 4.5V DC bias voltage
Note: This product is an open source product, not the original version, please be aware before purchasing.
Features:

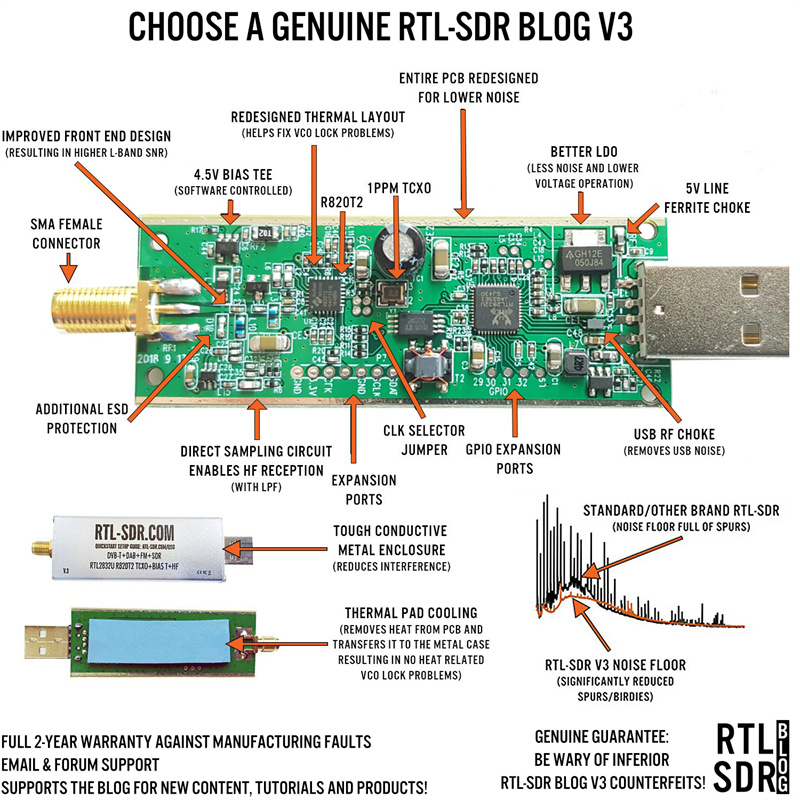

1. Improved Tuner: Utilizes the enhanced R820T2 tuner for better performance.
2. Enhanced Components: Incorporates upgraded components and a redesigned PCB for reduced noise and improved reliability.

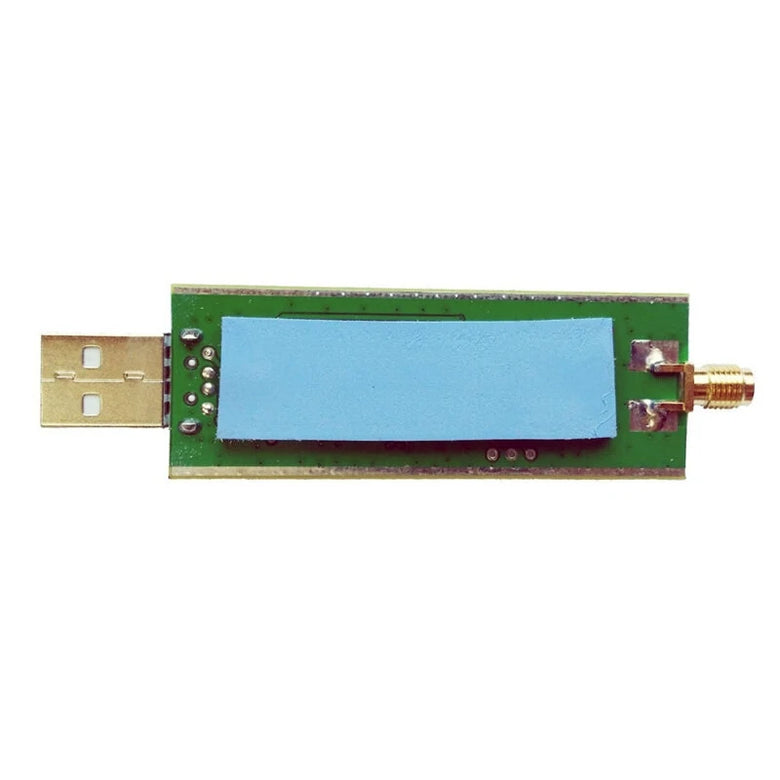

3. Cooling Optimization: Equipped with passive cooling and improved cooling design for better heat dissipation.
4. ESD Protection: Provides extra electrostatic discharge (ESD) protection for improved durability.
5. Versatile Compatibility: Works with various software applications, including SDR#, HDSDR, SDR-Radio, GQRX, and SDR Touch on Android. Compatible with Windows, OSX, Linux, Android, and Raspberry Pi.

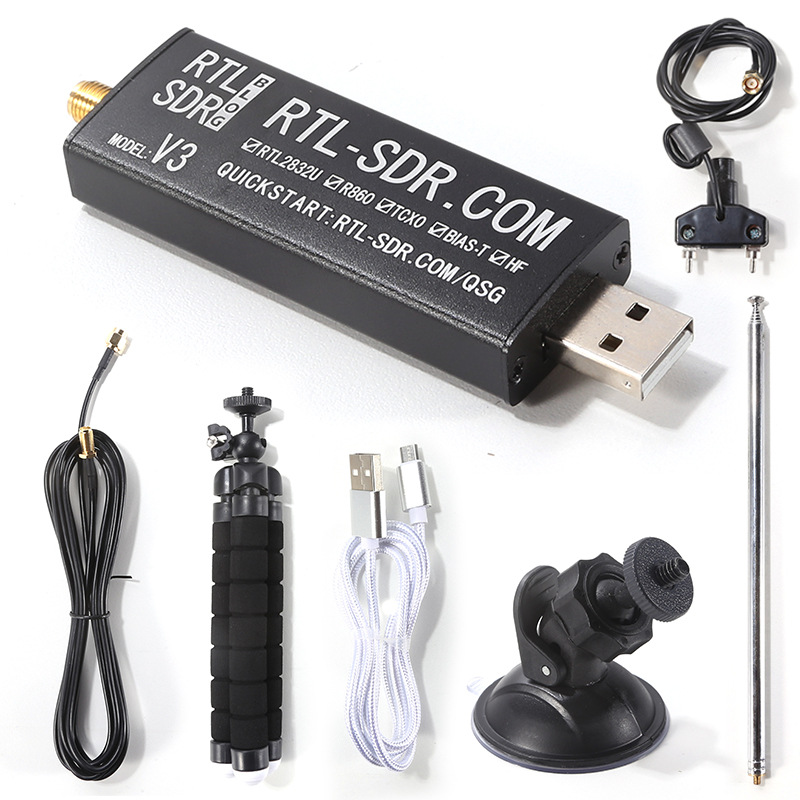

Package Include:
【Host】:
1x Main Machine
【A Set】:
1x Main Machine
1x Accessory Pack (Only one antenna is included.)
