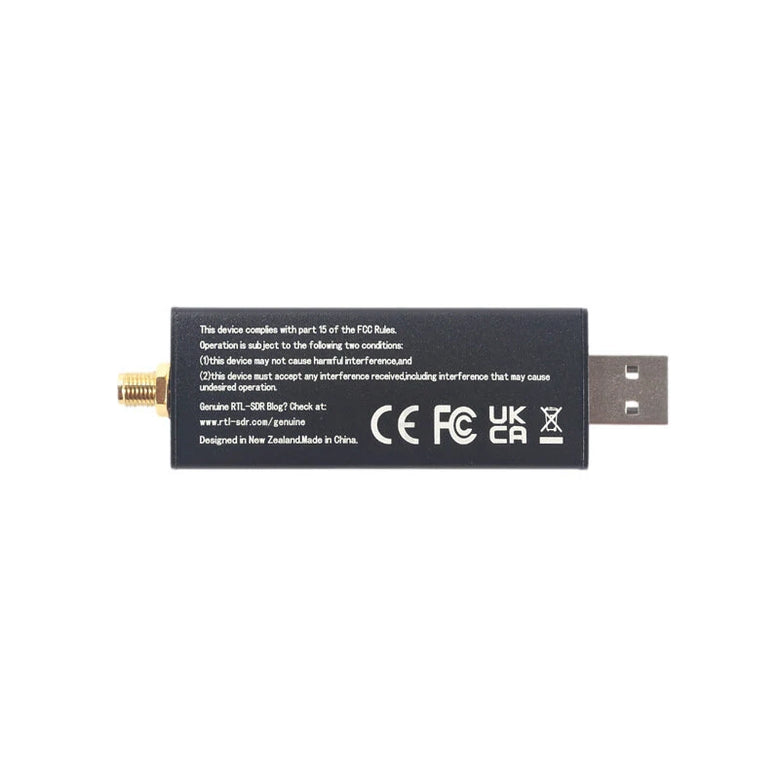

Specifications:
Tuning range: 500 kHz to 1.7 GHz
Bandwidth: Up to 3.2 MHz (2.4 MHz stable)
ADC chip: RTL2832U, Tuner: R828D
Temperature Controlled Crystal Oscillator (TCXO): 1 PPM
Connector: SMA F connector
Features:
1. Comes with a high-performance R828D tuner and 1 PPM TCXO for accurate tuning.
2. Enhanced front end filtering and redesigned low noise PCB for better signal quality.
3. Integrated software-activated bias-tee for powering Local Oscillator Amplifiers (LNA's) and active antennas.
4. Includes a built-in upconverter that enables tuning down to 500 kHz, with a 28.8 MHz low pass filter for optimum performance in this mode.
5. Enclosed in an aluminium case for effective passive cooling, providing increased durability and longevity.
Note: This product is an open source product, not the original version, please be aware before purchasing.
Package Includes:
【Full Set】:
1x Host
1x Dipole base with 60cm RG174
2x 23cm to 1m telescopic antenna
2x 5cm to 13cm telescopic antenna
1x 3m RG173 extension cable
1x Flex tripod mount
1x Suction cup mount
【Host】:
1x Host
