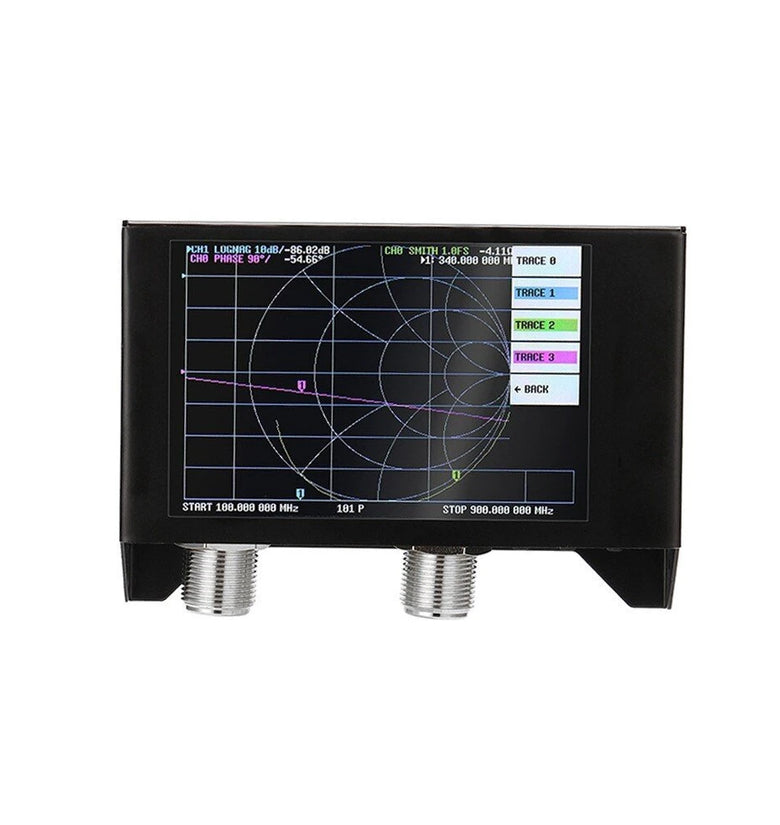

Specifications:
Frequency Range: 50kHz to 3GHz
System Dynamic Range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 Noise Floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Scan Speed: 100 points per second
Display: 4-inch LCD, 320 x 480 resolution
USB Interface: Micro-USB
Power Supply: USB, charging current 1A
Battery Type: 3000mAh lithium-ion
Battery Connector Type: JST-XH 2.54mm
Scan Points (device): 201
Scan Points (USB): 1024
Port 2 Return Loss (1.5GHz): 20dB (typical)
Port 2 Return Loss (3GHz): 13dB
Software Compatibility: VNA-QT on Linux, Windows (7 and above), Mac0 OS
Features:
1. Compact and Lightweight Design:
Ideal for on-the-go measurement tasks, this 4-inch device is compact and portable, enabling easy use in lab or field environments.
2. Wide Frequency Range:
Capable of measuring frequencies from 50kHz to 3GHz, suitable for a vast array of applications including high-frequency component testing.
3. High Dynamic Range for Accurate Results:
With a dynamic range of up to 70dB (up to 1.5GHz), it delivers precise measurements even in complex scenarios.
4. User-Friendly Compatibility:
Supports VNA-QT software for seamless integration with Linux, Windows (7+), or Mac0 OS systems, enhancing flexibility.
5. Extended Battery Life:
Equipped with a built-in 3000mAh lithium-ion battery, ensuring prolonged usage without frequent recharging.

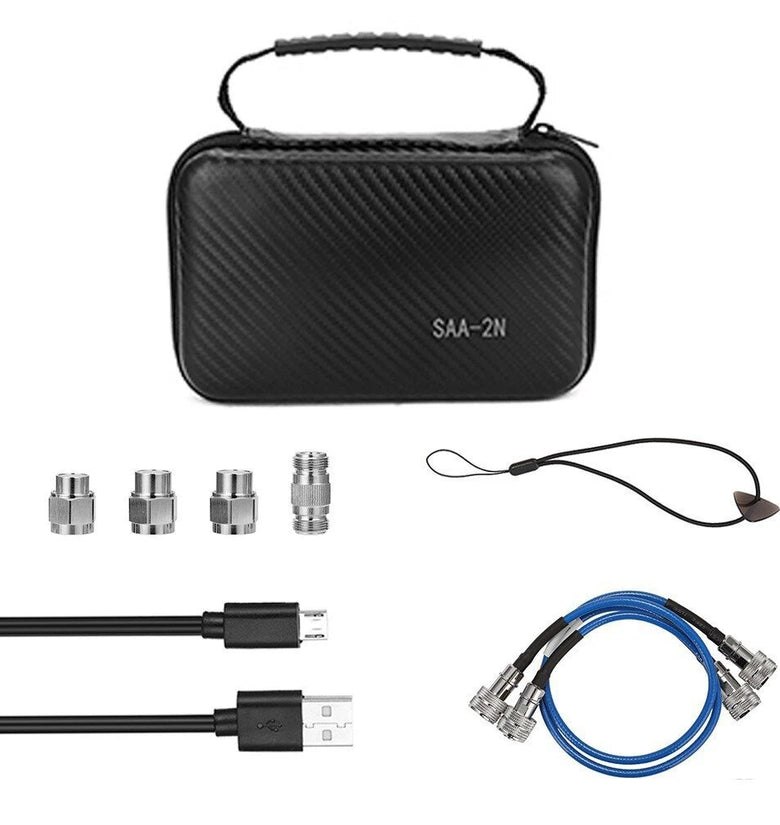

Package Included:
1 x SAA-2N Host with 3000mAh Built-in Battery
1 x USB Data Cable
2 x 50cm N Male to Male RG142-PUR RF Cable
1 x N Calibration Kit OPEN
1 x N Calibration Kit SHORT
1 x N Calibration Kit LOAD
1 x N Female to Female Adapter
1 x EVA Portable Storage Bag
1 x Lanyard Touch Pen
