Features:

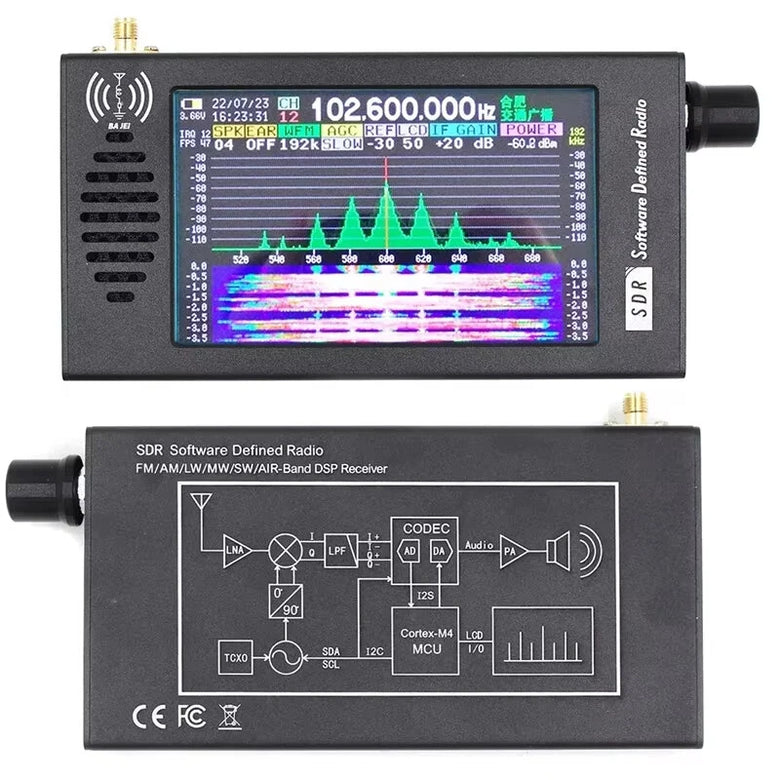

1. Digital demodulation radio based on SDR architecture.
2. It features a 192kHz wide spectrogram and waterfall display. With 16bit sampling, it is a high dynamic receiver with CW, AM, SSB and FM demodulation functions.
3. The whole machine adopts all-aluminum alloy CNC shell. It maintains a compact and compact body.
4. Immediately take it to the outdoors, enjoy the natural scenery and the fun of the radio anytime, anywhere.
Specification:
Display technology: 4.3inch IPS 800x 480; DC dimming bright LCD
Control method: Resistive touch screen + rotary encoder
Frequency range: 100k~149MHz
Working mode: CW, AM, SSB (LSB/USB), WFM, FM broadcast stereo (requires headphones)
Step frequency: 1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
Spectral bandwidth: 192kHz, 128kHz, 64kHz, FFT real-time spectrum display
Antenna interface: BNC male connector, input impedance 50Ω, maximum input power -20dBm
Reference crystal: TCXO 26MHz ±0.5ppm
Audio interface: support ordinary 3.5mm earphone and CTIA (American Standard) interface earphone
Speaker power: maximum 3W, 4Ω multimedia speaker
Charging port: USB Type-C, 5.0V/2A
Current consumption: about 250mA at 5V
Battery capacity: 5000mAh/3.7V, 18.5Wh, lithium battery
Usage time: about 10-12 hours,
