Description:
There are four main improvements in the V2 version
1.Connecting pins 1 and 16 of si4732 to pins 3 and 4 of BK1080 can increase the voice volume
2.Equipped with 0.2MM tinned copper wire for users, making modification easier
3.The use of FPC reduces the thickness of the module
4.Modified the circuit of the SI4732 AMI PIN section

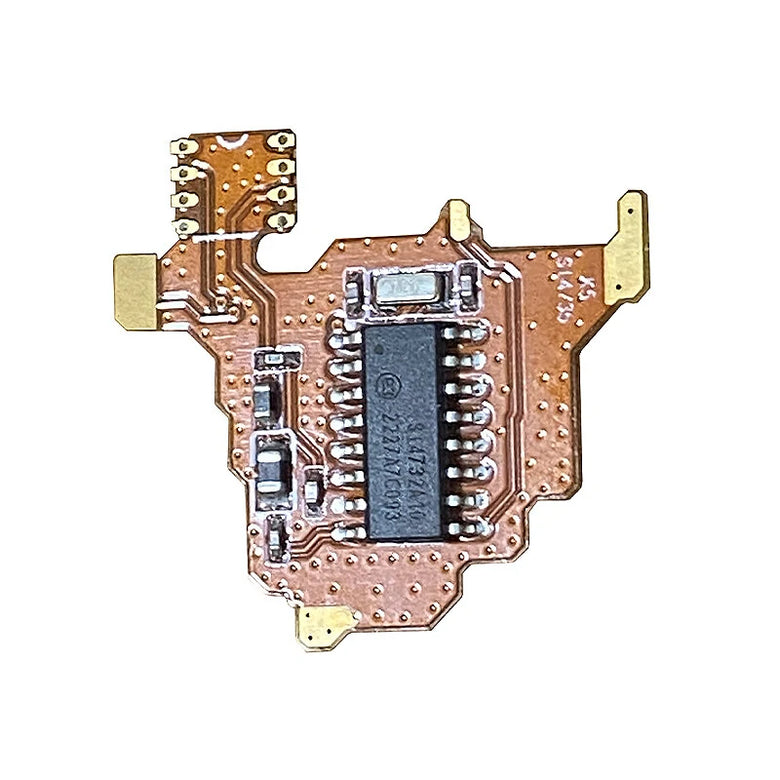

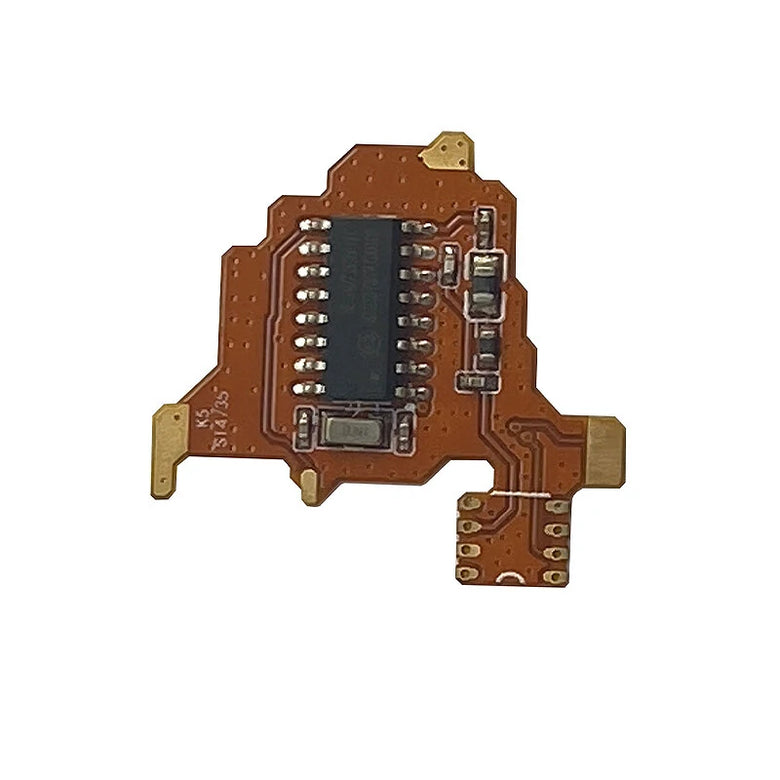

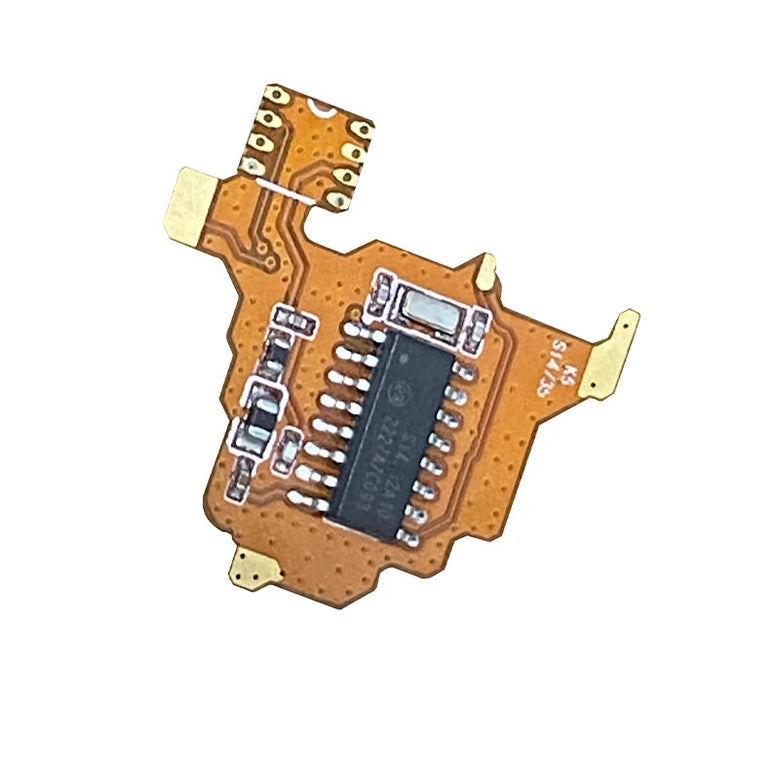

Quansheng UV-K5 SI4732 modification module, PCB module containing SI4732 chip, SMT capacitor crystal oscillator
Download address for modification software
Package Include:
1x Modification module V2
1x 0.2MM tinned copper wire
1x Inductance
1x Capacitor
