Specification:
Brand: Sinilink
Model: XY-1001W
Product Name: TWS bluetooth Audio Power Amplifer
Product Type: Integrated Potentiometer/External Potentiometer/Integrated Panel
Power Supply: DC 9-24V/3A or above

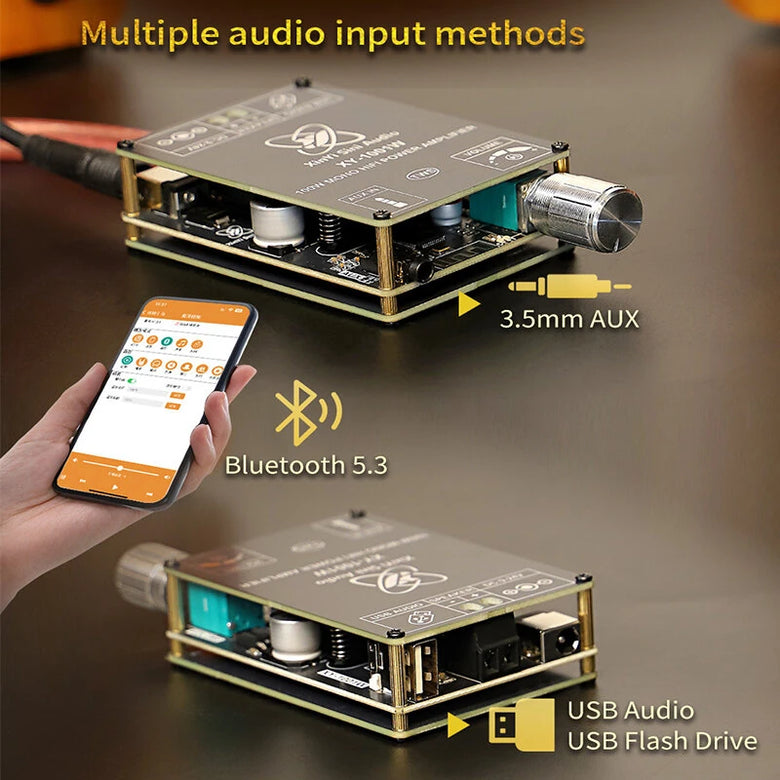

Audio Input Interfaces: bluetooth 5.3, AUX (3.5mm), USB Audio
Supported Audio Formats: MP3/WAV/FLAC/APE
bluetooth Protocol: AAC, SBC
Output Power: 10W @8Ω/12VDC
20W @4Ω/12VDC
35W @ 8Ω/24VDC
70W @4Ω/24VDC
100W@ 2Ω/21VDC
Size/Weight:
90*52*22mm/45G(Integrated Potentiometer)
72*52*22mm/55G(External Potentiometer)
90*62*22mm/77G(Integrated Panel)
Features:
1. High Power Output: Supports up to 100W @ 2Ω/21VDC for superior audio performance.
2. TWS Stereo Pairing: Connect two amplifier boards for stereo sound output via TWS technology.
3. Multi-Interface: Offers bluetooth, AUX, and USB Audio input for flexible connectivity options.

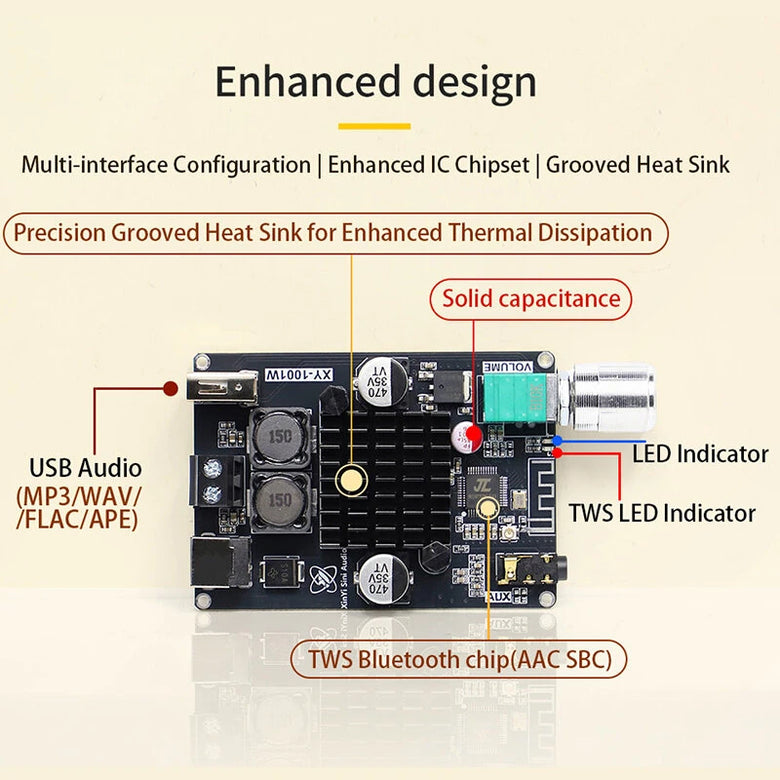

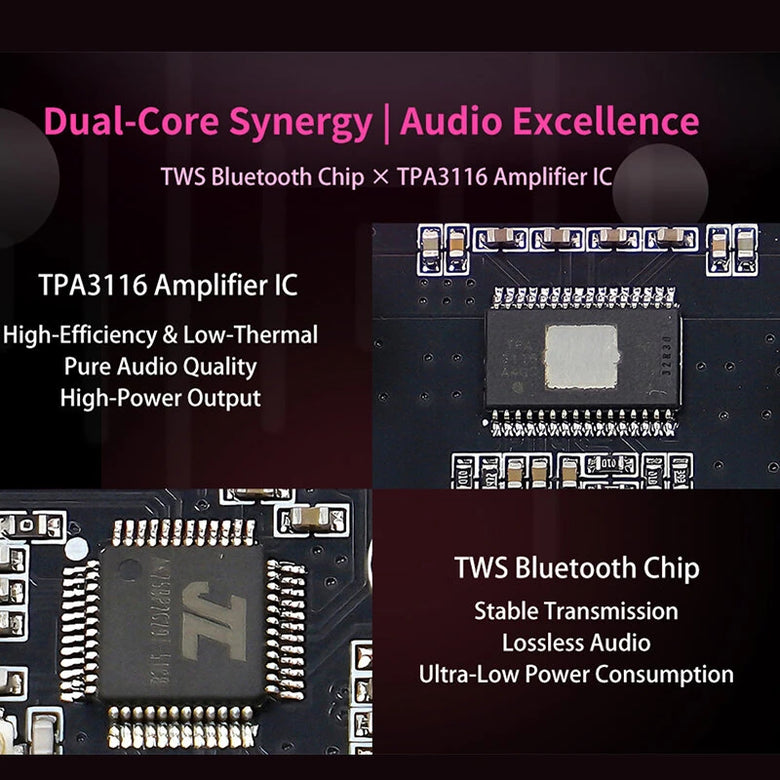

4. IC Chip Enhancements: Equipped with a TPA3116D2 amplifier chip and TWS bluetooth chip for excellent audio quality and efficiency.
5. Precision Heat Sink: Grooved heat sink design for improved thermal management during operation.

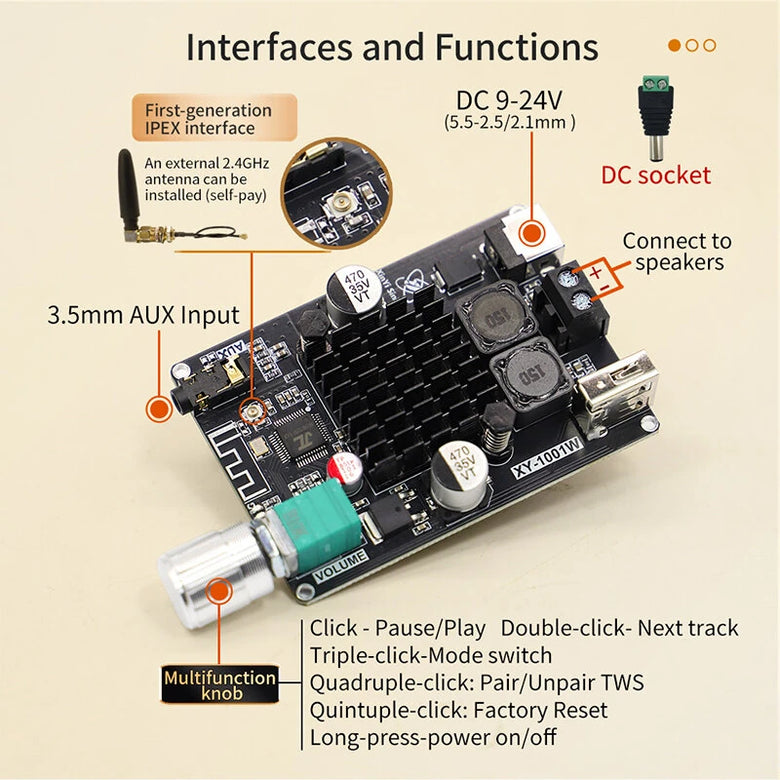

6. Multiple Controls: Multifunction knob allows for play/pause, track selection, mode switching, TWS pairing, and factory reset functions.
Package Include:
1 x Sinilink XY-1001W bluetooth Power Amplifier
