Specifications:

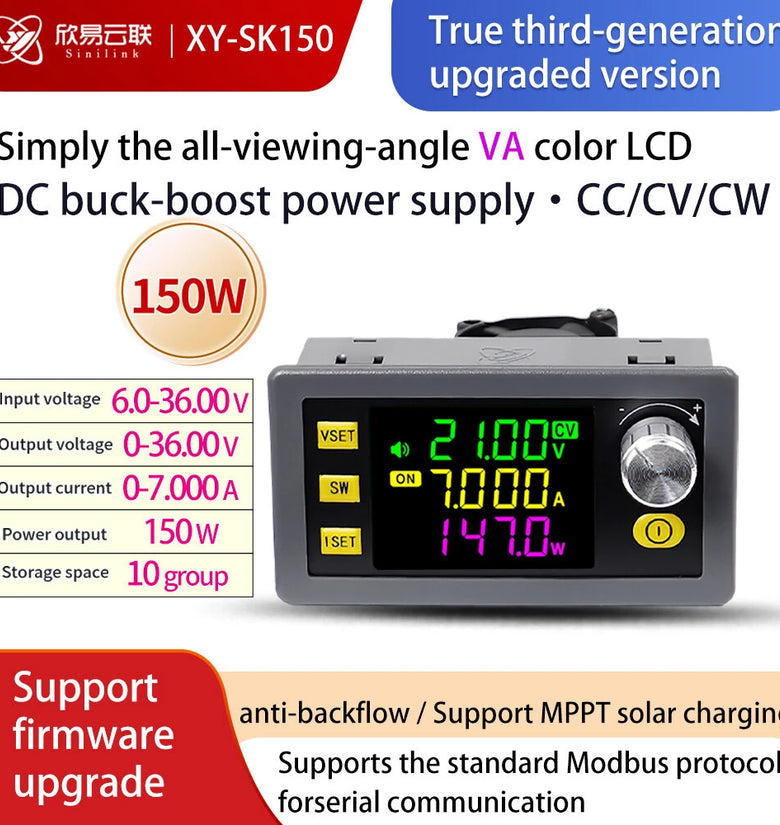

Product Name: DC Buck-Boost Power Supply
Model: XY-SK150
Input Voltage: 6.0~36.00V
Output Voltage: 0~36.00V
Output Current: 0~7.000A
Power Output: 150W
Accuracy of Voltage: ±0.5% + 1 digit
Accuracy of Current: ±0.5% + 3 digits
Resolution of Voltage: 0.01V
Resolution of Current: 0.001A
Storage Data Group: 10 groups
Soft Start: Yes

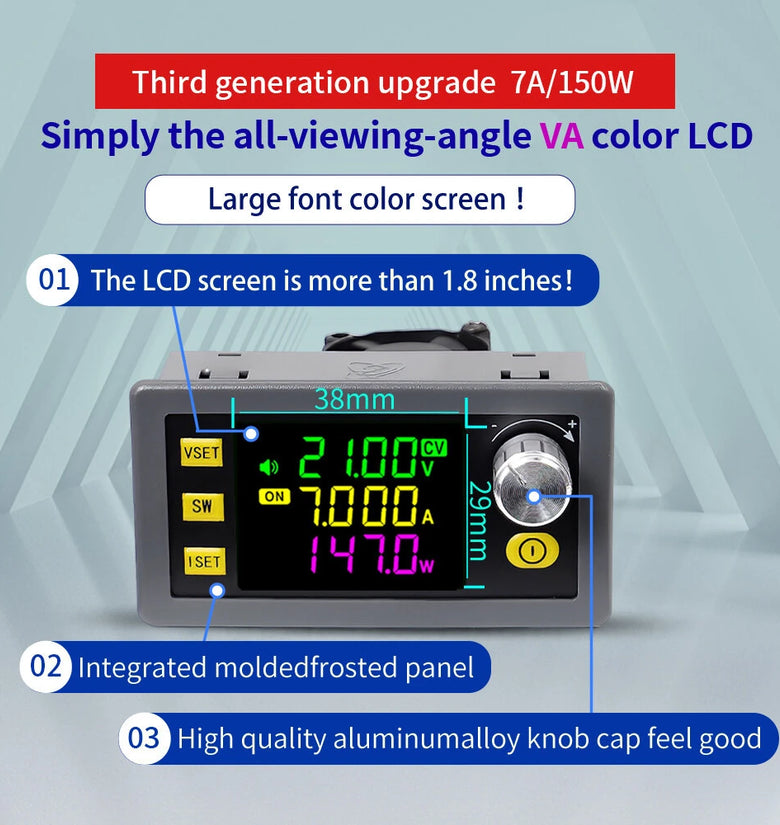

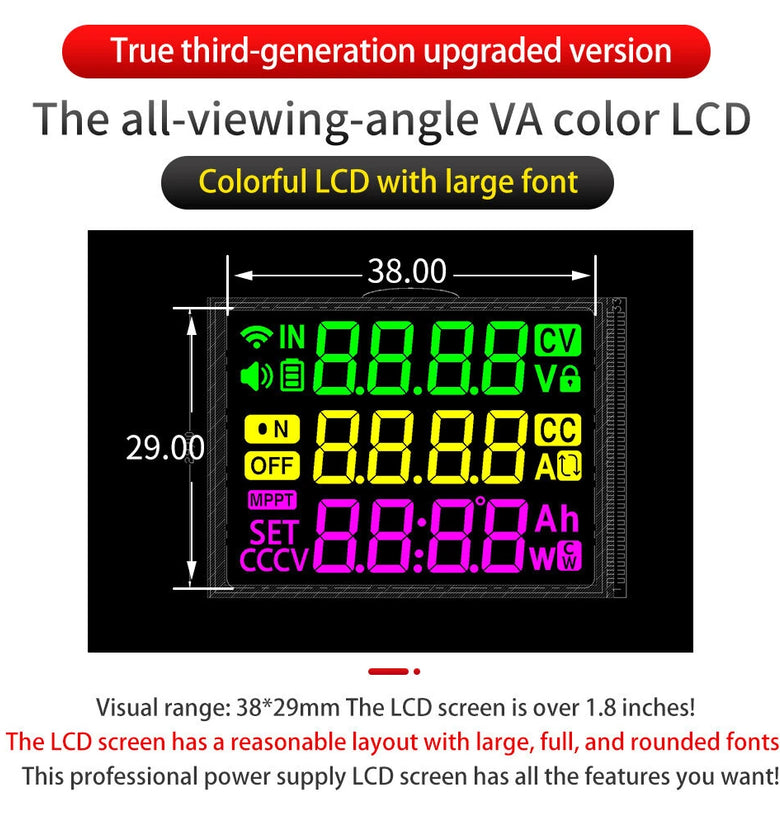

Screen Size: Over 1.8-inch LCD with a viewable area of 38*29mm
Output Ripple Typical Value: Vpp=150mv
MPPT Function: Supports MPPT solar charging
Efficiency of Conversion: About 88%
Number of Buttons: 5
Buzzer: Yes
Product Size: 79x50x43mm
Package Size: 104x70x52mm
Product Weight: 108g
Package Weight: 127g
Protection Mechanism:
Anti-backflow: Yes
Under-voltage (LVP): Adjustable 5.5-36V, default 5.5V
Over-voltage (OVP): Adjustable 0-38V, default 38V
Over-current (OCP): Adjustable 0-7.2A, default 7.2A
Over-power (OPP): Adjustable 0-180W, default 160W
Over-temp (OTP): Adjustable 0-110℃, default 95℃
Over-time Out (OHP): 1 minute - 99 hours 59 minutes, off by default
Over-capacity
