Specifications:

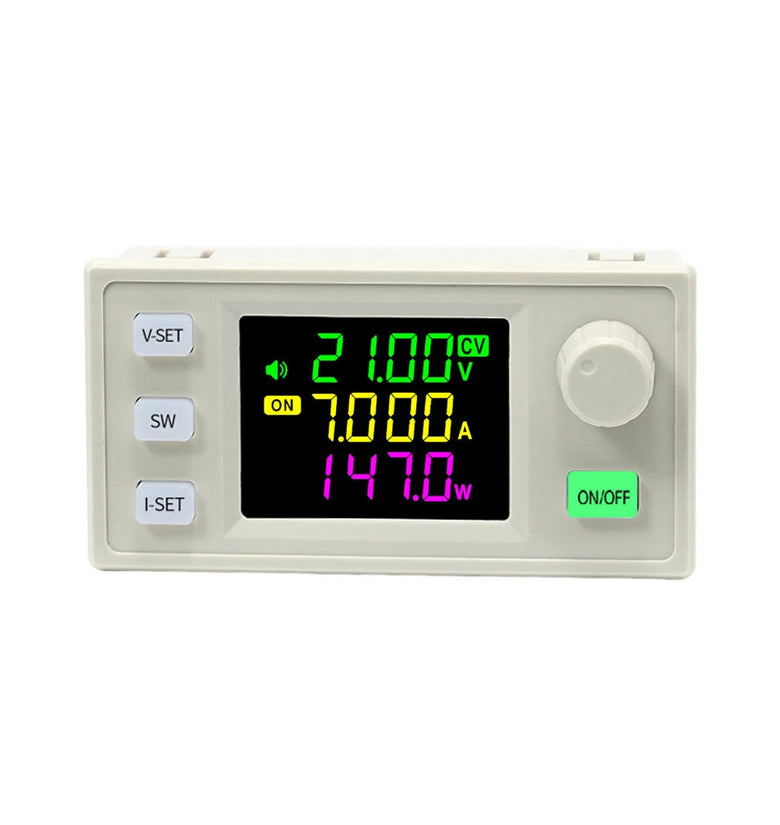

Product Name: DC Buck-Boost Power Supply

Model: XY-SK150X

Input Voltage: 6.0~36.00V

Output Voltage: 0~36.00V

Output Current: 0~7.000A

Power Output: 150W

Accuracy of Voltage: ±0.5% + 1 word

Accuracy of Current: ±0.5% + 3 word

Resolution of Voltage: 0.01V

Resolution of Current: 0.001A

Storage Data Group: 10 groups

Soft Start: Yes

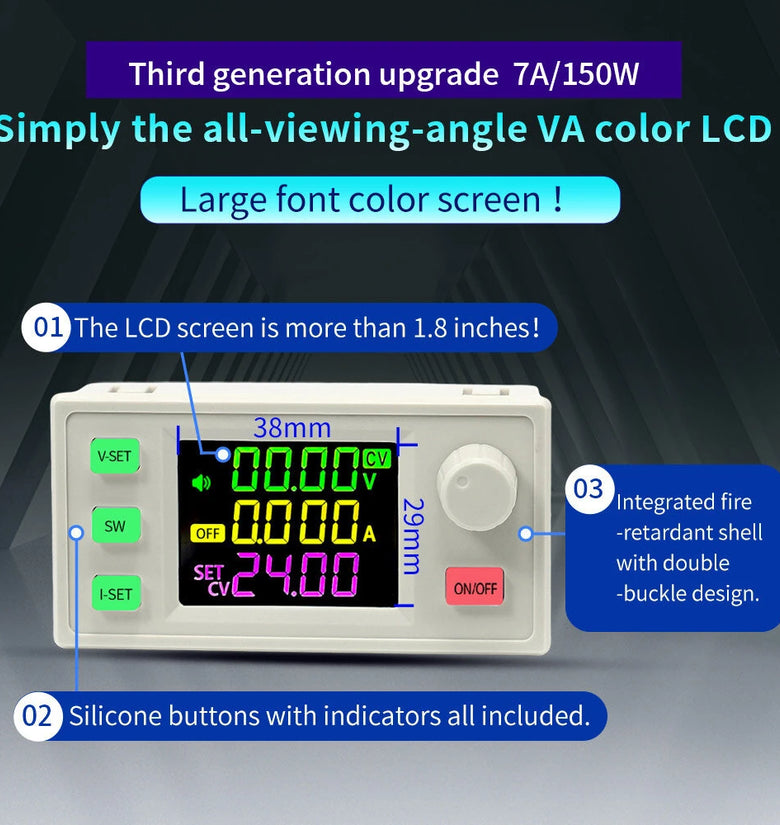

Screen Size: Over 1.8-inch LCD with a viewable area of 38*29mm

Output Ripple Typical Value: Vpp=150mv

MPPT Function: Supports MPPT solar charging

Efficiency of Conversion: About 88%

Number of Buttons: 5

Buzzer: Yes

Product Size: 79x50x43mm

Package Size: 104x70x52mm

Product Weight: 108g

Package Weight: 127g

Protection Mechanism:

Anti-backflow: Yes

Under-voltage (LVP): Adjustable 5.5-36V, default 5.5V

Over-voltage (OVP): Adjustable 0-38V, default 38V

Over-current (OCP): Adjustable 0-7.2A, default 7.2A

Over-power (OPP): Adjustable 0-180W, default 180W

Over-temp (OTP): Adjustable 0-110℃, default 95℃

Over-time Out (OHP): 1 minute - 99 hours 59 minutes, off by default

Over-capacity (OAH): Adjustable 0-9999Ah, disabled by default

Over-energy (OPH): Adjustable 0-4200KWh, off by default

Features:

1. Wide Voltage Range: The DC Buck-Boost Power Supply offers a flexible input voltage range of 6.0 to 36.00V and an output voltage range of 0 to 36.00V, ensuring compatibility with various power sources and devices. This adaptability makes it an ideal solution for diverse applications, including DIY electronics projects, laboratory experiments, and solar energy systems.

2. High Precision and Accuracy: With an accuracy of ±0.5% for both voltage and current, along with a fine resolution of 0.01V for voltage and 0.001A for current, the power supply delivers precise and reliable performance. This level of accuracy is important for applications requiring meticulous voltage and current management, such as battery charging and circuitry testing.

3. Advanced Protection Mechanisms: The power supply incorporates comprehensive protection features, including over-voltage protection, under-voltage protection, over-current protection, over-power protection, over-temperature protection, and anti-backflow protection. These safety mechanisms ensure your equipment from potential damage and ensure stable operation.

4. User-Friendly Interface: The device is equipped with a large, easy-to-read 1.8-inch LCD screen, displaying real-time voltage, current, and power information. Its intuitive interface, complemented by five functional buttons, enables effortless setting adjustments and parameter monitoring, enhancing user experience and operational efficiency.

5. MPPT Solar Charging Capability: The included MPPT (Maximum Power Points Tracking) function optimizes solar charging, ensuring maximum conversion efficiency from solar panels to your devices. This feature is particularly beneficial for sustainable and off-grid power systems, providing an eco-friendly and efficient charging solution.

Package Included:

1 x XY-SK150X DC Buck-Boost Power Supply
