Specifications:
Product Brand: Sinilink

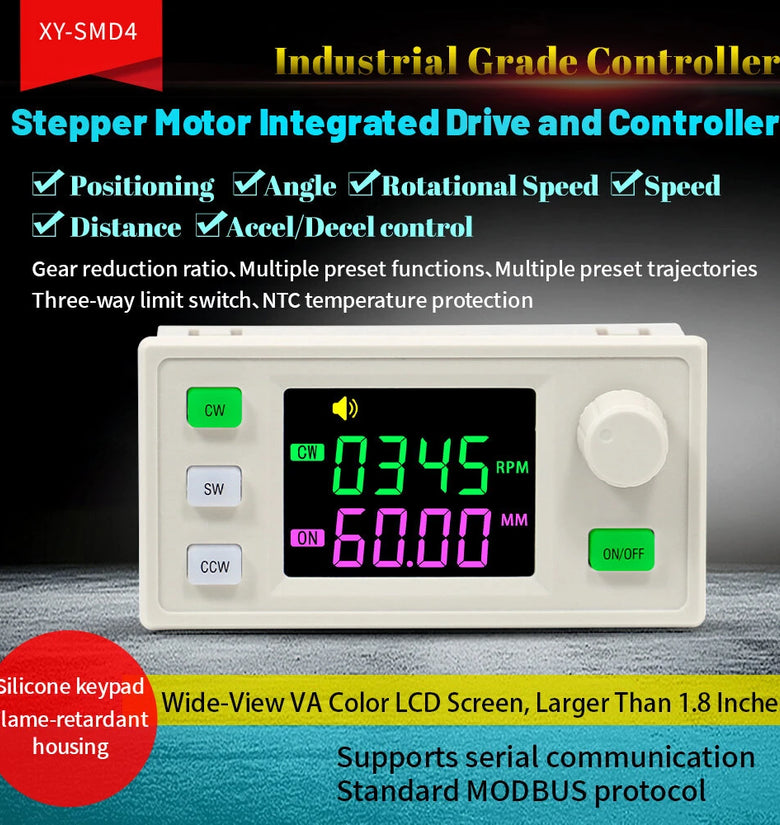

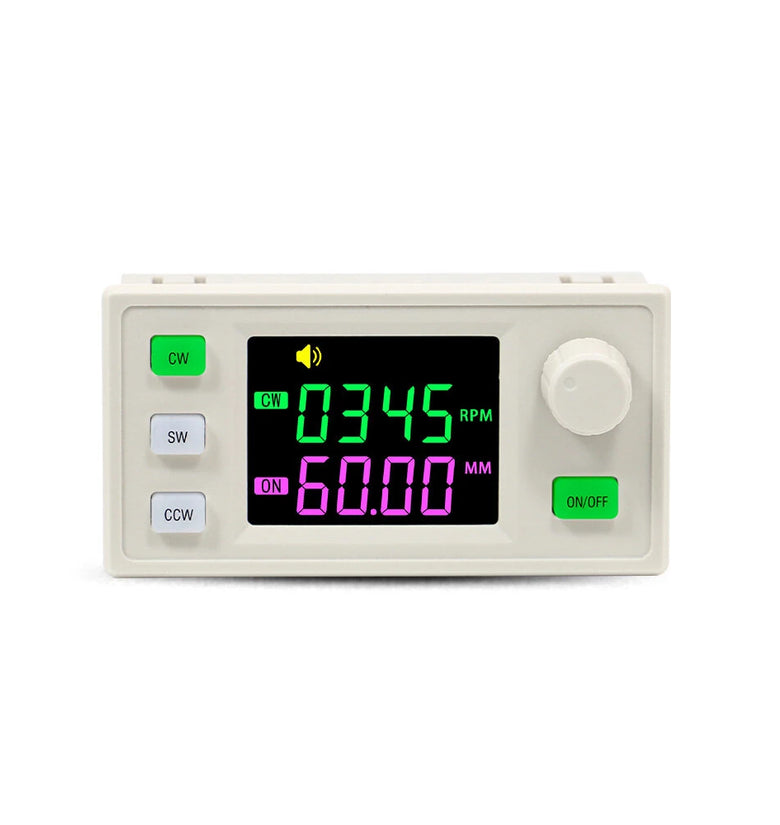

Product Name: Stepper Motor Integrated Drive and Controller
Model Number: XY-SMD4
Applicable Motor Type: 42, 57 Stepper Motor
Control Axes: Single-axis
Motor Signal: Common Cathode
Power Supply Range: DC 10V~30V
Driving Capacity: 4A
Acceleration/Deceleration Control: YES
Reverse Connection Protection: YES
Over-Temperature Protection: YES
Active Cooling: YES (Fan starts above 55°C, stops below 50°C)
Communication Interface: TTL Serial (Standard MODBUS Protocol)
Main System Functions: Auto, Manual, Setup, Serial Control
Pulse Frequency Range: 100Hz~80000Hz
Speed Class Range: 0-1000
Forward Travel: 9999.999mm
Reverse Travel: 9999.999mm
Cycle Operation Count: 1-9999, Infinite Loop
CW Delay Time: 0.000~9999.000s
CCW Delay Time: 0.000~9999.000s
Microstepping Range: 1-32 Microsteps
Operating Temperature: -5°C~60°C (Non-condensing)
Product Size: 864145mm
Product Weight: 90g (including packaging: 110g)
Features:
1. Wide Compatibility: Compatible with 42 and 57 stepper motors, ensuring flexible integration with diverse motor types for applications requiring precision.
2. Comprehensive Protection Mechanisms: Built-in reverse connection and over-temperature protection safeguards the device from damage and ensure operational stability.
3. Flexible Control Options: Offers multiple system functions, including auto, manual, setup, and serial control, meeting diverse application requirements with ease.
4. Efficient Cooling Design: Integrated active cooling system automatically activates with high temperatures to maintain optimal performance and extend product longevity.
5. Compact and Lightweight Design: A portable and space-saving form factor (864145mm) and light weight of 90g make this device perfect for tight installation areas.
Package Included:
1 x Stepper Motor Integrated Drive and Controller
