Specifications:
Brand: Sinilink
Model: XY-SMD6
Supported Motor Type: 42, 57, 86 Stepper Motor
Control Axis: Single-axis
Motor Signal Type: Common Cathode
Power Input: DC 10V–30V
Driving Capacity: Peak Current 6.6A
Acceleration/Deceleration Control: Supported
Reverse Connection Protection: Supported
Over-Temperature Protection: Supported
Cooling: Smart cooling system (Fan activates above 55°C and stops below 50°C)

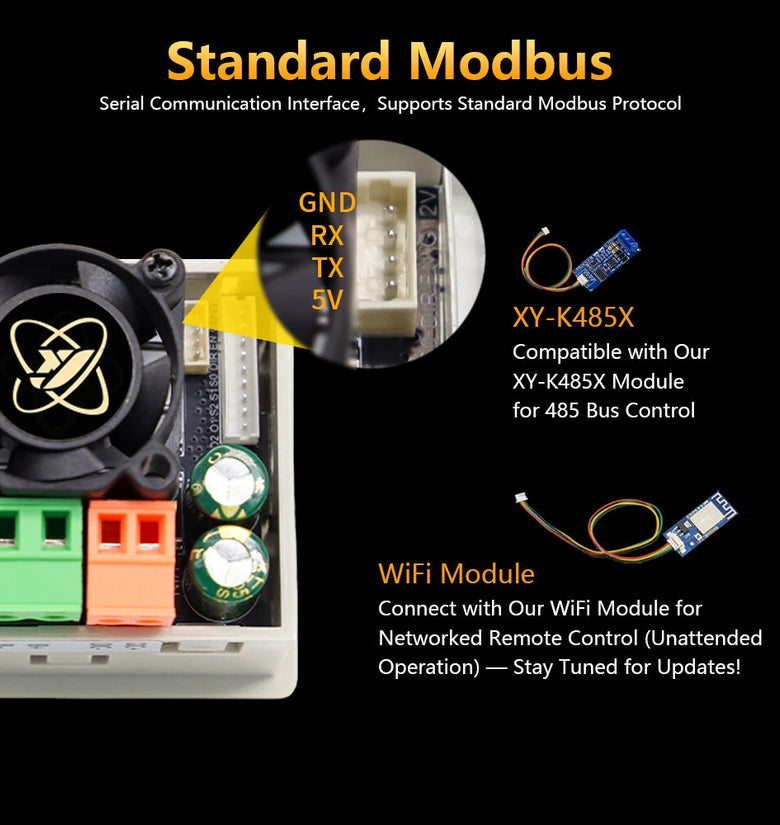

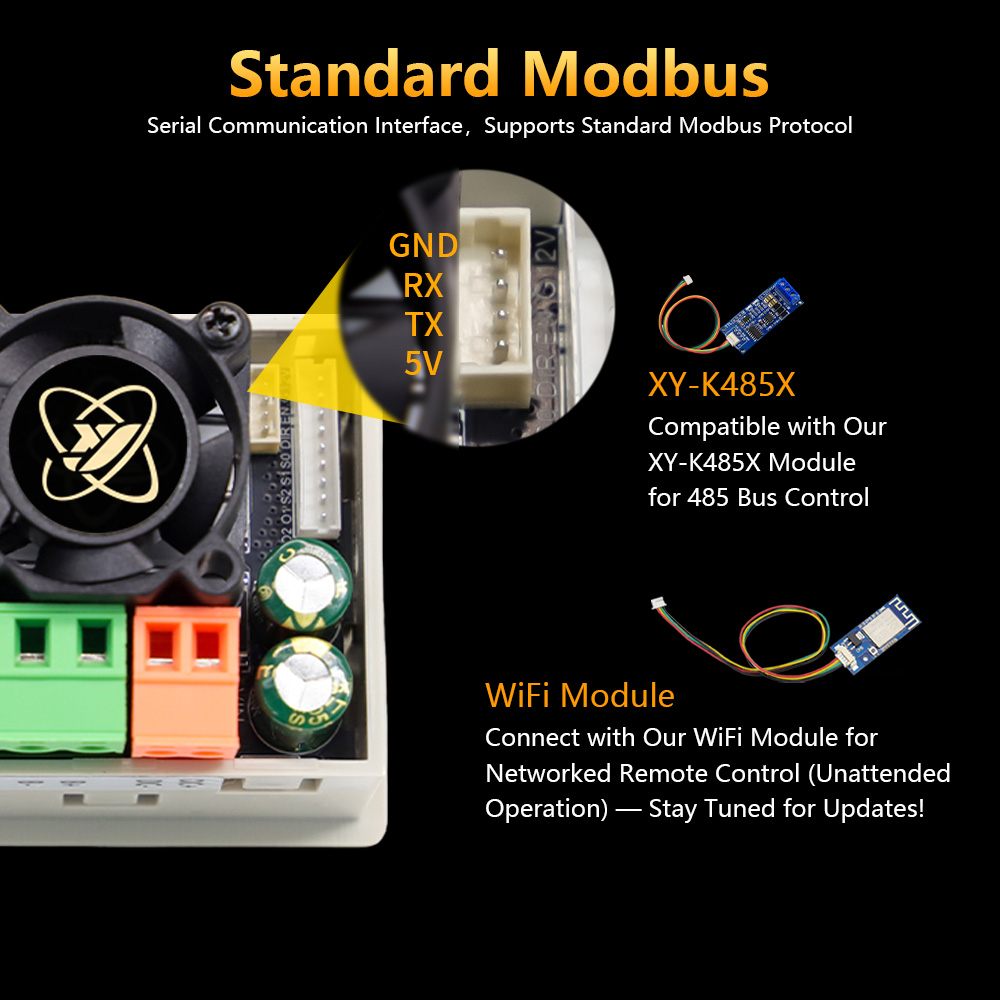

Communication Interface: TTL Serial (Standard MODBUS Protocol)

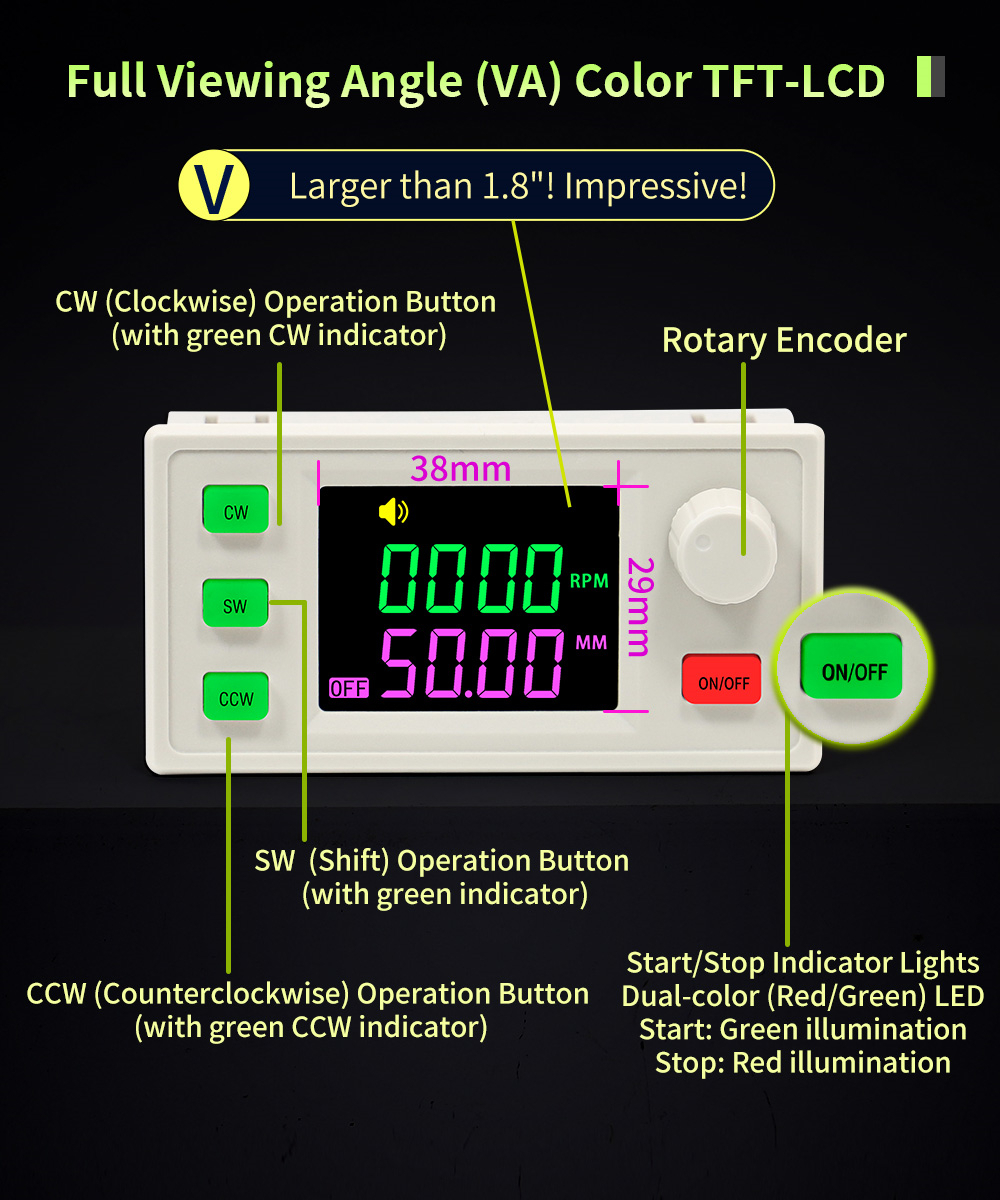

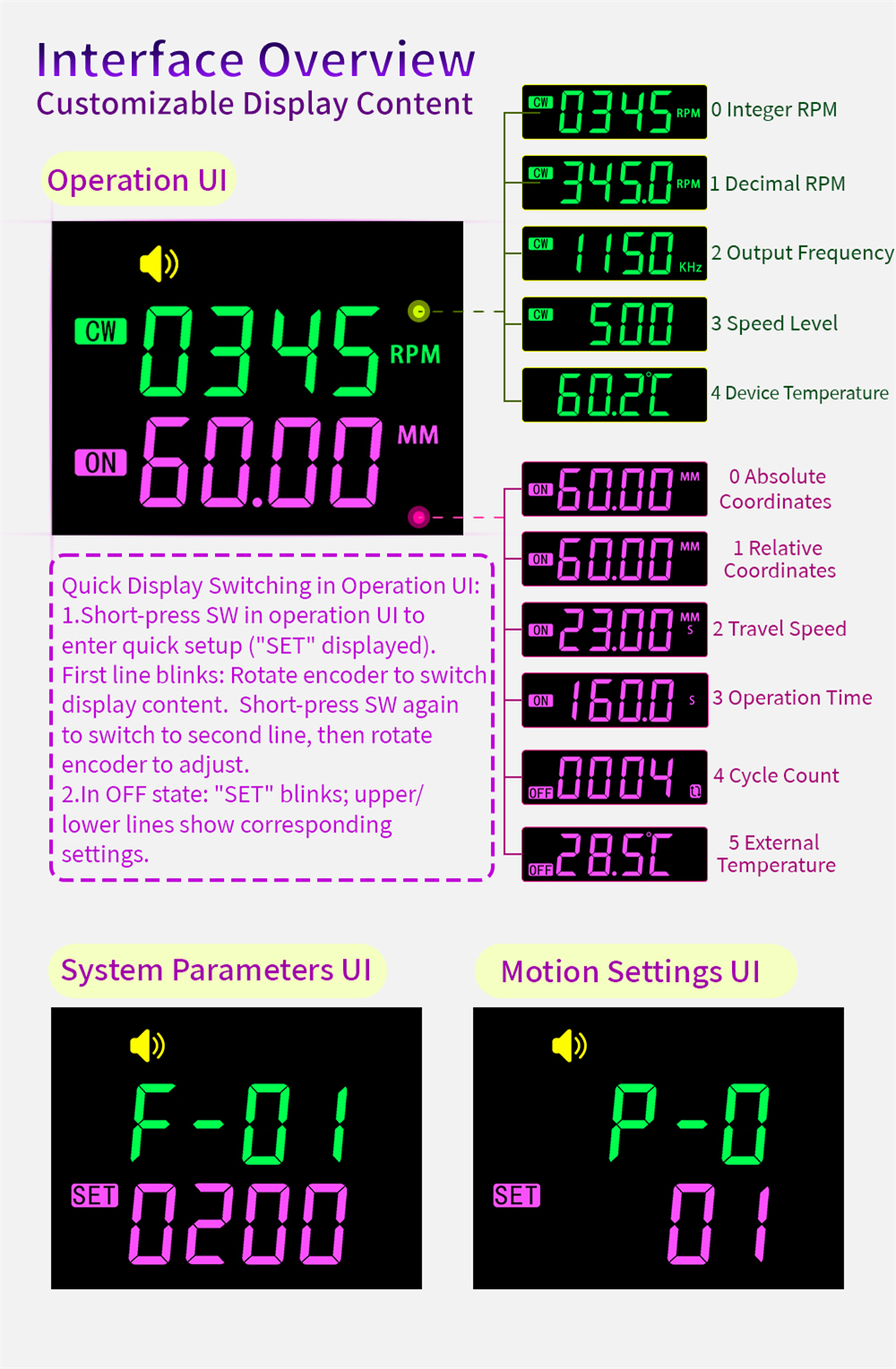

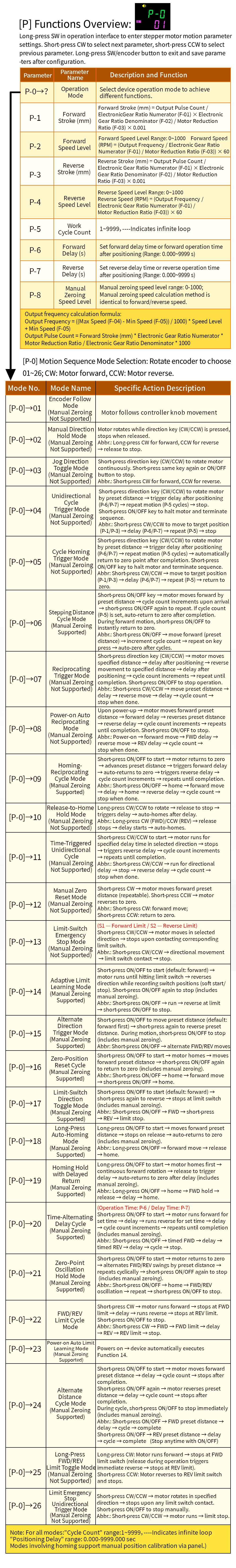

System Modes: Auto, Manual, Setup, Serial Control
Pulse Frequency Range: 100Hz–80,000Hz
Speed Class Range: 0-1000
Forward/Reverse Travel: 9999.999mm
Cycle Operation Count: 1–9999, Infinite Loop Mode Supported
CW/CCW Delay Time: 0.000–9999.000 seconds

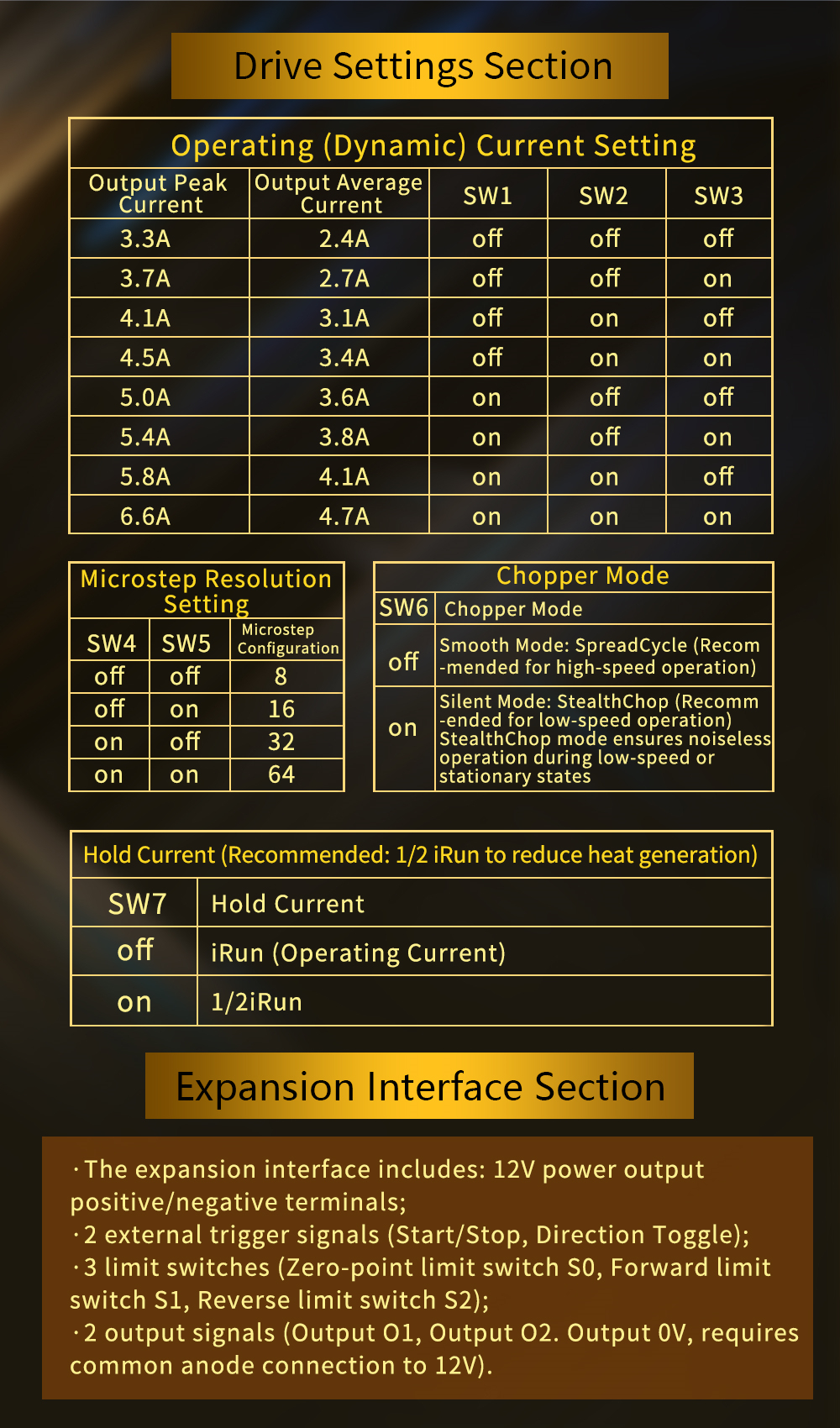

Microstepping Range: 8–64 microsteps
Operating Temperature: -10°C to 60°C (Non-condensing)

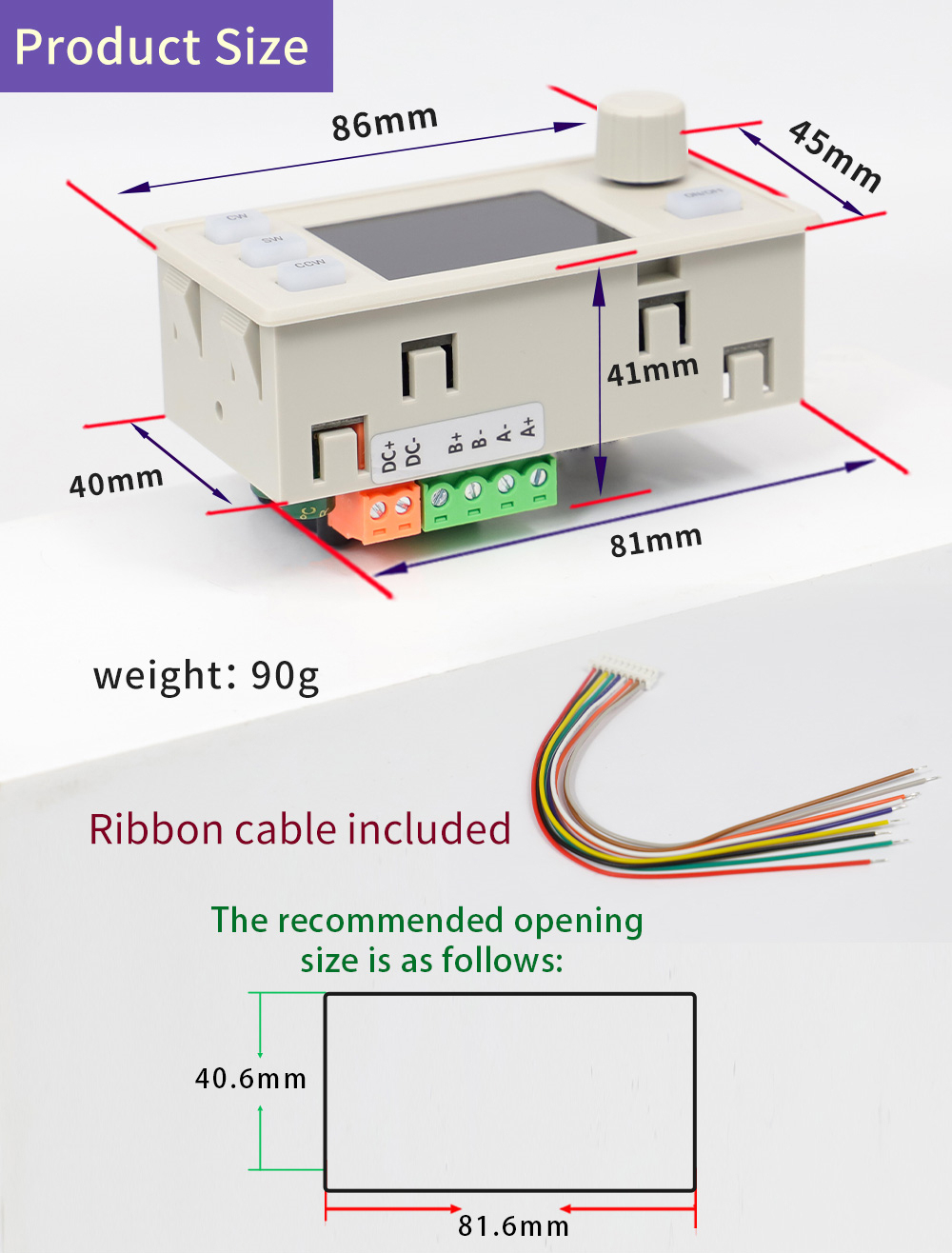

Product Dimensions: 86 × 41 × 45 mm
Weight: 90g (Net)

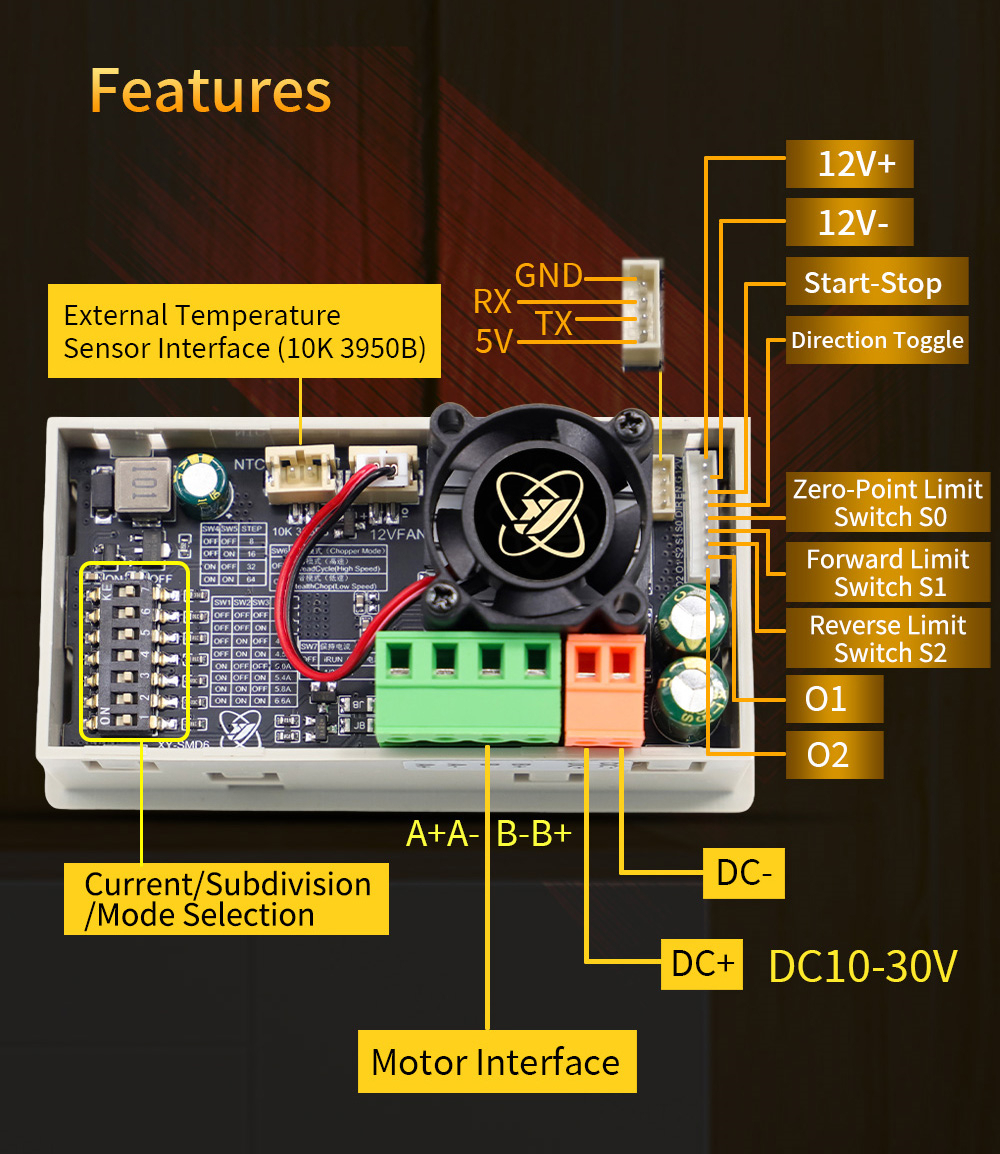

Features:
1. Wide Compatibility: Supports multiple stepper motor sizes (42, 57, 86) for diverse automation setups, making it suitable for a broad range of applications.
2. High Precision Control: Pulse frequency ranges up to 80,000Hz with microstepping options (8–64 microsteps), providing fine and accurate motor adjustments.
3. Robust Safety Mechanisms: Includes reverse connection protection and over-temperature safeguards, ensuring safe and stable operation.
4. Customizable Functionality: Offers manual, automatic, and serial control modes, paired with a flexible cycle operation count and delay times for tailored performance.
5. Smart Thermal Management: Equipped with an intelligent cooling fan system that activates and deactivates autonomously based on internal temperature thresholds.
Package Included:

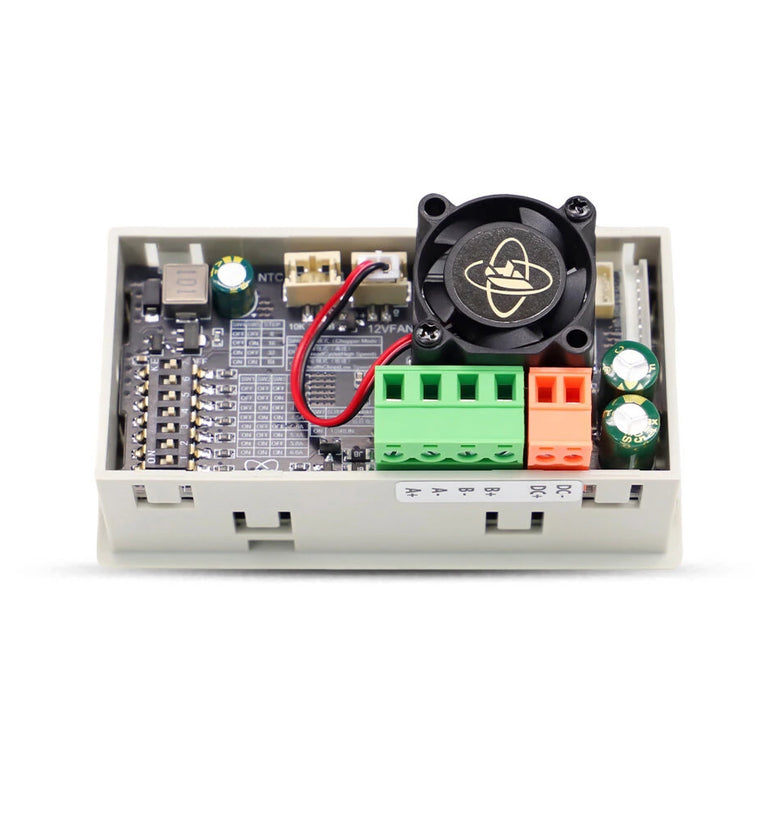

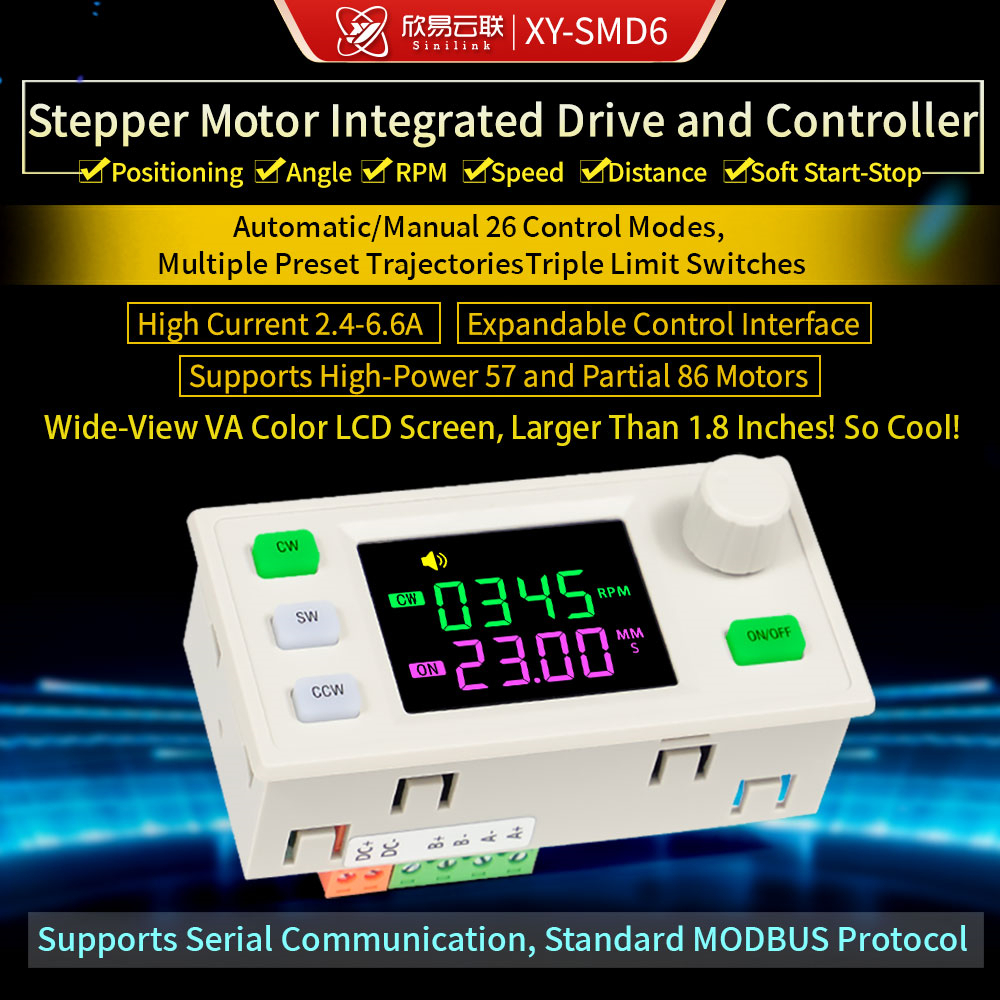

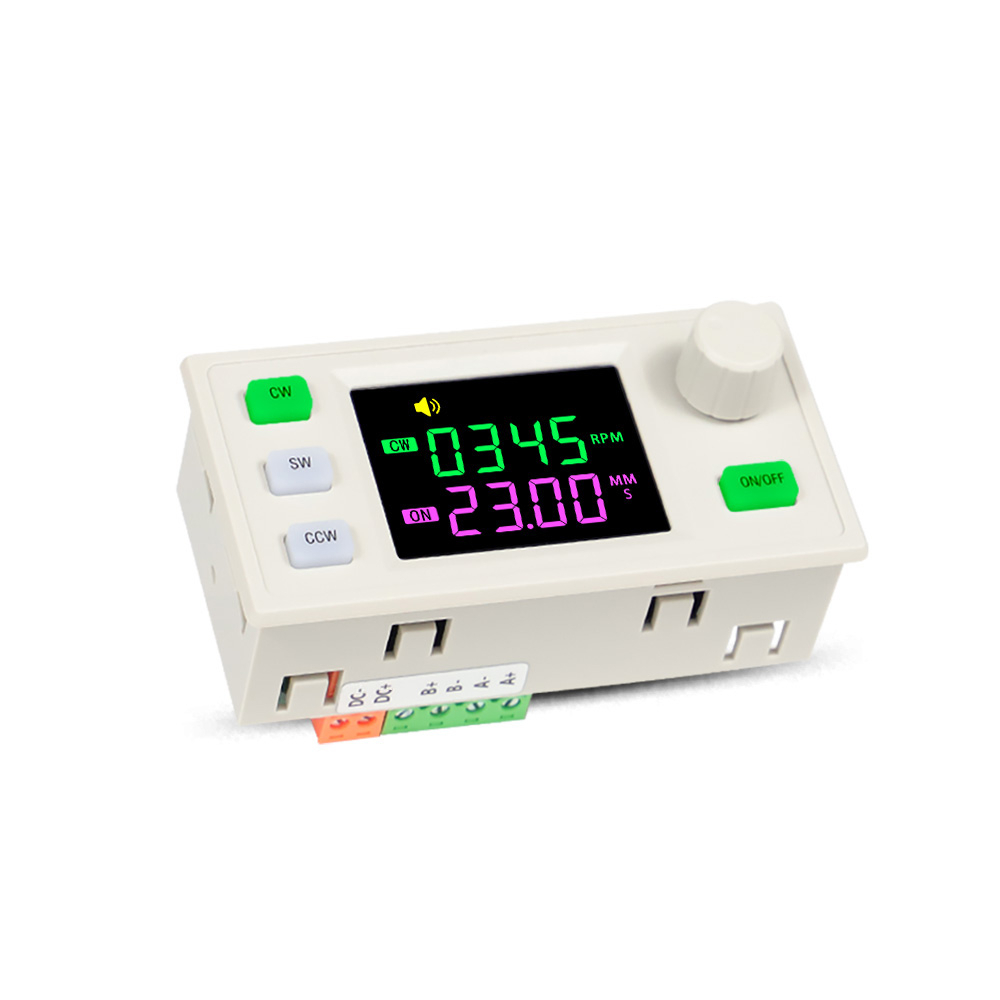

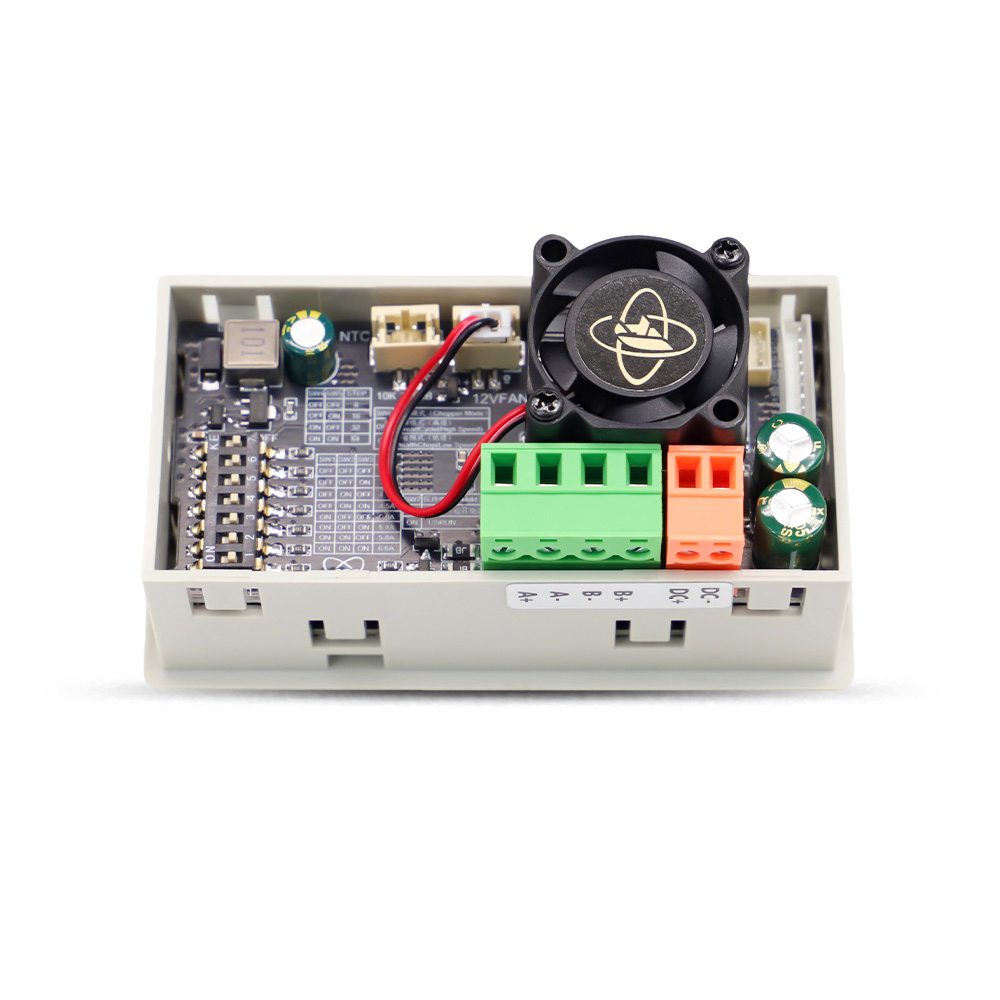

1 × XY-SMD6 Stepper Motor Integrated Drive and Controller
