Specifications:

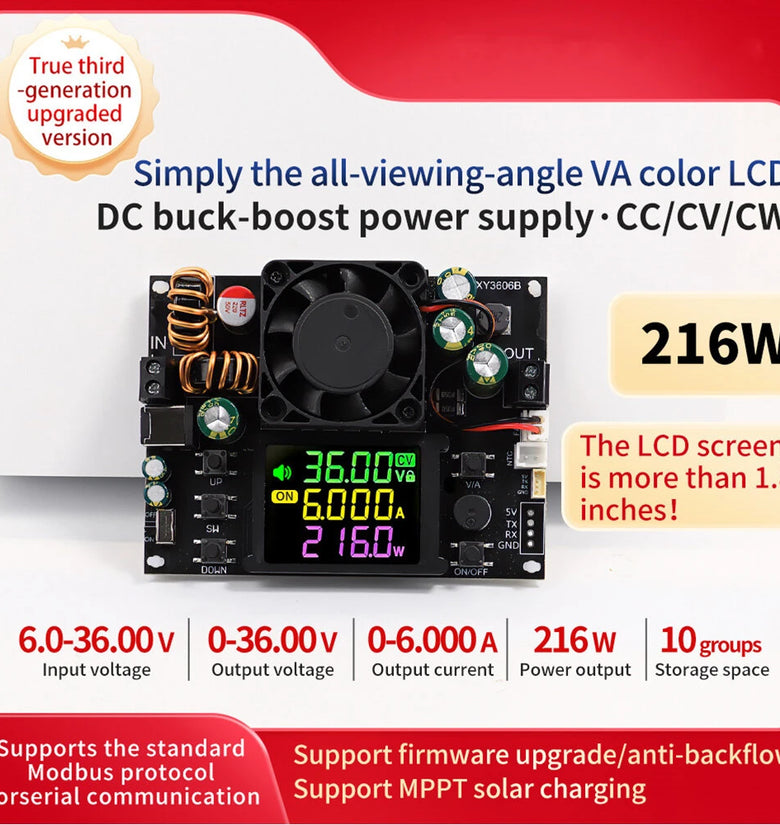

Product Name: DC Buck-Boost Power Supply
Model: XY3606B
Input Voltage: 6.0~36.0V
Output Voltage: 0~36.0V
Output Current: 0~6.000A
Power Output: 216W
Voltage Accuracy: ±0.5%+1 word
Current Accuracy: ±0.5%+3 words
Resolution of Voltage: 0.01V
Resolution of Current: 0.001A
Storage Data Groups: 10 groups
Soft Start: Yes

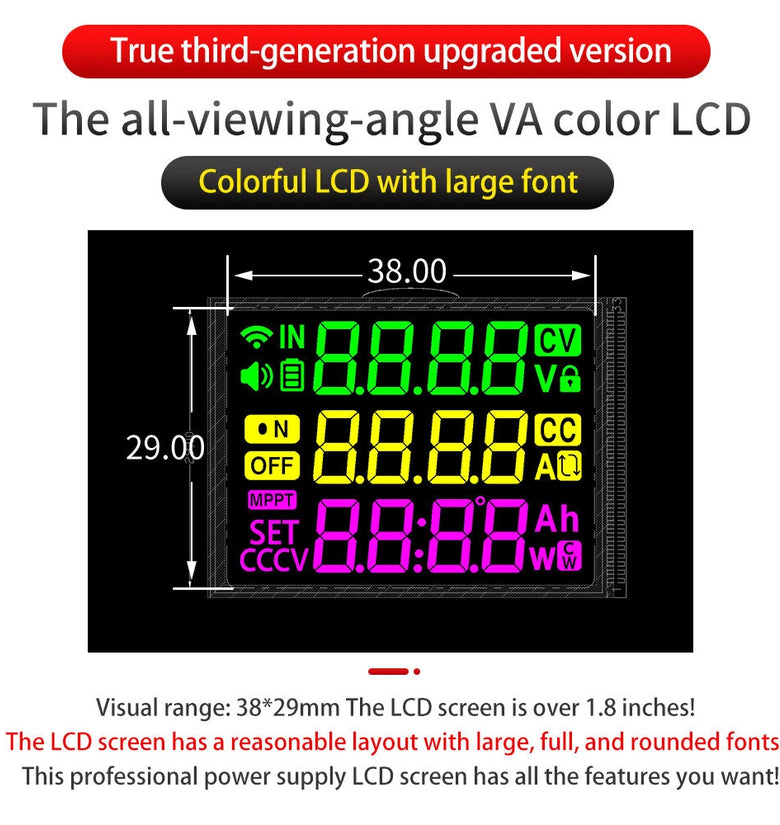

Screen Size: Over 1.8-inch LCD with a viewable area of 38*29mm
Output Ripple (Typical Value): vpp-150mv
MPPT Function: Support MPPT solar charging
Efficiency of Conversion: About 88%
Product Size: 100x75x24mm
Package Size: 128x100x38mm
Product Weight: 125g
Weight with Packaging: 160g

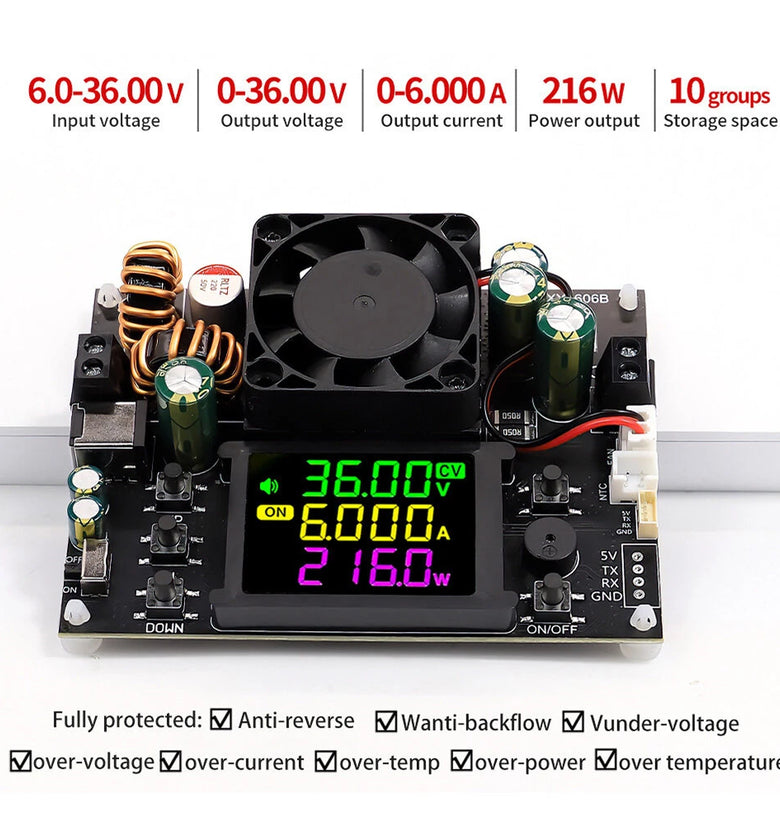

Protection Mechanism:
Anti-backflow: Yes
Under-voltage (LVP): Adjustable 5.5-36V, default 5.5V
Over-voltage (OVP): Adjustable 0-38V, default 38V
Over-current (OCP): Adjustable 0-6.2A, default 6.2A
Over-power (OPP): Adjustable 0-250W, default 230W
Over-temp (OTP): Adjustable 0-110℃, default 95℃
Over-time Out (OHP): 1 minute - 99 hours 59 minutes, off by default
Over-capacity (OAH): Adjustable 0-9999Ah, disabled by default
Over-energy (OPH):
