Specifications:

>>>Manual: Click here to open<<<

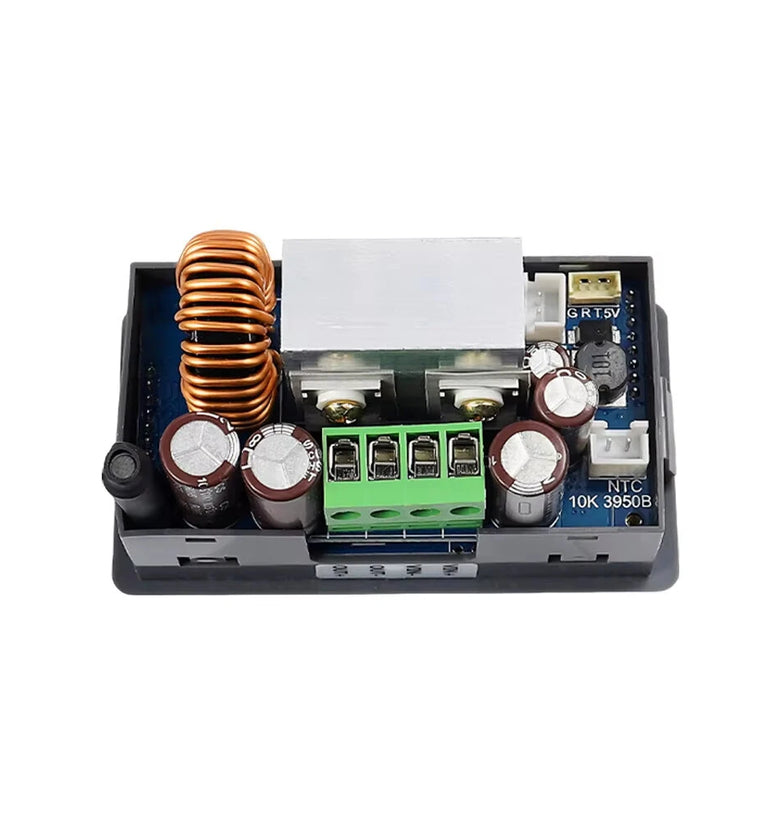

Product Name: DC Buck-Power Supply

Model: XY6506

Input Voltage: 12~72.00V

Output Voltage: 0~65.00V

Output Current: 0~6.000A

Accuracy of Voltage: ±0.5%+1 word

Power Output: 390W

Accuracy of Current: ±0.5%+3 word

Resolution of Voltage: 0.01V

Resolution of Current: 0.001A

Storage Data Group: 10 groups

Soft Start: YES

Screen Size: Over 1.8-inch LCD with a viewable area of 38*29mm

Output Ripple Typical Value: Vpp-150mv

MPPT Function: Support MPPT solar charging

Efficiency of Conversion: About 95%

Number of Buttons: 5

Product Size: 79x50x43mm

Product Weight: 114g

Protection Mechanism:

Anti-reverse: YES

Under-voltage (LVP): Adjustable 10-75V, default 10V

Over-voltage (OVP): Adjustable from 0 to 67V, default 67V

Over-current (OCP): Adjustable from 0 to 6.2A, default 6.2A

Over-power (OPP): Adjustable from 0 to 420W, default 400W

Over-temp (OTP): Adjustable from 0 to 110°C, default 95°C

Over-timeout (OHP): Adjustable 1 minute - 99 hours 59 minutes, off by default

Over-capacity (OAH): Adjustable from 0 to 9999Ah, disabled by default

Over-energy (OPH): Adjustable from 0 to 4200KWh, off by default

Features:

1.Wide Input Voltage Range

The XY6506 DC Buck-Power Supply supports a broad input voltage range from 12V to 72V. This versatility makes it suitable for a wide range of applications, providing reliable performance across various input levels.

Adjust your input accordingly to match specific requirements, ensuring compatibility with multiple power sources without sacrificing reliability.

2.High Accuracy and Precision

This power supply boasts an accuracy of ±0.5%+1 word for voltage and ±0.5%+3 word for current. The fine resolution of 0.01V for voltage and 0.001A for current guarantees precise measurements and adjustments.

Ideal for detailed and sensitive tasks, these features ensure that your power output remains consistent and accurate, meeting stringent quality standards.

3.Advanced Protection Mechanism

Equipped with multiple protection features including under-voltage, over-voltage, over-current, over-power, over-temperature, over-time out, over-capacity, and over-energy safeguards. Each protection mode is adjustable to cater to various usage conditions.

These comprehensive protections ensure safety and longevity of both your power supply and connected devices.

4.Efficient Power Conversion

With an efficiency rate of about 95%, the XY6506 maximizes power conversion, minimizing energy loss. This efficiency translates to cost savings and reduced heat generation, making the device environmentally friendly and budget-conscious.

Ensures that more of your input power is converted into useful output, enhancing overall performance.

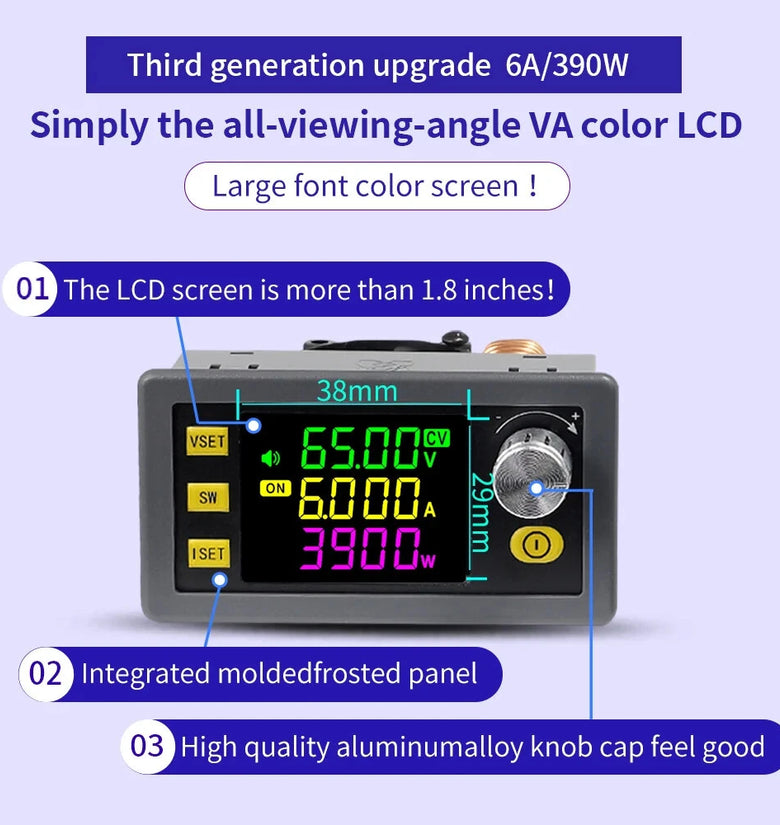

5.User-Friendly Interface

Featuring a large over 1.8-inch LCD screen with a clear display area of 38*29mm, users can easily monitor and adjust settings in real-time. The presence of 5 buttons facilitates easy navigation and setup of parameters.

The interface is designed for intuitive use, making it accessible even for those who may not be technically inclined.

Package Included:

1 x DC Buck-Power Supply (Model: XY6506)
