Specification:
Brand: Sinlink
Model: XY-AP2202

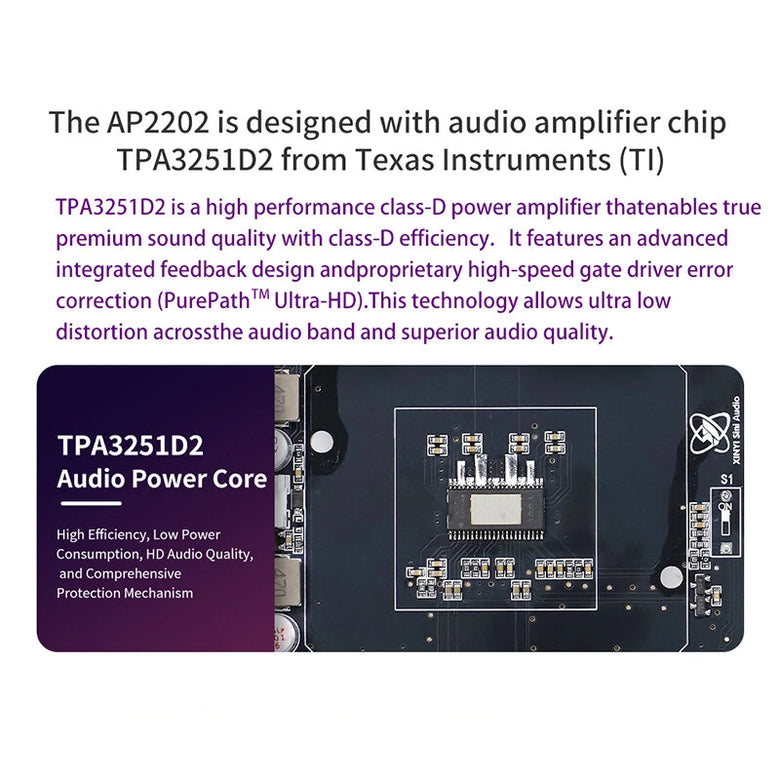

Power Amplifier Chip: TPA3251D2
Power Supply: DC 12-36V / 10A
Audio Input: AUX + RCA + XH2.54-3P
BTL Output Power:
20W + 20W @ 4Ω / 12VDC
70W + 70W @ 4Ω / 24VDC
30W + 30W @ 8Ω / 24VDC
80W + 80W @ 8Ω / 36VDC
160W + 160W @ 4Ω / 36VDC
220W + 220W @ 3Ω / 36VDC
PBTL Output Power:
20W @ 4Ω / 12VDC
30W @ 8Ω / 24VDC
70W @ 4Ω / 24VDC
80W @ 8Ω / 36VDC
160W @ 4Ω / 36VDC
350W @ 2Ω / 36VDC

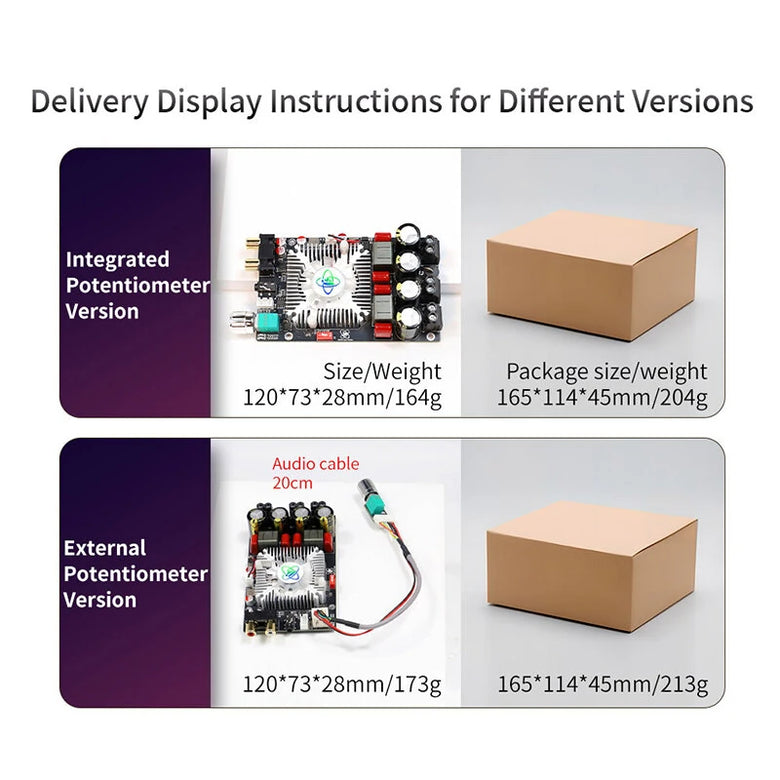

Dimensions: 120mm x 73mm x 28mm
Weight:
Integrated Potentiometer Version: 164g

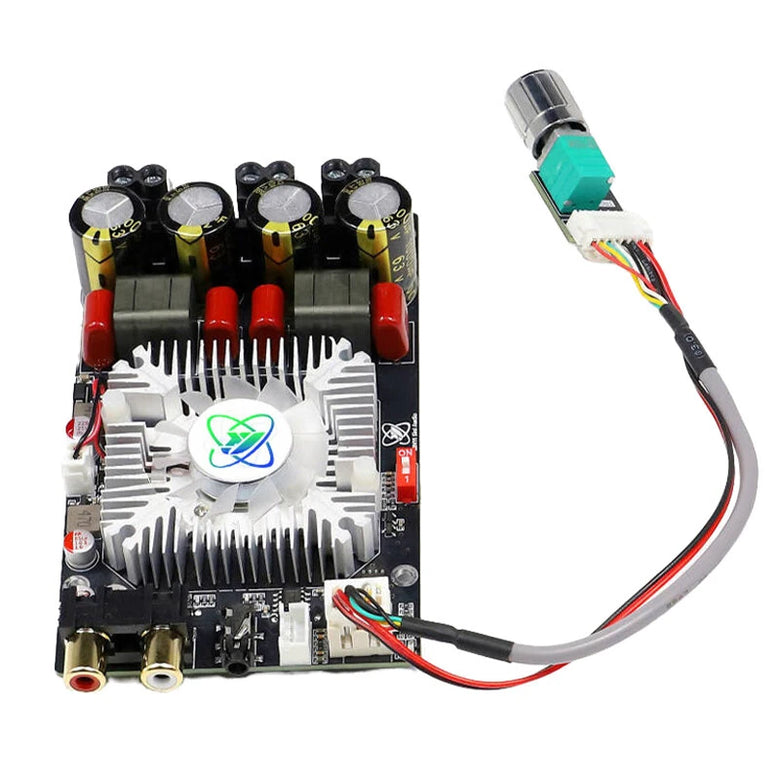

External Potentiometer Version: 173g
Features:
1. High Performance TPA3251D2 Chip: Featuring class-D efficiency with advanced integrated feedback design and proprietary high-speed gate driver error correction, enabling ultra-low distortion.
2. Multiple Audio Inputs: Equipped with AUX, RCA, and XH2.54-3P interfaces for various audio input options.

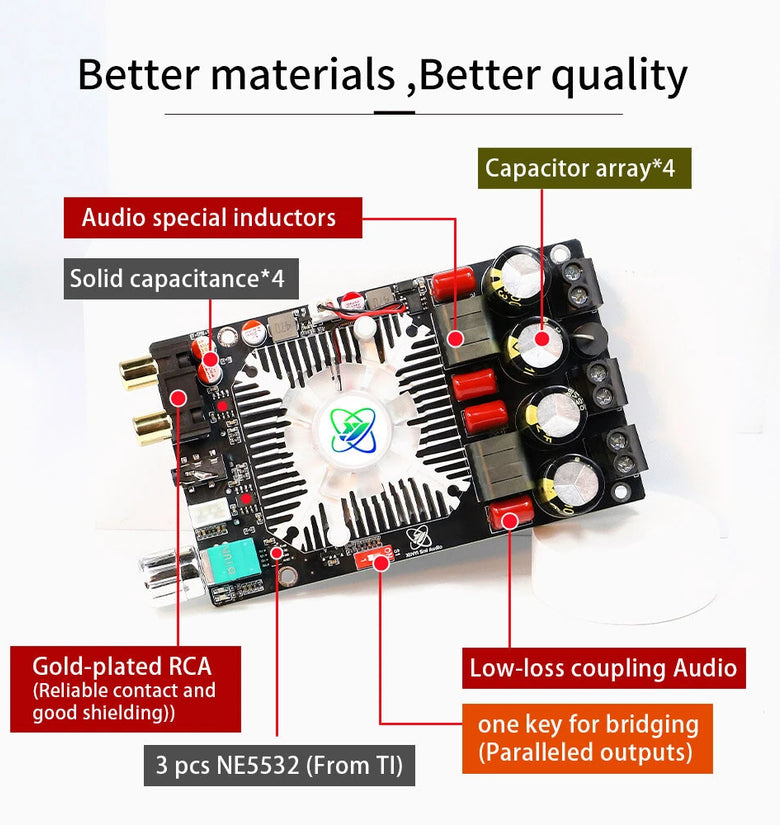

3. Gold-Plated RCA Connectors: Provides reliable contact and efficient shielding for improved sound quality.

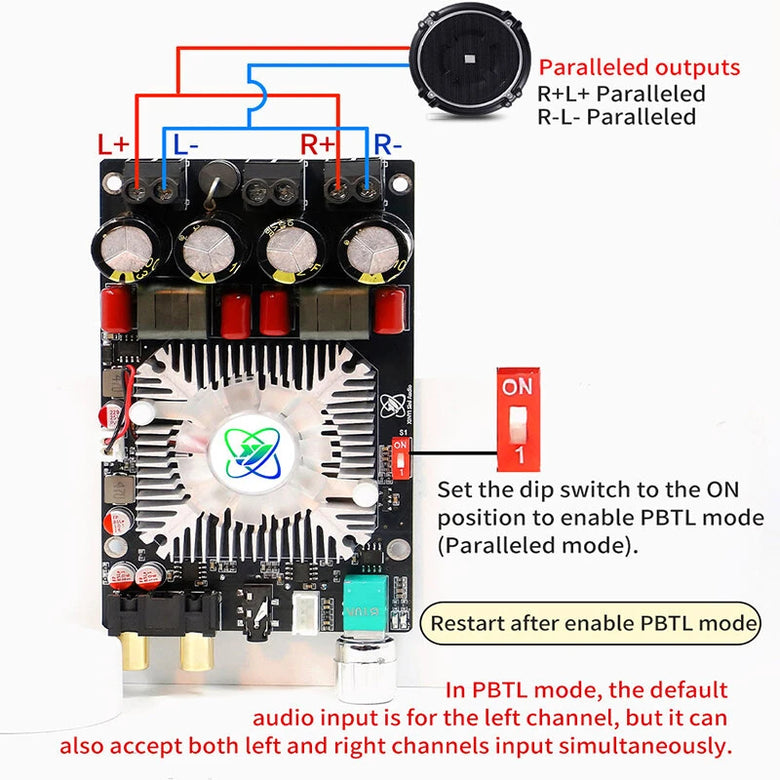

4. Bridging Capability: Offers one key function for bridging, allowing paralleled outputs for higher power configurations.
5. Gain Control: Adjustable gain setting for both left and right channels, ensuring optimized audio performance for different applications.
Package Include:
1x Module Board(Integrated/External Version Optional)
