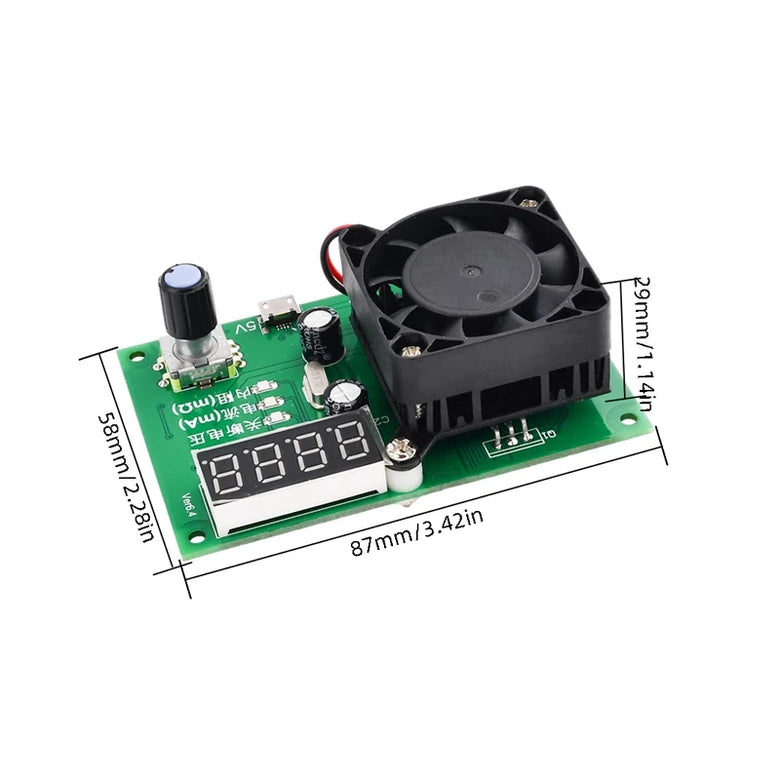

Specifications:

Max Connection Voltage: 15V

Power-off Voltage Range: 1.0-12V (adjustable, step length 0.05V)

Max Current: 3.5A; error: ≤0.5%

Max Power: 16W

Operating Temperature: -20~70℃

Power Supply: MINI USB interface (5V voltage), actual current consumption within 240mA

Max Detection Capacity: 500000mAh (500Ah)

Fan Specifications: 8025 12VDC

Display Type: 4-bit digital tube

LED Indicators: 5 LEDs for capacity, measured voltage, power-off voltage, current, temperature

Measurement Units:

Capacity: AH (4-bit valid number display)

Voltage: V (3-bit valid number display, last digit is U)

Temperature: Celsius (3-bit valid number display)

Features:

1. Precision Voltage and Current Control: The TEC-06 Battery Capacity Tester offers precise control over connection and power-off voltages, adjustable from 1.0V to 12V with a 0.05V step length. This allows for fine-tuning to meet specific testing requirements and ensures accurate readings.

2. Automatic Current Adjustment: When the battery's current is insufficient, the detector automatically adjusts the set current until the actual current matches the set value. If the actual current falls below 40% of the set value, the detector stops discharging, thereby protecting the battery and ensuring safety.

3. Versatile Power Supply: Powered via a MINI USB interface with a 5V voltage, the TEC-06 operates within a low power consumption range of 240mA. This makes it highly flexible and suitable for a range of power supply scenarios, including portable and bench-top setups.

4. Comprehensive Display and Indication: The display uses a 4-bit digital tube with 5 corresponding LED indicators for capacity, voltage, power-off voltage, current, and temperature. This clear and detailed display system allows easy monitoring and rotation between different display modes for efficient data observation.

5. Customizable Discharge Settings: The current setting can be customized through a simple rotation and press of a switch, allowing for precise adjustments. The system retains these settings even after power-off, facilitating convenient usage without the need for repeated calibrations.

Package Included:

1 x TEC-06 Battery Capacity Tester Single Versionmso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
