Specification:

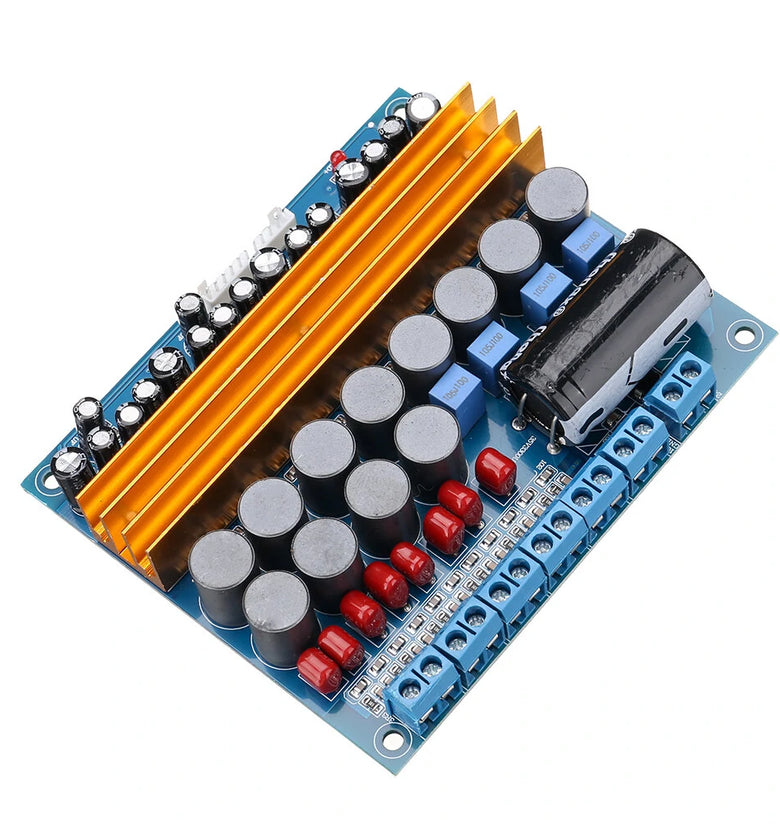

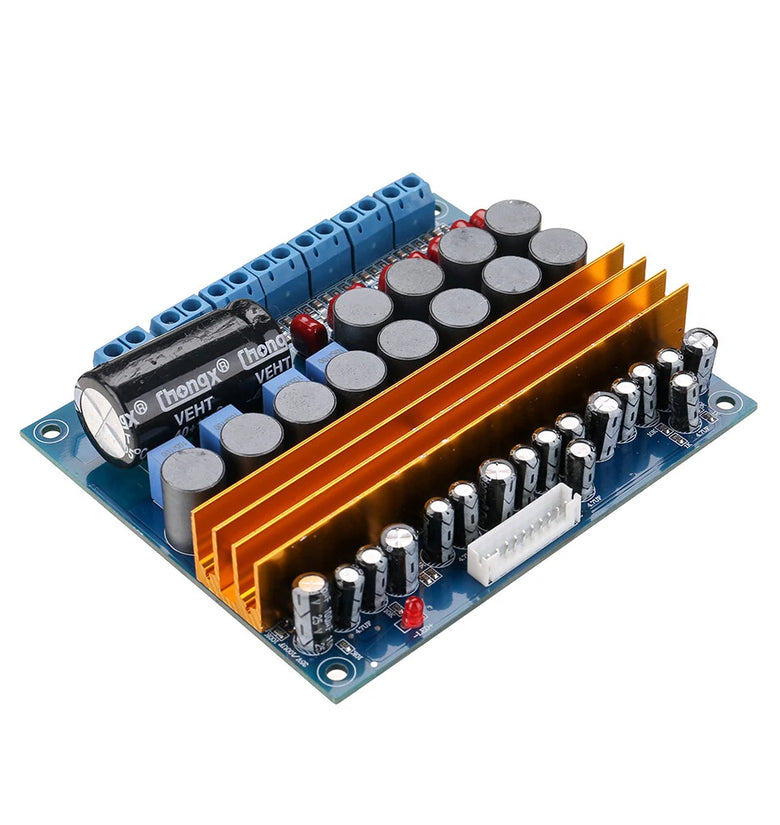

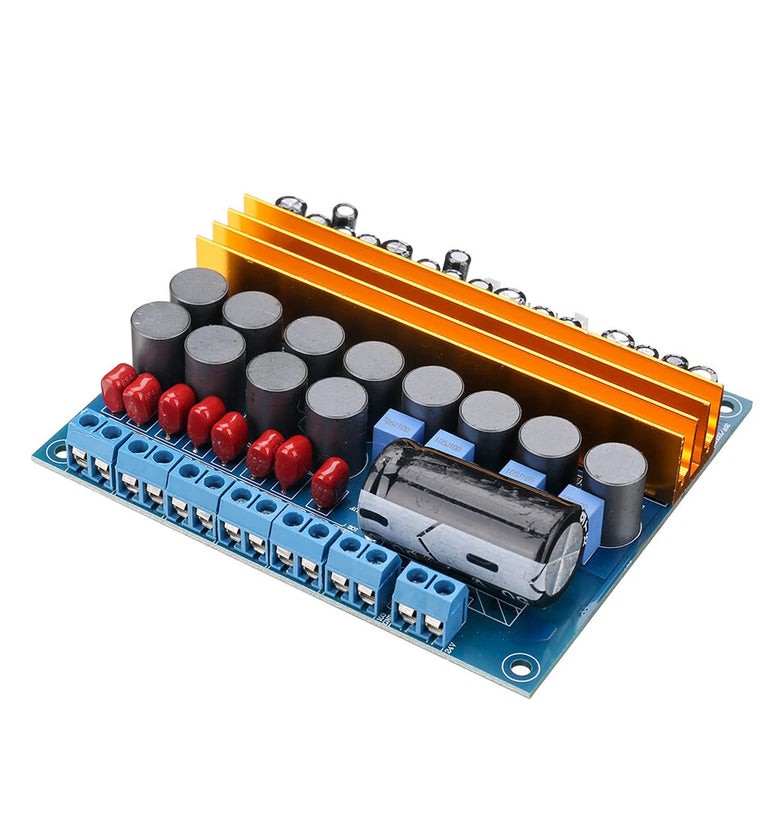

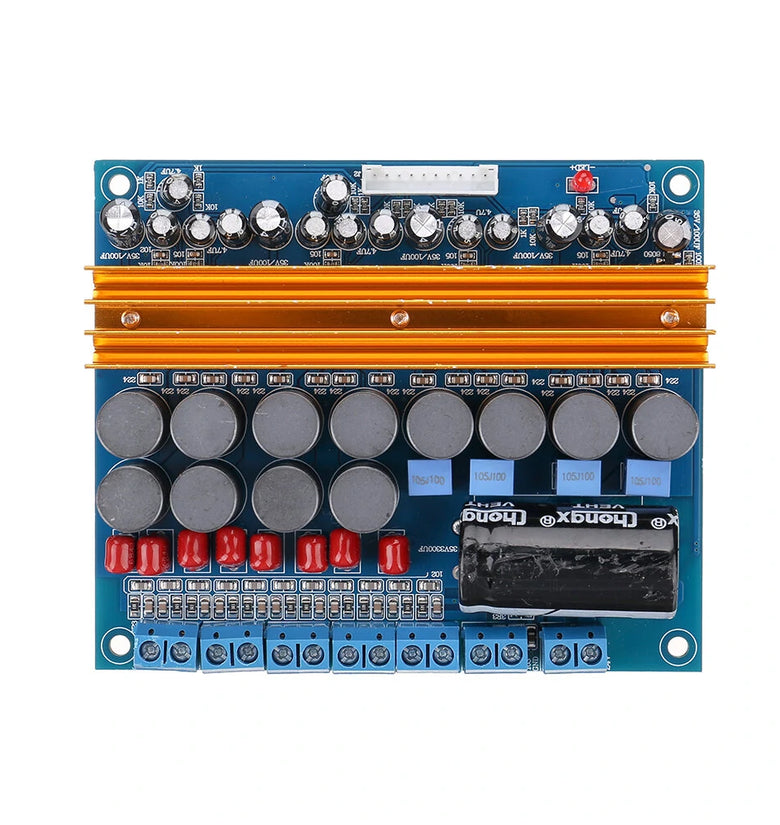

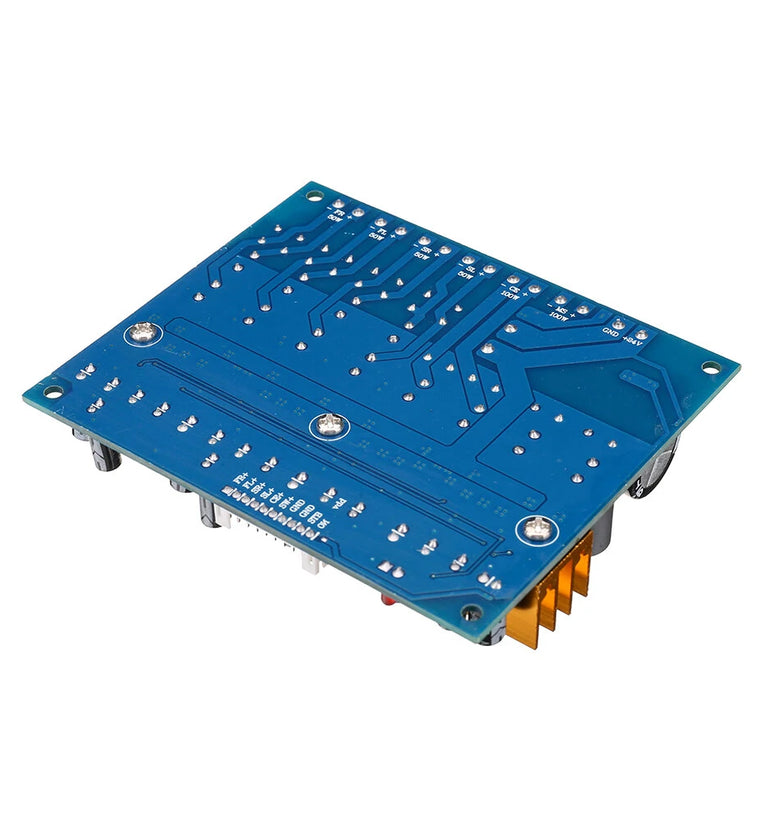

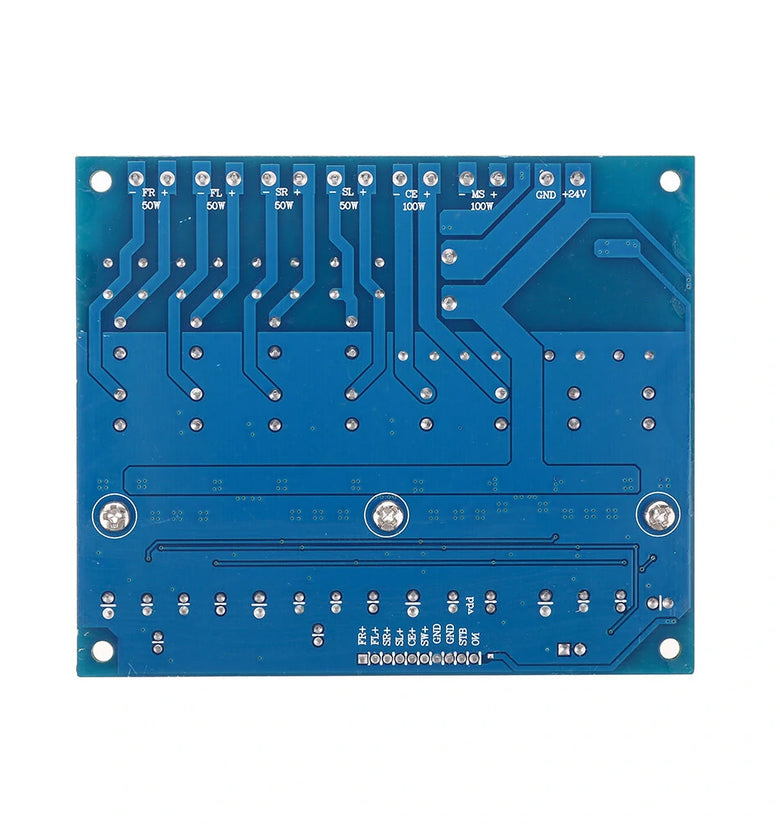

Product Name: TPA3116 5.1 Channel Class D Power Amplifier
Model Number: TPA3116-5.1AMP
Input Sensitivity: 1.1V (high impedance)
Input Compatibility: Computer sound card, decoder, DVD player, car navigation, etc.
Output Power:
Main and Surround Channels: 50W x 4
Center and Bass Channels: 100W x 2
Power Supply: DC19-24V (10A recommended), not compatible with AC power
Dimensions: 100mm (L) x 80mm (W) x 30mm (H)
Speaker Matching:
Subwoofer: 3-4 ohms recommended
Other Channels: 6-8 ohms recommended
Features:
1. 6-Input, 6-Output Design: This amplifier features independent 6 input and 6 output channels, delivering a pure and robust audio signal to each speaker.
2. High Sensitivity Input: The amplifier's high input sensitivity of 1.1V allows direct connection to various devices such as computer sound cards, decoders, DVD players, and car navigation systems. No additional amplification required.
3. Advanced Core and Components: Built around 4 TPA3116 core amplifiers, coupled with ruuby electrolysis for optimal signal transmission. The low-pass filter employs for TDK inductors and Philiips CBB capacitors, ensuring exceptional sound quality.
4. Accurate Control and Start-up Features: Equipped with ACC-controllable delay start and GM circuit control, the amplifier eliminates any sound distortion during power-on. External control switch and LED indicator interface provide added convenience.
5. Efficient and Reliable Design: Utilizing large-hole pure copper terminals, the amplifier ensures secure and reliable wiring connections. The compact size, high efficiency, and power-saving design make it ideal for various applications, including home theaters and car audio.
Package Include:
1x Digital Power Amplifier Board
